Proscan PSP1201 Bruksanvisning
Les nedenfor 📖 manual på norsk for Proscan PSP1201 (6 sider) i kategorien Høyttaler. Denne guiden var nyttig for 3 personer og ble vurdert med 4.6 stjerner i gjennomsnitt av 2 brukere
Side 1/6
PORTABLE TWS BLUETOOTH LIGHT UP SPEAKER/BOOMBOX
User Manual
PSP1201
PROSCAN, and the PROSCAN logo are trademarks used under
license by CURTIS INTERNATIONAL LTD.- www.proscan-brand.com.
DEAR CUSTOMER
In order to achieve the best performance of your product, please read this instruction
manual carefully before using, and keep It for future reference.
NOTE
This unit may be submitted to changes in specifications, characteristics and/or operation
without prior notice to the use, in order to continue improving and developing
its technology.
Packing list
Upon opening the package, please check for the following items:
1 x Speaker
1 x Instruction manual
1 x Charging Cable
Do’s and Don’ts
• Do not play music at excessive levels as damage to hearing and / or equipment may
result.
• Do not use outdoors in wet or in damp surroundings.
Specifications:
Power: 20W
Frequency Response
for main speaker: 55Hz-20KHz
SNR:≥75dB
THD: ≤10%
Power Supply: DC 5V
Battery capacity: 3000mAh
Speaker drive: 5 inches p1-x2 + 1 inch p1-x1
FM: 87.5~108.0 MHz
Transmission Distance: 10m Dimension: (WxHxD): 490 X 250 X 190mm
1

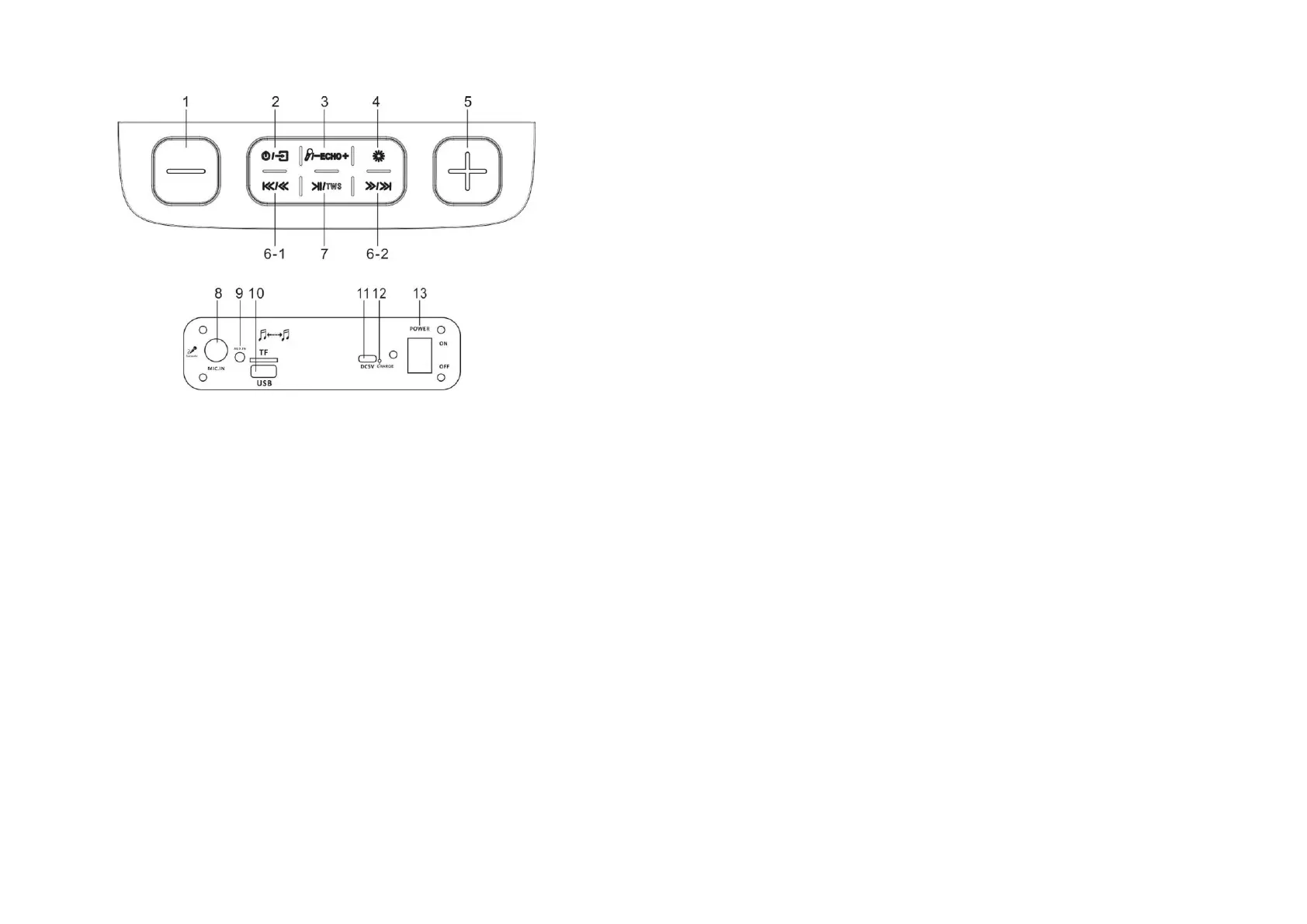

Front panel
1.Volume -
2.Long press to power on or power off this unit
3.Echo sound, press this button to change the echo sound. (Di= lower echo, di di= Middle
echo, di di di =Maximum echo). Total have 4 mode for echo, Di>Di Di>Di Di Di>Off.
4.Light mode switch: Press repeatedly to switch light mode of speaker light and
switch light to OFF.Total 7 effects.
5.Volume +, Du du du” sound for maximum volume
6-1. Previous track / Mic volume -. Press once to previous song. Long press to decrease
microphone volume.
6-2. Next track/ Mic volume +. Press once to next song. Long press to increase microphone
volume.
7.Play/Pause&TWS (Wireless Bluetooth Connection: under bluetooth mode,
press TWS button for around 3 seconds to pairing another TWS speaker.
Under FM mode, lightly press Play/Pause&TWS to enter into automatic scan
and all the scanned radio stations will be saved automatically.)
8.Microphone input
9.AUX input
10.USB/TF Jack
11.DC interface (5V)
12.Charging Status
RED=Charging
Light off = Fully Charged
13.Power switch
2
Operating instructions
1. Playing
Push the switch to power on, and adjust the main volume to proper place. Then you can
enjoy the wonderful & professional glamour brought by the product
2. Karaoke performance
Plug in the microphone, and then turn the knobs to adjust microphone
volume and reverberation for optimizing the performance.
FM Operation
Lightly press INPUT button to switch to FM mode, short press PLAY/PAUSE
button to automatically scan radio station, by pressing PREVIOUS or NEXT
you can select a previous or next radio station.
Bluetooth:
Press the INPUT button from the control panel to enter to Bluetooth mode. Simultaneously
turn on the Bluetooth setting on your phone, tablet or any other Bluetooth enabled audio
device and select "Pro PSP1201" then tap to connect it.
TWS pairing mode:
a. It needs two speakers and are powered on in Bluetooth mode and not connected
to any Bluetooth devices.
b. Press and hold the TWS button for three seconds to enter to TWS pairing mode.
It will have a tone coming out, there will have double tone coming out when both units are pai
red.
c. Turn on the Bluetooth device, select the Pro PSP1201 and tap to connect, and now you ca
n play music.
AUX INJACK
1.Connect an audio cable to the AUX IlN JACK of the speaker and to the audio outputsocket
on the external audio devices such as MP3 player, discman, etc,then selectAUX by pressing
the MODE button on the control panel .
2.Play from an external audio device.
USB/TF JACK
Insert USB/TF card directly for playing.
3
Produkspesifikasjoner
| Merke: | Proscan |
| Kategori: | Høyttaler |
| Modell: | PSP1201 |
