Side 1/2

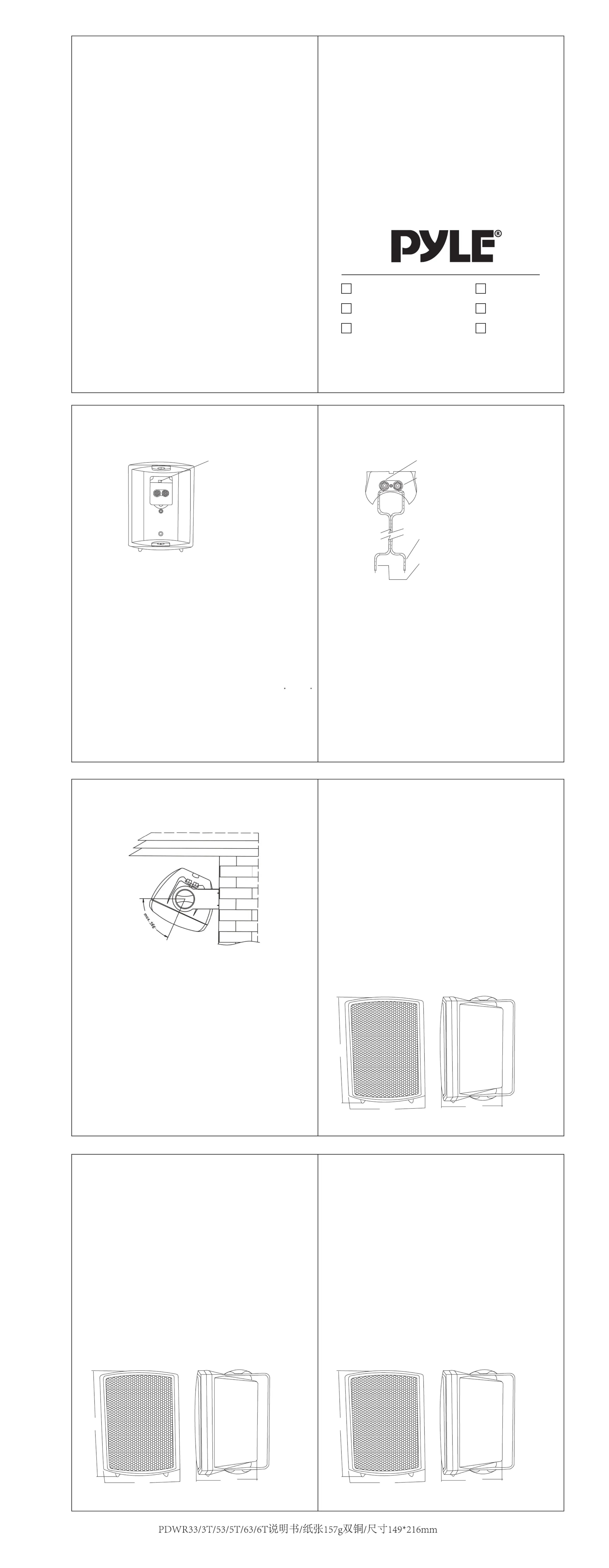

OWNERS MANUAL

INDOOR/OUTDOOR

ALL WEATHER DESIGN

FIG 1:INDOOR/OUTDOOR SWITCH

INDOOR/OUTDOOR BASS BOOST SWITCH:

www.pyleaudio.com

PDWR33

WEATHERPROOF SPEAKER SYSTEMS

FOR MARINE-BOAT-PATIO AND POOL

PDWR53

PDWR63

PDWR3T

PDWR5T

PDWR6T

FIG 3:EAVE MOUNTING

FIG 4:OVERALL DIMENSIONS

Audio Experts Have Known For Years That Sound,And Bass Frequencies In

Particular,Lose Impact In Outdoor Environments. To Compensate,Many People

Will Turn Up The Volume,Overdriving Their System,And Damaging The

Speakers Components.

In Response,“PDWR”Speaker Designed A Unique Switch That Increases Bass

When In The “OUTDOOR”Position.At The Same Time,it Protects

“PDWR”Speaker

From Overdrive Damage In Exterior Applications.The Result Is Dramatically

Improved Sound Reproduction,More Reliable Operation,And Longer Life.

In The “INDOOR” Position,Performance is Automatically Adjusted To Produce

Optimum Results For Use Inside Rooms.

ALL WEATHER DESIGN:

The Materials Used In The Manufature Of “PDWR”Speakers Have Been

Carefully Selected ToStand UpTo Extremes Of Temperature (FROM-50 F TO 200

F),rain,

Snow,Heat,Salt Water,And The Sun sUV Rays. “PDWR” Is Ruggedly Constructed

With A Combination Of:(1)A Low-resonance Mineral-filled Polypropylene

Cabinet (2)Brass,Stainless Stell And Aluminum Hardware,And(3)Gold-plated

Binding Posts.

(1) Remove The Bracket Knobs And The Bracket From The Speaker

(2) Hold The Bracket UpTo The Mounting Surface.“Plmr” Can Be Mounted Either

Horizontally Or Vertically Hold The Bracket So That The Speaker Wire Fits，

Through The Large Circular Wire Hple In The Bracket,Align The Bracket To ，

Be Square With The Surrounding (Use A Level For Accuracy)

(3) Mark The Locations Of The Three Shaped Screw Holes Use All Of The ，

Holes

(4) Drill Pilot Holes Into The Mounting Surface

(5) Gently Pull The Speaker Wire Through The Wire Hole In The Center Of The

Mounting Bracket The Bracket So That The Holes All Line Up，

(6) Use Your Hardware To Attach The Bracket To The Mounting Surface

(1) After Checking That The Speaker Is In-phase And Works Correctly,

Angle TheSpeaker For The Best Sound

(2) Hand Tighten The Bracket Knobs Only,Power Tools May

Over-TightenThe Knob,And Strip The Threads Of The Insert

(3) Check That The Entire Installation Is Safe And Secure

FIG 2 : CONNECTING YOUR SPEAKER

NEGATIVE (BLACK)

POSITIVE (RED) INPUT

IMPORTANT:

CONNECT POSITIVE WIRE

IN-DOOR / OUT-DOOR

EQUALIZATION SWITCH

TO THE POSITIVE TERMINAL

OF YOUR AMPLIFIER OR RECEIVER

CONNECT NEGATIVE WIRE TO

THE NEGATIVE TERMINAL OF

YOUR AMPLIFIER OR RECEIVER

INPUT BINDING POST

BINDING POST

The Following Will assist you in connecting the indiviual speajers to

your amplifier or receiver.

(1) First turn your amplifier of to avoid damage which may result from

accidental shorting of the speaker leads

(2) Correct phase polarity is critical for proper stereo imagingand bass

performance.the red(+) terminal on your amplifier or receiver must

be connected to the red(+) terminal on your speaker,the same

applies for the balck(-) terminal

(3) Connect one loudspeaker at a time to ensure proper connection of

left and right channels,make sure all wires are firmly fastened

(4) If you notice a great jack of bass/or centrl image focus,double check

your connections for proper polarity

，

MOUNTING THE BRACKET

FINAL ADJUSTMENTS

FATURES :

PDWR33

Excellent For Monitor or Surround

Sound Applications

* 3-1/2” long Throw Woofer

* 1/2” Polymer Dome Tweeter

* 200 Watts Rated Peak Power

* Frequency Response70Hz-20KHz

* 8 Ohm Impedance

* Vented Design for High Power

and Deep Bass Response

* Heavy Duty Plastic Cabinet

* Gold Plated Plug Terminals

* Spring Loaded Mounting

BracketIncluded

*Quick Connect/Disconnect Terminals

* Dimensions：

5-5/8”(W)x8”(H)x4-7/8”(D)

PDWR3T

Excellent For Monitor or Surround

Sound Applications

* 3-1/2” long Throw Woofer

* 1/2” Polymer Dome Tweeter

* 200 Watts Rated Peak Power

* Frequency Response70Hz-20KHz

* 8 Ohm Impedance

* Vented Design for High Power

and Deep Bass Response

* Heavy Duty Plastic Cabinet

* Gold Plated Plug Terminals

* Spring Loaded Mounting

BracketIncluded

*Transformer Circuit For Impedance

Compatible

*Quick Connect/Disconnect Terminals

* Dimensions：

5-5/8”(W)x8”(H)x4-7/8”(D)

1. 2.

3. 4.

FIG 4:OVERALL DIMENSIONS

FATURES :

PDWR63

Excellent For Monitor or Surround

Sound Applications

* 6-1/2” long Throw Woofer

* 1” Polymer Dome Tweeter

* 350 Watts Rated Peak Power

* Frequency Response:50Hz-20KHz

* 8 Ohm Impedance

* Vented Design for High Power

and Deep Bass Response

* Heavy Duty Plastic Cabinet

* Gold Plated Plug Terminals

* Spring Loaded Mounting

BracketIncluded

*Quick Connect/Disconnect Terminals

* Dimensions：

9-1/4”(W)x13”(H)x7-3/8”(D)

PDWR6T

Excellent For Monitor or Surround

Sound Applications

* 6-1/2” long Throw Woofer

* 1” Polymer Dome Tweeter

* 350 Watts Rated Peak Power

* Frequency Response:50Hz-20KHz

* 8 Ohm Impedance

* Vented Design for High Power

and Deep Bass Response

* Heavy Duty Plastic Cabinet

* Gold Plated Plug Terminals

* Spring Loaded Mounting

BracketIncluded

*Transformer Circuit For Impedance

Compatible

*Quick Connect/Disconnect Terminals

* Dimensions：

9-1/4”(W)x13”(H)x7-3/8”(D)

238mm

(9-1/4”)

331mm

(13”)

188mm

(7-3/8”)

FIG 4:OVERALL DIMENSIONS

FATURES :

PDWR53

Excellent For Monitor or Surround

Sound Applications

* 5-1/4” long Throw Woofer

* 1/2” Polymer Dome Tweeter

* 250 Watts Rated Peak Power

* Frequency Response 85Hz-20KHz:

* 8 Ohm Impedance

* Vented Design for High Power

and Deep Bass Response

* Heavy Duty Plastic Cabinet

* Gold Plated Plug Terminals

* Spring Loaded Mounting

BracketIncluded

*Quick Connect/Disconnect Terminals

* Dimensions：

7-1/8”(W)x9-7/8”(H)x5-3/4”(D)

PDWR5T

Excellent For Monitor or Surround

Sound Applications

* 5-1/4” long Throw Woofer

* 1/2” Polymer Dome Tweeter

* 250 Watts Rated Peak Power

* Frequency Response 85Hz-20KHz:

* 8 Ohm Impedance

* Vented Design for High Power

and Deep Bass Response

* Heavy Duty Plastic Cabinet

* Gold Plated Plug Terminals

* Spring Loaded Mounting

BracketIncluded

*Transformer Circuit For Impedance

Compatible

*Quick Connect/Disconnect Terminals

* Dimensions：

7-1/8”(W)x9-7/8”(H)x5-3/4”(D)

180mm

(7-1/8”)

250mm

(9-7/8”)

145mm

(5-3/4”)

IN-DOOR OUT-DOOR

144mm

(5-5/8”)

204mm

(8”)

124mm

(4-7/8”)

OWNERS MANUAL

INDOOR/OUTDOOR

ALL WEATHER DESIGN

FIG 1:INDOOR/OUTDOOR SWITCH

INDOOR/OUTDOOR BASS BOOST SWITCH:

www.pyleaudio.com

PDWR33

WEATHERPROOF SPEAKER SYSTEMS

FOR MARINE-BOAT-PATIO AND POOL

PDWR53

PDWR63

PDWR3T

PDWR5T

PDWR6T

FIG 3:EAVE MOUNTING

FIG 4:OVERALL DIMENSIONS

Audio Experts Have Known For Years That Sound,And Bass Frequencies In

Particular,Lose Impact In Outdoor Environments. To Compensate,Many People

Will Turn Up The Volume,Overdriving Their System,And Damaging The

Speakers Components.

In Response,“PDWR”Speaker Designed A Unique Switch That Increases Bass

When In The “OUTDOOR”Position.At The Same Time,it Protects

“PDWR”Speaker

From Overdrive Damage In Exterior Applications.The Result Is Dramatically

Improved Sound Reproduction,More Reliable Operation,And Longer Life.

In The “INDOOR” Position,Performance is Automatically Adjusted To Produce

Optimum Results For Use Inside Rooms.

ALL WEATHER DESIGN:

The Materials Used In The Manufature Of “PDWR”Speakers Have Been

Carefully Selected ToStand UpTo Extremes Of Temperature (FROM-50 F TO 200

F),rain,

Snow,Heat,Salt Water,And The Sun sUV Rays. “PDWR” Is Ruggedly Constructed

With A Combination Of:(1)A Low-resonance Mineral-filled Polypropylene

Cabinet (2)Brass,Stainless Stell And Aluminum Hardware,And(3)Gold-plated

Binding Posts.

(1) Remove The Bracket Knobs And The Bracket From The Speaker

(2) Hold The Bracket UpTo The Mounting Surface.“Plmr” Can Be Mounted Either

Horizontally Or Vertically Hold The Bracket So That The Speaker Wire Fits，

Through The Large Circular Wire Hple In The Bracket,Align The Bracket To ，

Be Square With The Surrounding (Use A Level For Accuracy)

(3) Mark The Locations Of The Three Shaped Screw Holes Use All Of The ，

Holes

(4) Drill Pilot Holes Into The Mounting Surface

(5) Gently Pull The Speaker Wire Through The Wire Hole In The Center Of The

Mounting Bracket The Bracket So That The Holes All Line Up，

(6) Use Your Hardware To Attach The Bracket To The Mounting Surface

(1) After Checking That The Speaker Is In-phase And Works Correctly,

Angle TheSpeaker For The Best Sound

(2) Hand Tighten The Bracket Knobs Only,Power Tools May

Over-TightenThe Knob,And Strip The Threads Of The Insert

(3) Check That The Entire Installation Is Safe And Secure

FIG 2 : CONNECTING YOUR SPEAKER

NEGATIVE (BLACK)

POSITIVE (RED) INPUT

IMPORTANT:

CONNECT POSITIVE WIRE

IN-DOOR / OUT-DOOR

EQUALIZATION SWITCH

TO THE POSITIVE TERMINAL

OF YOUR AMPLIFIER OR RECEIVER

CONNECT NEGATIVE WIRE TO

THE NEGATIVE TERMINAL OF

YOUR AMPLIFIER OR RECEIVER

INPUT BINDING POST

BINDING POST

The Following Will assist you in connecting the indiviual speajers to

your amplifier or receiver.

(1) First turn your amplifier of to avoid damage which may result from

accidental shorting of the speaker leads

(2) Correct phase polarity is critical for proper stereo imagingand bass

performance.the red(+) terminal on your amplifier or receiver must

be connected to the red(+) terminal on your speaker,the same

applies for the balck(-) terminal

(3) Connect one loudspeaker at a time to ensure proper connection of

left and right channels,make sure all wires are firmly fastened

(4) If you notice a great jack of bass/or centrl image focus,double check

your connections for proper polarity

，

MOUNTING THE BRACKET

FINAL ADJUSTMENTS

FATURES :

PDWR33

Excellent For Monitor or Surround

Sound Applications

* 3-1/2” long Throw Woofer

* 1/2” Polymer Dome Tweeter

* 200 Watts Rated Peak Power

* Frequency Response70Hz-20KHz

* 8 Ohm Impedance

* Vented Design for High Power

and Deep Bass Response

* Heavy Duty Plastic Cabinet

* Gold Plated Plug Terminals

* Spring Loaded Mounting

BracketIncluded

*Quick Connect/Disconnect Terminals

* Dimensions：

5-5/8”(W)x8”(H)x4-7/8”(D)

PDWR3T

Excellent For Monitor or Surround

Sound Applications

* 3-1/2” long Throw Woofer

* 1/2” Polymer Dome Tweeter

* 200 Watts Rated Peak Power

* Frequency Response70Hz-20KHz

* 8 Ohm Impedance

* Vented Design for High Power

and Deep Bass Response

* Heavy Duty Plastic Cabinet

* Gold Plated Plug Terminals

* Spring Loaded Mounting

BracketIncluded

*Transformer Circuit For Impedance

Compatible

*Quick Connect/Disconnect Terminals

* Dimensions：

5-5/8”(W)x8”(H)x4-7/8”(D)

1. 2.

3. 4.

FIG 4:OVERALL DIMENSIONS

FATURES :

PDWR63

Excellent For Monitor or Surround

Sound Applications

* 6-1/2” long Throw Woofer

* 1” Polymer Dome Tweeter

* 350 Watts Rated Peak Power

* Frequency Response:50Hz-20KHz

* 8 Ohm Impedance

* Vented Design for High Power

and Deep Bass Response

* Heavy Duty Plastic Cabinet

* Gold Plated Plug Terminals

* Spring Loaded Mounting

BracketIncluded

*Quick Connect/Disconnect Terminals

* Dimensions：

9-1/4”(W)x13”(H)x7-3/8”(D)

PDWR6T

Excellent For Monitor or Surround

Sound Applications

* 6-1/2” long Throw Woofer

* 1” Polymer Dome Tweeter

* 350 Watts Rated Peak Power

* Frequency Response:50Hz-20KHz

* 8 Ohm Impedance

* Vented Design for High Power

and Deep Bass Response

* Heavy Duty Plastic Cabinet

* Gold Plated Plug Terminals

* Spring Loaded Mounting

BracketIncluded

*Transformer Circuit For Impedance

Compatible

*Quick Connect/Disconnect Terminals

* Dimensions：

9-1/4”(W)x13”(H)x7-3/8”(D)

238mm

(9-1/4”)

331mm

(13”)

188mm

(7-3/8”)

FIG 4:OVERALL DIMENSIONS

FATURES :

PDWR53

Excellent For Monitor or Surround

Sound Applications

* 5-1/4” long Throw Woofer

* 1/2” Polymer Dome Tweeter

* 250 Watts Rated Peak Power

* Frequency Response 85Hz-20KHz:

* 8 Ohm Impedance

* Vented Design for High Power

and Deep Bass Response

* Heavy Duty Plastic Cabinet

* Gold Plated Plug Terminals

* Spring Loaded Mounting

BracketIncluded

*Quick Connect/Disconnect Terminals

* Dimensions：

7-1/8”(W)x9-7/8”(H)x5-3/4”(D)

PDWR5T

Excellent For Monitor or Surround

Sound Applications

* 5-1/4” long Throw Woofer

* 1/2” Polymer Dome Tweeter

* 250 Watts Rated Peak Power

* Frequency Response 85Hz-20KHz:

* 8 Ohm Impedance

* Vented Design for High Power

and Deep Bass Response

* Heavy Duty Plastic Cabinet

* Gold Plated Plug Terminals

* Spring Loaded Mounting

BracketIncluded

*Transformer Circuit For Impedance

Compatible

*Quick Connect/Disconnect Terminals

* Dimensions：

7-1/8”(W)x9-7/8”(H)x5-3/4”(D)

180mm

(7-1/8”)

250mm

(9-7/8”)

145mm

(5-3/4”)

IN-DOOR OUT-DOOR

144mm

(5-5/8”)

204mm

(8”)

124mm

(4-7/8”)

Produkspesifikasjoner

Merke:	Pyle
Kategori:	Høyttaler
Modell:	PDWR63
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Strømkildetype:	AC
Impedans:	8 Ω
Høyttalerplassering:	Vegg.monterbar
Basshøyttaler:	Ja
Peak Music Power Output (PMPO):	350 W
Diskanthøyttaler:	Ja
Produktfarge:	Elfenben
Kroppsmateriale:	Plast
Lyd-utgang kanaler:	2.0 kanaler
RMS-rangert strøm/utgangseffekt:	150 W
Antall drivere:	2
Frekvensrekkevidde:	50 - 20000 Hz
Sensitivitet/følsomhet:	94 dB
Diskanthøyttalerens diameter:	1 "
Basshøyttalerens diameter (imperisk):	6.5 "
Ledningskontakt:	Ja
