Side 1/4

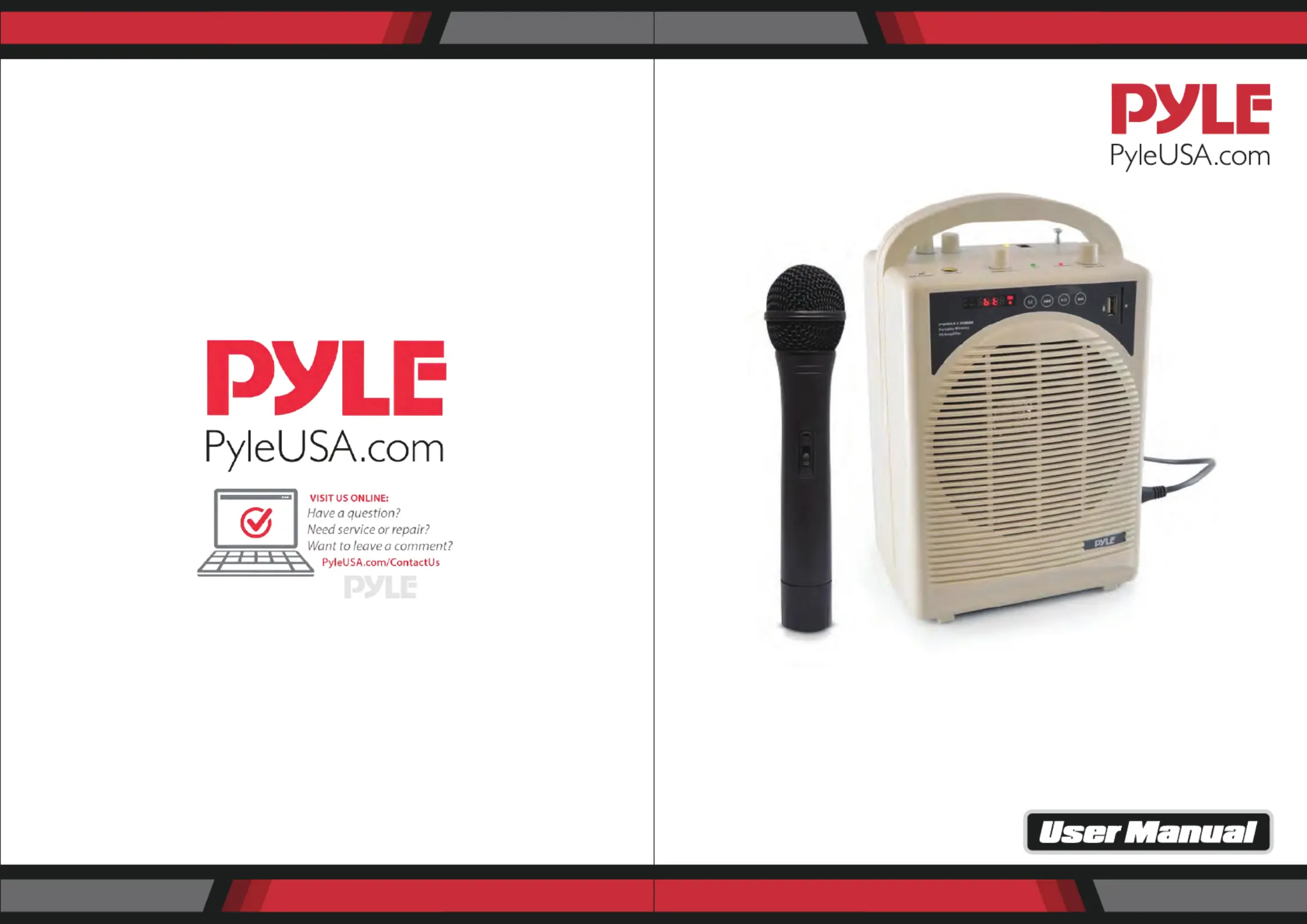

Portable Karaoke PA Speaker Amplifier

and Microphone System

PWMA120BM

Wireless BT Streaming, Handheld Mic,

Built-in Rechargeable Battery

Questions? Issues?

We are here to help!

Phone: (1) 718-535-1800

Email: support@pyleusa.com

PARTS DESCRIPTION

1. Power ON/OFF switch

2. MP3 volume control

3. Power ON LED indicator

4. RF ON LED indicator

5. External DC input jack

6. Wireless mic receiver antenna

7. Charge LED indicator

8. Echo level control

9. Bass level control

10. Treble level control

11. Record out jack

12. MIC Input jack

13. Wired/wireless MIC volume control

14. MP3 display

15. MP3 mode

16. MP3 previous/volume-

17. MP3 next/volume+

18. MP3 play/pause

19. USB port

20. Micro SD Memory Card Slot

21. Speaker

22. AC input jack

23. Battery compartment

www.PyleUSA.com2www.PyleUSA.com 3

PRODUCT DESCRIPTION

1. Built-in Wireless BT MP3 player.

2. Built-in one channel wireless microphone and one 6.35mm MIC input to connect

wired dynamic MIC. Two persons can speak or sing at the same time.

3. Separate wired/wireless MIC and MP3 volume controls.

4. One 3.5mm REC out can be connected to a recording device or to the input jack of

a power amplier to further amplify and enlarge the audio power.

5. Bass, Treble and Echo controls. Suitable for karaoke.

6. Powered externally with AC, 12V DC or internally with built-in 12V/1.3A

rechargeable battery. Suitable for both indoor and outdoor use.

7. Ideal for many applications, including use in classrooms, conference/meeting

rooms, churches, health clubs and small auditoriums.

CAUTION

1. This unit is with speaker inside which can cause magnetic eld.

Keep this unit at least 60cm away from computer or TV.

2. This unit is with built-in rechargeable battery. Please recharge the battery every 2

months if you are not going to use the unit for a long period of time or the battery

may be damaged.

3. If the battery is damaged please replace with same specications battery.

Dispose the damaged battery environment friendly.

4. Free from high temperature. Don't expose the device to the hot equipment.

5. Don't place the device in the environment of humidity and dirts.

6. Place the device in the ventilated environment.

7. Don't pull the power cord while you pull out the plug.

Hold the plug tightly to pull it out.

8. Pull out the AC power if you will not use the device for a long time.

9. Your operation must be subjected to the specied voltage marked near the AC in

jack and complied with this guide.

www.PyleUSA.com4www.PyleUSA.com 5

AC POWER OPERATION

Plug one end of provided AC cord into the AC input jack on the right side of the

amplier. Then plug the other end of AC cord into AC power outlet. Turn on the unit

using the power/volume switch.

NOTE: To avoid damaging your unit, make sure AC power is same as that marked

near AC input jack.

DC POWER OPERATION

This unit can be powered also using extemal12V DC power. Connect external 12V DC

power to DC input jack on top panel of the amplier. Observe the correct polarity as

following.

RECHARGEABLE BATTERY OPERATION

This unit can be powered internally using the built-in rechargeable battery. When AC

power is connected, if battery charging indicator lights red, the rechargeable battery

is not fully charged and will be allowed to charge while the unit is powered by the

AC power. ( Turning o the unit power switch will allow the battery to recharge Note:

more quickly.) If the battery charging indicator lights green, the battery is fully charged

and ready to power the unit alone. Shut o the power switch and disconnect the AC

power. Turn the unit back on and the rechargeable battery will power the unit alone.

CONNECTION

The socket can be connected to a recording device or to the input jack of a REC OUT

power amplier to further amplify and enlarge the audio power.

The socket can be connected to wired dynamic MIC. Keep MIC head away MIC IN

from the speaker of main unit to avoid feedback.

WIRELESS BT/MP3 OPERATION

1. Insert ash drive into USB port or Micro SD card into Micro SD Memory Card Slot,

system will play the music in ash drive or Micro SD card automatically. If both

ash drive and Micro SD card are inserted, system will play the music in ash drive.

To play music in Micro SD card press MODE button to switch to SD mode.

2. To play music from your mobile phone etc via Wireless BT, press MODE button to

switch to BT mode. Turn on Wireless BT function of your mobile phone and search

for and connect. Then you can play your music in mobile phone.Pyle Audio

WIRELESS MICROPHONE OPERATION

1. Open the battery cover and install a fresh 9V battery, observing the correct polarity

and then close the cover.

2. Push power switch to ON position. Power indicator will light red, indicating usable

battery strength. In the case of low battery power or a dead battery, the power

indicator either will become dim or not go on at all, indicating that the battery

should be replaced with a fresh one.

3. The RF indicator on the amplier should now be lit.

4. Adjust the wireless MIC volume control of the amplier to a comfortable listening

level as desired.

5. If the microphone is not going to be used for any length of time, push power switch

to OFF position and remove the battery.

ATTENTION:

1. If feedback (howling sound) occurs, try rst turning down the treble control.

If feedback still is present, try turning down the volume or repositioning this unit

with respect to the wired or wireless microphone being used.

2. Extend the antenna fully whenever using the wireless microphone to ensure

optimum performance and maximum range.

Produkspesifikasjoner

Merke:	Pyle
Kategori:	Høyttaler
Modell:	PWMA120BM
Produkttype:	Stereo bærbar høyttaler
Vekt:	- g
Bredde:	109 mm
Dybde:	182.8 mm
Høyde:	294.64 mm
AC-adapter inngangsspenning:	100 - 120 V
Bluetooth:	Ja
Bluetooth-versjon:	3.0+HS
Tilkoblingsteknologi:	Ledning & Trådløs
Strømkildetype:	Batteri
Antall USB 2.0-porter:	1
Antall høyttalere:	1
Bærehåndtak:	Ja
Antall per pakke:	1 stykker
Anbefalt bruk:	Universell
Impedans:	4 Ω
3,5 mm-kontakt:	Ja
USB-tilkobling:	Ja
Støttede lydformater:	MP3
Produktfarge:	Sort
Minnekortenhet:	SD
Batteriliv (maks.):	10 timer
Kabler inkludert:	AC
Innebygd kortleser:	Ja
Lyd-utgang kanaler:	- kanaler
RMS-rangert strøm/utgangseffekt:	60 W
Batterier medfølger:	Ja
Antall drivere:	1
Frekvensrekkevidde:	25 - 15000 Hz
