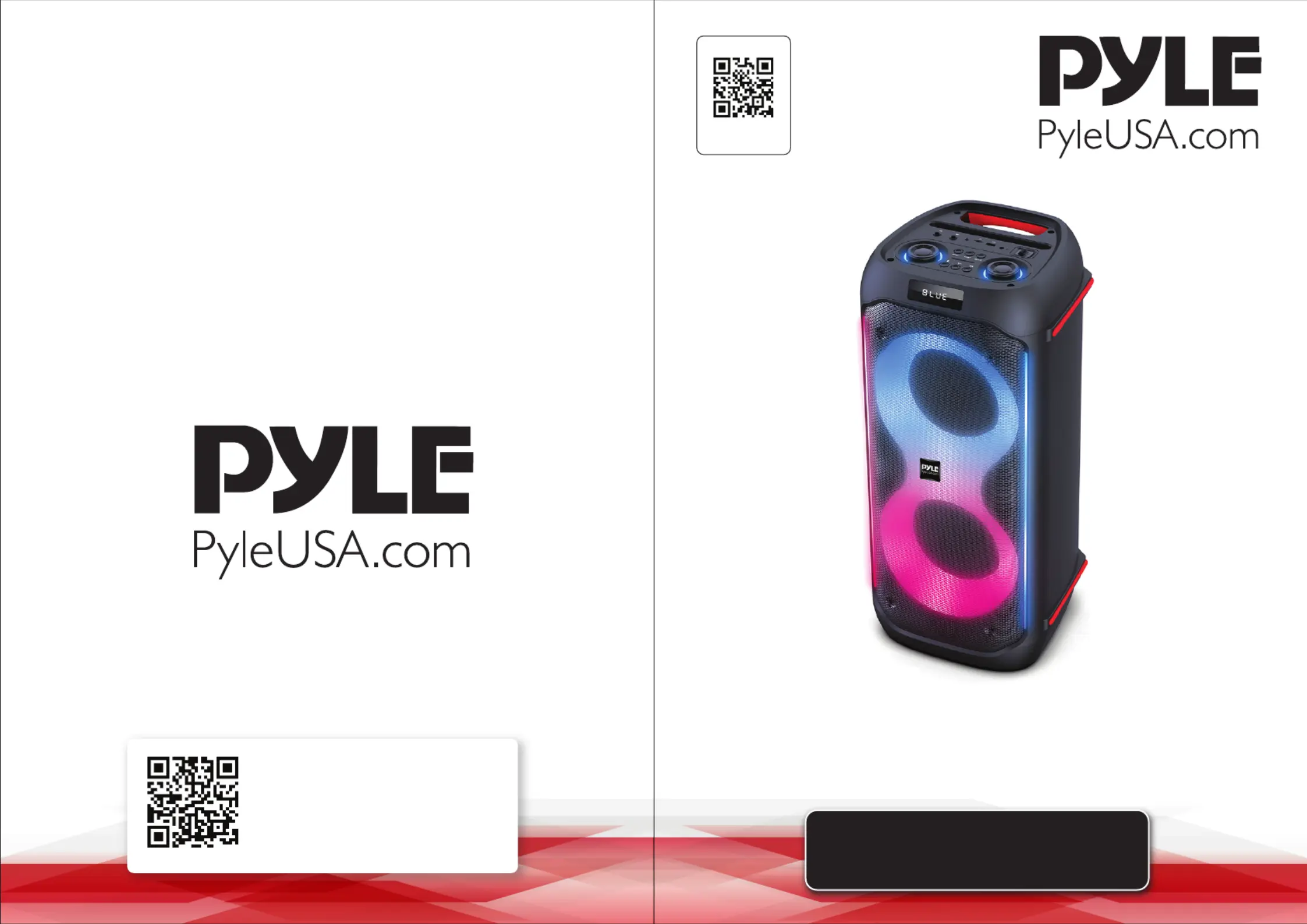

Side 1/12
Visit Our Website
SCAN ME
PyleUSA.com
USER GUIDE
PPHP26JBL - PPHP26JBLBG
Compact BT PA Party Speaker System
Questions or Comments?
We are here to help!
Phone: 1.718.535.1800
PyleUSA.com/ContactUs
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.
RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE.
Features:
• True Wireless Stereo System
• Dual 6.5" Two-Way Speakers
• Bluetooth for Wireless Streaming
• Rugged, Molded Cabinet Design
• Karaoke Function with Adjustable Microphone Volume Control
• Long-Lasting Built-in Rechargeable Battery
• Multiple Input Options Including Bluetooth, USB/ SD, Audio Input,
6.5mm Microphone Input, and FM Radio
• Mic Priority Function For Clear Vocals
• Compatible with Various Music Streaming Apps
• Equipped with Protective Speaker Grill
• 6.5mm Microphone Input
• Audio Input: Connect and Stream External Device Audio
• User-Friendly Controls for Volume and Playback
• Dynamic LED Lights Synced with Music
• LED Display for Clear Visibility of Settings
• Sturdy Handle for Easy Transportation
• Echo and Mic Volume Controls for Karaoke
• Mic Recording Function
• Bass and Treble Controls
• Ideal for Parties, Karaoke Nights, and Outdoor Events
• Suitable for Indoor/Outdoor Use
Bluetooth Wireless Streaming:
• Built-in Bluetooth Receiver for Wireless Music Streaming
• Easy and Quick Pairing Setup
• Works with Today's Latest Devices (Smartphones, Tablets, Laptops, Computers, etc.)
• Bluetooth Network Name: PYLEUSA
• Bluetooth Version: 5.0
• Wireless Range: 50 ft.
What's in the Box:
• Compact PA Party Speaker System
• Power Adapter
• Remote Control
• Speaker Bag ( )for PPHP26JBLBG model only
Technical Specs:
• Construction Material: ABS+PP
• Recommended Power Output: 160W
• RMS Power: 40W
• Sound System: 6.5”-inches Woofer x 2 + 2”-inches Tweeter x 2
• Impedance 3.6 ohm
• USB Interface Type: 2.0
• Digital Audio File Support: MP3、MWA、FLAC
• Maximum USB Flash Support: 64G
• Remote Control Battery Operated, Requires AAA x 2 Batteries, (Not included).
• Battery Type: Lithium-ion Battery
• Battery Working Time: 2-8 hours (Vary with Volume)
• Battery Construction Material: 18650 (6) Battery Cell
• Battery Wattage: 39.96WH
• Battery Weight: 0.6 lbs.
• Weight Amount Lithium Battery (If the Battery is Lithium): 0.6 lbs.
• PPHP26JBL Item Weight: 15.6 lbs.
PPHP26JBLBG Item Weight: 17.46 lbs.
• Power Supply: DC 9V/2A Power Adapter
• Product Dimension (L x W x H)
11.6" x 11.6" x 25.2" –inchesPPHP26JBL:
11.8" x 11.8" x 26.4" –inchesPPHP26JBLBG:
California Prop 65 Warning
WARNING:
This product contains “Lead and lead compounds” which is
known to the state of California to cause cancer birth defects
and other reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
PPHP26JBL - PPHP26JBLBG
HVIN: PPHP26JBL / PPHP26JBLBG
Illegal operation may cause personal injury, which could be fatal.
Illegal operation may cause damage to property.
Important Safety Instructions:
1. Read these instructions carefully.
2. Read all warnings
3. Follow all instructions.
4. Do not expose this apparatus to water, corrosive liquids, or gas.
Store the apparatus in a dry and clean place.
5. Do not install the speaker system near windows or any heat sources such as
radiators, heat registers, gas stoves, or other apparatuses that produce heat.
6. Do not place any naked ame sources, such as lit candles, on or near the
apparatus.
7. Clean only with a dry cloth.
8. Do not place objects lled with any kind of liquid on the speakers.
9. To reduce the risk of re or electric shock, do not expose this product to rain
or moisture. Liquids can cause a failure and/or re hazard.
10. Do not insert metal bars, wires, or any other objects into the speaker hole.
11. Protect the power cord from being walked on or pinched, particularly at
plugs and the point where they exit from the apparatus.
12. To reduce the risk of electric shock, do not handle the plug with wet hands.
13. Before moving the speakers, pull out the power adapter and disconnect
from any other equipment.
14. Do not block any ventilation openings of the device, as this will cause a rise
in the internal temperature of the apparatus and potentially damage the
circuit.
15. Do not press the switches or other keys with force.
16. Unplug the power cable immediately if your device emits smoke or acts
abnormally. Seek professional help from your nearest service center.
17. Only use attachments recommended by the manufacturer.
Use of other attachments may be hazardous.
18. Do not throw used batteries in with your household rubbish.
Follow instructions from your local council about safe disposal.
Using the Remote Control
Installing the Batteries
Remove the battery cover from the back of the Remote Control as shown
and insert 2xAAA size batteries ensuring correct polarity.
1. Mute
2. Fm radio
3. 0-9 keys
4. Repeat
5. Tws
6. Play/pause
7. Previous song
8. VoIume+
9. Next song
10. Volume-
11. Record key
12. Mic Priority
13. Record play
14. Mic vol-
15. Mic voI+
16. Wireless BT
17. Bass+
18. Bass-
19. Aux
20. Echo+
21. Echo-
22. USB
23. TrebIe+
24. Treble-
Note for remote:
The remote control should be used within 6m from the device, around 30
degree on the left/right side, pointed directly tow ards the speaker system.
1 2 3
AUX
- +
TWS
FM
REPREC
PRIOR
MIC VOL
BT
BASS
USB
TREBLE ECHO
1
2
3
5
8
9
12
13
15
19
22
20
23
21
24
4
6
7
11
14
16
17
18
10
