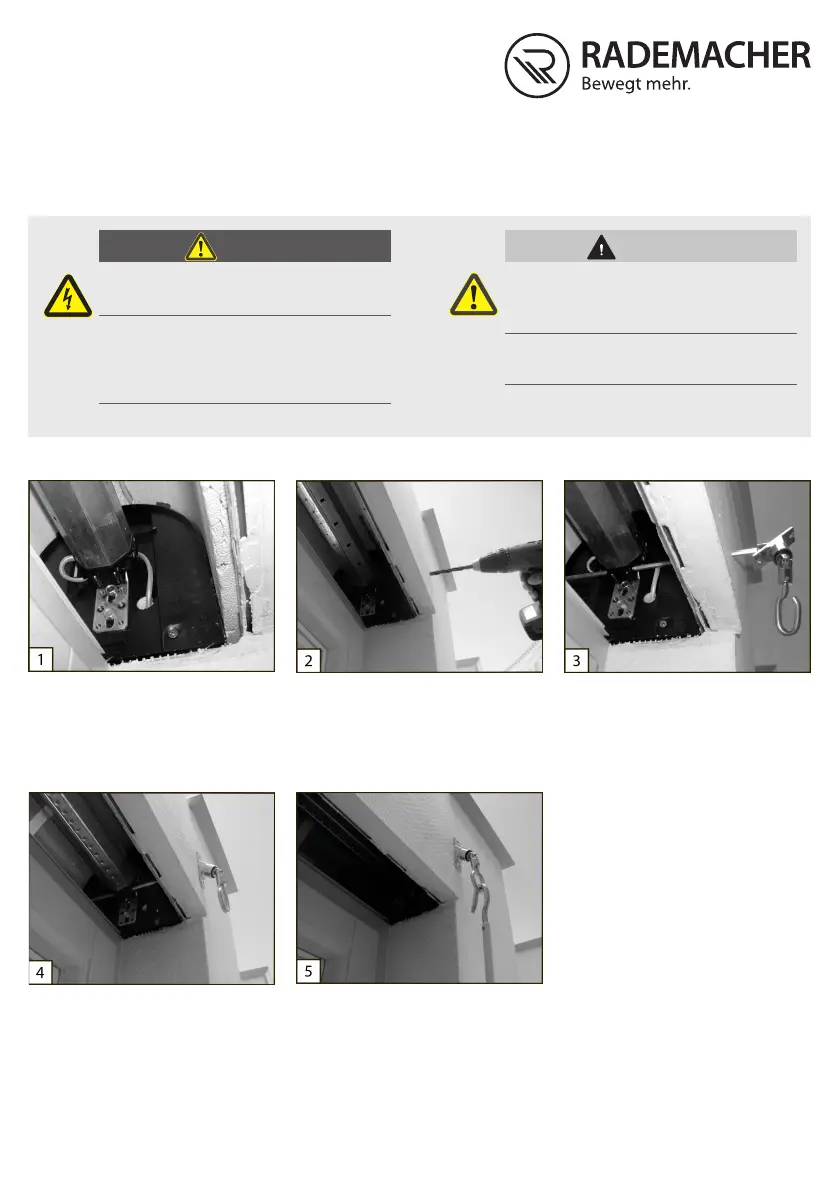

Gelenkkurbelöse für
RolloTube Basis mit Handkurbelfunktion (HK)
Kurzanleitung zur Montage
VORSICHT!
Bei geö󰀨netem Rollladenkasten
besteht Verletzungsgefahr durch
Quetschen der Hand.
Greifen Sie nie bei laufendem Motor in
den Bereich der Wickelwelle.
GEFAHR!
Lebensgefahr durch Stromschlag
bei Berührung von elektrischen
Komponenten.
Trennen Sie die Zuleitung allpolig vom
Netz und sichern Sie sie gegen Wieder-
einschalten, bevor Sie die Gelenkkur-
belöse montieren.
VBD 539-4 (03.19)
Die Handkurbel darf nur bei
Stromausfall bedient werden.
Außerdem ist darauf zu achten,
dass die Endlagen nicht über-
fahren werden dürfen.
Die Handkurbel ist wegen
Verletzungsgefahr oder
Sachbeschädigung sofort nach
Betätigung wieder aus der
Anlage zu entnehmen.
Als erstes den Rohrmotor im Roll-
ladenkasten unter Beachtung der
Rohrmotoranleitung montieren.
Anschließend das Loch zum
Durchstecken der Kurbelgelenk-
stange bohren.
Die Kurbelgelenkstange durch die
Wand in das Nothandgetriebe des
Motors stecken.
Die Gelenkplatte am Mauerwerk
befestigen.
Bei Stromausfall die Handkurbel
einhängen und den Rollladen per
Hand ö󰀨nen oder schließen.
Articulated hand crank eyelet for
RolloTube Basic with hand crank function (HK)
Brief instructions for the installation
CAUTION!
Risk of crushing injuries to the hand
when working with the roller shutter
box open.
Never reach into the area of the winding
shaft when the motor is running.
DANGER!
Risk of fatal electric shock when
touching electrical components.
Disconnect all phases of the mains
power lead and secure it to prevent
any reconnection before you install the
articulated hand crank eyelet.
VBD 539-4 (03.19)
The hand crank must only be
used in the event of a power
failure. Also make sure that the
end positions are not overrun.
The hand crank must be
removed from the system again
immediately after using it due
to the risk of injury or property
damage.
First, install the tubular motor in
the roller shutter box in accord-
ance with the tubular motor
instructions.
Then drill the hole to insert the
articulated crank rod.
Push the articulated crank rod
through the wall into the emergen-
cy motor drive.
Fix the articulated plate to the
masonry.
Attach the hand crank in the event
of a power failure and open or
close the roller shutter manually.
