y Dante Network Interface for Four Audio Inputs and Two Audio Outputs
y Four XLR Front-Panel Inputs
y Two Outputs on Rear Panel Detachable Terminal Block
y Module is Configured and Adjusted Using Network Control Software
y Converts Four Standard XLR Mic or Line Audio Sources to Dante Network Channels
y Each Input Gain is Selected by Software
y Mic Gain: 35 dB, 42 dB or 59 dB
y Line Gain: Unity or 12 dB
y 48 V Mic Phantom (P48) Selected by Software
y Converts Two Dante Network Audio Signals to Line Level
y Each Output Equipped with Software Controlled Attenuator in 1 dB Steps
y Studio Quality, Low-Noise Performance
y High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
y Legendary RDL Analog Filtering Enhances Superb Audio Performance
Model DD SERIES-RN40
Wall-Mounted Bi-Directional
Mic/Line Dante Interface 4x2
APPLICATION: The DD-RN40 is a complete wall-mounted Dante audio network interface. It features four XLR mic or line inputs on the front
panels and two line outputs on a rear-panel detachable terminal block. The module is configured and adjusted using RDL CONSOLE or other
network control software. The DD-RN40 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner
European or equivalent walls. The DD-RN40 is PoE powered, and is available in multiple finishes with optional customized graphics.
Mic/Line to network section
The four XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are software-selectable for both the
mic and line input ranges to match condenser or dynamic mic levels and standard line levels. P48 phantom voltage may be software enabled
when an input is set for mic level.
Network to line section
Two Dante audio channels are converted to balanced line level. Each output provides +4 dBu balanced for a network digital audio level of -18
dBFS. Each output is equipped with a software controlled attenuator adjustable in 1 dB steps to a maximum attenuation of 62 dB then OFF.
The outputs are connected through a detachable terminal block.
The outputs are intended for connection to RDL AMS connectors mounted in Decora®-style plates that match the DD-RN40. AMS audio
connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DD-RN40 in a triple gang box or may be
mounted remotely in a single box.
Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit.
The DD-RN40 is a professional grade product with RDL mic preamplifiers for studio quality fidelity and low noise performance, coupled
through XLR jacks housed in a steel chassis with dual powder-coated or stainless steel Decora front plates.
The DD-RN40’s superior performance specifications make it ideally suited to installations requiring network control and exceptional value
in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in
demanding installations. Designed to outperform. Built to last.

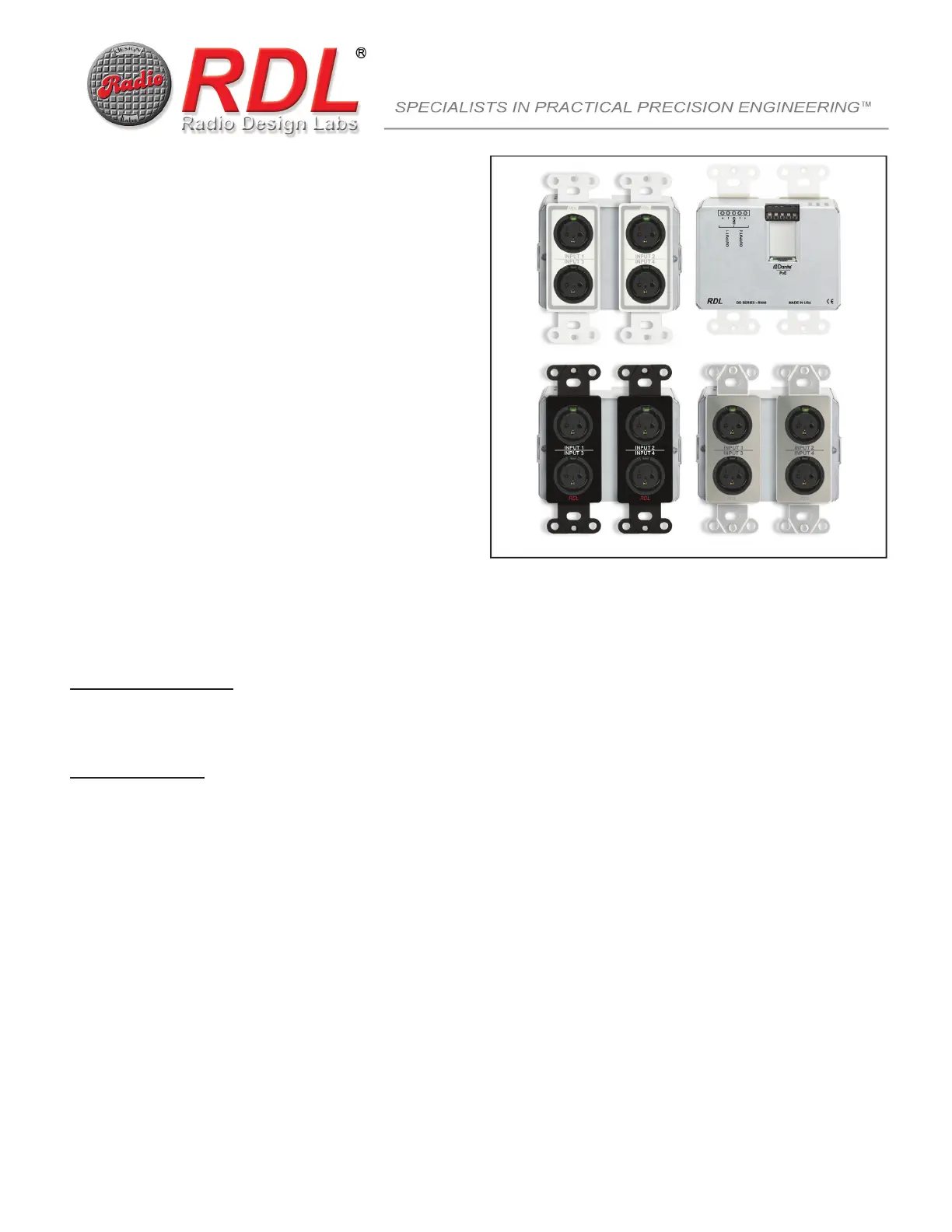

DD-RN40
DDB-RN40 DDS-RN40
RDL • 659 6th St. • Prescott, AZ., USA 86301 • (928) 443-9391 • FAX (928) 443-9392 • www.rdlnet.com
Model DD SERIES-RN40
Wall-Mounted Bi-Directional
Mic/Line Dante Interface 4x2
This product is not specified to provide basic insulation from network cabling not installed wholly within
the same building structure or terminated on equipment earthed to a different earthing network.

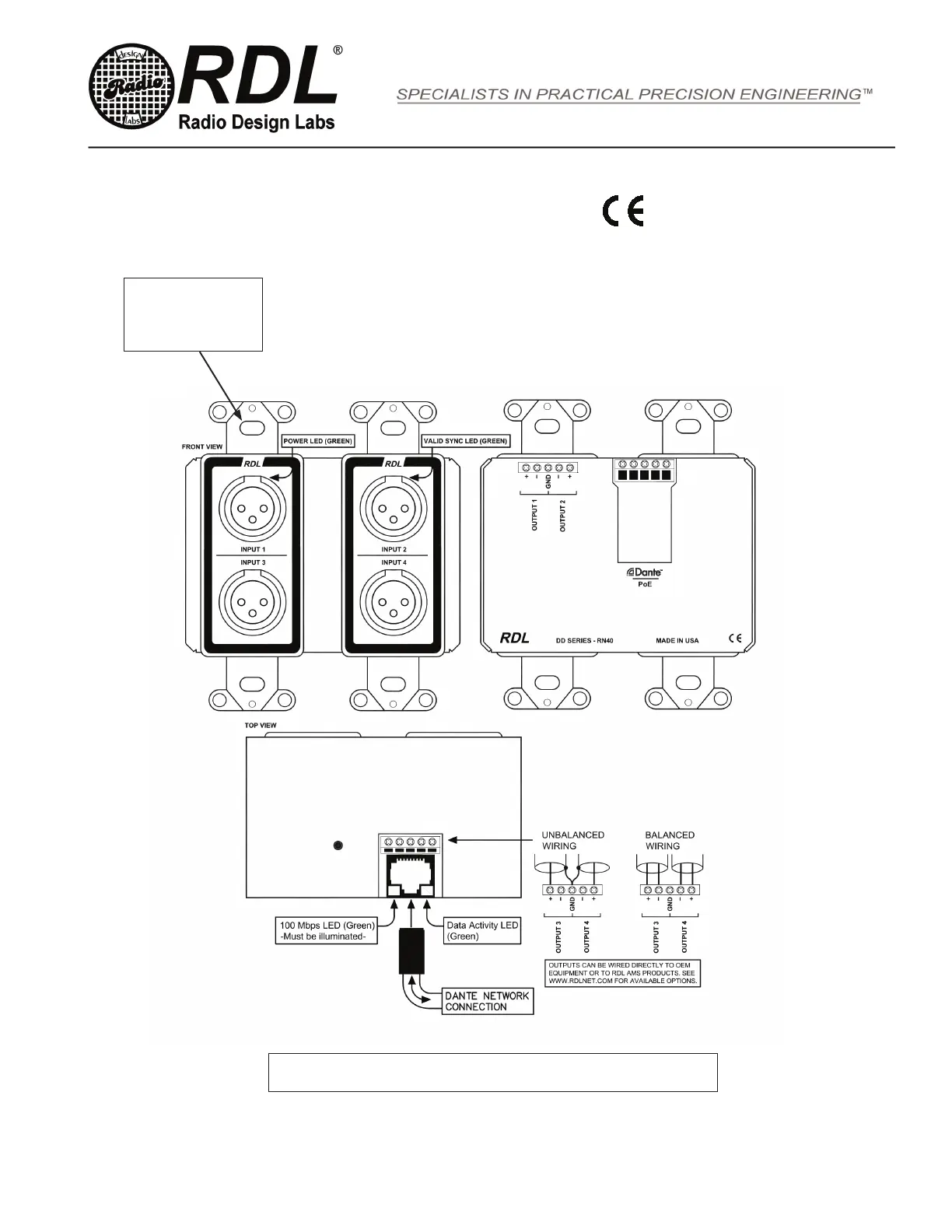

Fasten this unit into a wall box
or chassis by threading the four
mounting screws (included) into
the corresponding holes in the
wall box/chassis.
Radio Design Labs Technical Support Centers
U.S.A. (800) 933-1780, (928) 778-3554; Fax: (928) 778-3506
Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287
Installation/Operation
Declaration of Conformity available from rdlnet.com.
Sole EMC specications provided on product package.
Specications are subject to change without notice.
