Side 1/4
COMMERCIAL INTEGRATION
The HD-PA35U is a single input audio amplifier for systems demanding the highest energy efficiency. It may be used as a single zone amplifier fed from a variety of RDL or OEM mixers. It is ideal
for providing one or more additional zones to a mix originating from another RDL HD series mixer amplifier. The 35 W power amplifier output is driven from a high-efficiency Class D amplifier
stage. The amplifier normally shuts down (standby “sleep” mode) when audio is absent and automatically turns on when needed. The amplifier output level may be VCA controlled using various
optional RDL remote controls, or by industry standard 0 to 10 Vdc or 0 to 10 kΩ controls. The output drives 4 Ω or 8 Ω speakers. The output impedance is switch-selectable on the rear panel. The
HD-PA35UA has all the features of the HD-PA35U except its 35 W amplifier provides a constant voltage output (25 V, 70 V or 100 V) instead of a low impedance speaker output.
The HD-PA35U is engineered, tested and manufactured in the U.S.A. to strict energy conservation standards. The unit consumes less than 1W of mains power in standby mode, and meets power
amplifier efficiency specifications with an analog-filtered Class-D digital output stage.
The HD-PA35U provides a front-panel control to set the input gain. An optional remote control connected to the rear-panel RJ45 jack provides for remote adjustment of the output level. The tone
controls adjust the equalization at the amplifier output.
The presence of a signal at the input causes the HD-PA35U to fully turn on, activating the power amplifier and all associated equalization and compressor circuitry. When an input signal is absent,
a delay timer is initiated. Rear-panel DIP switches are provided to set the power-down delay timer to a value between 10 minutes and 2 hours in 10 minute increments. After the time-out period,
the HD-PA35U enters the sleep mode until an input signal is received. The switches may be set to disable the sleep mode for systems specifying continuous amplifier operation.
The amplifier includes an analog compressor/limiter for audio fidelity noticeably superior to conventional class D amplifiers with digital limiting. Increasing the input gain can substantially increase
the average output power beyond that of a standard 35 W amplifier. A red front-panel LED flashes when the compressor is preventing output clipping. Normal audio level signals remain unaffected
by the compressor thereby preserving audio dynamics. The audio is compressed according to three dynamic time constants providing aural transparency while maintaining clean, unclipped
amplified audio for input overloads of up to 20 dB. The HD-PA35U, with compression, is capable of producing average audio output levels and clarity normally expected from amplifiers with a
much higher output power rating.
During power-up and power-down, the amplifier output is protected against clicks, pops and thumping by internal soft-start solid-state switches.
A blue POWER LED illuminates when the HD-PA35U is powered from its external 24 Vdc power supply (included). The power LED is dim when the amplifier is in the standby mode, and is bright
when the amplifier is fully active. A front-panel pushbutton is provided to manually cycle between standby and active modes. The power amplifier is equipped with both thermal and output short-
circuit protection. The high-efficiency Class D output stage produces minimal heat for all levels of expected voice or music modulation.
• One input with front-panel volume control
• Bass and Treble tone controls
• Designed as a single zone amplifier
• Master volume VCA controlled with remote adjustment capability
• Amplifier output on detachable terminal block
• Unbalanced summing inputs on RCA jacks
• Includes power supply
• Automatic sleep mode meets strictest energy saving standards
35 Watt Power Amplifier
ULTRA HIGH EFFICIENCY MADE IN U.S.A.
HD-PA35U
HD-PA35UA
4 Ω / 8 Ω
25 V, 70 V, 100 V
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
AudioAmplifierwithECOStandby/SleepMode
AutomaticPower-UpandStandby“SleepMode”Power-Down
ProgrammableSleepModeDelaywithSelectableBypass
AmplifierOutput:35WRMS
OutputImpedanceSwitch-Selectable4Ωor8Ω(HD-PA35U)
ConstantVoltageOutputs25V,70V,100V(HD-PA35UA)
UnbalancedStereo-SummingLineInputs
Front-PanelToneControls
HD-PA35U & HD-PA35UA
Audio Power Amplifiers
HD-PA35U:LowImpedanceOutput4or8ΩHD-PA35UA:ConstantVoltageOutput25V,70Vor100V
AmplifierOutputonDetachableTerminalBlock
MasterVCAControlonRJ45Jack
CompatiblewithRDLRemoteLevelControls
AurallyTransparentCompressorControlsClipping
CompressorMaximizesAverageOutputPowerandLevel
AudioCompressionThresholdLED
High-EfficiencyClassDOperation
ThermalandShort-CircuitProtection

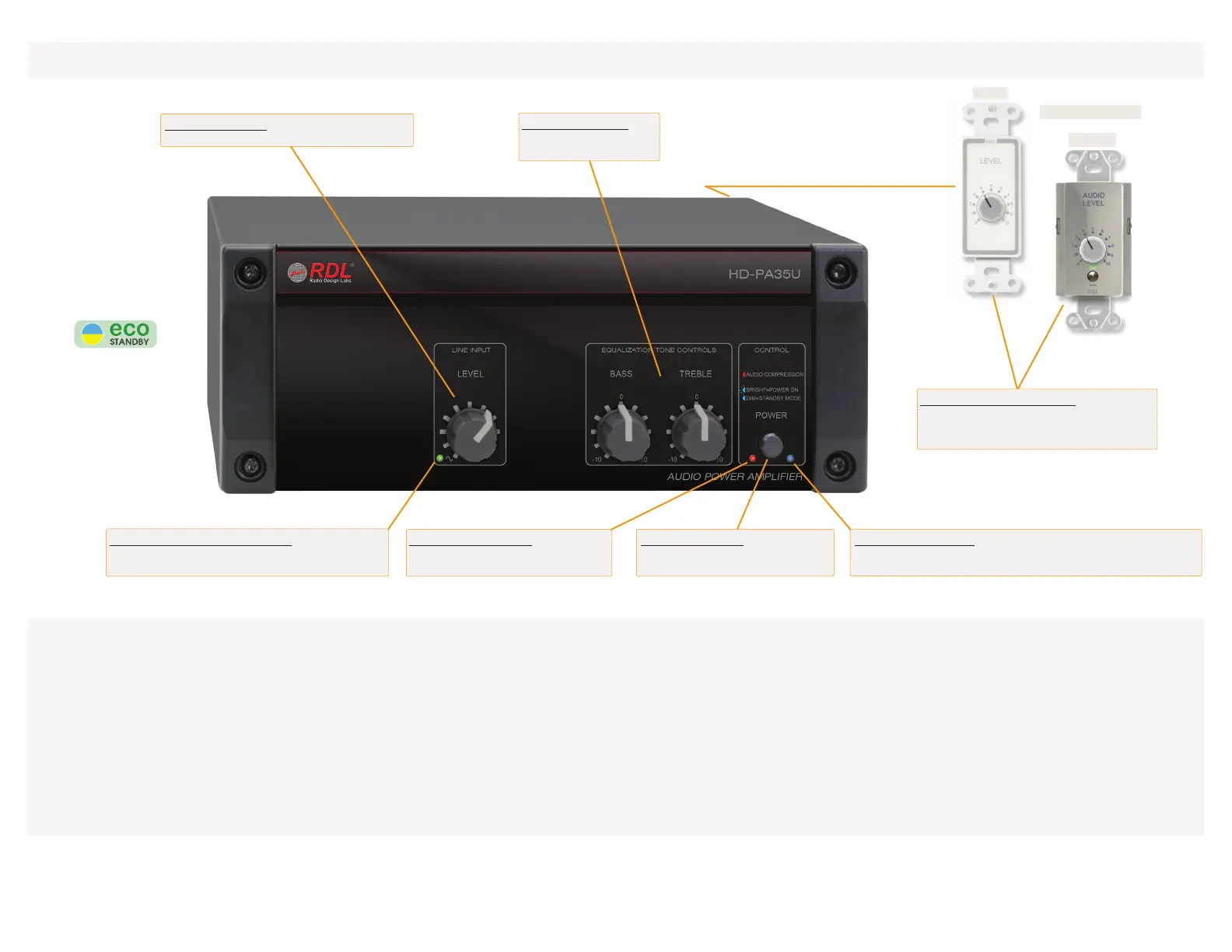

TONE CONTROLS
Usercontrolsadjustbass
and/ortrebleboostorcut.
COMPRESSION LED
LEDflasheswhenaudiocompressoris
actingontheamplifiedaudio.
LEVEL CONTROL
Adjuststhelevelforthe35Wamplifieroutput.
SIGNAL PRESENT INDICATOR
TheLEDglowsifanaudiosignalispresentatthe
input.TheLEDisnotaffectedbythelevelcontrol.
RDL REMOTE CONTROLS
MultipleRDLremotecontrolsareavailableto
allowuseradjustmentofmasteroutputlevel.
Remotecontrolssoldseparately.
RLC10KMS
RLC10K
Remote Control Examples
POWER BUTTON
Momentarypushbuttontogglesthe
amplifierbetweenONandSTANDBY.
POWER INDICATOR
Glowsdimlywhentheamplifierispoweredandisinstandby(sleep)
mode;glowsbrightwhenamplifierison;flashesduringpower-up.
