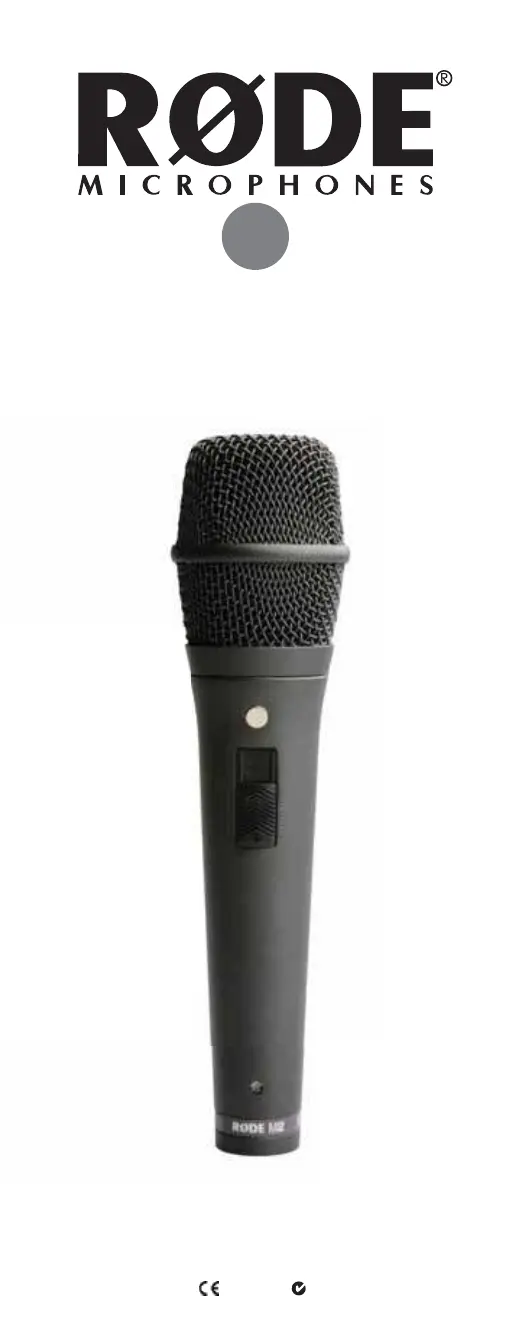

Side 1/8

(

EMC, LVD

)

Instruction Manual

www.rodemic.com

- 2 -

Introduction

Thank you for chosing the

M2 live condenser

microphone.

The M2 beneﬁ ts from

’s extensive experience

in crafting premium condenser microphones for

studio, live and location use and is a direct result of the

foundation set by the award winning S1.

Combining sound quality equal to that of the ﬁ nest

studio microphones with features such as integrated

shock mounting to reduce handling noise and a

tailored response to reduce feedback, the M2 is a

sturdy versatile add to your live microphone kit.

Please take the time to visit www.rodemic.com and

While there you can view studio tips and techniques, as

well as browse a comprehensive range of accessories

for the M2 and other

microphones.

Peter Freedman

Microphones

Sydney, Australia

- 3 -

Speciﬁ cations

Acoustic

Principle:

Pressure gradient

Polar Pattern: Super-Cardioid

(see graph)

Frequency

Range:

35Hz ~ 20,000Hz

(see graph)

Output

Impedence:

50Ω

Sensitivity: -44dB ± 2 dB re 1V/Pa

(6.3mV @ 94 dB SPL) @ 1 kHz

Equivalent Noise: 23 dB SPL

(A-weighted per IEC651)

Maximum

Output:

5.2dBu

(@1kHz, 1% THD into 1KΩ

load)

Dynamic Range: 118 dB SPL

(A-weighted per IEC651)

Maximum SPL: 141dB

(@1kHz, 1% THD into 1KΩ load)

Signal/Noise: 71 dB SPL

(A-weighted per IEC651)

Power

Requirement:

Phantom P48, P24

Output

Connection:

3-pin XLR

Net Weight:

308g

Dimensions:

Length: 187mm

Width: 47mm

Produkspesifikasjoner

Merke:	Røde
Kategori:	Mikrofon
Modell:	M2
Bredde:	47 mm
Dybde:	187 mm
Høyde:	47 mm
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Pakkevekt:	545 g
Impedans:	50 Ω
Mikrofonretningstype:	Superkardioide
Mikrofonvekt:	308 g
Produktfarge:	Sort
Enhetsgrensesnitt:	mini XLR (3-pin)
Signal-til-støy-forhold (SNR):	71 dB
Modell/Type:	Scene/opptreden
Av/på-bryter:	Ja
Krav til strømforsyning:	24/48V
Antall medfølgende produkter:	1 stykker
Mikrofonsensitivitet/mikrofonfølsomhet:	-44 dB
Dynamisk omfang:	118 dB
Frekvensrekkevidde:	35 - 20000 Hz
