Side 1/12

(

EMC, LVD

)

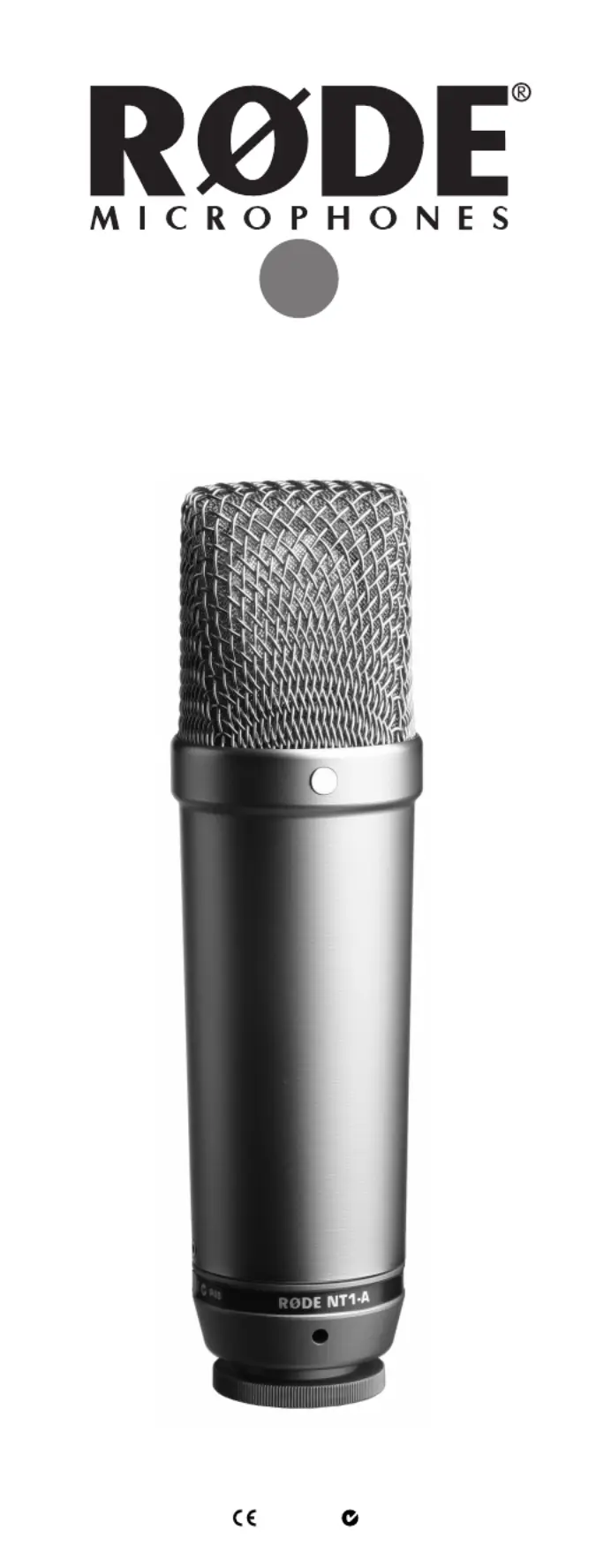

NT1-A

Instruction Manual

www.rodemic.com

- 2 -

Introduction

On behalf of the entire team at I’d like to

personally thank you for investing in the NT1-A

studio condenser microphone.

We’re proud to say that the NT1-A has become an

industry standard - providing the warmth, extended

dynamic range, clarity and high SPL capability

usually only featured by some of the most expensive

microphones.

We’ve titled this the ‘Complete Vocal Recording

Solution’ as we’ve included everything you need to

get truly professional vocal recordings - the world’s

quietest studio microphone, a studio grade popshield

and shock mount, premium cable, dust cover and of

course

’s industry leading ten year warranty.

The NT1-A is an exceptional vocal microphone, but I’m

pleased to say that you will ﬁ nd it an equally capable

microphone for almost any recording application

including acoustic and electric instruments and

percussion.

Please take the time to visit www.rodemic.com and

While there you can view studio tips and techniques, as

well as browse the comprehensive range of accessories

for the NT1-A and other

microphones.

Peter Freedman

Microphones

Sydney, Australia

- 3 -

Speciﬁ cations

Acoustic

Principle:

Externally polarised 25mm (1”)

condenser

Active

Electronics:

JFET impedance converter with

bipolar output buffer

Directional

Pattern:

Cardioid

(see graph)

Frequency

Range:

20Hz ~ 20,000Hz

(see graph)

Output

Impedence:

100Ω

Sensitivity: -31.9dB re 1V/Pa @ 1kHz

(25mV/Pa @ 94dB SPL)

±2dB @ 1kHz

Equivalent Noise: 5dBA SPL

(per IEC651)

Maximum

Output:

+13.7dBu

(@ 1kHz, 1% THD into 1kΩ)

Dynamic Range: >132dB (per IEC651)

Maximum SPL: 137dB

(@ 1kHz, 1% THD into 1kΩ)

Signal/Noise: 88dB SPL

(@ 1kHz, rel 1Pa per IEC651)

Power

Requirement:

Phantom P48, P24

Output

Connection:

3-pin XLR

Net Weight: 326g

Produkspesifikasjoner

Merke:	Røde
Kategori:	Mikrofon
Modell:	NT1
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Mikrofonfrekvens:	20 - 20000 Hz
Mikrofonvekt:	395 g
Utgangsimpedans:	100 Ω
Produktfarge:	Sort
Signal-til-støy-forhold (SNR):	90 dB
Modell/Type:	Studiomikrofon
Plugg inn og spill:	Ja
Mikrofonsensitivitet/mikrofonfølsomhet:	-29 dB
Dynamisk omfang:	128 dB
Mikrofondimensjoner (D x H):	50 x 187 mm
XLR utgang:	Ja
