XTS7
Wall-mounted Touchscreen
INSTALLATION GUIDE
2 Russound XTS7 Installation Guide Russound XTS7 Installation Guide
3
OVERVIEW OVERVIEW
The Russound XTS7 is an elegant, in-wall touchscreen with a 7” display
and a quad-core processor running the Android™ operating system that
enables you to install and run apps from the Google Play Store. The XTS7 is
pre-loaded with the Russound App, perfect for controlling your compatible
Russound audio system, but the XTS7 is free to control any other smart home
devices in your home such as your lights, shades, etc.
The XTS7 comes with 16GB of storage for additional apps and there is a
microSD card slot that allows expansion for up to an additional 256GB of
storage.
The XTS7 oers unmatched convenience in controlling your smart home.
The wall-mounted design is always available for your use, meaning that you’ll
never have to search for your phone or tablet in order to start controlling
devices in your home. You can keep your most important apps like those for
your lights and music on the home screen, instantly available for your use.
The XTS7 is also easy to install and supports both wired and wireless network
connections. A PoE (Power over Ethernet) connection simplifies the wiring by
allowing a single network cable to carry both the network data and the power
to the touchscreen. If a Wi-Fi connection is preferred, the XTS7 also oers a
12V DC connection to supply the required power.
HIGH RESOLUTION DISPLAY
The XTS7 uses a 7” 800 x 1280 display capable of reproducing 16.7 million
colors. It features projected capacitive touch technology, the latest touch
technology used in smartphones and tablets, enhancing its responsiveness
and performance.
ALWAYS AVAILABLE CONTROL
By mounting a touchscreen on the wall at the location of your choosing, your
smart home is now instantly more accessible. It’s no longer necessary to
fumble for your phone or tablet before being able to turn up the volume of
your favorite music, mute the sound when you need, or adjust the lighting in
the room. The XTS7 is pre-loaded with the Russound app for controlling your
compatible Russound audio system, but it is also ready to install your favorite*
apps from the Google Play Store.
WIRED OR WI-FI
The XTS7 is 802.11 b/g/n compatible with an integrated 2.4GHz antenna. Use
a Wi-Fi connection whenever a wired ethernet connection is not possible to
achieve. A wired ethernet connection can utilize a single-wire connection to
a PoE switch or PoE injector, simplifying the installation while minimizing the
risk of any radio interference or poor Wi-Fi reception. The XTS7 will work with
both EIA/TIA 568A and 568B wiring. When using Wi-Fi, a 12VDC@1A power
connection can be used instead of PoE. Only a single power connection is
required, either PoE or 12VDC. Inadvertently connecting both will not aect
the unit as the PoE connection will not draw power if the 12VDC connection is
active.
ENHANCED SECURITY
Because the XTS7 runs Android, you are free to use the native Android
security features such as a PIN-protected screen lock. This is ideal for
commercial installations where access to the apps on your XTS7 should be
protected from wide access and only operate to designated persons with the
PIN code.
LAN/PoE
12V DC/1A
Power over Ethernet
(802.3af compliant) or 12V DC/1A
Designed by Russound/FMP, Inc.
Manufactured in China
www.russound.com
RoHs
1
0
Russound
XTS7 Wall-Mounted Touchscreen
Product Lable
Color: Black/White
Adhesive: Permanent
LAN/PoE
12V DC 1A
XTS7
Power over Ethernet
(802.3af compliant)
Designed in the USA by Russound/FMP, Inc. | Manufactured in China
www.Russound.com
PLEASE CHOOSE EITHER
12V DC or LAN/PoE TO
SUPPLY POWER
DO NOT USE BOTH
Wall-Mounted Touchscreen
Front
Back
Tools Needed
Philips Screwdriver (#0)
Used to tighten the captive locking screws
Philips Screwdriver (#2)
Used to attach the XTS7 mounting Bracket to the
electrical box/p-ring
12VDC Power
LAN/PoE
Note: Please choose either
12VDC Power or PoE.
DO NOT USE BOTH
4 Russound XTS7 Installation Guide Russound XTS7 Installation Guide
5
STEP 1
Install the electrical box or P-ring. The typical recommended mounting height
for a wall-mounted touchscreen is for the center of the electrical box or p-ring
to be at 59” (150cm) from the finished floor height. This may be adjusted for
user preference, but the 59” height is recommended to accommodate most
users. Make sure that the electrical box/P-ring is mounted level and is flush
to the wall surface.
Wireless Installation Note: If a Wi-Fi connection is desired, make sure to test the Wi-Fi
signal strength at the proposed mounting location prior to cutting any wall openings.
The Wi-Fi signal strength can be checked using any of the commonly available Wi-Fi
signal strength apps. If the Wi-Fi signal is not strong enough at the proposed mounting
location, consider using a wired ethernet connection or enhancing the Wi-Fi in the
mounting area.
Wired Network Installation Note: If a wired network connection is being used, keep in
mind that the XTS7 uses a dynamic DHCP network address supplied by your router.
When a more permanent IP address is required, a DHCP-reservation may be used on a
compatible router.
STEP 2
Attach the included XTS7 mounting plate to the electrical box or P-ring using
the supplied screws. Please note the orientation below. The XTS7 can only
be installed in landscape orientation. The plate should be installed so that the
two attachment prongs at either end are facing into the room. These prongs
will be used for attaching the XTS7 to the mounting plate.
For a 1-gang US box or P-ring, two mounting screws will be used, one at the
top and one at the bottom, centered horizontally on the mounting bracket.
For a 2-gang US box or P-ring, four mounting screws will be used, as shown
below.
For a 60mm Euro box, two mounting screws will be used, with the two
horizontal screwholes being recommended.
STEP 3
Connect the PoE Ethernet cable or the 12VDC power cable from the electrical
box or P-ring to the rear of the XTS7. Before attaching the XTS7 to the wall,
make sure that touchscreen powers up properly. The Russound logo will
appear during bootup and if this is a new installation, the touchscreen will
enter the standard Android setup process. This can be completed once the
touchscreen is fully mounted.

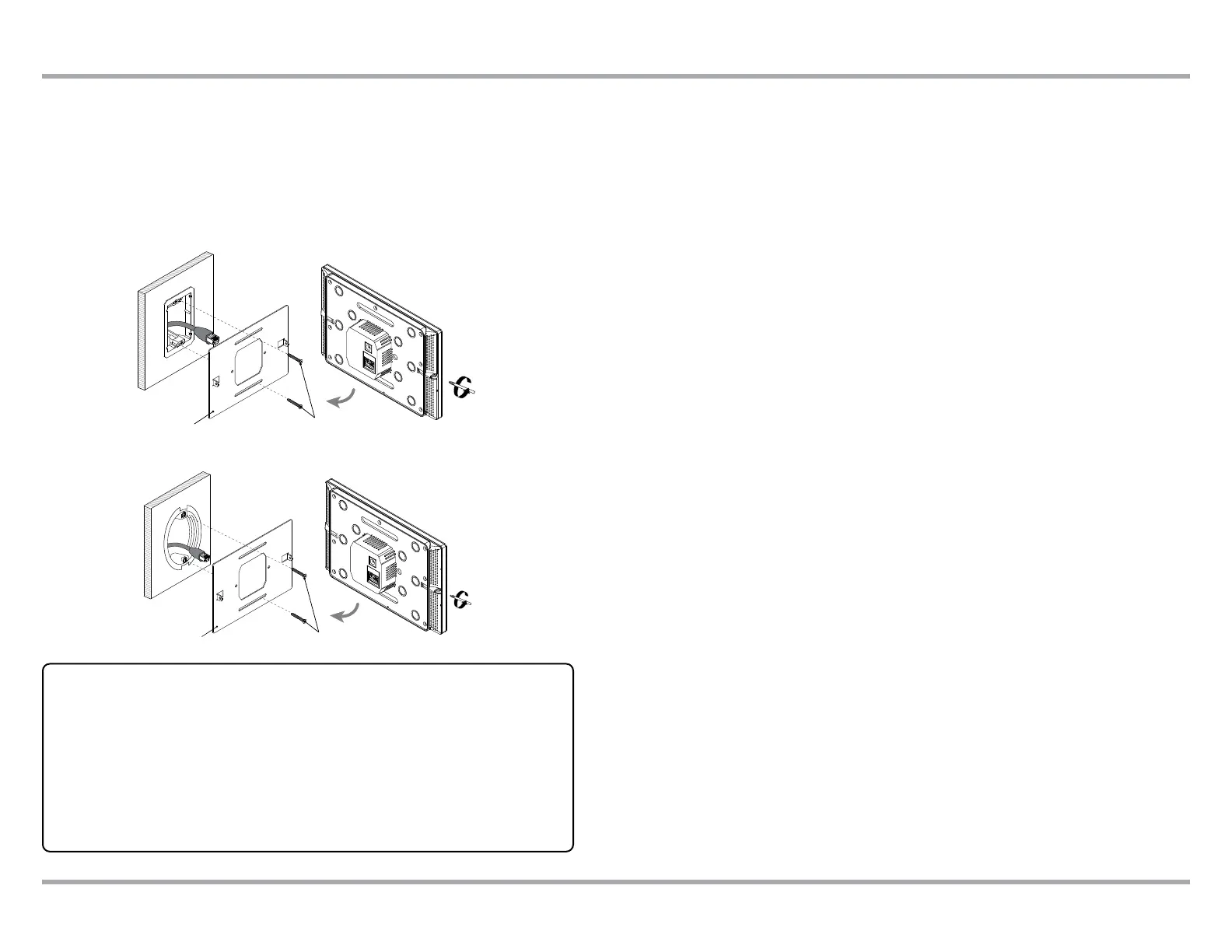

STEP 4
Attach the touchscreen to the mounting bracket by aligning the mounting
brackets prongs to the corresponding slots on the rear of the XTS7. Use a #0
Phillips screwdriver to tighten the two locking screws on the rear sides of the
XTS7 until the touchscreen is tightly mounted to the bracket.
STEP 5
Device Setup
When powered up for the first time, the XTS7 will enter setup mode. If using
a wired network connection, the XTS7 should already be connected to the
internet and will proceed to the next step. If using a Wi-Fi connection follow
the on-screen prompts to connect your XTS7 to the desired Wi-Fi
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
Secure each
side to bracket
Screws
XTS7 Bracket
(Included)
Secure each
side to bracket
Screws
XTS7 Bracket
(Included)
US Single Gang Box
EU Single Gang Box
