Flush-mount multifunction display unit

ATE 310

KEY POINTS

Front face

Brushed stainless steel 316 L

Back housing

Flush-mount in stainless steel 304 L

Protection

IP65 in front face

Weight

585 g

●

Alternating display of 1 to 3 parameters

●

3 audible and visual alarms

●

Configuration keyboard and acknoledgment of the alarm on the front face

●

3 analogue inputs 0-5/10 V or 0/4-20 mA

●

Ethernet communication (option)

●

RS485 MODBUS protocol communication

●

30 pre-programmed units and configurable units

●

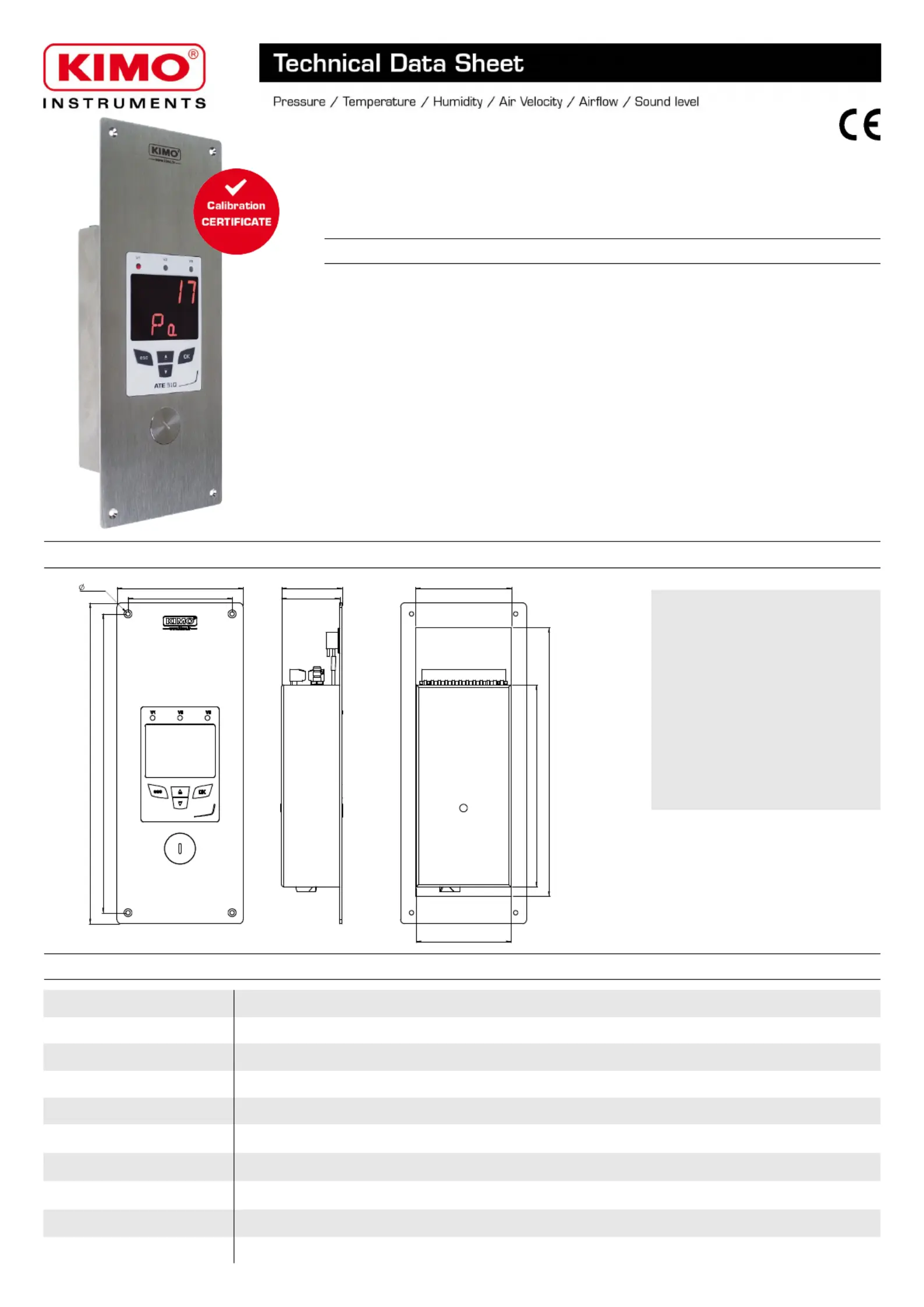

Front face made of brushed stainless steel with electroluminescent display

FEATURES OF THE HOUSING

DISPLAY FEATURES

Display Electroluminescent alphanumeric (38 x 48 mm). Protection glass in red inactinic PMMA .

First line (measurement) 4 digits of 8 segments each. Size: 14 x 48 mm.

Second line (unit) 4 digits of 14 segments each. Size: 14 x 48 mm.

Comma position Configurable: 0 / 0.0 / 0.00

Value of the measurement From -9.99 to 99.99 and from -999 to 999

Accuracy* ±0.1% of reading ±1 digit

Number of channels From 1 to 3 ways alternating

Location of channels By red Led V1, V2 and V3

Available units 30 pre-programmed units (see table) and configurable units

Response time < 1 second

*All accuracies indicated in this document were stated in laboratory conditions and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.

234 mm

92 mm

44 mm

42.5 mm

70 mm

196 mm

3.2 mm

218 mm

76 mm

69 mm

147.3 mm
