CP 110
Quick Start Guide
EN FR
www.sauermanngroup.com
ES IT
DE
English
Quick Start Guide
Output / Supply
Active sensor 0-10 V or 4-20 mA (alim. 24 Vac/Vdc ±10%), 3-4 wires
Passive loop 4-20 mA (power supply 16/30 Vdc), 2 wires
Common mode voltage <30 VAC
Maximum load: 500 Ω (4-20 mA) / minimum load: 1 K Ω (0-10 V)
Consumption
CP 111: 3 VA (0-10 V) or 3 VA (4-20 mA)
CP112, CP113, CP 114, CP 115: 2 VA (0-10 V) or 0.6 VA (4-20 mA)
European directives 2014/30/EU EMC; 2014/35/EU Low Voltage; 2011/65/EU RoHS II; 2012/19/EU WEEE
Electrical connection
Screw terminal block for cables from 0.05 to 2.5 mm
2
or from 30 to 14 AWG
Carried out according to the code of good practice
PC Communication USB-mini DIN cable
Environnement Air and neutral gases
Response time 1/e (63%) 0.3 s
Zero setting Manual autozero with push-button; self-calibration by solenoid valve (CP 111 only)
Type of uid Air and neutral gases
Conditions of use
(°C/%RH/m)
From 0 to +50 °C. In non-condensing condition. From 0 to 2000 m
Storage temperature From -10 to +70 °C

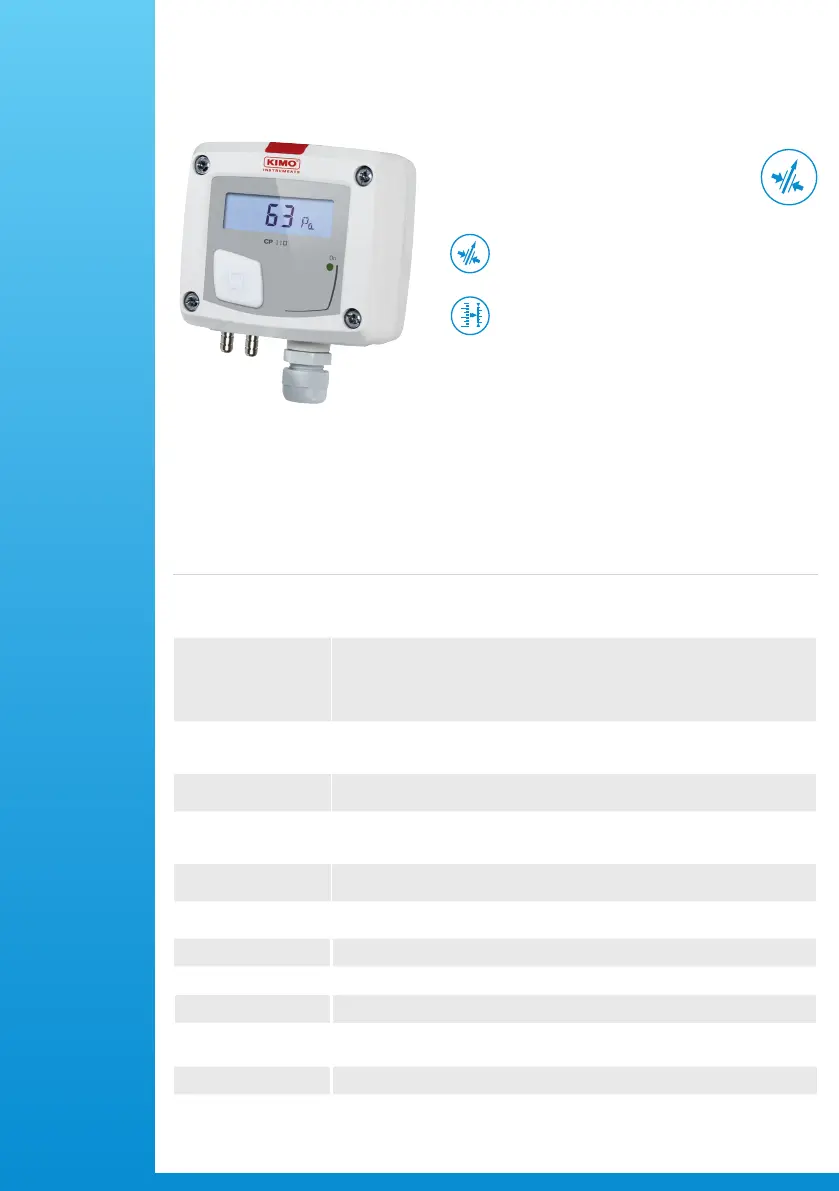

Differential pressure
transmitter
Features
0-10 V or 4-20 mA output, active, power supply
24 Vac/Vdc (3-4 wires) or 4-20 mA output, passive
loop, power supply from 16 to 30 Vdc (2 wires)
ABS V0 housing, IP65, with or without display
“¼ turn” system mounting with wall-mount plate
Housing with simplied mounting system
Solenoid valve for auto-calibration (only on
CP111 model)
Congurable intermediary
ranges
Ranges from -100/+100 Pa to
-2000/+2000 mbar (according to model)
General features
*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.
Technical specications
Material ABS V0 as per UL94
Protection IP65
Display
LCD 10 digits.
Dimensions: 50 x 17 mm
Height of digits: values: 10 mm; units: 5 mm
Connections Ribbed, Ø 6.2 mm
Cable gland For cables Ø 8 mm maximum
Weight 143 g

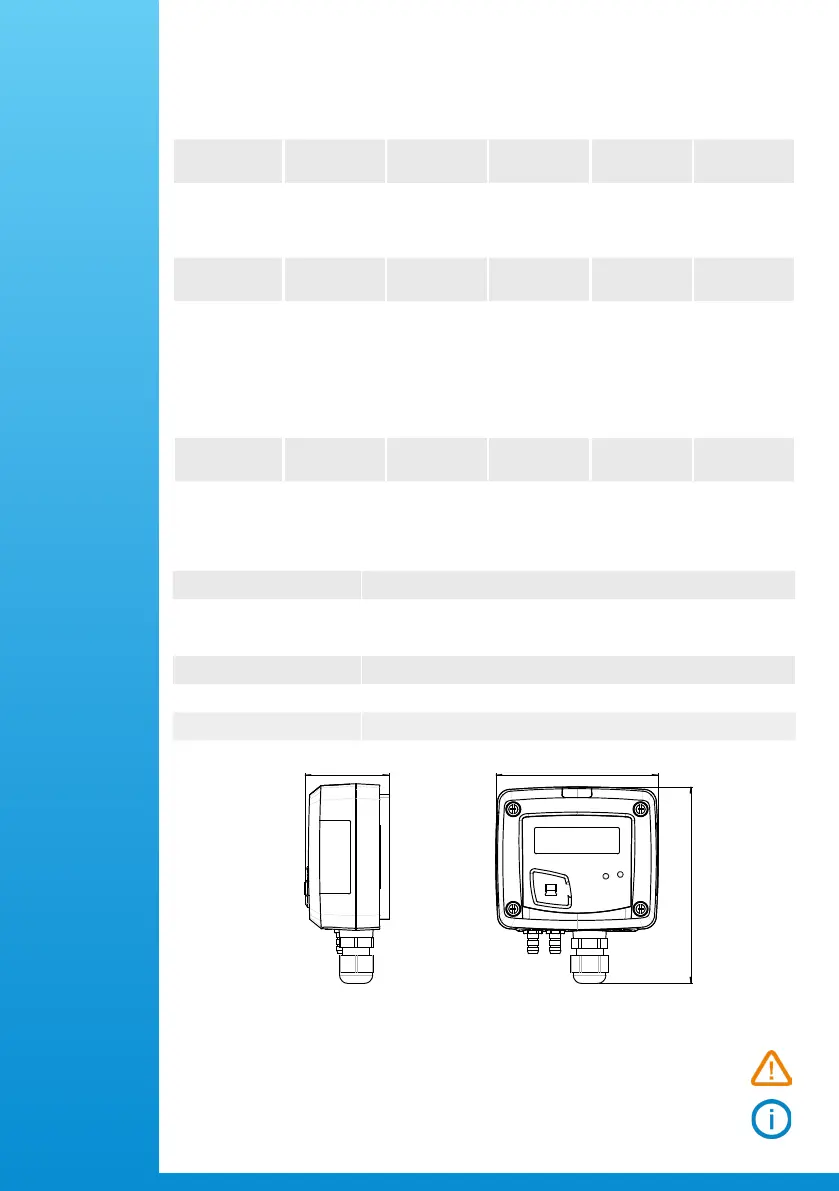

Features of the housing
46 mm
90 mm
109 mm
Symbols used
For your safety and in order to avoid any damage of the device, please follow the procedure described in
this document and read carefully the notes preceded by the following symbol:
The following symbol will also be used in this document, please read carefully the information notes
indicated after this symbol:
CP 111 CP 112 CP 113 CP 114 CP 115
Measuring ranges -100/+100 Pa -1000/+1000 Pa -10 000 /+10 000 Pa -500/+500 mbar -2000/+2000 mbar
Measurement
units
Pa, mmH
2
O,
inWG, mmHG,
daPa, kPa, hPa,
mbar
Pa, mmH
2
O,
inWG, mmHG,
daPa, kPa, hPa,
mbar
Pa, mmH
2
O,
inWG, mmHG,
daPa, kPa, hPa,
mbar
mbar, inWG,
mmHG, PSI,
mmH
2
O, daPa,
hPa, kPa
mbar, inWG,
mmHG, PSI,
mmH
2
O, daPa,
hPa, kPa
Accuracy*
±1% of reading
±2 Pa
±1.5% of reading
±3 Pa
±1.5% of reading
±30 Pa
±1.5% of reading
±3 mbar
±1.5% of reading
±3 mbar
Resolution
1 Pa;
0.1 mmH
2
O;
0.01mbar;
0.01inWG;
0.01 mmHG;
0.1daPa;
0.001kPa;
0.01hPa
1 Pa;
0.1 mmH
2
O;
0.01mbar;
0.01inWG;
0.01 mmHG;
0.1daPa;
0.001kPa;
0.01hPa
1 Pa;
0.1 mmH
2
O;
0.01mbar;
0.01inWG;
0.01 mmHG;
0.1daPa;
0.01kPa;
0.01hPa
1 mbar;
0.1inWG;
1mmHG;
1mmH
2
O;
1hPa;
10 daPa;
0.1 kPa;
0.1 PSI
1 mbar;
0.1inWG;
1mmHG;
1mmH
2
O;
1hPa;
10 daPa;
0.1 kPa;
0.1 PSI
Overpressure
tolerated
21000 Pa 21000 Pa 69000 Pa 1400 mbar 4100 mbar
