USER MANUAL
(rev 1.0)
Wall Plate Extender
1080p
SWP-T10
Extends VGA, stereo audio, HDMI, IR and RS232
signals with CAT5e/6 up to 70 meters.
2
© 2016 SmartAVI, Inc.
SWP-T10
WHAT S IN THE BOX’
PART NO. QTY DESCRIPTION
SWP-T10 1 HDBaseT Wall Plate Transmitter
PS12V2A 1 Power Supply
1 SWP-T10 Quick Start Guide

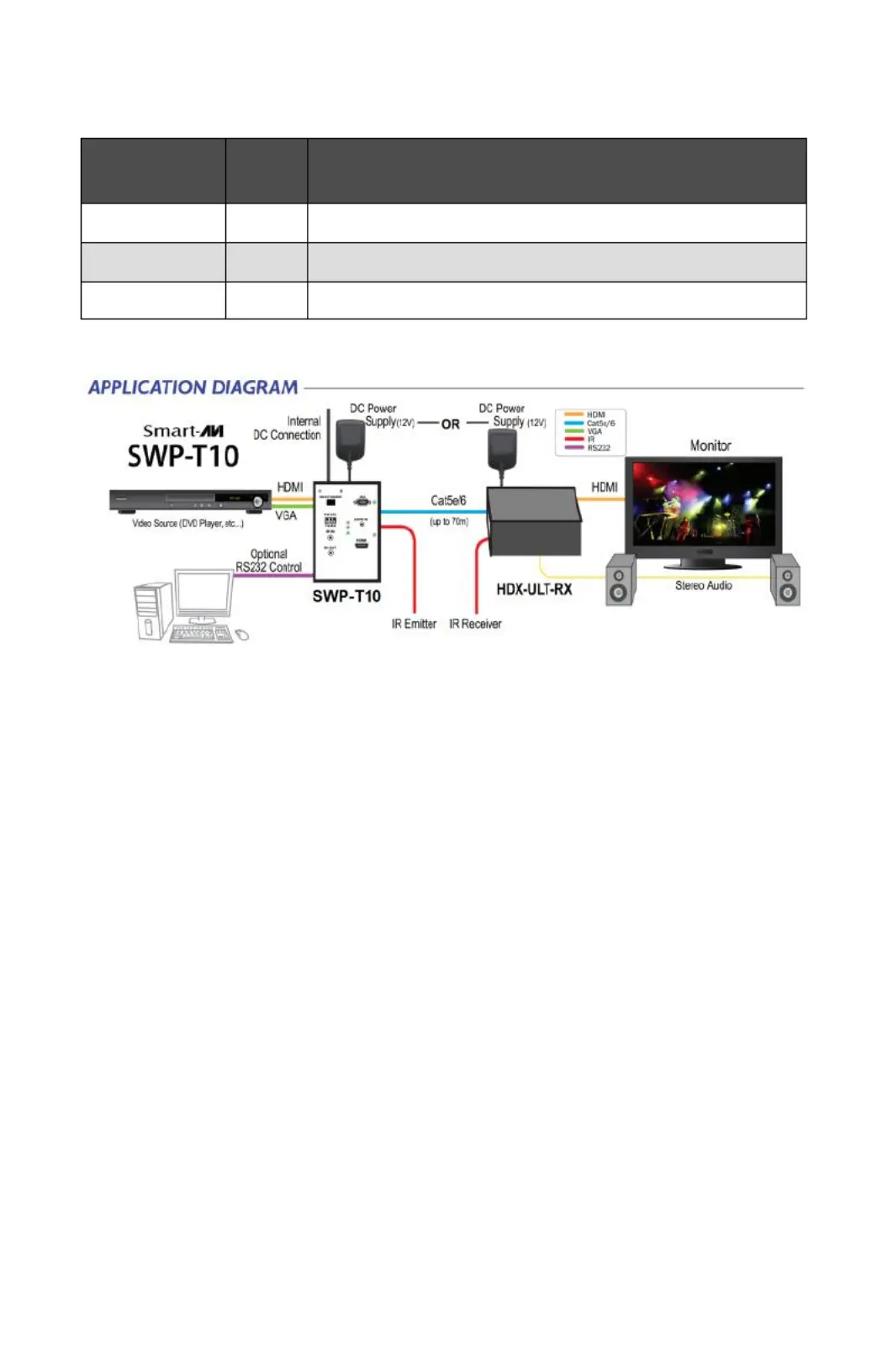

CONNECTING THE HDX-WPRO
1. -Install the SWP T10 transmier and place the SmartAVI HDX RX receiver
unit in close proximity to the output device.
2. Connect a Cat5e/6 cable between the TX and RX units (up to 70m).
3. -Connect a signal source to the SWP T10 via HDMI, VGA, Stereo Audio,
RS232 or IR connectors.
4. Connect the HDX RX unit to the desired output device.
5. -Connect a 12V power supply to either the SWP T10 or the HDX RX unit.
The other device will be powered via POE (Power over Ethernet).
6. Use the TX front panel SELECT SOURCE buon to switch between source
signals. Using automac selecon will select the last source connected.
Oponal:
1. Connect an RS232 cable between SWP T10 and a personal computer and -
a RS232 cable from the HDX RX unit to any RS232 device to remotely
communicate with or control your RS232 device.
2. To extend IR remote control from the SWP T10 to the HDX RX unit, con--
nect an IR receiver to the SWP T10 and an IR Emier to the HDX RX for -
infrared remote control up to 20m
SWP-T10
3
© 2016 SmartAVI, Inc.

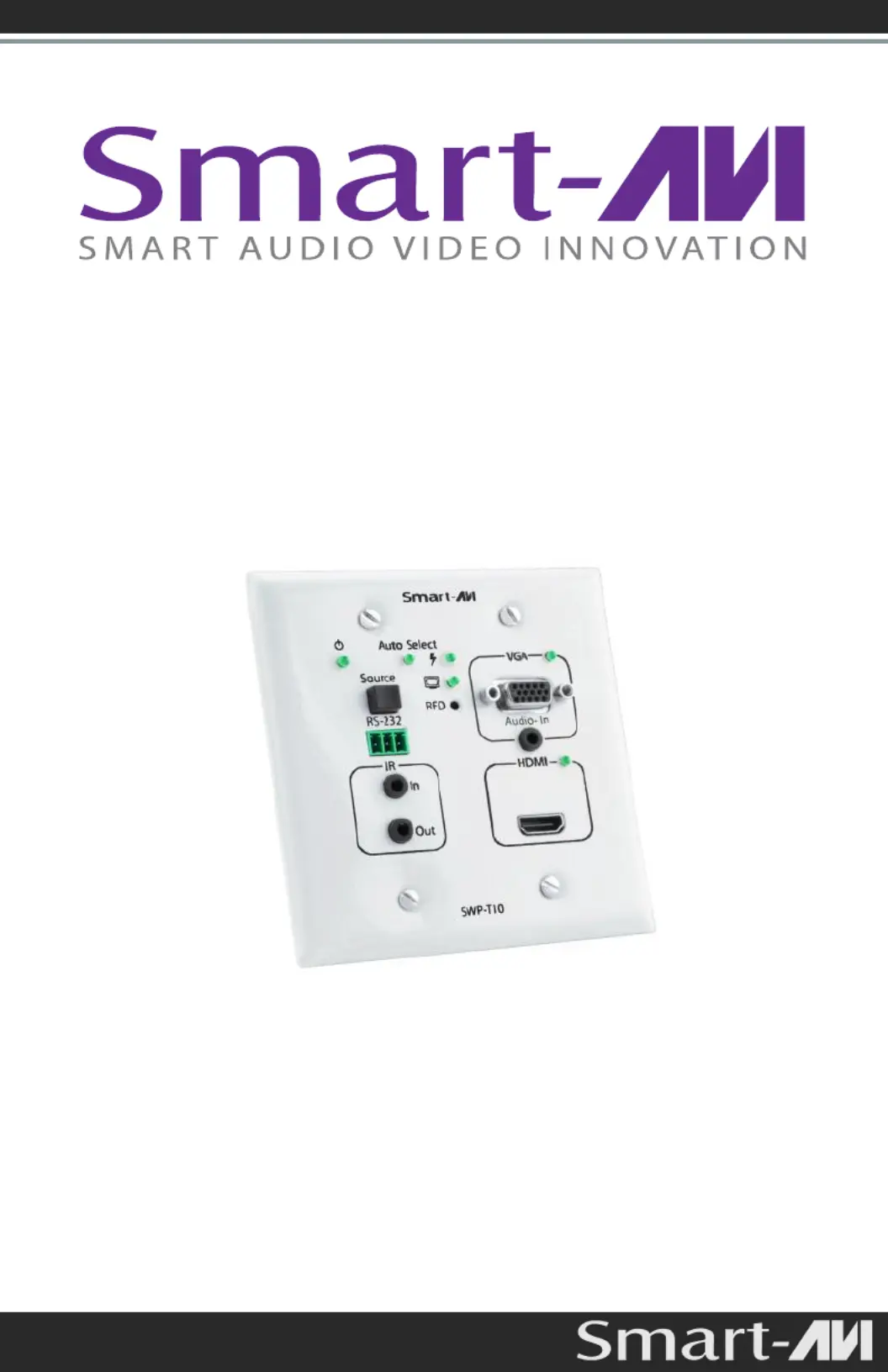

SWP-T10 FRONT
SWP-T10 BACK
