Big spec. Small footprint.
appreciated. Partnered with the SM20
monitor console, the Series FOUR also
provides a flexible audio mixing
solution for live sound venues.
The Series FOUR is available in four
frame sizes providing 24, 32, 40 and 48
mono inputs into 8 group busses, 10
auxiliary busses and stereo and mono
main mix busses. 4 full-function stereo
input channels are also included in
each frame in addition to the mono
modules. The output section includes 8
VCA groups, and a 16x8 matrix section,
which includes feeds from four of the
Aux busses.

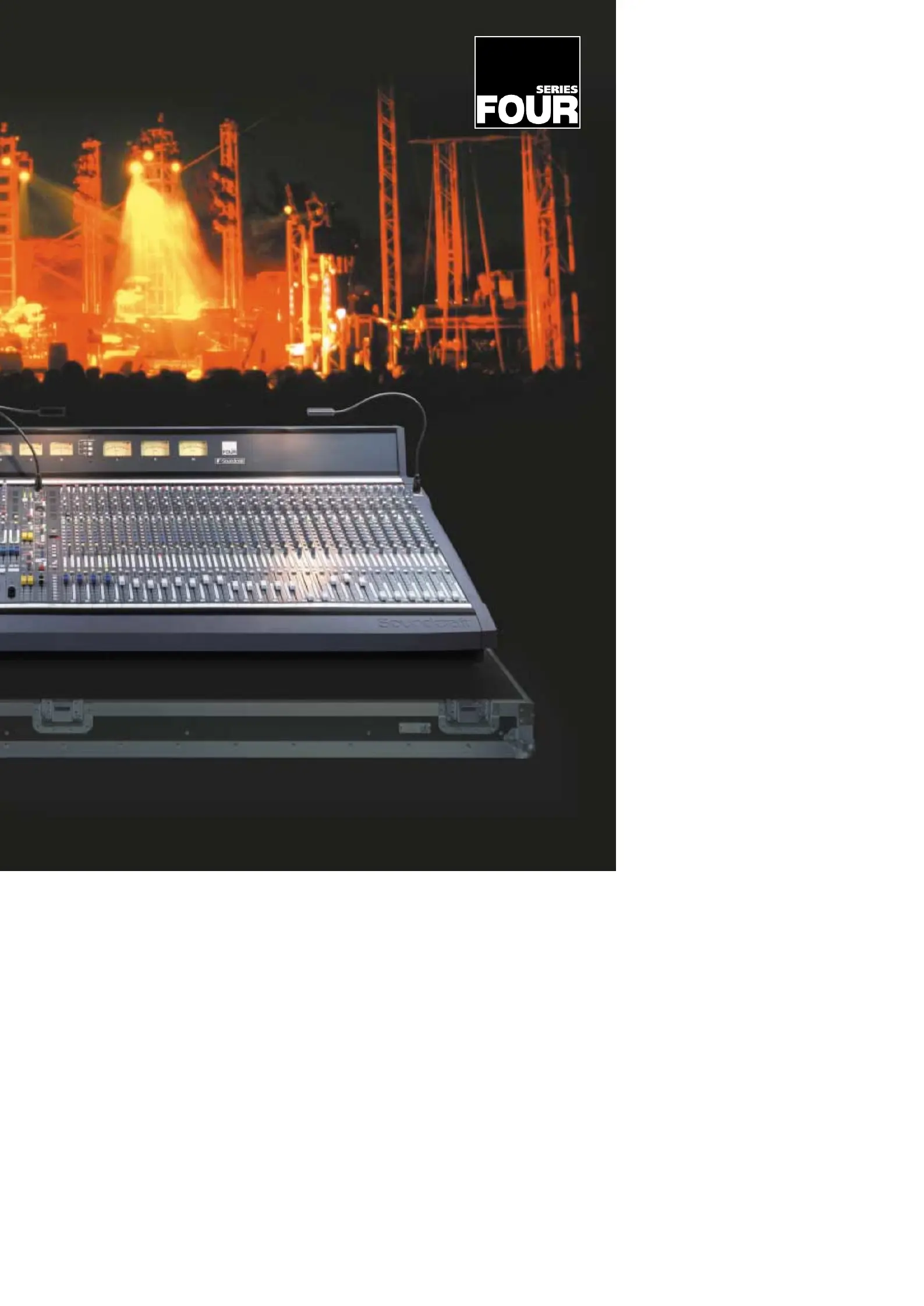

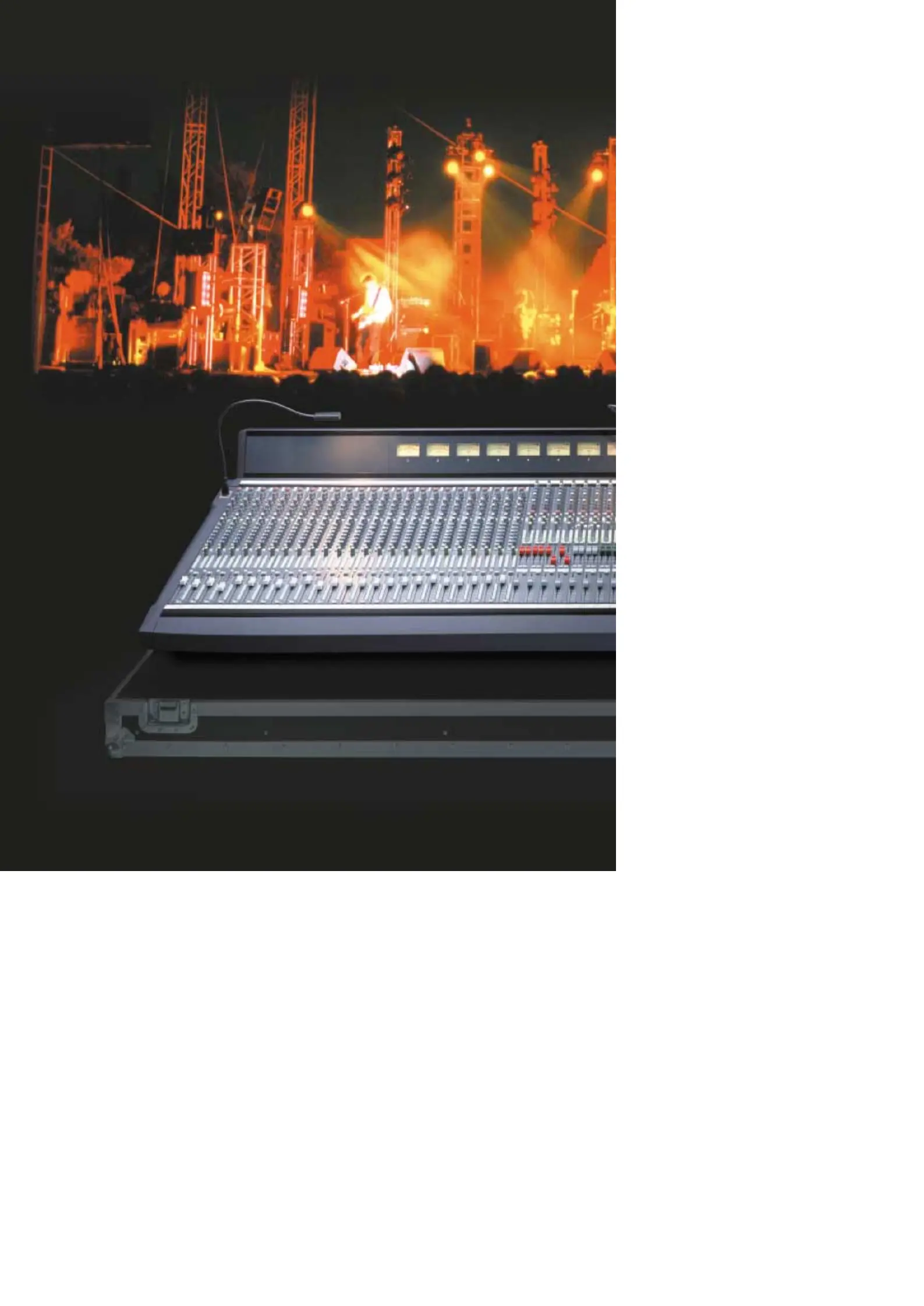

Series FOUR is a compact live sound
mixer for front-of-house
applications. Its high feature count
combined with small footprint makes
it ideal for budget-conscious touring
applications, where the familiar
control layout found on its big
brother, the Series FIVE, will be highly
• 10 auxiliary busses
• 8 VCA groups
• Built-in 16x8 matrix section
• 4-band fully parametric EQ on both
mono and stereo inputs
• Sweepable filters on all input
channels
•
8 mute groups plus 126 mute snapshots
• Advanced logic-controlled
solo system
• LED input metering on
every channel
• VU output meterbridge
• 100mm channel and master faders
• MIDI programme change
transmission and reception
• 24-48 channel frame sizes
• 4 stereo mic / line inputs with full
EQ as standard
• Rugged power supply with three
year warranty
• Fully modular design in a compact
frame
• 8 subgroups
No endorsement implied. Live photograph copyright of Diana Scrimgeour.
Produkspesifikasjoner
| Merke: | Soundcraft |
| Kategori: | Ikke kategorisert |
| Modell: | Series FOUR |
