Side 1/20
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2

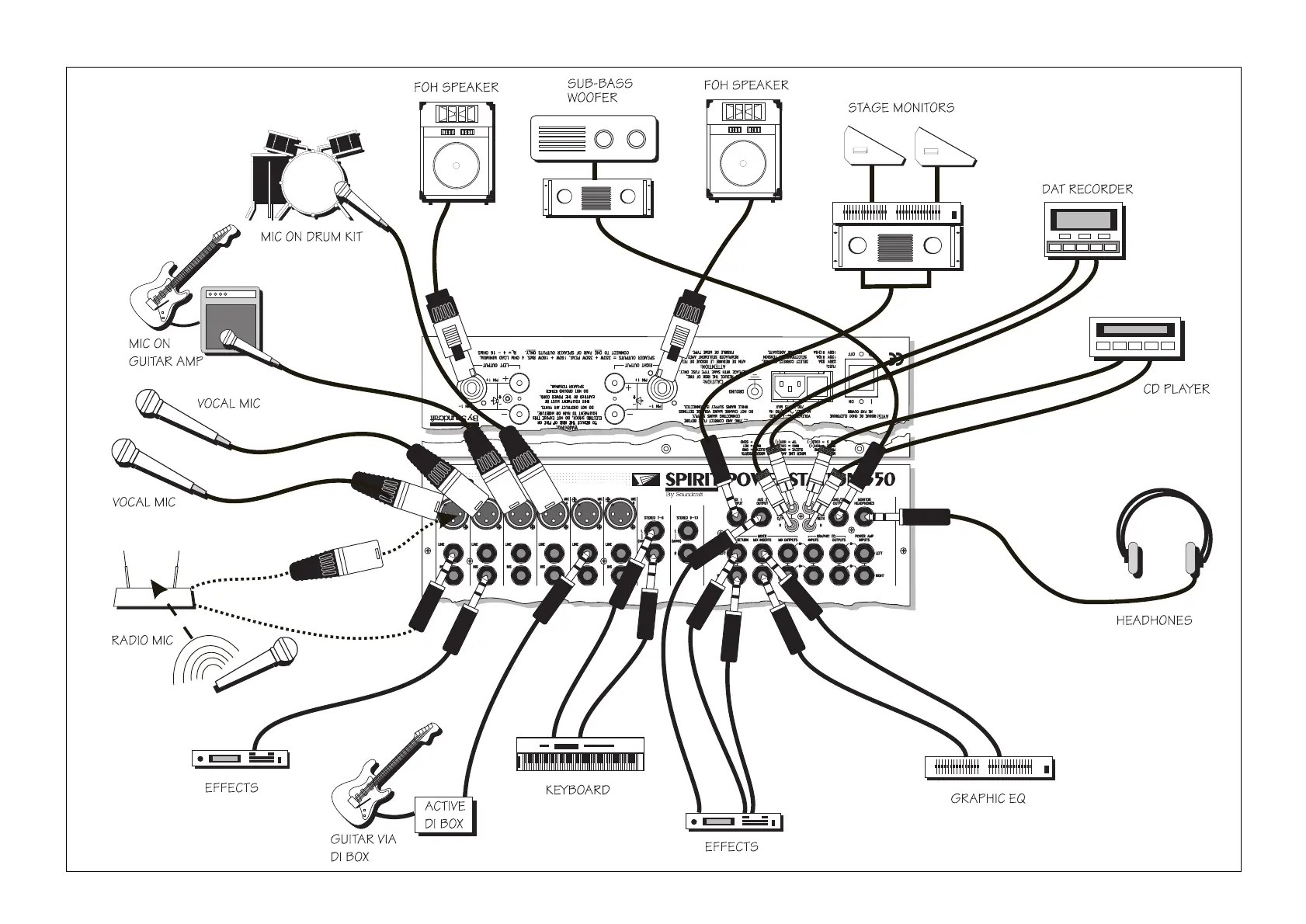

Connecting Up . . . . . . . . . . . . . . . . . . . . . 3
Using the Powerstation . . . . . . . . . . . . . . 4
Setting Up & Troubleshooting . . . . . . . . 10
Applications . . . . . . . . . . . . . . . . . . . . . . 11
System Block Diagram . . . . . . . . . . . . . 17
Connecting Leads . . . . . . . . . . . . . . . . . .19
Dimensions . . . . . . . . . . . . . . . . . . . . . . 20
Typical Specifications . . . . . . . . . . . . . . .20
SAFETY PRECAUTIONS
WARNING: THIS UNIT MUST BE EARTHED
Under no circumstances should the mains earth be
disconnected from the mains lead.
The wires in the mains lead are coloured in accordance with the following
code:
Earth: Green and Yellow (Green/Yellow - US)
Neutral: Blue (White - US)
Live: Brown (Black - US)
As the colours of the wires in the mains lead may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows:
l The wire which is coloured Green and Yellow must be connected to
the terminal in the plug which is marked with the letter E or by the
earth symbol.
l The wire which is coloured Blue must be connected to the terminal in
the plug which is marked with the letter N.
l The wire which is coloured Brown must be connected to the terminal
in the plug which is marked with the letter L.
Ensure that these colour codings are followed carefully in the event of the
plug being changed.
This unit is capable of operating over a range of mains voltages by means of
a 4-position mains input fuse carrier. It is important to ensure that the cor-
rect voltage setting is selected for the level of local mains voltage supply, for
safe, uninterrupted operation. Use a small screwdriver to prise the fuse
carrier from its location in the connector.
To avoid the risk of fire, replace the mains fuse only
with the correct value fuse, as marked on the rear
panel.
The internal power supply unit contains no user
serviceable parts. Refer all servicing to a qualified
service engineer, through the appropriate Spirit dealer.
Do not obstruct air vents.
INTRODUCTION
Thank you for purchasing a Powerstation mixer, brought to you with pride by the SPIRIT team of Andy, Colin, Chris, James,
Simon, Mukesh, Graham, Martin, Paul, Tony, Adam, Peter, our friends in Boston and with the support of many others - we
hope you will have as much fun using it as we did building it!
For your own safety and to
avoid invalidation of the
warranty please
read this section carefully.
