Side 1/23
1
44
1
1 2 GRPS 3 4 MIX

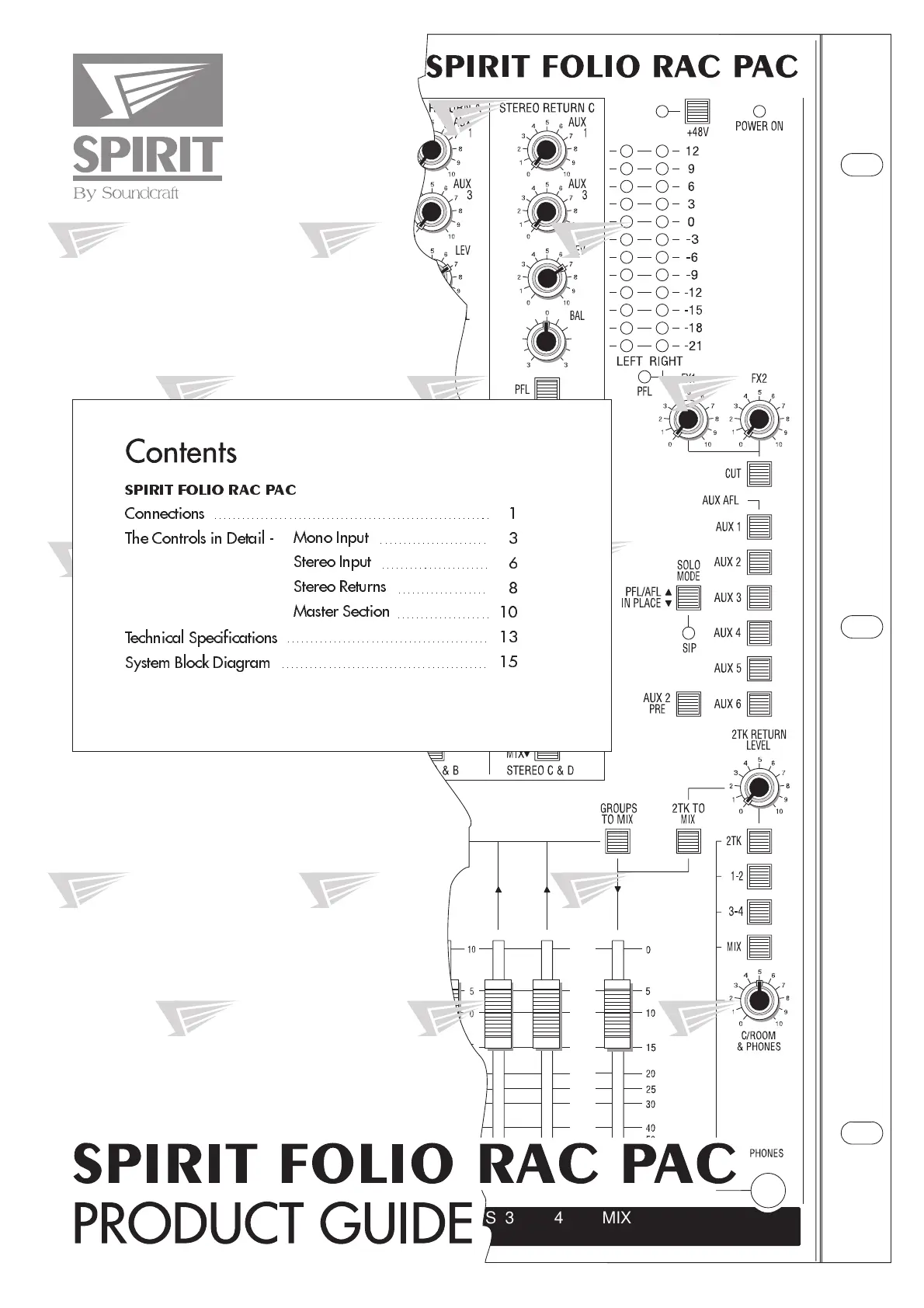

SPIRIT FOLIO RAC PAC
Connections
The Controls in Detail -
Technical Specifications
System Block Diagram
1
3
6
8
10
13
15
Mono Input
Stereo Input
Stereo Returns
Master Section
Introduction
Thank you for buying a SPIRIT FOLIO RAC PAC mixer, brought to you with pride by the SPIRIT team of Peter, Graham,
Martin, Ian, Stuart, Peter, George, Colin, James, Chris, Mukesh, Andy, Candy and Simon. We hope you have as much
fun as we did!
Owning a SPIRIT console brings you the expertise and support of one of the industrys leading manufacturers and the
results of over 20 years experience supporting some of the biggest names in the business.
Built to the highest standards using quality components, FOLIO RAC PAC is designed to be as easy to use as possible,
but some time spent NOW, looking through this manual and getting to know your new mixer will give you lots of helpful
tips and confidence, away from the pressures of an important session. Dont be afraid to experiment to find out how
each control affects the sound - this will only extend your creativity and help you to get the best from your mixer.
SAFETY PRECAUTIONS
For your own safety and to avoid invalidation of the warranty please read this
section carefully.
The FOLIO RAC PAC
desk must only be connected through the Power Supply
Unit supplied.
The wires in the mains lead are coloured in accordance with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals
in your plug, proceed as follows:
The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with
the letter E or by the earth symbol.
The wire which is coloured Blue must be connected to the terminal in the plug which is marked with the letter N
or coloured Black.
The wire which is coloured Brown must be connected to the terminal in the plug which is marked with the letter L
or coloured Red.
Ensure that these colour codings are followed carefully in the event of the plug being changed.
The power supply contains no user-serviceable parts. Refer all servicing to a
qualified service engineer, through the appropriate Soundcraft dealer.
SPIRIT FOLIO RAC PAC
1

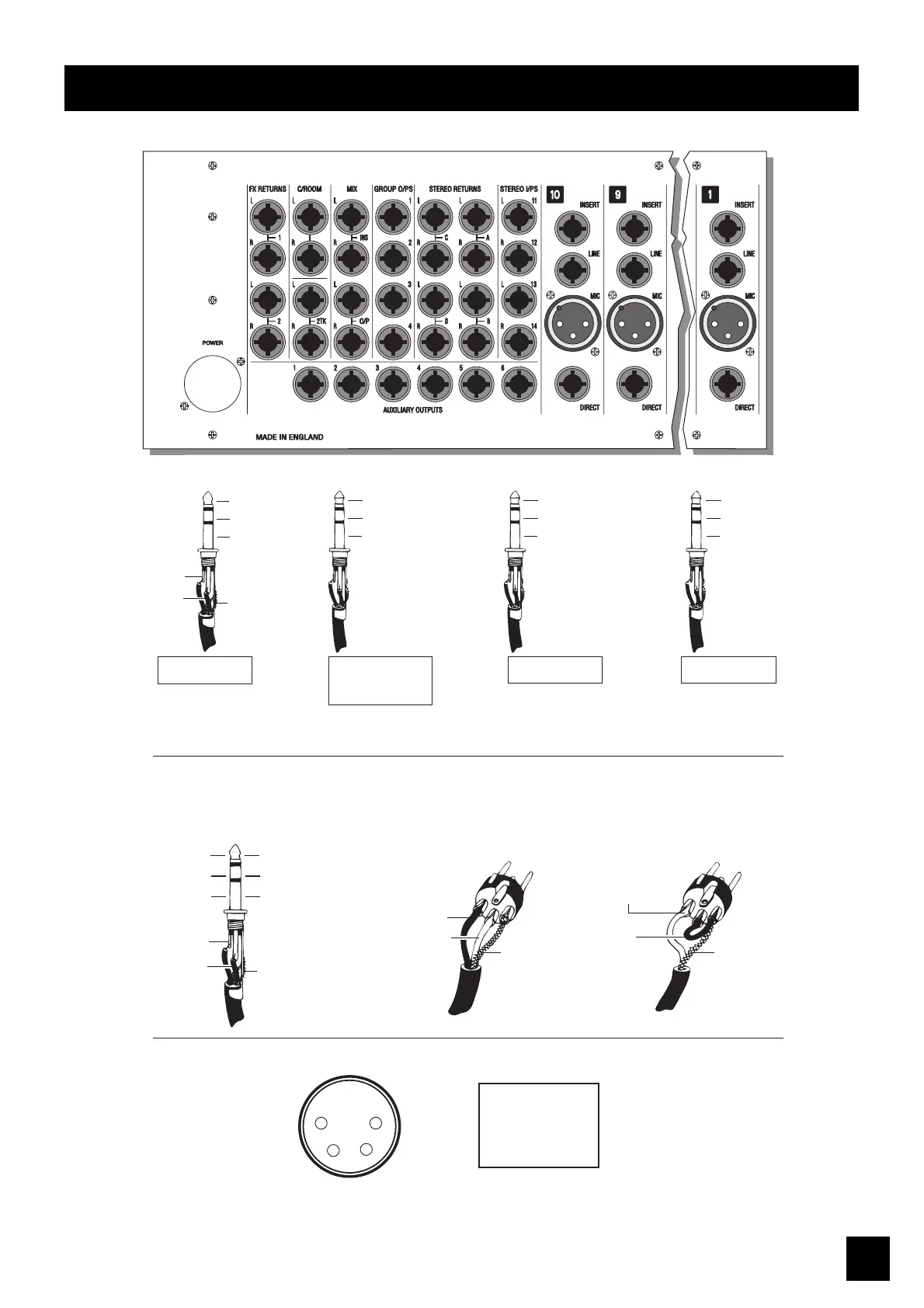

ConnectORS
Left Signal
Right Signal
Ground
Headphones
Signal (+ve)
Ground Sense (-ve)
Screen
Signal (+ve)
Gnd/Screen
Gnd/Screen
Signal Send
Signal Return
Gnd/Screen
Tip
Ring
Sleeve
Inserts
Mix Outputs
Group Outputs
Aux Outputs
Direct Outputs
Hot (+ve)
Cold (-ve)
Gnd/Screen
Signal
Gnd/Screen
Gnd/Screen
Tip
Ring
Sleeve
Unbalanced
3 pole Jack
Unbalanced Mic
XLR
Balanced Mic
XLR
Balanced
3 pole Jack
2. Hot(+ve)
3. Cold(-ve)
1. Screen
1. Screen
2. Hot(+ve)
Link 3
to 1
INPUTS, 2 TRACK RETURNS & FX RETURNS
(Note: All inputs are balanced, but unbalanced sources may be used as shown)
POWER CONNECTOR PINOUTS
(viewed from cable end)
Pin 1
Pin 2
Pin 3
Pin 4
20V AC
n/c
0V
20V AC
1
3
2
4
R
2
SPIRIT FOLIO RAC PAC
