Soundcraft Vi Seriesโข Cards 0720
Page 1
TECHNICAL INFORMATION
Vi Series Standard & Optional I/O Cards
Issue 0620
Standard Cards
Line Input Card
Line Output Card
Mic/Line Input Card
AES/EBU I/O Card
MADI I/O Cards
MADI HD Cards
GPIO Card with relay outputs
Ext Sync Card
Optional Cards
CobraNetโข Interface Card
Aviom A-NETยฎ Interface Card
EtherSoundยฎ Interface Card
ADAT I/O Card
SDI In Card
SDI I/O Card
Dolbyยฎ D/E Decoder Card
Soundcraft Vi Seriesโข Cards 0720
Page 2

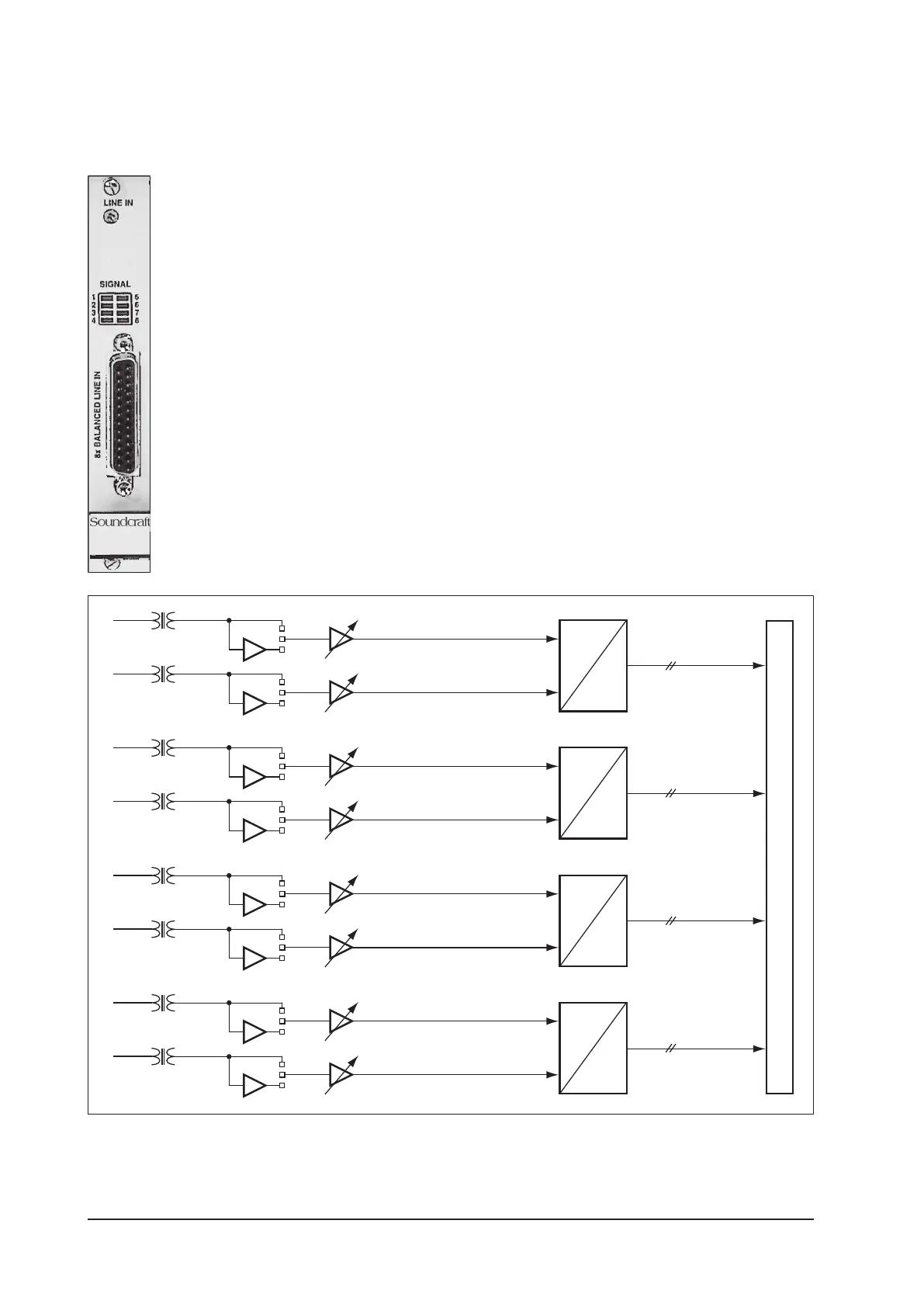

LINE IN CARD
RS2425
Eight-channel line input card with 24 bit, 44.1/48/88.2/96 kHz A/D
Converter, delta-sigma conversion. Transformer-balanced inputs. 96 kHz,
88.2 kHz, 48 kHz, or 44.1 kHz operation. 7...26 dBu input sensitivity. โSignal
presentโ LED indicator. Inputs on standard 25-pin D-type connector (female).
Input level (for 0 dB
FS
) 15/24 dBu (๎xed, jumper-selectable)
or 7...26 dBu (adjustable)
Input impedance > 10 kฮฉ
Frequency response (20 Hz...20 kHz) -0.2dB
THD&N (35 Hz...20 kHz, โ1 dB
FS
, 15 dBu setting) < โ97 dB
FS
(1 kHz, โ30 dB
FS
, 15 dBu setting) < โ111 dB
FS
Crosstalk (1 kHz) < โ110 dB
Input delay (local) 38 samples (0.79 ms @ 48 kHz)
(remote) 45 samples (0.94 ms @ 48 kHz)
Current consumption (7 V) 0.42 A
(ยฑ15 V) 0.1 A
Operating temperature 0...45ยฐ C
A
D
A
D
A
D
A
D
๎๎๎๎๎๎
๎ ๎๎๎
๎๎๎๎๎๎๎๎ ๎๎
๎๎๎ ๎๎๎๎๎
๎
๎๎๎๎๎๎๎๎๎๎๎
๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎๎
A๎๎๎๎๎๎๎ ๎๎
๎๎๎๎๎๎๎๎๎
๎๎๎๎๎๎๎๎๎
๎๎๎๎๎๎๎๎๎
๎๎๎๎๎๎๎๎๎
๎๎๎๎๎๎๎๎๎
๎๎๎๎๎๎๎๎๎
๎๎๎๎๎๎๎๎๎
๎๎๎๎๎๎๎๎๎
