Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 07/06/2016

For the most up-to-date information, please visit: www.startech.com

USB2001EXT2/USB2002EXT2/USB2004EXT2

1/2/4 Port USB 2.0 Extender over Cat5 or Cat6 - Up to 330 ft (100m)

Packaging Contents

• 1 x USB extender Transmitter/Local unit

• 1 x USB extender Receiver/Remote unit

• 1 x Power Adapter

• 3 x Power Cord (NA/UK/EU)

• 1 x Mounting Kit

• 1 x USB cable

• 1 x Installation Guide

System Requirements

• USB enabled computer system with available USB port

• Available AC power outlet

• Solid core Category 5e unshielded twisted pair (UTP) or greater cabling.

Installation

1. Place the Local and Remote units at the desired locations and

connect together using RJ45 terminated Cat5 or Cat6 cabling.

a) If you are using surface cabling, ensure you have enough Cat5e

cabling to connect the Local Unit to the Remote Unit’s location,

and that each end is terminated with a RJ45 connector. The cabling

cannot go through any networking equipment (i.e. router, switch).

b) If you are using premise cabling, ensure that the Cat5e

cabling between the Local Unit to the Remote Unit has been

properly terminated in a wall outlet in each location and there is

a patch cable long enough to connect the Remote Unit to their

respective outlets. The cabling cannot go through any networking

equipment (i.e. router, switch).

2. Connect the included power adapter to the Local unit for the

USB2002EXT2. Connect the power adapter to the Remote unit for

the USB2004EXT2 or USB2001EXT2. The Power LED should light

up solid.

3. Connect the Local unit to the host computer system with a USB

cable. The computer can be either powered On or O. The operating

system should detect the extender and install it automatically.

4. USB devices can now be connected to the Remote unit.

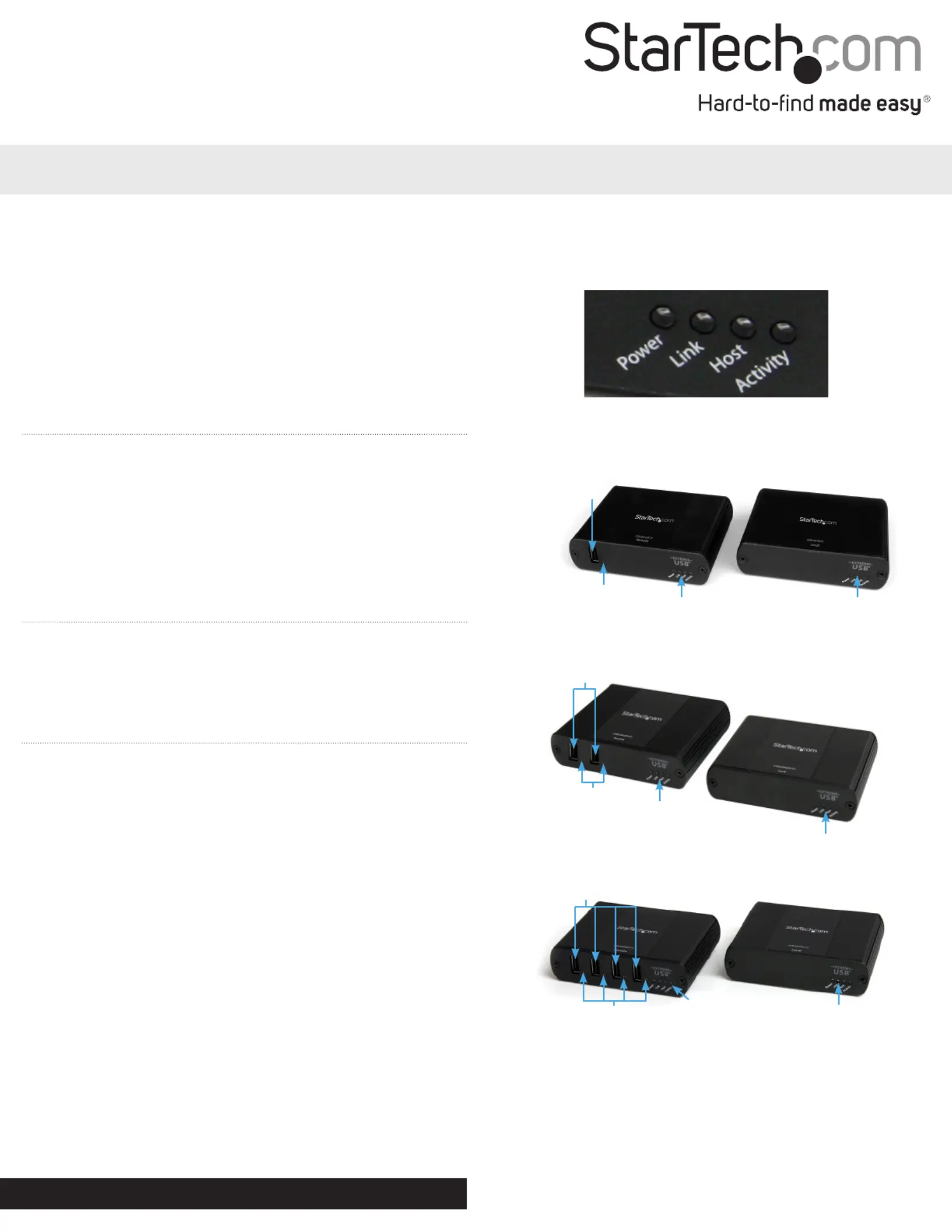

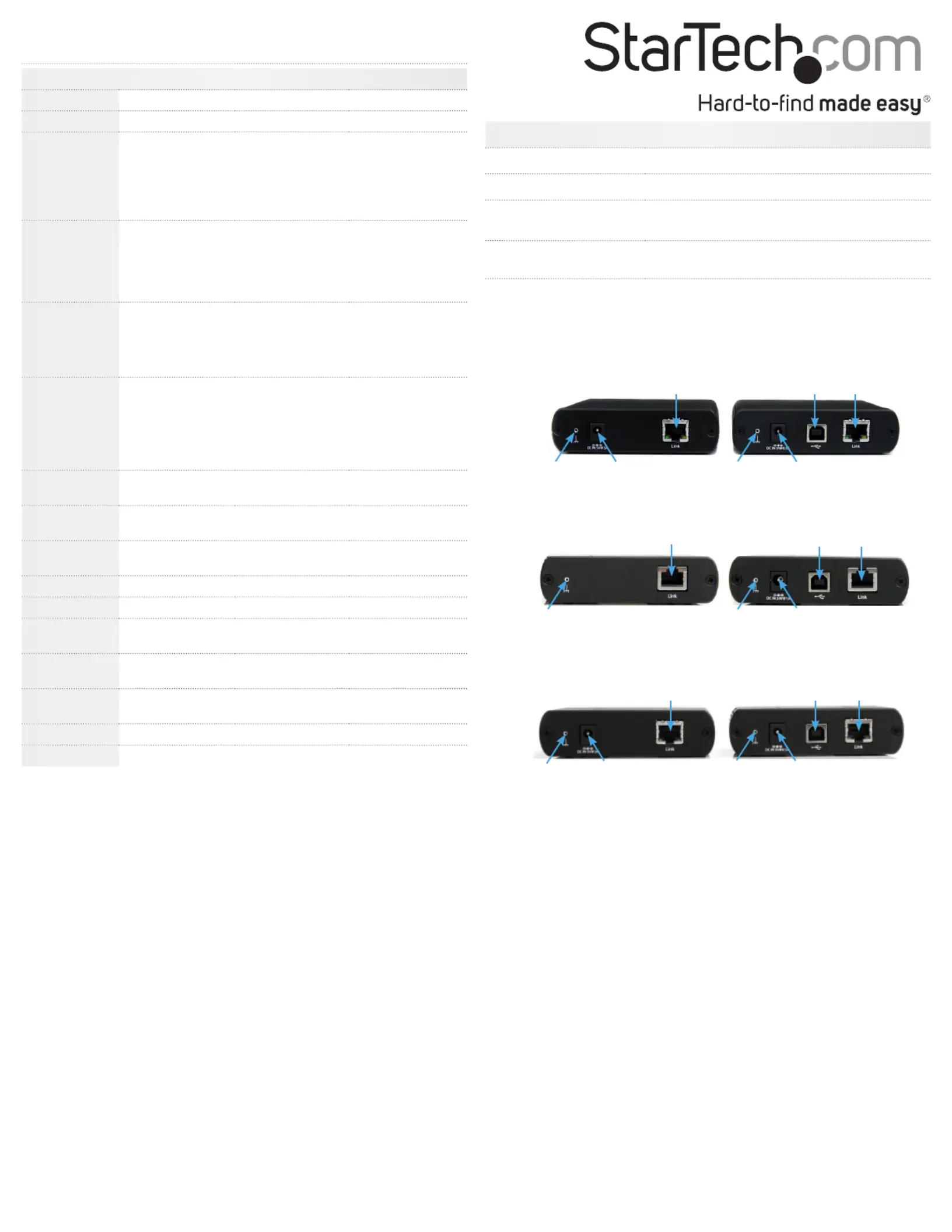

USB2001EXT2 Front

USB Type A

Connector

USB Device

Status LED

Indicators

Extender Status

LED Indicators

Remote Unit Local Unit

USB2004EXT2 Front

USB Type A

Connector

Remote Unit Local Unit

USB2002EXT2 Front

USB Type A

Connector

Remote Unit

Local Unit

LED Status Indicators

Extender Status

LED Indicators

Extender Status

LED Indicators

Extender Status

LED Indicators

Extender Status

LED Indicators

Extender Status

LED Indicators

USB Device

Status LED

Indicators

USB Device

Status LED

Indicators
