MS 162, 172
WARNING
To reduce the risk of kickback injury use
STIHL reduced kickback bar and STIHL low
kickback chain as specified in this manual or
other available low kickback components.
ADVERTENCIA
Para reducir el riesgo de lesionarse como
resultado de un culatazo, utilice la barra y la
cadena de contragolpe reducido de la forma
especificada en este manual o de otros
componentes reductores de contragolpe.
WARNING
Read Instruction Manual thoroughly before use and
follow all safety precautions – improper use can cause
serious or fatal injury.
ADVERTENCIA
Antes de usar la máquina lea y siga todas las precauciones
de seguridad dadas en el manual de instrucciones – el uso
incorrecto puede causar lesiones graves o mortales.
2 - 50 Instruction Manual
50 - 105 Manual de instrucciones
Contents
1 Introduction................................................. 2
2 Guide to Using this Manual.........................2
3 Main Parts...................................................3
4 Safety Symbols on the Product...................4
5 IMPORTANT SAFETY INSTRUCTIONS....4
6 Kickback and Other Reactive Forces........14
7 Proper Techniques for Basic Bucking, Limb‐
ing, Pruning and Felling............................ 18
8 Maintenance, Repair and Storage............ 24
9 Before Starting Work.................................25
10 Assembling the Chain Saw....................... 25
11 Lubricating the Saw Chain and Guide Bar29
12 The Chain Brake....................................... 30
13 Mixing Fuel and Refueling the Chain Saw 31
14 Starting the Engine................................... 33
15 Shutting Off the Engine.............................34
16 Checking the Chain Saw...........................35
17 After Finishing Work..................................36
18 Transporting..............................................36
19 Storing.......................................................36
20 Cleaning....................................................37
21 Inspection and Maintenance..................... 39
22 Troubleshooting Guide..............................43
23 Specifications............................................45
24 Combinations of Guide Bars and Saw
Chains.......................................................46
25 Replacement Parts and Equipment.......... 48
26 Disposal.................................................... 48
27 Limited Warranty.......................................48
28 Emission Control Warranty....................... 48
29 Trademarks...............................................50
30 Addresses................................................. 50
1 Introduction
Thank you for your purchase. The information
contained in this manual will help you receive
maximum performance and satisfaction from
your STIHL chain saw and, if followed, reduce
the risk of injury from its use.
SAVE THIS MANUAL!
Because a chain saw is a high-
speed wood-cutting tool, special
safety precautions must be
observed to reduce the risk of per‐
sonal injury.
Read this instruction manual thor‐
oughly before use and periodically
thereafter. Follow all safety pre‐
cautions. Careless or improper
use of the chain saw can cause
serious or fatal injury.
Observe all applicable federal, state and local
safety regulations, standards and ordinances.
Do not lend or rent your chain saw without this
instruction manual. Allow only persons who have
the proper training and fully understand the infor‐
mation in this manual to operate the chain saw.
For further information, or if you do not under‐
stand any of the instructions in this manual,
please go to www.stihlusa.com or contact your
authorized STIHL servicing dealer.
2 Guide to Using this Manual
2.1 Signal Words
This manual contains safety information that
requires your special attention. Such information
is introduced with the following symbols and sig‐
nal words:
DANGER
■ Indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
■ Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
NOTICE
■ Indicates a risk of property damage, including
damage to the machine or its individual com‐
ponents.
2.2 Symbols in Text
The following symbol is included to assist you
with the use of the manual:
Refers to a designated chapter or sub-
chapter in this instruction manual.
English
2 0458-200-8621-A
© ANDREAS STIHL AG & Co. KG 2023
0458-200-8621-A. VA0.B23.
Printed on chlorine-free paper
Paper is recyclable.
Original Instruction Manual
0000010038_001_GB

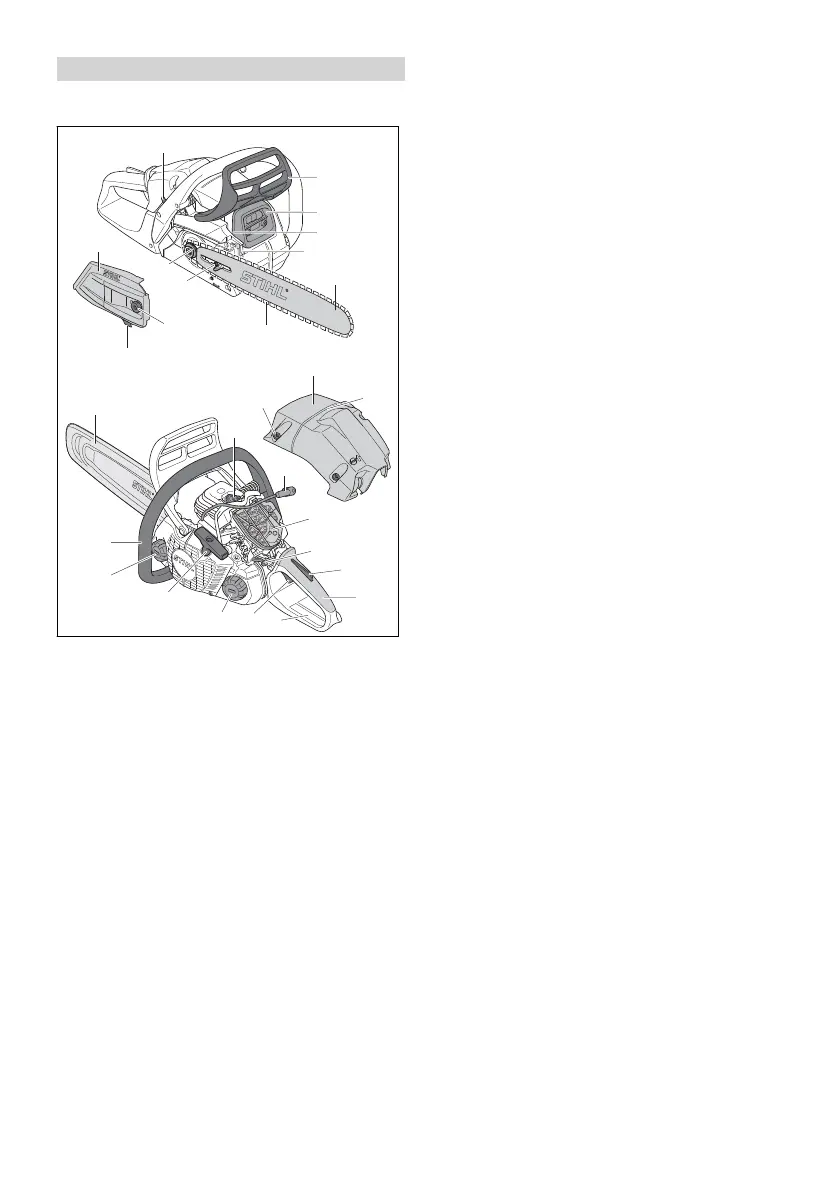

3 Main Parts
3.1 Chain Saw
11
23 22
5
12
15
13
17
14
6
24
25
7
8
9
19
21
20
1
10
2
27
26
3
18
4
#
16
0000097413_002
1 Carburetor Adjusting Screw
For tuning the carburetor.
2 Front Hand Guard
Helps protect the operator's left hand from
projecting branches and contact with the saw
chain. Serves as the activation lever for the
chain brake.
3 Muffler with Spark Arresting Screen
Reduces engine exhaust noise and diverts
exhaust gases away from the operator. The
spark arresting screen is designed to reduce
the risk of fire.
4 Bumper Spike
Helps hold the saw steady against the wood
during cutting.
5 Guide Bar
Supports and guides the saw chain.
6 Saw Chain
Toothed cutting tool consisting of cutters, tie
straps and drive links.
7 Side Chain Tensioner
Permits precise adjustment of saw chain ten‐
sion.
8 Chain Sprocket
Drives the saw chain.
9 Chain Sprocket Cover
Covers the chain sprocket.
10 Nut
Tightens the chain sprocket cover to the
chain saw.
11 Chain Catcher
Helps contain the saw chain and reduce the
risk of operator contact in the event the chain
breaks or comes off the bar.
12 Chain Scabbard
Covers the guide bar and saw chain to
reduce the risk of injury from inadvertent con‐
tact during transportation and storage.
13 Spark Plug
Ignites the fuel-air mix in the engine.
14 Shroud Lock
Lock for the shroud.
15 Shroud
Covers the air filter and engine.
16 Gunning Sight
Helps the operator determine the direction of
fall when making a felling notch.
17 Spark Plug Boot
Connects the spark plug with the ignition
lead.
18 Air Filter
Filters the air drawn into the engine.
19 Master Control Lever
Lever for choke control, starting throttle, run
and stop switch positions.
20 Throttle Trigger Lockout
Prevents activation of the throttle trigger until
depressed.
21 Rear Handle
Handle for the operator's right hand.
22 Rear Hand Guard
Helps protect the operator's right hand in the
event the chain breaks or comes off the bar.
23 Throttle Trigger
Controls the speed of the engine.
24 Fuel Filler Cap
For closing the fuel tank.
25 Starter Grip
The grip of the pull starter for starting the
engine.
26 Oil Filler Cap
For closing the oil tank.
3 Main Parts English
0458-200-8621-A 3
