© 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com 0

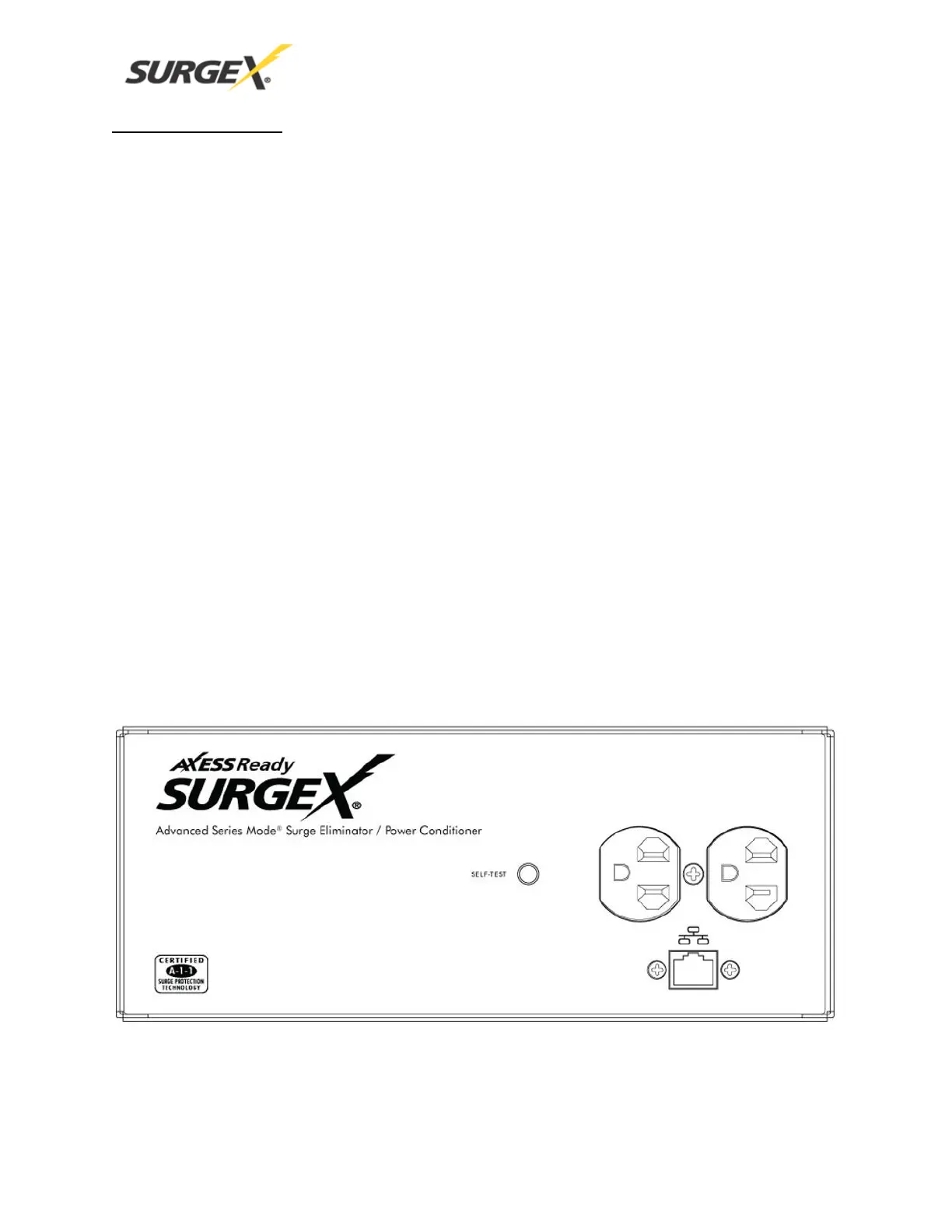

Axess-Ready Standalone
Surge Elimination & Power Conditioning
SA-20-AR
Firmware Version: 1.20.261
Software Version: 2.00.03
© 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | UM-SA-20-AR-Rev-C
SA-20-AR User Manual
______________________________________________________________________________
© 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com 1
I. INTRODUCTION 2
II. INSTALLATION 4
1. PHYSICAL ...................................................................................................................................... 4
2. ETHERNET CONNECTION ............................................................................................................... 4
3. AC POWER CONNECTIONS ............................................................................................................ 4
III. LED INDICATORS 4
IV. INITIAL SET-UP 5
DEVICE MANAGEMENT UTILITY (DMU) ...................................................................................................... 5
SETTING THE IP ADDRESS ............................................................................................................................ 6
V. WEB SERVER 8
PASSWORD .................................................................................................................................................... 8
CONTROL AND STATUS PAGE ....................................................................................................................... 8
SETUP PAGES................................................................................................................................................. 9
DEVICE .............................................................................................................................................. 9
NETWORK ....................................................................................................................................... 10
Advanced Network……………………………………………………………………….11
AUTOPING....................................................................................................................................... 12
SCHEDULE ....................................................................................................................................... 14
PASSWORDS .................................................................................................................................... 15
VI. COMMAND LINE INTERFACE (CLI) PROTOCOL 16
OVERVIEW................................................................................................................................................... 16
PROMPTS ..................................................................................................................................................... 16
CONTROL COMMANDS ................................................................................................................................ 16
DEVICE COMMANDS ................................................................................................................................... 16
NETWORK COMMANDS ............................................................................................................................... 17
AUTOPING COMMANDS .............................................................................................................................. 18
USER COMMANDS ....................................................................................................................................... 18
EVENT COMMANDS ..................................................................................................................................... 19
VII. DXP PROTOCOL 20
OVERVIEW................................................................................................................................................... 20
HELLO HANDSHAKE .................................................................................................................................... 20
DXP PACKET ............................................................................................................................................... 21
COMMANDS ................................................................................................................................................. 22
DESCRIPTORS .............................................................................................................................................. 22
PAYLOADS ................................................................................................................................................... 24
VIII. FIRMWARE UPGRADES 25
IX. RESET BUTTON 25
X. SPECIFICATIONS 26
SA-20-AR User Manual
______________________________________________________________________________
© 2019 AMETEK Electronic Systems Protection | Technical Support 1-800-645-9721 | surgex.com 2
I. INTRODUCTION
The SurgeX
®
SA-20-AR is a network attached, IP addressed, web-controlled AC surge
eliminator and power conditioner. The SA-20-AR may be used to switch up to 20A at 120V.
The simple web server structure allows basic control of two outlets. The extensive programming
and setup capabilities are accessed by a web browser, through a Device Management Utility
(DMU), or through a Command Line Interface (CLI).
The SA-20-AR features SurgeX
®
Advanced Series Mode
®
surge elimination and
Impedance Tolerant EMI/RFI filtering.
Remote reboot any device: monitors, routers, servers, kiosks, etc. The remote device need
not be network attached.
Conserve energy by powering down equipment when not in use.
Telnet access uses the Command Line Interface (CLI) structure and syntax to completely
configure and control the SA-20-AR. This Axess Ready (AR) device also supports the
DxP protocol, which allows software developers to integrate the unit into custom
applications.
Up to 2 systems can be continuously monitored with AutoPing, with automatic power
control upon loss of contact. Reboot crashed systems, or provide auto power-up or -down
for environmental controls and notification systems.
The SA-20-AR utilizes 2 levels of password security, with only the administrative
account having access to setup and configuration.
