Doorphone

Video Intercom

Colour Camera with 3.5” LCD Screen

MDP870C210113E

Advanced-Series

Package Contents

LCD SCREEN: This is where you view your visitor that the outdoor camera sees.

MONITOR: Press this button to connect to the camera and view what the outdoor

camera sees.

UNLOCK: If you have attached an electronic door unit to the Doorphone, you can

unlock the door by pressing this button.

TALK: Press the TALK button to speak to the visitor. You don’t need to hold down the

button as the Doorphone communicates with the outdoor camera for one minute. If

you need to speak for longer, press the TALK button again.

MICROPHONE: Speak into the microphone to communicate with the visitor.

SPEAKER: This is where you hear the visitor speak to you from the outdoor camera.

*Note: Please remove the protective plastic from the Doorphone before installation.

Layout

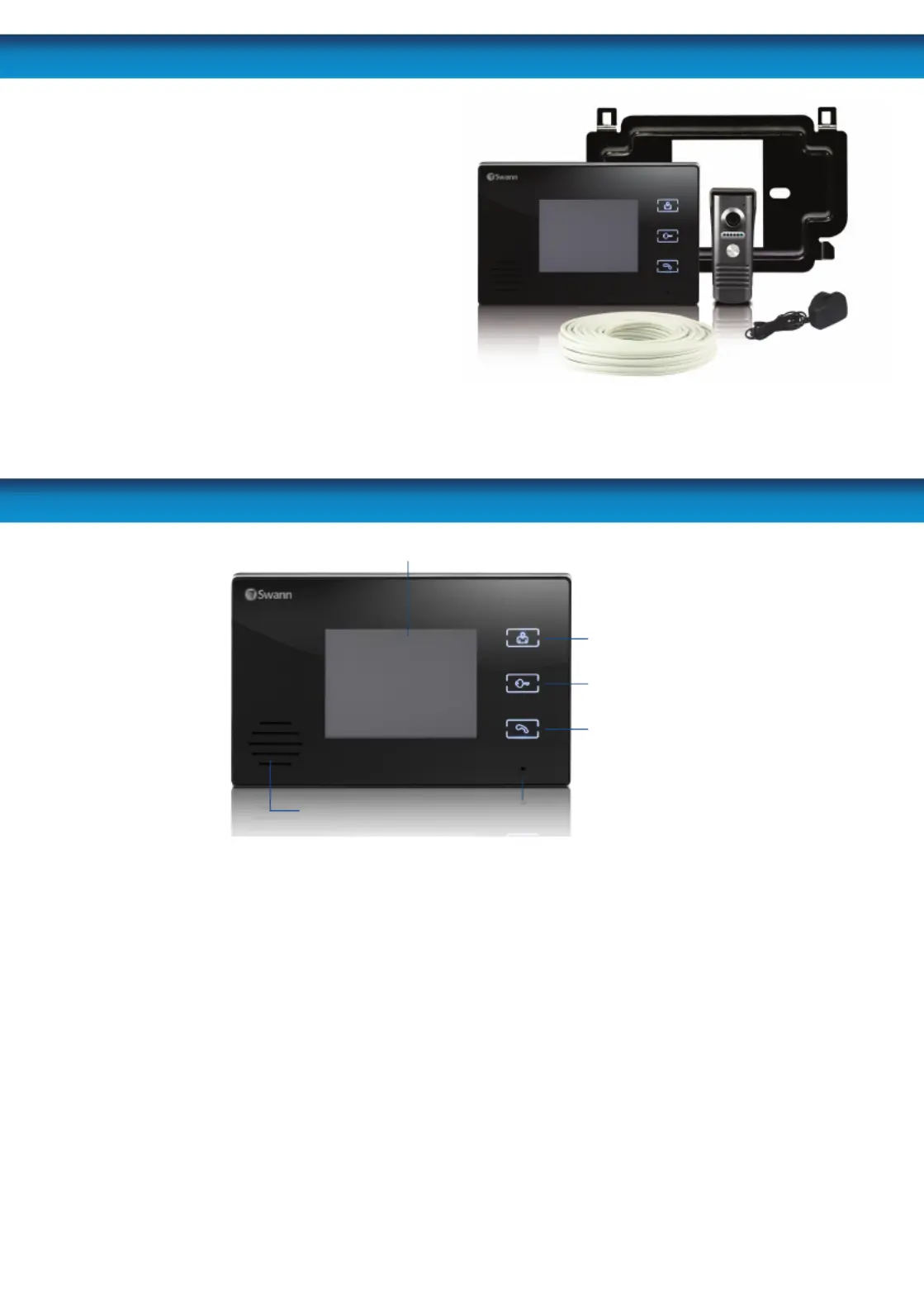

What’s in the box:

• 3.5” LCD monitor

• Outdoor camera

• Power adapter

• Cable 50ft/15m

• Mounting screws, brackets & plugs

• Operating instructions

Monitor

3.5” LCD Screen

Unlock

Talk

MicrophoneSpeaker

Layout

MICROPHONE: This is where the visitors

speak to you.

CAMERA LENS: This is where the image of

the visitor is captured.

INFRARED LIGHT: The infrared light is what

allows the camera to see visitors at night.

The image will appear in black and white.

CALL BUTTON (DOORBELL): When the

visitor presses this button, the doorbell will

ring and the Doorphone will display the

image from the camera.

SPEAKER: This is where the visitor hears you

speak to them from the Doorphone.

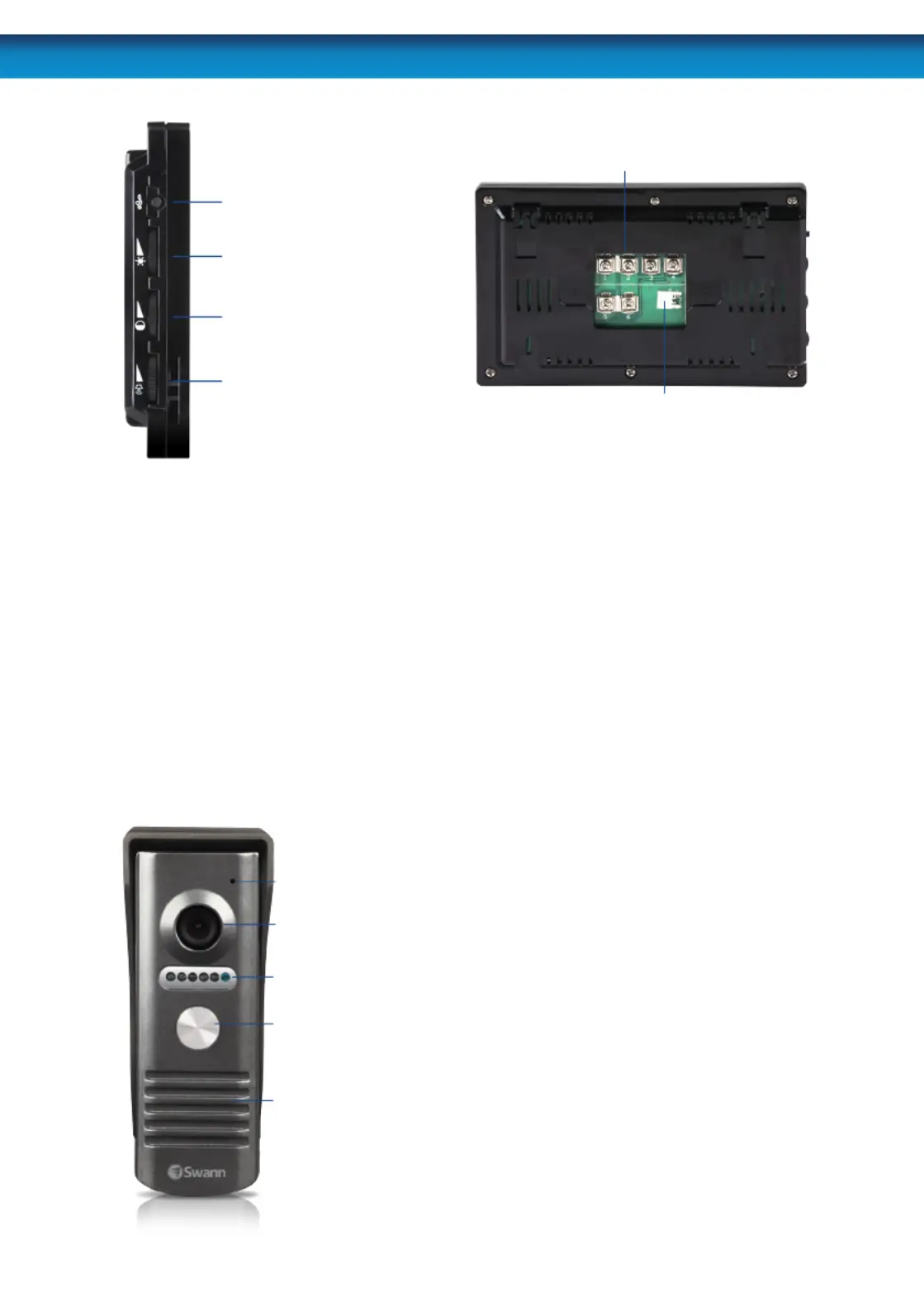

The left side of the Doorphone has extra controls that you can adjust.

MELODY SELECTION: There is a wide variety of dierent melodies that you can

select from. Press this button to select a dierent melody.

BRIGHTNESS: This adjusts the brightness of the image seen on the Doorphone.

COLOUR: This adjusts the colour level of the image seen on the Doorphone.

VOLUME: This adjusts the volume level of the speaker.

WIRING TERMINAL: This is where the enclosed cable is connected to.

DC 12V: This is where you plug the power adapter.

Microphone

Camera lens

Infrared light

Call button

(Doorbell)

Speaker

Melody Selection

Brightness Control

Colour Control

Volume Control

Wiring Terminal

DC12V
