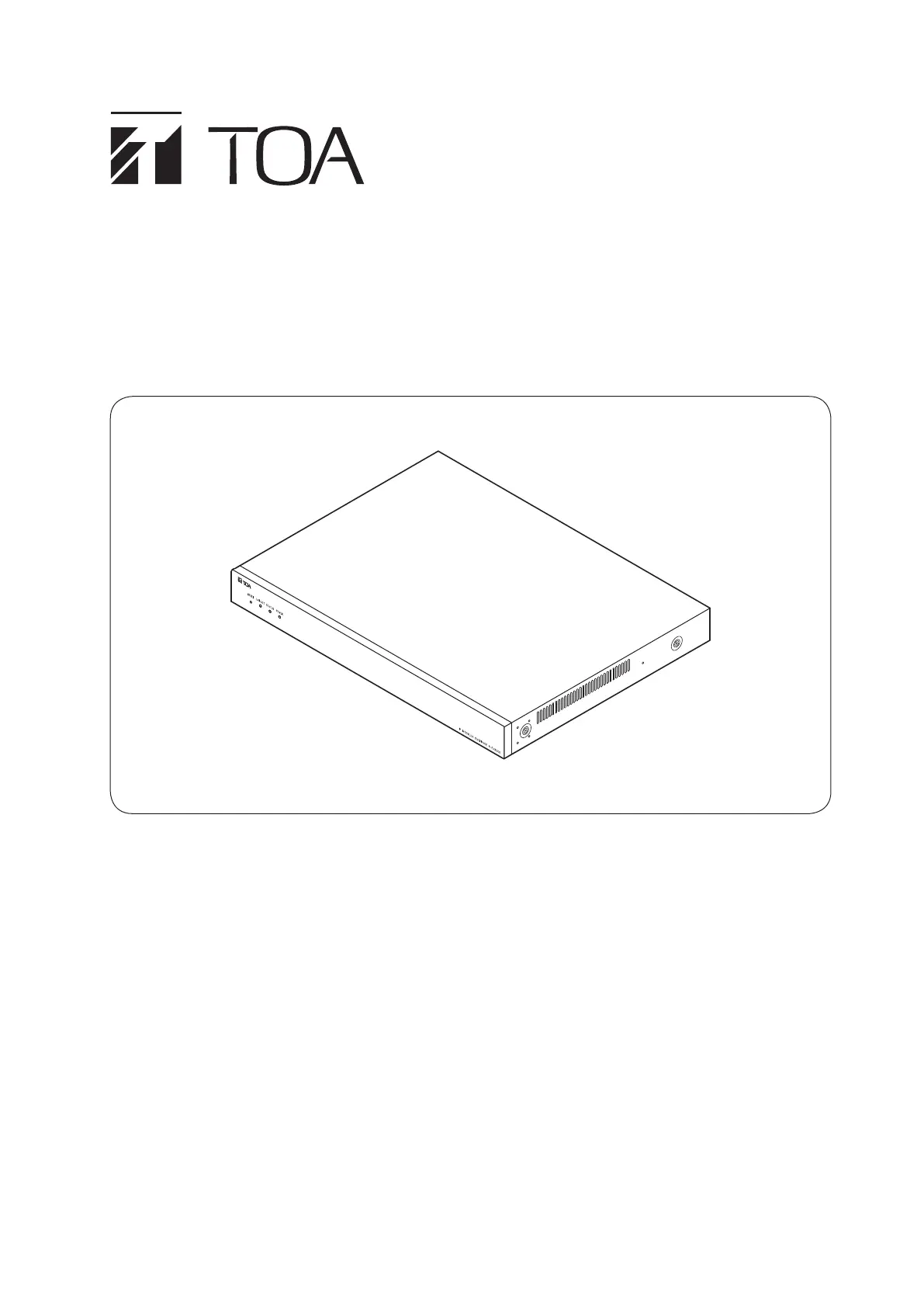

INSTALLATION MANUAL

IP INTERCOM EXCHANGES N-8000EX

N-8010EX

Thank you for purchasing TOA's IP Intercom Exchanges.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS

............................................................................. 3

2. GENERAL DESCRIPTION .......................................................................... 6

3. FEATURES ............................................................................................................ 7

4. SPECIFICATIONS ............................................................................................. 8

5. SYSTEM CONFIGURATION EXAMPLE ............................................. 8

6. NOMENCLATURE AND FUNCTIONS ................................................. 9

Front ............................................................................................................................. 9

Rear ............................................................................................................................. 9

7. INSTALLATION ................................................................................................. 10

7.1. Rack Mounting ..................................................................................................... 10

7.1.1. Settin g space ............................................................................................. 10

7.1.2. Caution when installing the unit ................................................................. 11

7.1.3. Mounting on the rack ................................................................................. 11

7.2. Desk-Top Installation ........................................................................................... 12

7.3. Wall Mounting ...................................................................................................... 12

8. WIRING .................................................................................................................. 14

8.1. Connection Diagram ............................................................................................ 14

8.2. Type of Cable ...................................................................................................... 16

8.3. Relations Between Core Diameter of Cable and Maximum Cable Length ......... 16

8.4. Connector Connection ........................................................................................ 17

8.4.1. Mini-clamp connector connection ............................................................ 17

8.4.2. Removable terminal plug connection ...................................................... 18

8.5. E-7000TB Terminal Board Wiring ....................................................................... 19

9. ACCESSORIES ................................................................................................ 20

9.1. N-8000EX ............................................................................................................ 20

9.2. N-8010EX ........................................................................................................... 20

Produkspesifikasjoner

Merke:	Toa
Kategori:	Intercomsystem
Modell:	N-8010EX
Vekt:	4200 g
Bredde:	420 mm
Dybde:	356 mm
Høyde:	44.3 mm
Wi-Fi:	Nei
Opprinnelsesland:	Taiwan
Innebygde høyttalere:	Nei
Innebygd mikrofon:	Nei
Materiale:	Stål
Antall per pakke:	1 stykker
Merkekompatibilitet:	TOA
Kompatibilitet:	N-8050DS, N-8031MS, N-8000MS, N-8010MS, N-8011MS, N-8033MS, N-8065MS Q-TEE, N-8020MS, N-8050SB, N-8050SB
Produktfarge:	Sort
Monteringssett:	Ja
Kabler inkludert:	AC
Driftstemperatur (T-T):	0 - 40 °C
Bærekraftsertifikater:	CE
Ethernet LAN dataoverføringshastigheter:	10, 100 Mbit/s
Antall RJ45-porter:	1
Strøm over Ethernet (PoE):	Nei
Bærekraftsamsvar:	Ja
