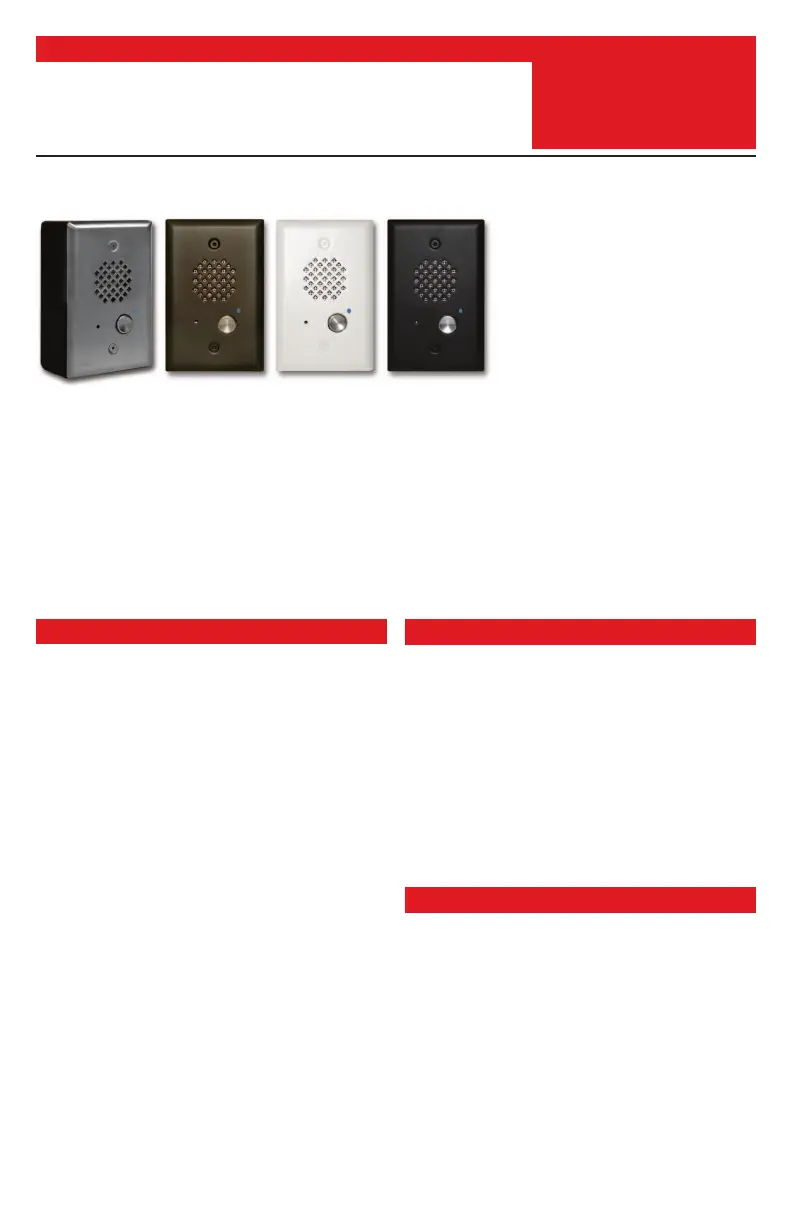

Compact Entry Phones available in Four Attractive Finishes

Features

Applications

Specifications

• Compact size: Front panel is the size of a typical single gang mid-size

wall plate

• Mounting: Flush mounts in a single gang electrical box (2.25” deep x

2.00” wide x 2.84” tall minimum) or surface mounts in a Viking model

VE-3x5 (not included, see DOD 424) for mounting on a wall, post or

VE-GNP Gooseneck Pedestal (EWP recommended)

• Available in 4 standard faceplate finishes: Brushed Stainless Steel,

Oil Rubbed Bronze, Satin Black and Satin White

• PNL-40 faceplates: Replacement faceplates with matching screws

available in all four standard finishes

• Vandal Resistant Features: 18 gauge 304 stainless steel faceplate,

316 stainless steel push button, fiberglass reinforced plastic speaker

screen, scratch resistant powder coating, hex drive mounting screws

• Weather Resistant Features: Mylar speaker, faceplate gasket,mic

and speaker gasket, internally sealed (IP67) push button switch, self

draining mic mount and UV stable weather resistantpowder coating

(excluding E-40-SS 304 Stainless Steel faceplate)

• E-40-EWP is designed to meet IP66 Ingress Protection Rating (see

DOD 859 for more information)

• Telephone line powered

• Microphone and speaker volume controls

• Programmable intelligent call progress detection for automatic hang-up

on CPC, silence, busy signal, or time out

• Selectable auto answer feature for monitoring

• Programmable VOX (mic/speaker) switching speed

• Blue LED helps locate push button, indicate ringing and off hook

• Door or gate communication, business delivery entrances

• Use with a Viking C-200 or C-250 to control E-40 on a single line

• Use with a Viking C-500 to control 1 or 2 (expandable to 8) E-40’s

and door/gate control on a single phone line

• Use with a Viking C-2000B to control 1 to 4 E-40’s and door/gate

control on a single phone line

• Provide unique front and back door chimes and paging when

used with a Viking SLP-1, SLP-4 and C-2000B

• Residential, commercial and industrial door security

• Use with a Viking K-1900-5 or K-1900-30 for automatic speed

dialing on telephone lines or analog PABX/KSU station ports

• Use on any analog PABX station port with programmable

ringdown capability

The E-40 Series entry phones are compact,

weather and vandal resistant, telephone line

powered speaker phones designed to provide

two-way handsfree audio communication. The

E-40's compact size allows it to be mounted in

a standard single gang electrical box. The E-

40 is available in four different attractive

finishes to match your door hardware, light

fixtures, etc. Replacement E-40 faceplates

(PNL40) can be purchased separately and are

available in all four standard finishes. The

E-40’s blue LED continually provides light for

locating the push button in dark locations, dims

to indicate off hook and flashes during incoming calls.The E-40 entry phones can share a single phone line with house or small

business telephones when used with a Viking model C-200, C-250, C-500 or C-2000B Entry Phone controller. The E-40 entry

phones can also be connected to an unused analog station port (programmed for ring down) on a phone system or connected

directly to a telephone line when used with a Viking model K-1900-5 or K-1900-30 auto dialer. The E-40 features microphone and

speaker volume controls, selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when

the call is completed. For outdoor installations where the unit is exposed to precipitation or condensation, the E-40 Series is available

with Enhanced Weather Protection (EWP). For more information on EWP, see DOD 859.

Power: Telephone line powered. Minimum 18V DC talk battery

voltage with a minimum loop current of 20mA. Loop current may be

boosted on low current lines with a Viking model TBB-1B Talk Battery

Booster (see DOD 632).

Dimensions: Faceplate: 4.875” x 3.125” x 0.18” (123.8mm x 79.4mm

x 4.6mm), Phone: 2.84” x 1.8” x 1.65” (72mm x 46mm x 42mm)

Shipping Weight: 1.0 lbs (0.45 kg)

Operating Temperature: -30° F to 150° F (-34° C to 65° C )

Humidity: Standard model: 5% to 95% non-condensing humidity,

EWP model: up to 100% humidity

Speaker Volume: Approximately 62db maximum @ 1m

Ring Voltage: 25V AC RMS minimum (for auto answer)

CPC Disconnect Time: 300ms minimum

REN: 0.8A

Connections: (2) gel-filled butt connectors

E-40-SS

“Brushed Stainless Steel”

(similar to brushed nickel) Shown

with optional VE-3x5 surface

mount box

E-40-BK

“Textured Black”

(fine texture black

powder paint)

E-40-WH

“Satin White”

(satin white

powder paint)

E-40-BN

“Oil Rubbed Bronze”

(satin dark brown

powder paint with fine

copper metallic)

www.VikingElectronics.com

Information: 715-386-8861

DESIGNED, MANUFACTURED AND SUPPORTED IN THE USA

E-40 Series

Compact Single Gang

Entry Phone with LED

September 2, 2021

PRODUCT

MANUAL

SECURITY & COMMUNICATION

VIKING

Features Overview

Installation

A. New Construction Flush Mounting

Step 1

Front of box should stick out approximately ½" from front surface of wall stud (this may

vary depending on the walls sheathing and siding thickness). Caution: Rough-In box

must be mounted LEVEL and must NOT stick out beyond the front surface of siding.

Step 2

To maintain a vapor barrier on outside wall applications, caulk around the box, filling any

gaps between the box and the rough opening. Apply caulk to any holes in the box around

wires, etc.

Step 3

When installing siding cut a hole just large enough for the Rough-In box opening.

Caution: Too large of a hole can cause plate misalignment and compromise the gasket

seal. Note: When mounting to 4 inch or less horizontal lap siding, the unit can be mounted

horizontally flush against siding or a siding mounting block can be used (recommended

with vinyl siding). Contact siding installer for the correct mounting block.

The E-40 is designed to be flush mounted into a single gang rough-in box with minimum inside

dimensions of 2.25” deep x 3.65” wide x 2.84” tall. The E-40 can also be surface mounted in a Viking

model VE-3x5 (not included, see DOD# 424).

WARNING: Do NOT use a typical “wet location box” as not all styles seal properly with the E-40

faceplate.

Rear (PCB) View of E-40

Push Button Switch: Push to

initiate call, push again to

disconnect. Solid 316 stainless

steel internally sealed per IP67.

Speaker Screen: Speaker

screen with 0.018" wide slots to

prevent punctures from

paperclips, etc.

Faceplate Material: 18 gauge

304 stainless steel. The SS model

has a #4 brushed finish, the BK,

BN and WH models have a

powder painted finish.

Speaker: Mylar speaker with

rubber gasket to maintain

water-tight seal and eliminate

water deterioration.

Mounting Screws: (2) 6-32 x

3/4" Marine grade 316 stainless

steel, flat head, 5/64" hexdrive

screws (included).

Blue Call LED: Lights steady to

help locate the button in low light,

flashes during dialing, then lights

steady when answered.

Microphone: Omni-directional

microphone with protective

water-resistant cloth.

Front View of the E-40

Faceplate Gasket: 1/8" thick

closed cell PVC to provide a

water-tight seal.

Earth Ground: To increase

surge protection, loosen the

screw labeled (as shown)

and fasten a wire with ring

terminal (included) from the

mounting screw to Earth

Ground (grounding rod,

water pipe, etc.)

Speaker Volume

Microphone Volume

Entry Phone Board:

Compact analog speaker

phone with call progress

detection for automatic

disconnect.

DIP Switches (see page 6):

1: Auto Answer Feature (on/off)

2: Dial Tone Detection (on/off)

3: Programming Switch

(normal/programming)

4: LED (on/off)

Produkspesifikasjoner

Merke:	Viking
Kategori:	Intercomsystem
Modell:	E-40-SS
Vekt:	450 g
Bredde:	79.4 mm
Dybde:	4.6 mm
Høyde:	123.8 mm
Støynivå:	62 dB
Plassering:	Vegg
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Sertifisering:	FCC Part 68\nFCC Part 15
Antall knapper:	1
Dimensjoner (B x D x H):	79.4 x 4.6 x 123.8 mm
Antall utendørsenheter:	1
Produktfarge:	Rustfritt stål
Driftstemperatur (T-T):	-34 - 65 °C
Kroppsmateriale:	Rustfritt stål
Internasjonal beskyttelses (IP)-kode:	IP67
Utendørsenhetens strømtype:	AC/DC
Utendørsenhet medfølger:	Ja
Enkel installering:	Ja
