PRODUCT MANUAL

Designed, Manufactured and Supported in the USA

COMMUNICATION & SECURITY SOLUTIONS

E-35/E-35-EWP

Handsfree Speaker Phone

with Dialer and Color

Video Camera

May 9, 2018

VIKING

Features

Applications

Specifications

Handsfree Speaker Phone with Built-In

Auto-Dialer and Color Video Camera

The E-35 is a weather and vandal resistant handsfree video phone

designed to provide quick and reliable handsfree communication

and CCTV video of who is at your door or gate. The E-35 can be

connected directly to a C.O. line, analog PABX/KSU station, or a

Viking Door/Gate Controller: C-200, C-250 or C-2000B.

The E-35 features non-volatile memory, a built in dialer, a built-in

high resolution color video camera, and intelligent call progress

detection for automatic hang-up when the call is completed.

The E-35 can be programmed to dial up to 5 different numbers on

ring no answer or busy and can be configured to dial these

numbers until answered.

The E-35-EWP shares all of the features of the E-35 in addition to

Enhanced Weather Protection (EWP) for outdoor installations

where the unit is exposed to precipitation or condensation. EWP

products feature foam rubber gaskets, sealed connections, gel-

filled butt connectors, as well as urethane or thermal plastic potted

E-35 / E-35 -EWP

Brushed 316 Stainless Steel

E-35 shown with

optional VE-5x5

circuit boards with internally sealed, field-adjustable trim pots and

DIP switches for easy on-site programming. For more information,

see DOD 859.

Dimensions: Overall-5” x 5” x 2.25” (127mm x 127mm x 57mm),

Plastic Electrical Box-4” x 4” x 2.12” (102mm x 102mm x 54mm)

Shipping Weight: 2 lbs (0.9 Kg)

Operating Temperature: -30°F to 150°F (-34°C to 65°C)

Connections: (5) gel-filled butt connectors (3M Scotchlok UR2)

(See page 2 for complete specifications)

Gate and Door Entry Phones for:

• Business lobbies • Residences

• Auto or pedestrian gates

Non-ADA Hot-Line Phones for:

• Elevators • Stadiums

• Parking lots/ramps • Convention centers

• ATM machines

• Silent holdup alarm dialer using optional Panic Button Kit

CAUTION - When installing on an analog extension of a phone system: Some

phone systems do not conform to analog telecom standards and might not be

compatible with the E-35 speaker phones. For a detailed description of the telephone

line specifications required for any of the E-35 phones, see DOD# 869.

Note: In louder background noise environments, the push to talk version may be

required (E-30-PT or E-30-PT-EWP).

• New Automatic Noise Cancelling feature for proper

operation in noisy environments

• Built-in 5 number auto-dialer

• Built-in high resolution color video camera with wide viewing

angle, tilt/swivel adjustments and wide operating temperature

• Audio and video transmission on one CAT5E cable (page 5)

• Vandal Resistant Features: 14 gauge louvered 316 stainless

steel faceplate with permanent laser etched graphics,

stainless steel speaker/mic screen, heavy duty metal “Call”

button, impact and scratch resistant camera lens and hex

drive mounting screws

• Weather Resistant Features: Marine grade 316 stainless

steel faceplate, Mylar speaker, faceplate gasket, mic and

speaker gasket, internally sealed (IP67) push button switch,

sealed camera lens, potted camera circuit board, stainless

steel phone and camera mounting hardware

• E-35-EWP is designed to meet IP66 Ingress Protection Rating

(see DOD 859 for more information)

• Blue “off-hook” LED

• Volume adjustments for microphone and speaker

• Advanced call progress detection: disconnects on busy

signal, return to dial tone, CPC, reorder signal, maximum

call time out and selectable silence time out

• Selectable auto-answer feature for monitoring

• Selectable push button disconnect

• Optional VE-5x5 surface mount box available

• Selectable maximum call time

• Selectable VOX switching speed

• Optional PB-1 Panic Button Kit (DOD 233)

Information: 715-386-8861

www.VikingE lectronics.com

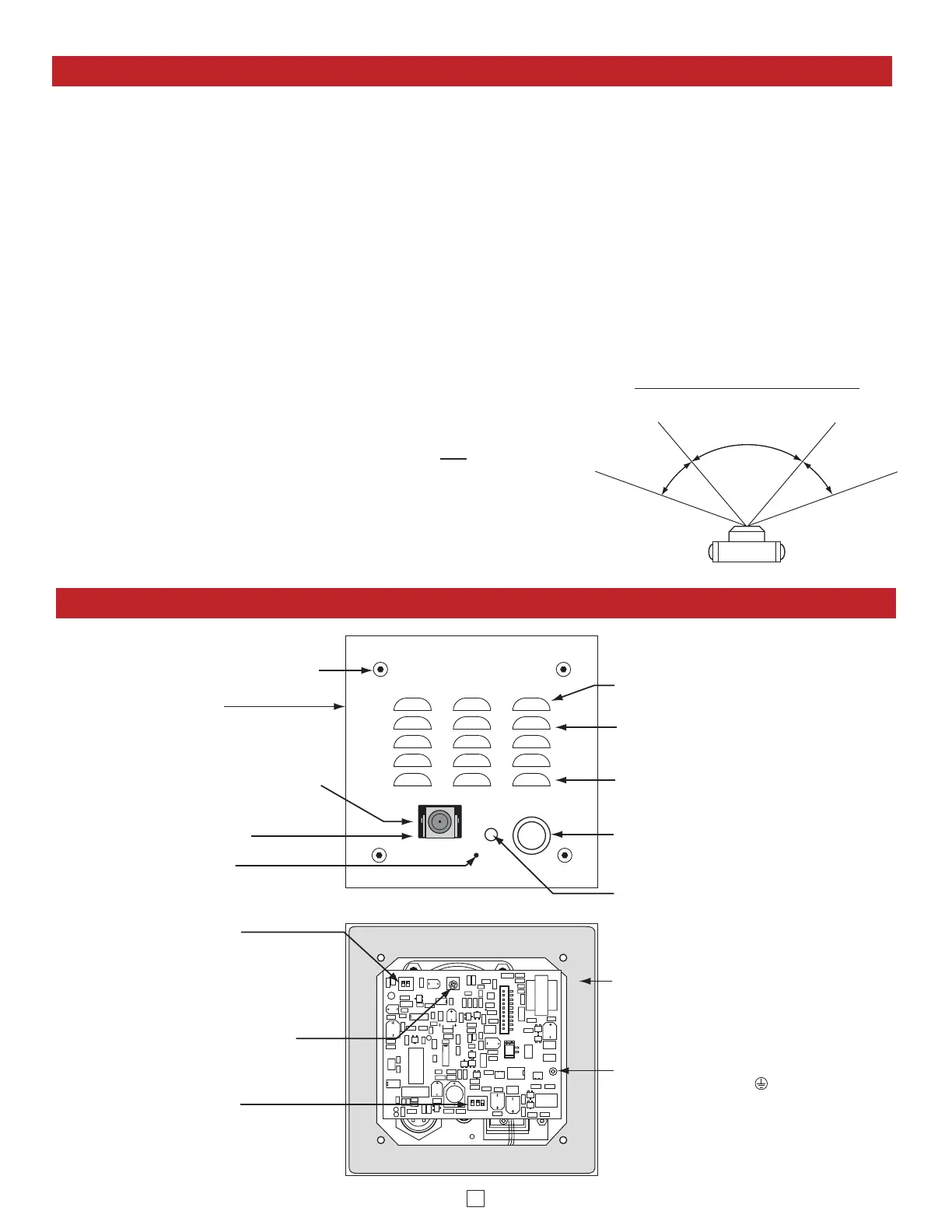

Features Overview

Call

VIKING

Push Button Switch: Push to initiate call,

push again to disconnect. Solid 316 stainless

steel internally sealed per IP67.

Color Video Camera: Wide operating

temperature range of -30°F to 150°F, NTSC

composite video output with 420 lines of

resolution, 70° wide viewing angle lens, tilt and

swivel adjustments for aiming towards visitors.

Speaker Screen: Stainless steel speaker

screen with 0.018" diameter holes to prevent

punctures from paperclips, etc.

Faceplate: 14 gauge Marine grade 316

stainless steel faceplate.

Protective Camera Window: Impact resistant

polycarbonate lens with scratch resistant

coating and water-tight gasket.

Speaker: Mylar speaker with rubber gasket to

maintain water-tight seal and eliminate water

deterioration.

Condensation Drain Hole

Mounting Screws: (4) 6-32 x 3/4" Marine

grade 316 stainless steel, flat head,

T-10

Torx Security Screws and Drive Bit (included)

LED: Lights blue for "In-Use" indication.

Microphone: Omni-directional microphone

with protective water-resistant cloth.

Faceplate Gasket: 1/8" thick closed cell PVC

to provide a water-tight seal.

Earth Ground: To increase surge protection,

loosen the screw labeled (as shown) and

fasten a wire with ring terminal (included) from

the mounting screw to Earth Ground (grounding

rod, water pipe, etc.)

Speaker Volume

DIP Switches (see page 7):

1: Push Button Feature (connect / disconnect)

2: Auto Answer Feature (on/off)

3: Programming Switch (normal/programming)

DIP Switches (see page 7):

1: Normal Audio Detection

2: Increased Audio Detection

Specifications

Camera Specifications

Power: 6-22V DC 150mA (12V DC UL Listed adapter included)

Image Sensor: 1/4” color CMOS

Video Output: 1 VP-P composite, NTSC, 75 ohms

Resolution: 420 lines (640 x 480 @ 30fps / 307,200 pixels)

Sensitivity: 0.025 LUX (50 IRE) F 1.2 3200K

Lens: 2.1mm, conical pinhole

FOV (Field of View): 80° Horizontal, 60° Vertical, 100° Diagonal

Tilt/Swivel Adjustment: Vertical +/- 20°, horizontal +/- 30° (see Diagram A)

IR Compatibility: This camera is equipped with an OLP (Optical Low Pass) filter to maintain

correct video color in outside applications. The standard camera is NOT

compatible with IR

illuminators. If IR illumination is required, you will need to replace the existing camera with a

Viking model VCAM-1IR. For more information, see DOD# 190.

Maximum Wire Run Length: 1000 ft with *RG59/RG6 for video and CAT5 for power (1 pair)

and entry phone audio (1 pair). 150 ft with CAT5E for video, power and entry phone audio (longer

video runs are possible by using video balun transceivers, see Installation C, 2, page 5).

* Note: RG59 or RG6 with solid center conductor and 95% bare copper braid shield.

Entry Phone Specifications

Power: Telephone line powered. Minimum 24V DC talk battery voltage, with a

minimum loop current of 20mA loop. Loop current may be boosted on low current

lines with a Viking Model TBB-1B talk battery booster (DOD# 632).

Dimensions: Overall: 5” x 5” x 2.25” (127mm x 127mm x 57mm), Plastic

Electrical Box: 4” x 4” x 2.12” (102mm x 102mm x 54mm)

Speaker Volume: Approximately 70 db maximum @1m

Ring Voltage: 25V AC RMS minimum (for auto answer)

CPC Disconnect Time: 500ms minimum

REN #: 0.5 A

Entry Phone / Camera Specifications

Humidity: Standard model: 5% to 95% non-condensing, EWP

model: Up to 100%

Shipping Weight: 3.5 lbs (1.6 kg)

Connections: (5) gel-filled butt connectors (3M Scotchlok UR2)

Recommended Surface Mount Box: Viking model VE-5x5, see

DOD 424 for more information.

80° Lens FOV

Rotate

Left 30°

Rotate

Right 30°

Camera Lens

Diagram A

Camera Horizontal Field of View:

Produkspesifikasjoner

Merke:	Viking
Kategori:	Intercomsystem
Modell:	E-35-EWP
Vekt:	1600 g
Bredde:	127 mm
Dybde:	57 mm
Høyde:	127 mm
Støynivå:	70 dB
Plassering:	Vegg
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Sertifisering:	EWP\nIP66\nFCC Part 68\nFCC Part 15
Antall knapper:	1
Antall utendørsenheter:	1
Produktfarge:	Rustfritt stål
Driftstemperatur (T-T):	-26 - 54 °C
Kroppsmateriale:	Rustfritt stål
Internasjonal beskyttelses (IP)-kode:	IP66
Innendørsenhet medfølger:	Nei
Utendørsenhet medfølger:	Ja
Enkel installering:	Ja
Kamera inkludert:	Ja
