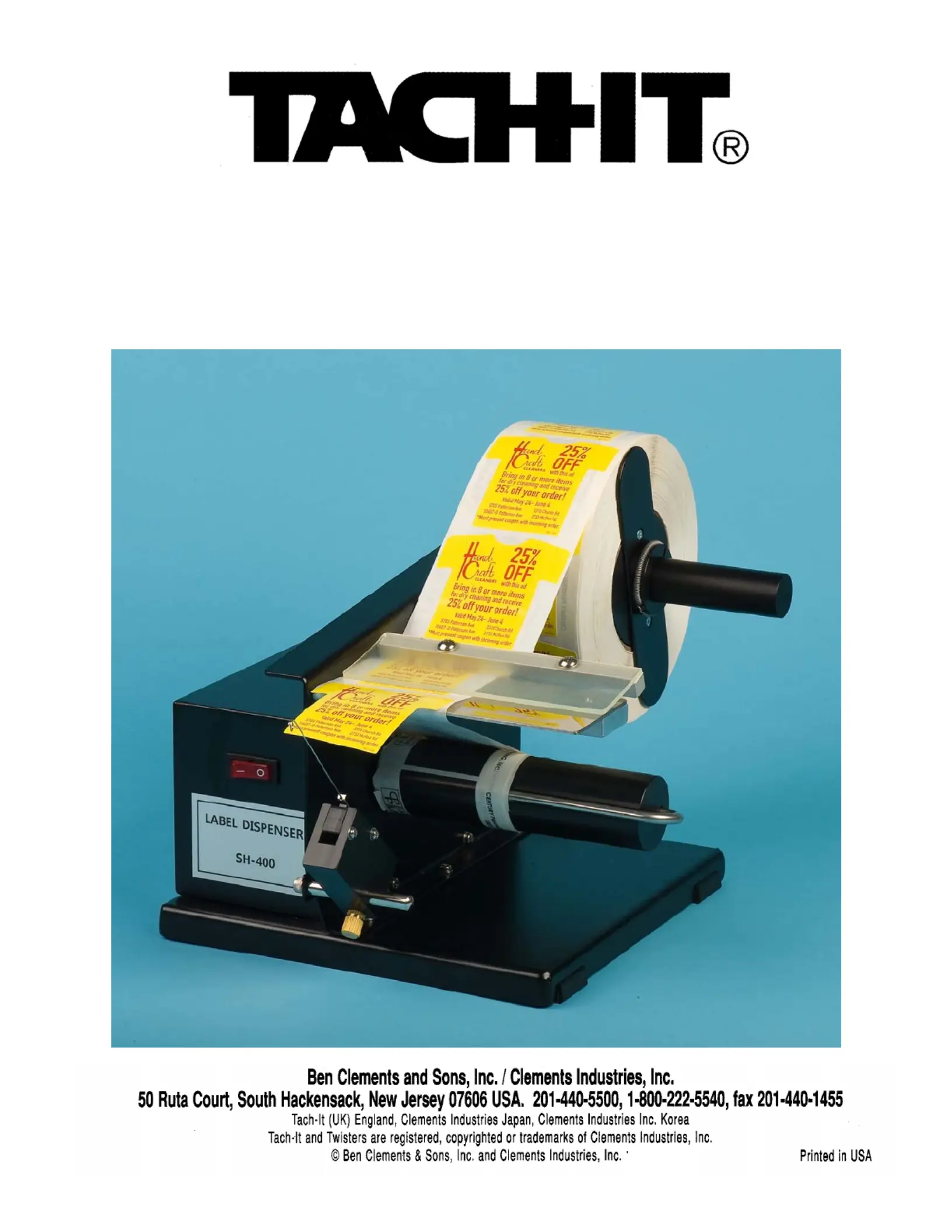

INSTRUCTION MANUAL FOR TACH-IT
MODEL SH400 PRESSURE SENSITIVE
LABEL DISPENSER
9/2009
SECTION 1 – CAUTIONS:
1) BEFORE OPERATING THE MACHINE, READ THE COMPLETE OPERATOR’S MANUAL.
2) NEVER HAVE THE POWER ON THIS MACHINE PLUGGED INTO THE POWER SOURCE
WHEN ANY OF THE COVERS OF THIS MACHINE HAVE BEEN REMOVED. THIS
MACHINE HAS A HIGH VOLTAGE INPUT, AND ELECTRICAL SHOCKS ARE
POSSIBLE IF PLUGGED IN AND THE COVERS ARE REMOVED.
3) NEVER ATTEMPT TO MOVE THIS MACHINE BY THE ARM THAT HOLDS THE ROLL OF
LABELS OR THE REWIND ARM.
4) INSTALL AND OPERATE THIS MACHINE ONLY ON A FLAT, LEVEL, AND DRY
SURFACE.
5) USE ONLY THE SPECIFIED ELECTRICAL POWER INPUT WITH THIS MACHINE.
6) ALWAYS KEEP HANDS, CLOTHING, JEWELRY, AND HAIR AWAY FROM ALL MOVING
PARTS OF THIS MACHINE.
7) DO NOT OPERATE THIS MACHINE WITHOUT THE COVERS PROPERLY INSTALLED, OR
IF ANY OF THE GUARDS HAVE BEEN REMOVED.
8) KEEP THIS MACHINE CLEAN AND DRY AT ALL TIMES.
9) SERVICE ON THIS MACHINE SHOULD ONLY BE PERFORMED BY FACTORY TRAINED
AUTHORIZED SERVICE PERSONNEL.
10) NEVER USE THIS MACHINE FOR OTHER THAN ITS INTENDED APPLICATION. USE
OF THE MACHINE ON UNINTENDED APPLICATIONS CAN CAUSE HARM TO THE
OPERATOR AND THE MACHINE. PLEASE CONTACT THE MANUFACTURER IF
THERE IS ANY QUESTION AS TO WHETHER THIS MACHINE CAN BE USED FOR A
PARTICULAR APPLICATION
SECTION 2 – SPECIFICATIONS
SH400
LABEL SIZE MAXIMUM 6” (150MM) WIDE X 9” (230MM) LONG
MINIMUM 3/8” (10MM) WIDE X 5/8” (15MM)LONG
LABEL ROLL MAXIMUM 12” (300MM) O.D.
SPEED 240 INCHES PER MINUTE
POWER 110 VOLT, 220 VOLT AC
DIMENSIONS LENGTH = 12" (300MM)
WIDTH = 10 1/4” (260MM)
HEIGHT = 10” (255MM)
WEIGHT = 12 LBS (5.2KGS)
SECTION 3—PARTS IDENTIFICATION:
LABEL ROLL GUIDE
OUTSIDE
LABEL ROLL HANGER
LABEL ROLL SPRING
COLLAR
PRESSING RUBBER
SEPARATING PLATE
POWER
SWITCH
SWITCH ADJUSTING
ARM
SWITCH ADJUSTING
THUMBSCREW
MIDDLE PLATE
SWITCH
HOUSING
SWITCH
TRIGGER
RE-WINDER
LABEL ROLL GUIDE
INSIDE (NOT SHOWN)
HOLD DOWN BAR
