Thermalright Phantom Spirit 120 Evo Bruksanvisning

Thermalright datakjølekomponent Phantom Spirit 120 Evo

Les nedenfor 📖 manual på norsk for Thermalright Phantom Spirit 120 Evo (1 sider) i kategorien datakjølekomponent. Denne guiden var nyttig for 8 personer og ble vurdert med 4.4 stjerner i gjennomsnitt av 4.5 brukere

Last ned PDF

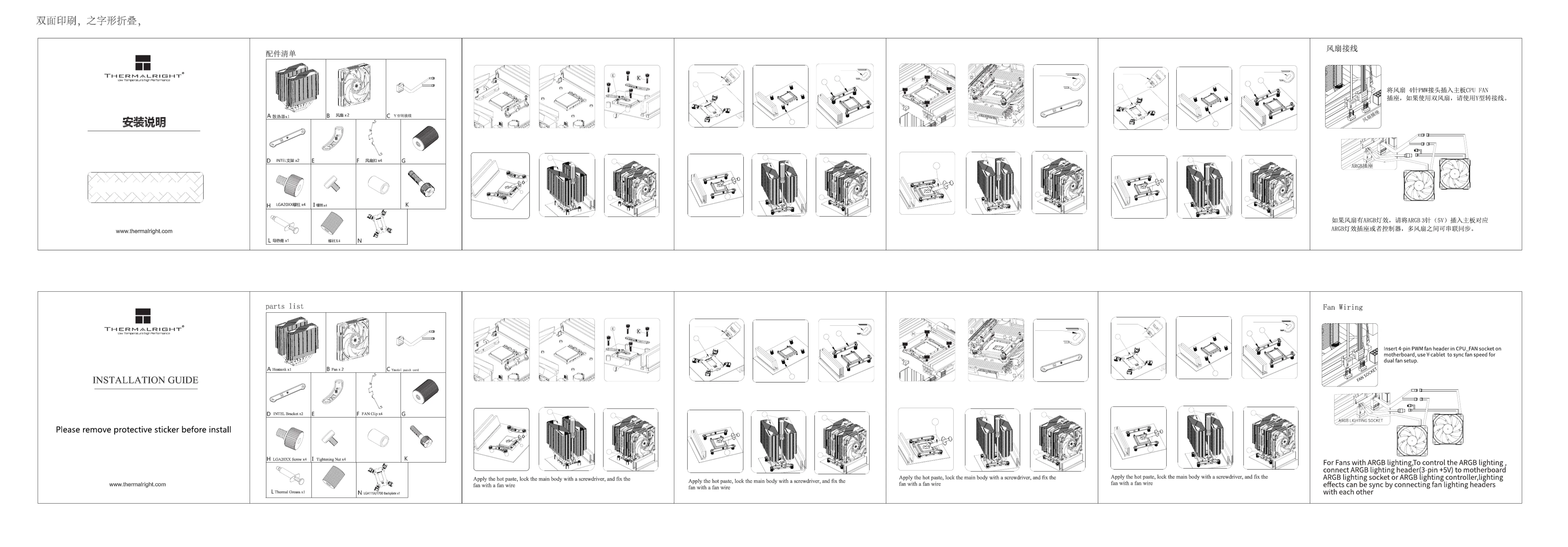

Side 1/1

112*112mm

系列

115X安装孔

115Xmounting hole

115X 螺柱 x4

1700screw bolt x4

115Xscrew bolt x4

AM4/AM5

Stsndoff x4

AM4/AM5

Screw x4

1700

LGA115X/1700背板 x1

1700安装孔

1 mounting hole700

2 110 安装孔

2 11mounting0

hole

INTEL LGA115X/1200

INTEL LGA1700

INTEL LGA2011/2066

INTEL LGA1700

Phantom Spirit 120 EVO

Series

AM4/AM5螺丝x4

AM4/AM5支架 x2

红色胶柱 p1-x4

AM4/AM5专用

AMD AM4/AM5

115X卡位

1700卡位

115X etent D

1 etent700 D

AM4/AM5 Bracket x2

移除AMD原装塑胶支架，保留背板;放置AM4/AM5胶柱，使用AM4/AM5螺丝

将支架固定到主板。

Remove the AMD original plastic support, keep the back plate, and lock it to

the original motherboard base plate with AM4/AM5 rubber column

将背板推到LGA115X卡位，对应主板孔位穿过主板，然后从正面扭紧LGA115X螺柱、

放置Intel支架再用螺丝固定住.

将背板推到LGA1700卡位，对应主板孔位穿过主板，然后从正面扭紧LGA1700螺柱、

放置Intel支架再用螺丝固定住.

涂好导热膏，然后用螺丝刀锁好主体,再用风扇线扣固定风扇

将LGA20XX螺柱拧到主板，然后放置支架，再用螺帽固定住lNTEL支架。

Push the backplane to the LGA1700 detent, and the corresponding hole position

of the main board passes through the main board, and then tighten the LGA1700

stud from the front Place the Intel bracket and fix it with screws

Push the backplane to the LGA115x detent, and the corresponding hole position

of the main board passes through the main board, and then tighten the LGA115x

stud from the front Place the Intel bracket and fix it with screws

Thread in the LGA20XX screws;put on the brackets andthen

tightening with nuts.

！安装前请先去除铜底保护膜

Produkspesifikasjoner

Merke:	Thermalright
Kategori:	datakjølekomponent
Modell:	Phantom Spirit 120 Evo
Høyde:	157 mm
Materiale:	Kopper
Antall per pakke:	1 stykker
Maksimal luftstrøm:	69 cfm
Egnet plassering:	Prosessor
Viftespenning:	5 V
Maksimalt lufttrykk:	2.87 mmH2O
Antall varmerør:	7
Viftehastighet (maks.):	2150 RPM
Radiatorhøyde:	157 mm
Lagertype:	Fluid Dynamic Bearing (FDB)
Nominell spenning:	5 V
Produktfarge:	Sort
Modell/Type:	Heatsink/Radiatior
Viftestøynivå (maks.):	27 dB
Viftetilkobling:	4-pin
Viftediameter:	120 mm
Støynivå (høy hastighet):	27 dB
Antall vifter:	2 vifter
Belysningsdiode:	Ja
Viftestrøm:	0.16 A
Støttede prosessorkontakter:	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2066, Socket AM4, Socket AM5
Viftedimensjoner (BxDxH):	120 x 120 x 25 mm
Radiatordybde:	110 mm
Radiatorbredde:	125 mm
Rotasjonshasrighet (max):	2150 RPM
Nominell linjestrøm:	0.16 A
LED-kontakttype:	3-pin
Fundament-plate materiale:	Kopper
Varmerør, diameter:	6 mm
Viftevekt:	220 g
