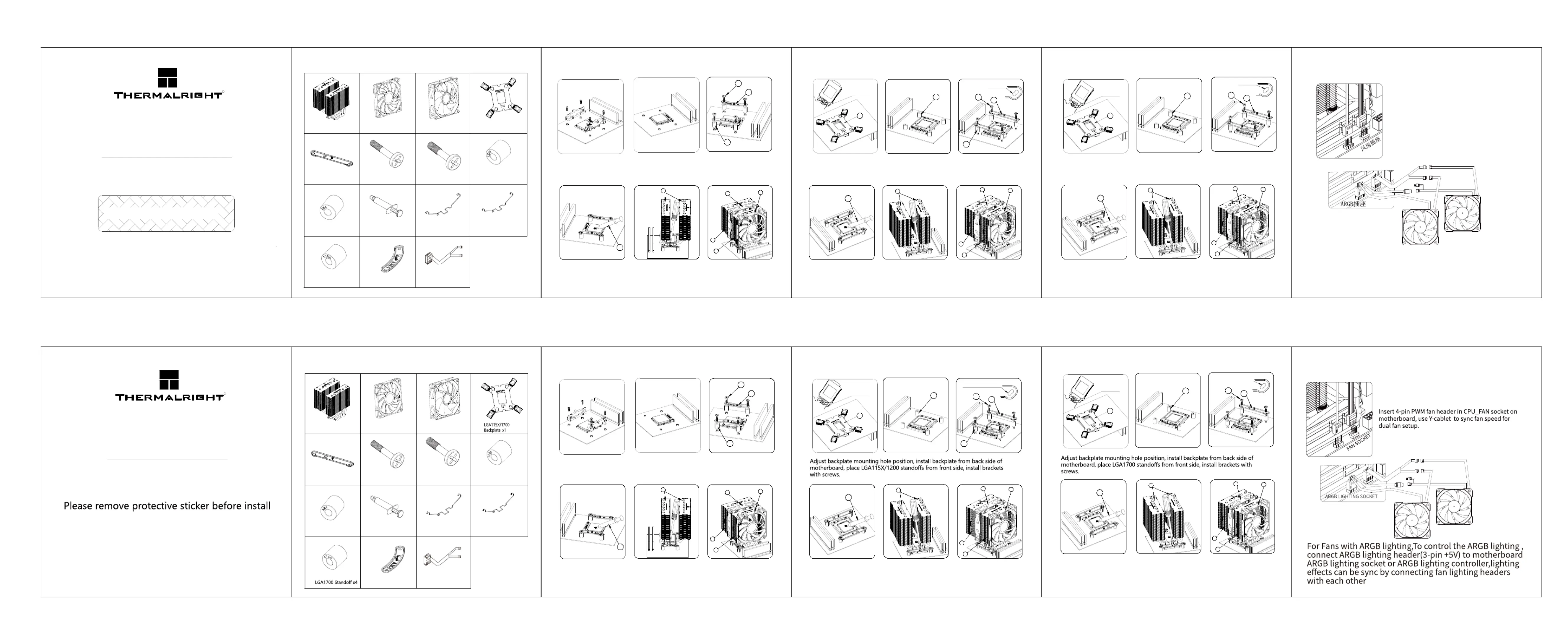

ROYAL KNIGHT 120 SE
系列
安装说明
www.thermalright.com
散热器x1
配件清单
12015 风扇x1
12025 风扇x1
INTEL支架 x2
INTEL螺丝 x4
AMD/AM5支架 x2
Y型转接线 x1
FAN Y Cable x1
12015风扇扣 x2
12025风扇扣 x2
AM4/AM5螺丝 x4
导热膏x1
AMD AM4/AM5
移除AMD 原装塑胶支架，保留背板；使用AM4胶柱锁紧到主板原配底板
涂好导热膏，然后用螺丝刀锁好主体，再用风扇线扣固定风扇
INTEL LGA115X/1200
涂好导热膏，然后用螺丝刀锁好主体，再用风扇线扣固定风扇
ROYAL KNIGHT 120 SE
Series
INSTALLATION GUIDE
www.thermalright.com
Heatsink x1
Parts list
AM4/AM5
Bracket x2
INTEL Bracket x2
12015 Fan Clip x2 12025 Fan Clip x2
AM4 /AM5
Screw x4
INTEL Screw x4
Thermal
Greasa x1
AMD AM4/AM5
Remove the
AMD
original plastic support,keep the back plate,and lock it to
the original motherboard base plate with AM4 rubber column.
INTEL LGA115X/1200
双面印刷，Z字形折叠，112*112mm
Low Temperature high Performance
R
Low Temperature high Performance
R
115X安装孔
115Xmounting hole
INTEL LGA1700/1851
涂好导热膏，然后用螺丝刀锁好主体，再用风扇线扣固定风扇
INTEL LGA1700/1851
1700安装孔
1700mounting hole
蓝色胶柱 x4
1700专用
黑色胶柱 x4
INTEL专用
红色胶柱 x4
AM4/AM5专用
AM4/AM5
Standoff x4
LGA1200
Standoff x4
LGA115x/1700
背板 X1
A B
B1
C
D
E F
G
H
J
K
N
K1
L M
F
M
H
F
M
H
J
J
滑块位置
C
将背板【C】推到115X位置放置在主板背面,然后正面放置胶柱【G】,扣具【D】,
再用螺丝【E】固定住扣具。
滑块位置
C
将背板【C】推到1700位置放置在主板背面,然后正面放置胶柱【L】,扣具【D】,
再用螺丝【E】固定住扣具。
Slider
position
C
C
Slider
position
E
D
G
E
D
G
E
D
E
D
G
G
L
L
J
J
J
J
！安装前请先去除铜底保护膜
如果风扇有ARGB灯效，请将ARGB 3针(5V) 插入主板对应
ARGB灯效插座或者控制器，多风扇之间可串联同步。
将风扇4针PMW接头插入主板CPU FAN插座
如果使用双风扇,请使用Y型转接线。
Apply thermal compound on CPU,install the heatsink with a screw driver, and
install fans on heatsink with fan clips.
Apply thermal compound on CPU,install the heatsink with a screw driver, and
install fans on heatsink with fan clips.
Apply thermal compound on CPU,install the heatsink with a screw driver, and
install fans on heatsink with fan clips.
Fan Wiring
风扇接线
12015 FAN x1
12025 FAN x1
A B
B1
C
D
E F
G
H
J
K
N
K1
L M
A
B
B1
K1
K
A
B
B1
K1
K
A
B
B1
K1
K
A
B
B1
K1
K
A
B
B1
K1
K
A
B
B1
K1
K
