Thermaltake Versa T26 TG ARGB Bruksanvisning

Thermaltake dataeske Versa T26 TG ARGB

Les nedenfor 📖 manual på norsk for Thermaltake Versa T26 TG ARGB (10 sider) i kategorien dataeske. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/10

User's Manual

Benutzerhandbuch

Mode d’emploi

Manual del usuario

Manuale dell’utente

Manual do Utilizador

安裝說明書

用戶手冊ユーザーズマニュアル

Руководство пользователя

kullan c elkitabı ı ı

(EEE Yönetmeli ine Uygundur)ğ

คู่มือการใช้

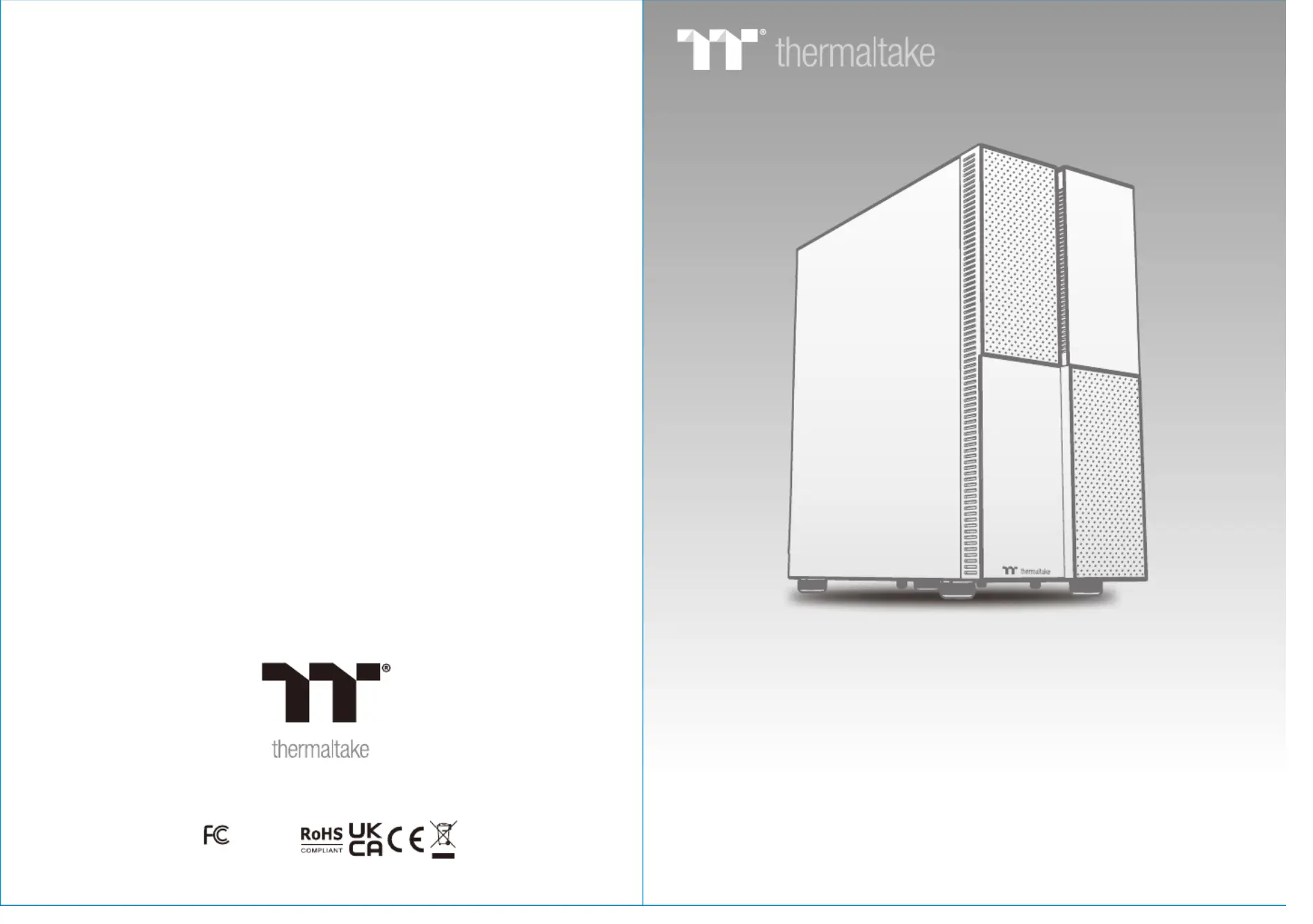

Versa T26 TG ARGB

All other registered trademarks belong to their respective companies.

www.thermaltake.com

Tested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

Join Tt Community To Receive Benefits

Tt LCS-Liquid Cooling Support Certification

TT Premium

Dear Valued Customer,

Thank you for choosing Thermaltake.

As a new user we value your thoughts and opinions and

your feedback is important to us. We at Thermaltake

would like to use this opportunity to invite you to join our

Community Forums. Register today to start enjoying the

full benefits of our community.

Benefits of being a member:

Quick and responsive user support

Receive help and advice with new builds

Keep up to date with new product releases

Share your thoughts and builds with the community

Enter monthly contests and giveaways

Tt LCS Certified is a Thermaltake exclusive certification

applied to only products that pass the design and

hardcore enthusiasts standards that a true LCS chassis

should be held to. The Tt LCS certification was created

so that we at Thermaltake can designate to all power

users which chassis have been tested to be best

compatible with extreme liquid cooling configurations to

ensure you get the best performance from the best

features and fitment.

Brand official website

http://www.thermaltake.com/

Global Facebook

https://www.facebook.com/ThermaltakeInc

TT Premium

To continue achieving the corporate mission of delivering the

perfect user experience, Thermaltake developed “TT Premium”

with the essence of combining supreme quality products with a

new logo design. TT Premium is far more than just a guarantee

of quality. Behind the name, it represents the passion in DIY,

Modding and Thermaltake’s desire to be the most innovative

brand in the PC hardware market. To satisfy the demand of the

high-end PC users, TT Premium follows its core values of

Excellent Quality, Unique Design, Diverse Combinations and

Boundless Creativity to provide a high performance PC product

for every enthusiast. http://ttpremium.com

Taiwan Facebook

http://www.facebook.com/ThermaltakeTW

Global community forums

http://community.thermaltake.com

Chapter 1. Product Introduction

Specification

Accessory

Warning and Notice

1.0

1.1

1.2

Contents

Chapter 2. Installation Guide

2.0

2.1

2.2

2.3

2.4

2.5

2.6

2.7

2.8

2.9

Power Supply Unit (PSU) Install ation

Motherboard Installation

3.5" & 2.5" HDD Installation

PCI Card Installation

Air Cooling Installation

AIO Liqu id Coolin g Install atio n

I/O Connection

Remove Filter

ARGB Control Instruction

Remove Components

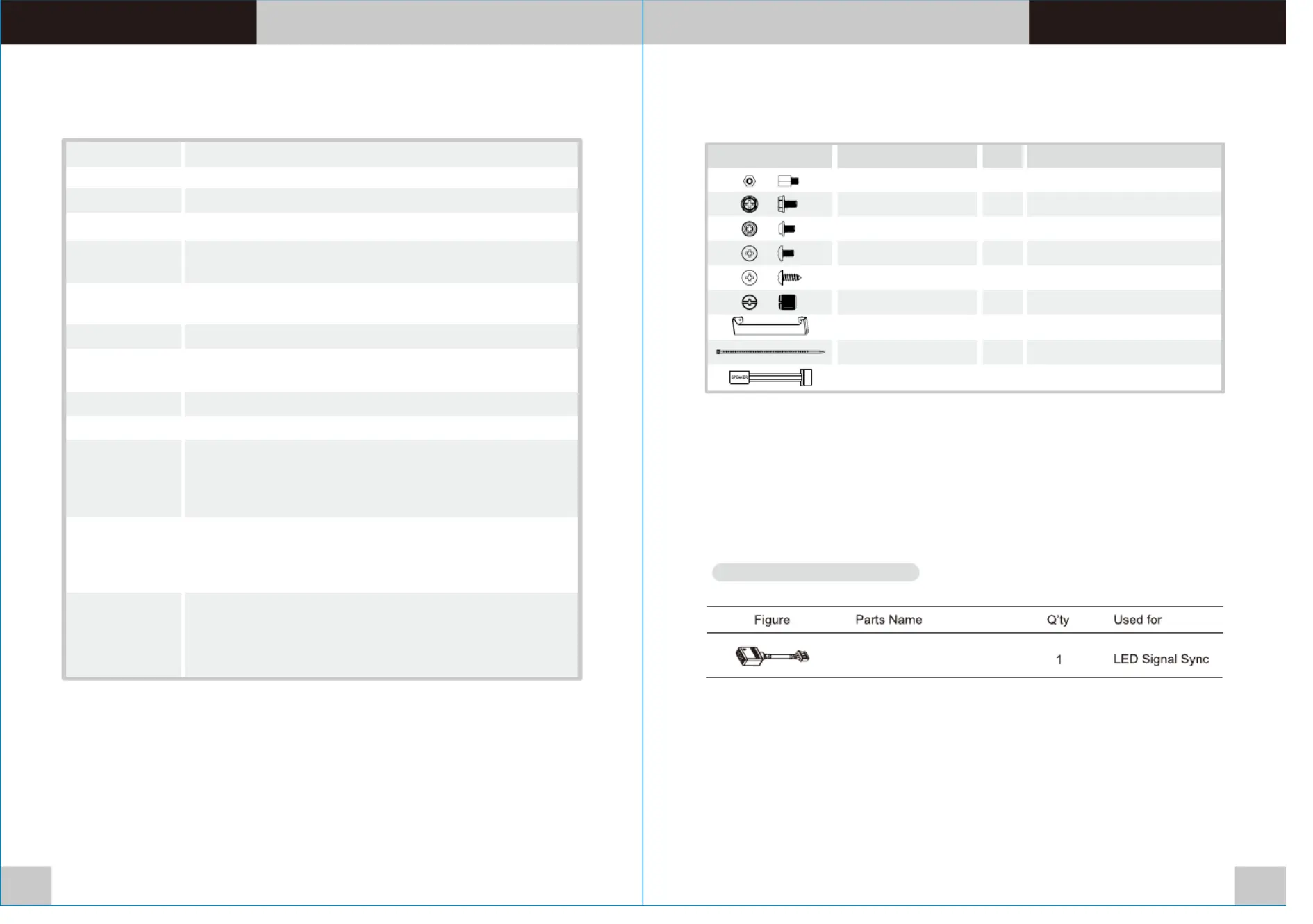

Specification

01 02

Mid Tower

Radiator Support

Front: 1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Top: 1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Rear: 1 x 120mm

Case Type

Dimension (H*W*D) 485 x 225 x 464.2 mm (19.1 8.9 x 18.3 inch)x

Cooling System

Fan Support

Clearance

Front (intake) :

120 x 120 x 25 mm ARGB fan (1000rpm, 27.2 dBA) x 3

Front: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm

3 x 140 mm, 2 x 140mm, 1 x 140mm

Top: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm

2 x 140mm, 1 x 140mm

Rear: 1 x 120 mm

Drive Bays

2 x 3.5”, 2 x 2.5”

or 4 x 2.5”

Expansion Slots

7 + 2

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),

12” x 9.6” (ATX), 12” x 13” (E-ATX)

I/O Port

USB 3.2 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1

Side Panel

Tempered Glass x 1

CPU cooler height limitation: 175 mm

VGA length limitation: 350 mm With Radiator)(

380 mm Without Radiator)(

PSU length limitation: 160 mm With HDD Cage)(

mm(Without HDD Cage)200

Model

Versa T26 TG ARGB

PSU

Standard PS2 PSU (optional)

For Motherboard / 2.5” HDD / SSD

Figure Use For

Q ty`

Cable Management

Net setter

Screw #6-32 x 6.5 mm

Part Name

Screw M3 x 5 mm

Cable Ties

Buzzer

For PSU

For Motherboard Stand-off

For Riser Cable

VGA Bracket

For ARGB Version Only

MB Signal Bridge Cable

(ASUS/MSI/ASROCK/GIGABYTE)

Accessory

Versa T26 TG ARGB Versa T26 TG ARGB

Stand off #6 32 x 6.5 mm- -

For Motherboard

Screw #6-32 x 5 mm

For VGA Bracket

Screw T3 x 8 mm

Motherboard Alarm

Backup

Produkspesifikasjoner

Merke:	Thermaltake
Kategori:	dataeske
Modell:	Versa T26 TG ARGB
Vekt:	8210 g
Bredde:	225 mm
Dybde:	464.2 mm
Høyde:	485 mm
Lydutgang:	Ja
Materiale:	SPCC
Støttede HDD-størrelser:	2.5, 3.5 "
Antall utvidelsesspor:	9
Produktfarge:	Sort
Harmonisert system (HS)-kode:	84733080
Formfaktor:	Midi Tower
tilbakestillingsknapp:	Ja
Modell/Type:	PC
Belysning:	Ja
Belysningsfarge:	Multi
Støttet systemdisk formfaktorer:	ATX, EATX, Micro ATX, Mini-ITX
Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-A-porter:	2
Lydkontakter:	Ja
Strømforsyning medfølger:	Nei
Antall 3.5" bays:	2
Antall 2.5" bays:	2
Siderute:	Ja
Belysningsområde:	PC-kabinettvifte
Herdet glasspanel/herdede glasspaneler:	Ja
Forbedret kabelføring:	Ja
Av/på-knapp:	Ja
RGB-kontrollknapp:	Ja
Maksimal høyde CPU-kjøler:	175 mm
Maksimal lengde grafikkort:	380 mm
Maksimal lengde PSU:	200 mm
Støttede formfaktorer strømforsyning:	PS2
Frontvifte installert:	3x 120 mm
Maksimale frontvifter:	3
Frontviftediameter som støttes:	120,140 mm
Antall bakvifter som støttes (maks.):	1
Bakre viftediametere som støttes:	120,140 mm
Antall toppvifter som støttes (maks.):	3
Toppviftediametere som støttes:	120,140 mm
Støttede radiatorstørrelser foran:	120,140,240,280,360 mm
Støttede radiatorstørrelser bak:	120 mm
Støttede radiatorstørrelser øverst:	120,140,240,280,360 mm
