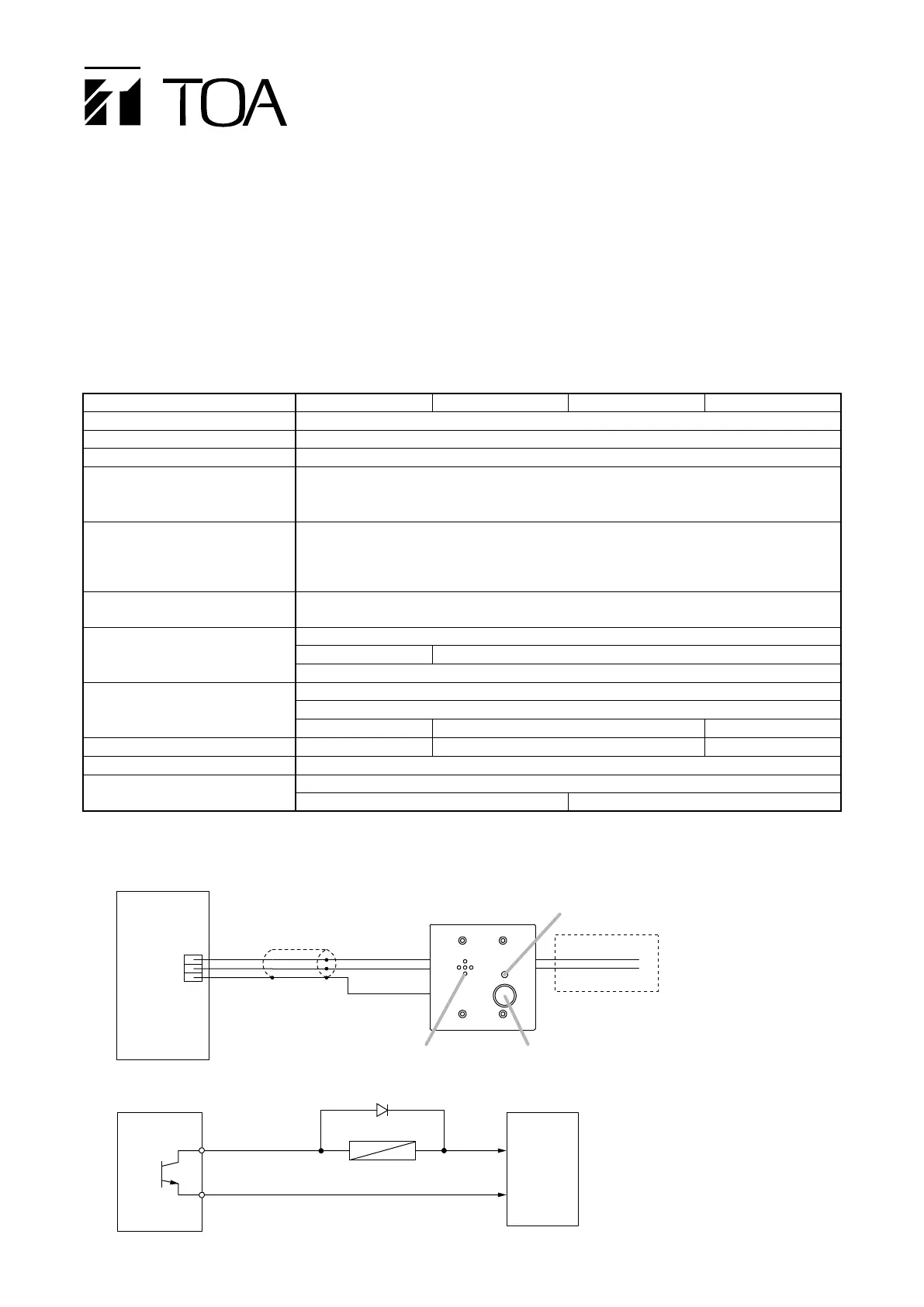

RS-150, RS-160, RS-170, RS-180SUBSTATION

INSTALLATION MANUAL

1. GENERAL DESCRIPTION

TOA's RS-150, RS-160, RS-170, and RS-180 are Substations designed to be used with TOA's N-8000 Series Packet

Intercom System.

Thank you for purchasing TOA's Substation.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

Note: For operation of the units, refer to the N-8000 series operating instructions.

3. CONNECTIONS

[Connection to the N-8000RS or N-8010RS (for 25 V line)]

Model No. RS-150 RS-160 RS-170 RS-180

Rated Input 1 W

Rated Impedance 625 Ω (1 W, 25 V)

Internal Speaker 4 cm dynamic type

Transmission Range 0.5 km/ø0.5 mm (AWG24)

0.8 km/ø0.65 mm (AWG22)

1.3 km/ø0.9 mm (AWG19)

Control Output (RS-180 only)

Open collector,

Withstand voltage:

30 V DC,

Control current: 30 mA

(The open collector output is kept turned on till the conversation

is finished after the call button was pressed.)

Operating Temperature

–10 to +50°C

(Temperature range not to freeze the speaker and switch)

Finish (Panel) Stainless steel, hairline

(Call button) Resin Metal

(Printed circuit board) (RS-170, RS-180 only) Weather-resistant coating

Dimensions (w) 120 mm

(h) 120 mm

(d) 48.5 mm 57.5 mm 58.5 mm

Weight 410 g 540 g 570 g

Accessories Machine screw M4 x 25 ... 4, UNC No. 6-32 x 18 ... 4

Applicable Box (For ush-mount) 2-gang electrical box: YC-302 (option)

(For surface-mount) Wall-mount box: YC-822 (option) Wall-mount box: YC-822/YC-823 (option)

Open collector output

(RS-180 only)

(N-8000RS or

N-8010RS)

Orange

Brown

Black

Speaker Call button

Status indicator

(RS-180 only)

Blue (HOT)

White (COM)

RS-150/160/170/180

External

power supply

Relay

Diode

24 V DC

Blue (HOT)

White (COM)

RS-180

GND

Open collector output: 24 V DC (max.), 30 mA

[Connection to the external relay (RS-180 only)]

Note

Cut out the control cables if they are

not used to avoid short-circuiting.

2. SPECIFICATIONS

Note: The design and specifications are subject to change without notice for improvement.
