Please follow the instructions in this manual to obtain the optimum results from this unit.

We also recommend that you keep this manual handy for future reference.

RS-150

RS-160

RS-170

RS-180

SECURITY SUBSTATION

INSTRUCTION MANUAL

1. GENERAL DESCRIPTION

TOA's RS-150, RS-160, RS-170, and RS-180 are Security Substations designed to be used with TOA's VS-900

Voice Security System.

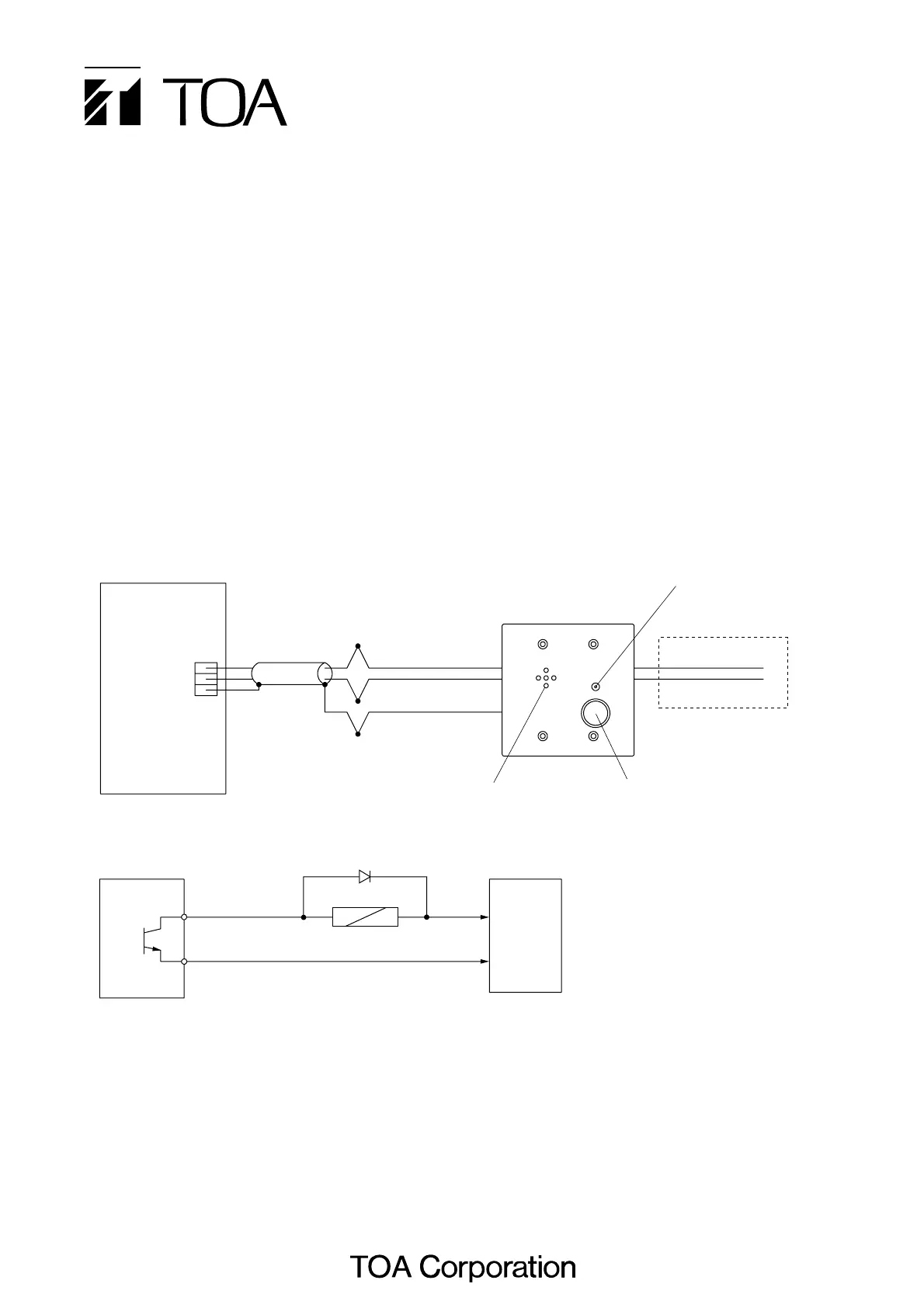

2. CONNECTION

Connection to the VS-900RS (for 25 V line)

(VS-900RS)

Orange

Brown

Black

Speaker

Call button

Call lamp (RS-180 only)

Blue (HOT)

White (COM)

Open collector output

(RS-180 only)

RS-150/-160/-170/-180

External

power supply

relay

diode

+24 VDC

GND

Blue (HOT)

White (COM)

RS-180

3. OPERATION

Pressing the call button calls the control station. The call lamp then flashes until the conversation begins, and

it remains lit during the conversation (RS-180 only). The open collector output is activated immediately after

pushing call buttons and remains active until call is cancelled (RS-180 only).

Note: RS-180 open collector output is 30 mA / 24 VDC (max.).

Connection to the external relay (RS-180 only)

Produkspesifikasjoner

Merke:	Toa
Kategori:	Intercomsystem
Modell:	RS-180
Produkttype:	Understasjon
Vekt:	570 g
Bredde:	120 mm
Dybde:	58.5 mm
Høyde:	120 mm
Berøringsskjerm:	Nei
Materiale:	Rustfritt stål
Antall per pakke:	1 stykker
Merkekompatibilitet:	TOA
Produktfarge:	Rustfritt stål
Driftstemperatur (T-T):	-10 - 50 °C
Montasjetype:	Overflate
