Thank you for purchasing TOA’s Remote Control Panel.

Please carefully follow the instructions in this manual to ensure long, trouble-free

use of your equipment.

1. GENERAL DESCRIPTION

The WP-700-AM is a remote control switch/volume panel that designed for

MA-725F(or MM-700F) amplifiers,

which

can remote

input

source and

adjust

volume level through

connected to

MA-725F(or MM-700F)

amplifier. Also it can be mounted in a 1-gang electrical

box (American type).

NOMENCLATURE A

ND FUNCTIONS

Input

select

Select

by rotating

the knob from LINE1~LINE4

(Note:

MA-725F(or MM-700F) input select

switch is invalid when

WP-700-AM

plugged in.)

Output volume control

Adjusts volume level by rotating the knob

(Not

MA-725F(or MM-700F) volume switch is invalid when

WP-700-AM

plugged in.)

RJ-45 connector

Connects to

MA-725F(or MM-700F)

amplifier or

WP-700-AM with a

CAT5/5e/6

shielded cable

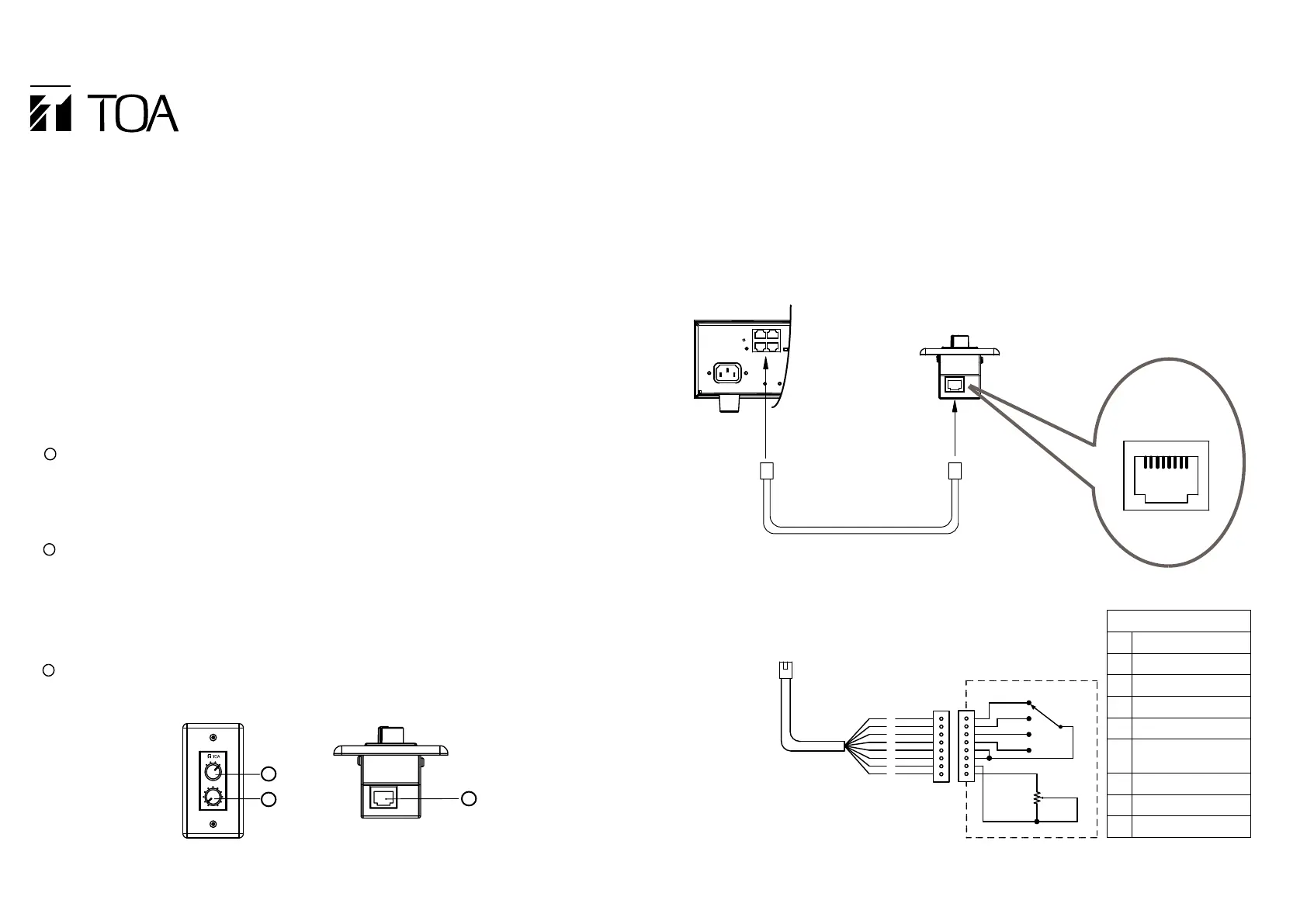

CONNECTIONS

MA-725F(or MM-700F) amplifier can connect and control Maximum of 4

WP-700-AM

remote control panel, It can be connected by

CAT5/5e/6 STP

between the WP-700-AM and the MA-725F(or MM-700F) which

length 300

feet in max.

For the method, refer to the instruction manual supplied with the MA-725F(or

MM-700F) Amplifier.

Connection guide as shown below.

OPERATING INSTRUCTIONS

REMOTE CONTROL PANEL

WP-700-AM

TOA Corporation

LINE 1

LINE 2 LINE 3

LINE 4

VOLUME

WP-700-AM

MA-725F, MM-700F

RJ45

LINE 1

LINE 2

LINE 3

LINE 4

10k (B)

(C.C.W.)

RJ45 Pin Assignment

No. Definition

1 LINE 1 SW

2 LINE 2 SW

3 LINE 3 SW

4 LINE 4 SW

DETECTION OF

WP-700-AM(GND)

6 GND

7 REMOTE VOL +

MA-725F,

MM-700F

RJ45

CAT5/5e/6

STP cable

MP-700-AM

RJ45 Pin No.

12345678

select

Ethernet

source

Input

source

CAT5/5e/6

STP cable

REMOTE VOL -

cable

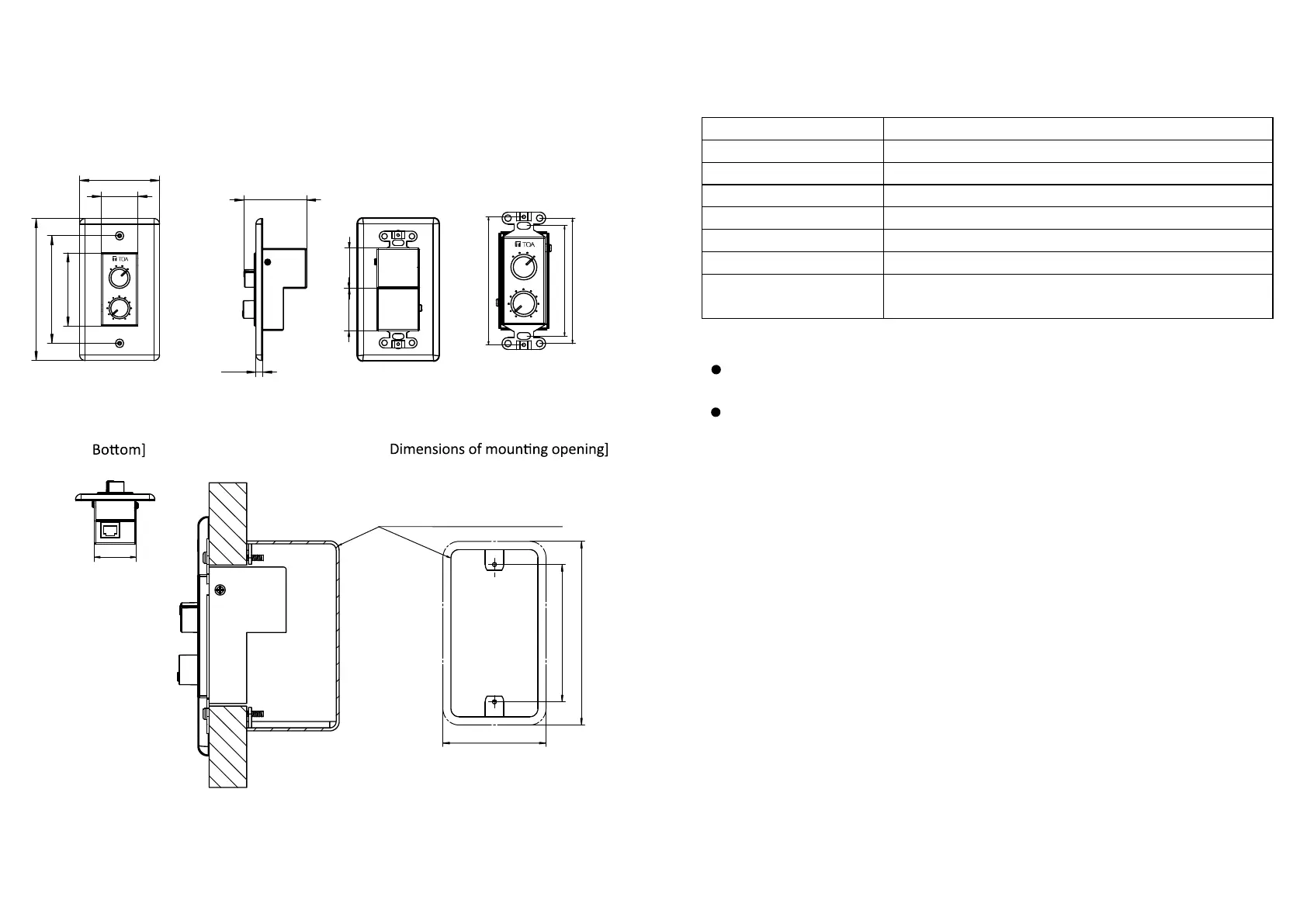

Produkspesifikasjoner

Merke:	Toa
Kategori:	Ikke kategorisert
Modell:	WP-700
Vekt:	210 g
Bredde:	72 mm
Dybde:	60 mm
Høyde:	128 mm
Merkekompatibilitet:	TOA
Kompatibilitet:	MA-725F, MM-700F
Produktfarge:	Hvit
Driftstemperatur (T-T):	-10 - 40 °C
