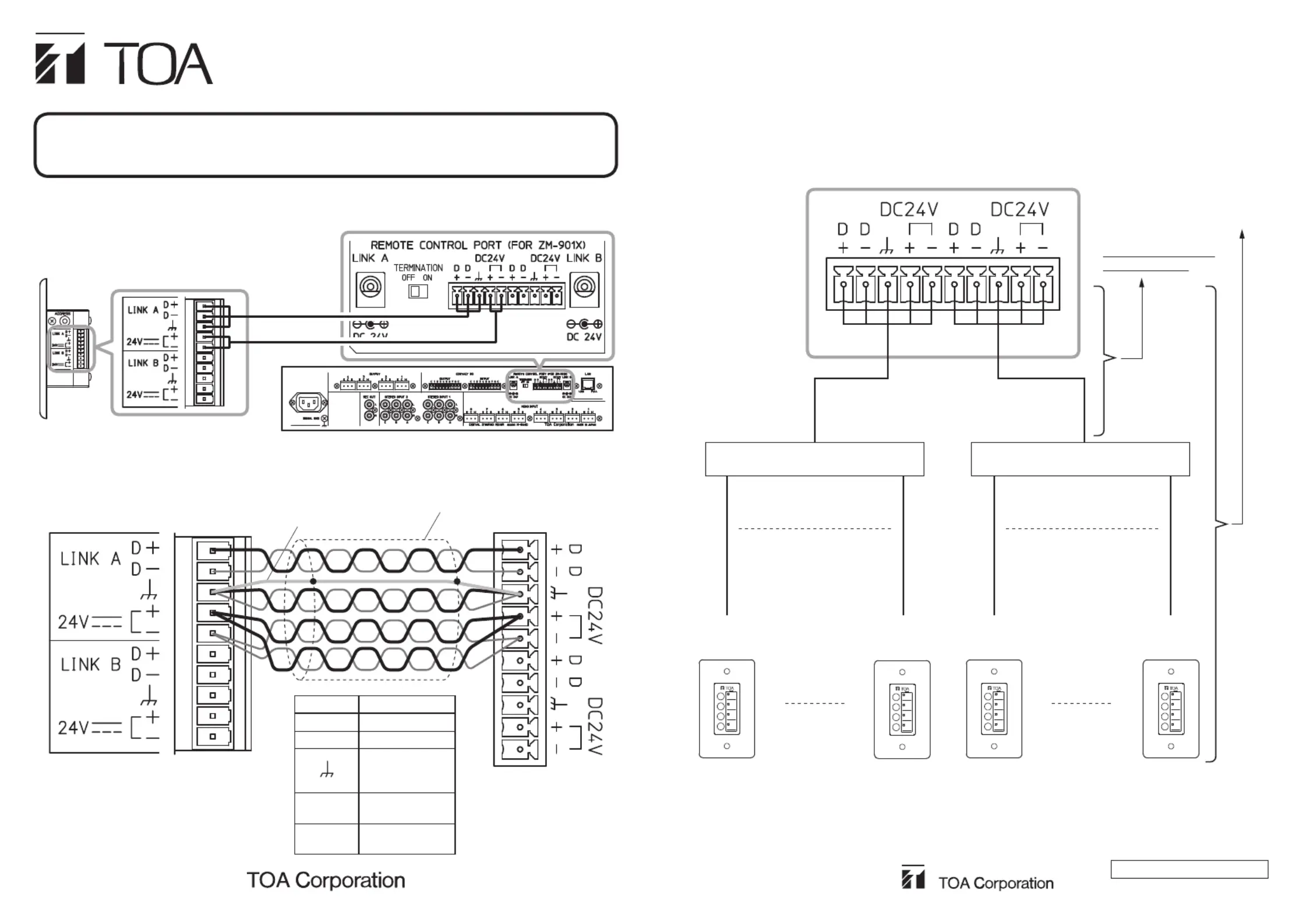

ZM REMOTE CONTROLLER CONNECTION

INSTRUCTIONS (Supplementary)

When using the ZM Remote controller (ZM-9011, ZM-9012, ZM-9013, or ZM-9014 Remote

Control Panel), be sure to read the separate instruction manual in conjunction with this

supplementary manual.

1. CONNECTION

(Example of LINK A connections)

M-864D

Side view of the ZM

Remote controller

※

Notes

•Use the shielded Category 5 twisted pair LAN cable forconnections betweenthe ZM Remote

controllerandtheM-864DDigitalStereoMixer(※markasshownabove).

•Connectallcablesasshowninthewiringdiagrambelow.

Shield

Shielded wire

ZM 9011/9012/9013/9014

M-864D

Terminal Cable (Color)

D+ White/Orange

D− Orange

White/ Green

Green

Shield

24V+

White/Blue

White/Brown

24V–

Blue

Brown

URL:http://www.toa.jp/

133-05-00001-00

2. CABLE DISTANCE

Note

When2ormoreZMRemotecontrollersareconnectedinastartopology,keepeachcablelength

within 10 m (33 ft) from the M-864D to a branch point.

(When connecting 16 ZM Remote controllers)

LINK A LINK B

ZM Remote

controller (1)

(8)

Connection terminal Connection terminal

(9) (16)

Allowable total cable length

of wiring is 800 m (870 yd).

M-864D

Max. 10 m (33 ft) to

a branch point
