Toro 23511 Bruksanvisning

Les nedenfor 📖 manual på norsk for Toro 23511 (24 sider) i kategorien Ikke kategorisert. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Side 1/24

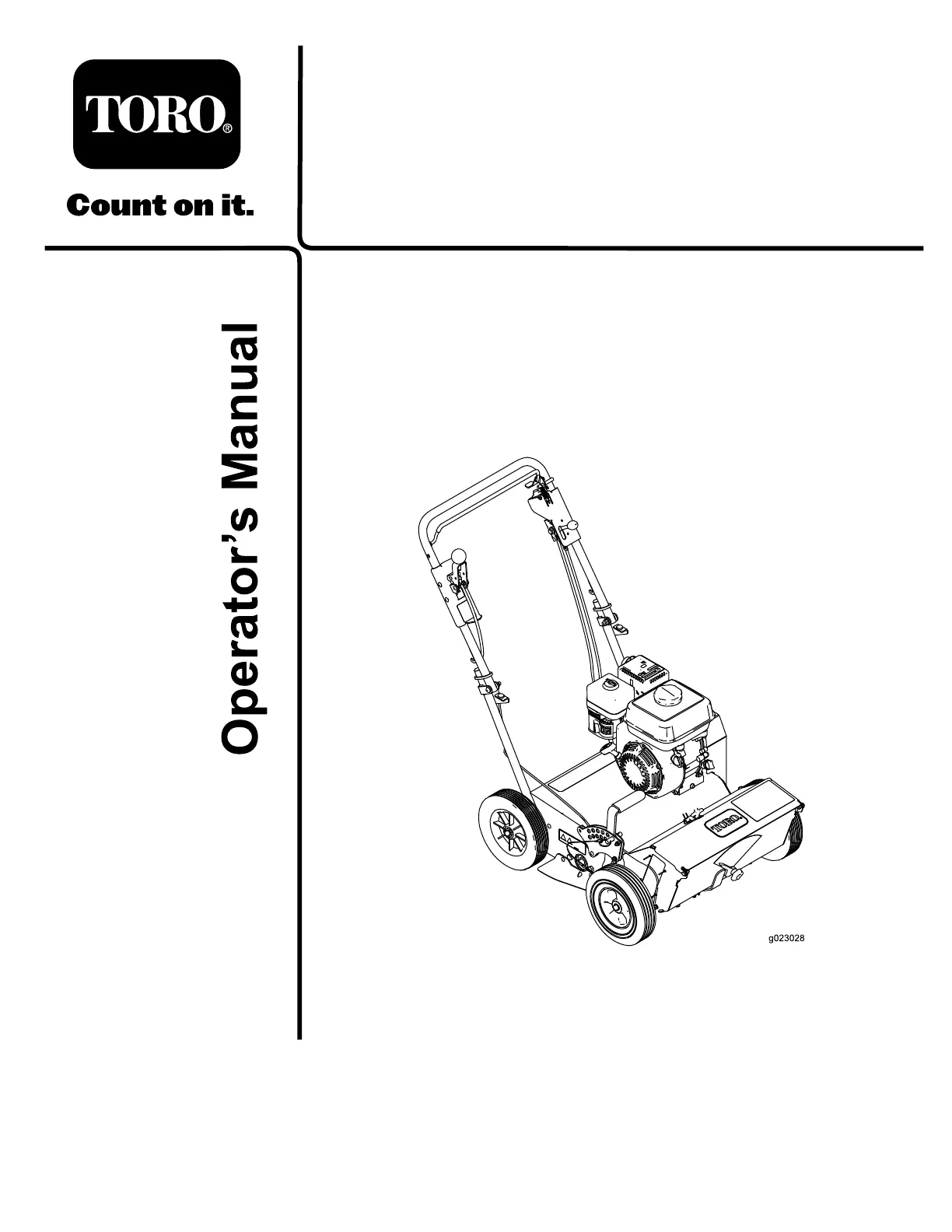

FormNo.3378-932RevA
18inTurfSeeder
ModelNo.23511—SerialNo.313000001andUp
ModelNo.33511—SerialNo.313000001andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)
*3378-932*A
WARNING
CALIFORNIA
Proposition65Warning
Thisproductcontainsachemicalorchemicals
knowntotheStateofCaliforniatocausecancer,
birthdefects,orreproductiveharm.
Theengineexhaustfromthisproduct
containschemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
ThissparkignitionsystemcomplieswithCanadianICES-002.
Important:Thisengineisnotequippedwithaspark
arrestermufer.ItisaviolationofCaliforniaPublic
ResourceCodeSection4442touseoroperatetheengine
onanyforest-covered,brush-covered,orgrass-covered
land.Otherstatesorfederalareasmayhavesimilarlaws.
Introduction
Thismachineseedsturf.Itisintendedforsmall-to
medium-sizedlawnapplicationsinresidentialandcommercial
properties.
Readthisinformationcarefullytolearnhowtooperateand
maintainyourproductproperlyandtoavoidinjuryand
productdamage.Youareresponsibleforoperatingthe
productproperlyandsafely.
YoumaycontactTorodirectlyatwww.Toro.comforproduct
andaccessoryinformation,helpndingadealer,ortoregister
yourproduct.
Wheneveryouneedservice,genuineToroparts,oradditional
information,contactanAuthorizedServiceDealerorToro
CustomerServiceandhavethemodelandserialnumbersof
yourproductready.
Figure1illustratesthelocationofthe
modelandserialnumbersontheproduct.Writethenumbers
inthespaceprovided.
Figure1
1.Locationofthemodelandserialnumbers
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafetyalertsymbol(Figure2),
whichsignalsahazardthatmaycauseseriousinjuryordeath
ifyoudonotfollowtherecommendedprecautions.
Figure2
1.Safetyalertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanicalinformation
andNoteemphasizesgeneralinformationworthyofspecial
attention.
©2013—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
2
Contactusatwww.Toro.com.
PrintedintheUSA
AllRightsReserved
Contents
Introduction..................................................................2
Safety...........................................................................3
SafeOperatingPractices...........................................3
SlopeIndicator.......................................................5
SafetyandInstructionalDecals.................................6
Setup............................................................................9
UnfoldingtheHandle..............................................9
CheckingtheEngineOilLevel..................................9
ProductOverview..........................................................9
Controls...............................................................10
Specications........................................................12
Attachments/Accessories........................................12
Operation....................................................................13
CheckingtheEngineOilLevel.................................13
CleaningDebrisfromtheMachine............................13
AddingFuel...........................................................13
StartingandStoppingtheEngine..............................14
OperatingtheMachine............................................15
OperatingTips......................................................15
Maintenance.................................................................16
RecommendedMaintenanceSchedule(s)......................16
PremaintenanceProcedures........................................16
DisconnectingtheSparkPlugWire...........................16
EngineMaintenance..................................................17
ServicingtheAirCleaner.........................................17
ServicingtheEngineOil..........................................17
CleaningtheSedimentCup......................................18
ServicingtheSparkPlug..........................................18
BeltMaintenance......................................................19
CheckingtheBeltTension.......................................19
AdjustingtheBeltTension.......................................20
MaintainingtheCuttingBlades....................................20
InspectingtheCuttingBlades...................................20
ReplacingWornCuttingBlades................................20
Storage........................................................................22
RemovingtheMachinefromStorage.........................22
Safety
Improperuseormaintenancebytheoperatoror
ownercanresultininjury.Toreducethepotential
forinjury,complywiththesesafetyinstructionsand
alwayspayattentiontothesafetyalertsymbol,which
means
Caution
,
W ar ning
,or
Danger
—personalsafety
instruction.Failuretocomplywiththeinstructionmay
resultinpersonalinjuryordeath.
SafeOperatingPractices
Training
ReadtheOperator’sManualandothertrainingmaterial.If
theoperator(s)ormechanic(s)cannotreadEnglishitis
theowner’sresponsibilitytoexplainthismaterialtothem.
Becomefamiliarwiththesafeoperationoftheequipment,
operatorcontrols,andsafetysigns.
Alloperatorsandmechanicsshouldbetrained.The
ownerisresponsiblefortrainingtheusers.
Neverletchildrenoruntrainedpeopleoperateorservice
theequipment.Localregulationsmayrestricttheageof
theoperator.
Theowner/usercanpreventandisresponsiblefor
accidentsorinjuriesoccurringtopeople,ordamageto
property.
Preparation
Evaluatetheterraintodeterminewhataccessoriesand
attachmentsareneededtoproperlyandsafelyperform
thejob.Onlyuseaccessoriesandattachmentsapproved
bythemanufacturer.
Wearappropriateclothingincludingsafetyglassesand
hearingprotection.Longhair,looseclothing,orjewelry
maygettangledinmovingparts.
Inspecttheareawheretheequipmentistobeusedand
removeallobjectssuchasrocks,toys,andwirewhichcan
becontactedbythemachine.
Useextracarewhenhandlinggasolineandotherfuels.
Theyareammableandvaporsareexplosive.
Useonlyanapprovedcontainer.
Neverremovethegascaporaddfuelwiththeengine
running.
Allowtheenginetocoolbeforerefueling.
Donotsmoke.
Neverrefuelordrainthemachineindoors.
Checkthattheoperatorpresencecontrols,safetyswitches,
andshieldsareattachedandfunctioningproperly.Donot
operatethemachineunlessitisfunctioningproperly.
3
