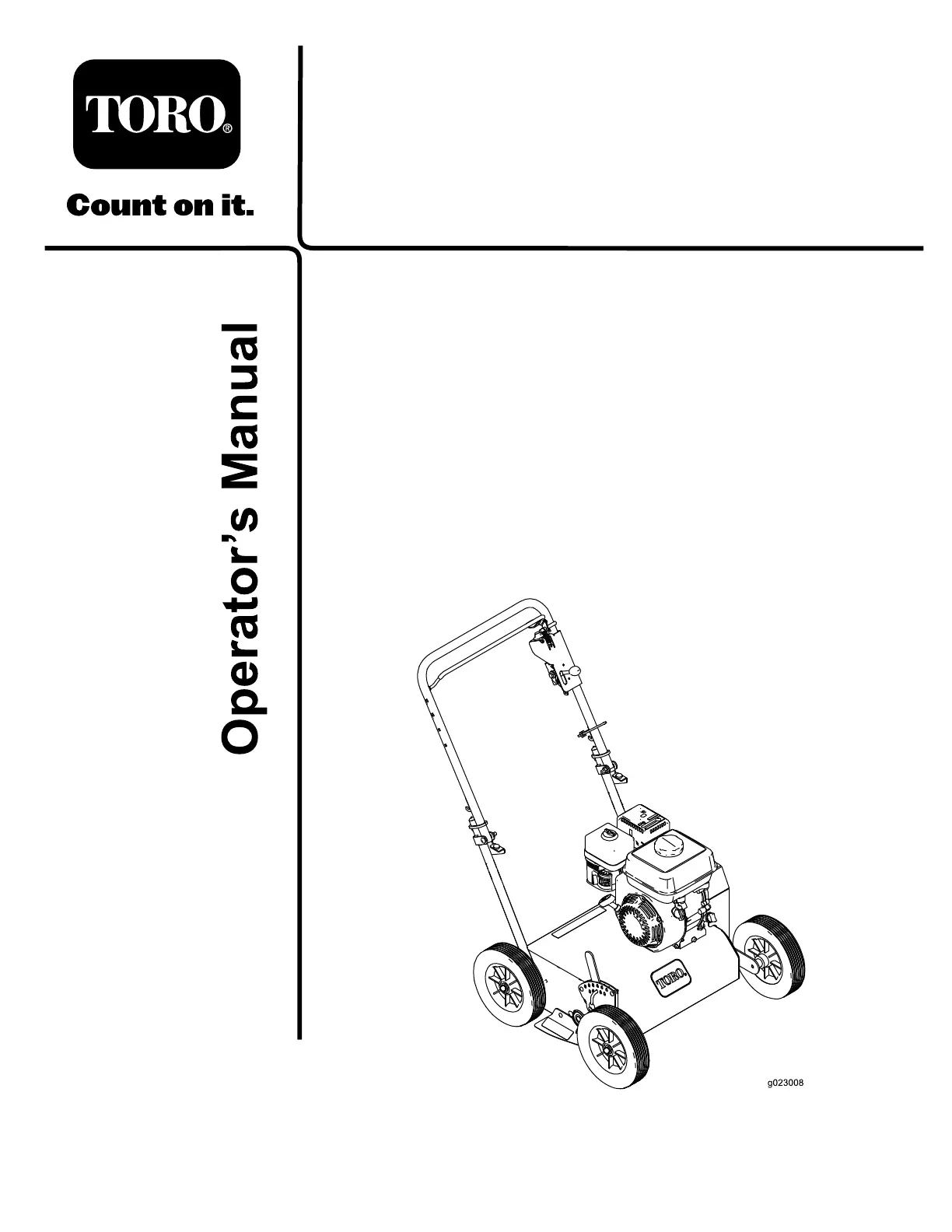

18inDethatcher
ModelNo.23513—SerialNo.312000001andUp
ModelNo.23513—SerialNo.313000001andUp
ModelNo.23513—SerialNo.313000201andUp
ModelNo.33513—SerialNo.313000001andUp
ModelNo.33513—SerialNo.312000001andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)
*3377-850*A
WARNING
CALIFORNIA
Proposition65Warning
Thisproductcontainsachemicalorchemicals
knowntotheStateofCaliforniatocausecancer,
birthdefects,orreproductiveharm.
Theengineexhaustfromthisproduct
containschemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
ThissparkignitionsystemcomplieswithCanadianICES-002.
Important:Thisengineisnotequippedwithaspark
arrestermufer.ItisaviolationofCaliforniaPublic
ResourceCodeSection4442touseoroperatetheengine
onanyforest-covered,brush-covered,orgrass-covered
land.Otherstatesorfederalareasmayhavesimilarlaws.
Introduction
Thismachinedethatchesturf.Itisintendedforsmall-to
medium-sizedlawnapplicationsinresidentialandcommercial
properties.
Readthisinformationcarefullytolearnhowtooperateand
maintainyourproductproperlyandtoavoidinjuryand
productdamage.Youareresponsibleforoperatingthe
productproperlyandsafely.
YoumaycontactTorodirectlyatwww.Toro.comforproduct
andaccessoryinformation,helpndingadealer,ortoregister
yourproduct.
Wheneveryouneedservice,genuineToroparts,oradditional
information,contactanAuthorizedServiceDealerorToro
CustomerServiceandhavethemodelandserialnumbersof
yourproductready.
Figure1illustratesthelocationofthe
modelandserialnumbersontheproduct.Writethenumbers
inthespaceprovided.
g019421
1
Figure1
1.Locationofthemodelandserialnumbers
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafetyalertsymbol(Figure2),
whichsignalsahazardthatmaycauseseriousinjuryordeath
ifyoudonotfollowtherecommendedprecautions.
Figure2
1.Safetyalertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanicalinformation
andNoteemphasizesgeneralinformationworthyofspecial
attention.
©2013—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
2
Contactusatwww.Toro.com.
PrintedintheUSA.
AllRightsReserved
Contents
Introduction..................................................................2
Safety...........................................................................3
SafeOperatingPractices...........................................3
SlopeIndicator.......................................................5
SafetyandInstructionalDecals.................................6
Setup............................................................................8
UnfoldingtheHandle..............................................8
CheckingtheEngineOilLevel..................................8
ProductOverview..........................................................8
Controls................................................................9
Specications........................................................10
Attachments/Accessories........................................10
Operation....................................................................11
CheckingtheEngineOilLevel.................................11
CleaningDebrisfromtheMachine............................11
AddingFuel...........................................................11
StartingandStoppingtheEngine..............................13
OperatingtheMachine............................................13
OperatingTips......................................................13
Maintenance.................................................................14
RecommendedMaintenanceSchedule(s)......................14
PremaintenanceProcedures........................................14
DisconnectingtheSparkPlugWire...........................14
EngineMaintenance..................................................15
ServicingtheAirCleaner.........................................15
ServicingtheEngineOil..........................................15
CleaningtheSedimentCup......................................16
ServicingtheSparkPlug..........................................16
BeltMaintenance......................................................17
CheckingtheBeltTension.......................................17
AdjustingtheBeltTension.......................................17
MaintainingtheFlailBlades.........................................18
InspectingtheFlailBlades.......................................18
ReplacingtheFlailBlades........................................18
Storage........................................................................19
RemovingtheMachinefromStorage.........................19
Safety
Improperuseormaintenancebytheoperatoror
ownercanresultininjury.Toreducethepotential
forinjury,complywiththesesafetyinstructionsand
alwayspayattentiontothesafetyalertsymbol,which
means
Caution
,
W ar ning
,or
Danger
—personalsafety
instruction.Failuretocomplywiththeinstructionmay
resultinpersonalinjuryordeath.
SafeOperatingPractices
ThefollowinginstructionsarebasedontheANSI
B71.4—2004standard.
Training
ReadtheOperator’sManualandothertrainingmaterial.If
theoperator(s)ormechanic(s)cannotreadEnglishitis
theowner’sresponsibilitytoexplainthismaterialtothem.
Becomefamiliarwiththesafeoperationoftheequipment,
operatorcontrols,andsafetysigns.
Alloperatorsandmechanicsshouldbetrained.The
ownerisresponsiblefortrainingtheusers.
Neverletchildrenoruntrainedpeopleoperateorservice
theequipment.Localregulationsmayrestricttheageof
theoperator.
Theowner/usercanpreventandisresponsiblefor
accidentsorinjuriesoccurringtohimselforherself,other
people,orproperty.
Preparation
Evaluatetheterraintodeterminewhataccessoriesand
attachmentsareneededtoproperlyandsafelyperform
thejob.Onlyuseaccessoriesandattachmentsapproved
bythemanufacturer.
Wearappropriateclothingincludingsafetyglassesand
hearingprotection.Longhair,looseclothing,orjewelry
maygettangledinmovingparts.
Inspecttheareawheretheequipmentistobeusedand
removeallobjectssuchasrocks,toys,andwirewhichcan
becontactedbythemachine.
Useextracarewhenhandlinggasolineandotherfuels.
Theyareammableandvaporsareexplosive.
Useonlyanapprovedcontainer.
Neverremovethegascaporaddfuelwiththeengine
running.
Allowtheenginetocoolbeforerefueling.
Donotsmoke.
Neverrefuelordrainthemachineindoors.
Checkthattheoperatorpresencecontrols,safetyswitches,
andshieldsareattachedandfunctioningproperly.Donot
operatethemunlesstheyarefunctioningproperly.
3
