Quick Start Guide

Digital Signage

In-Line HDMI

Surge Protector

Model: B110-SP-HDMI

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Español 5 • Français 9 • Русский 13

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

www.tripplite.com/warranty

19-03-095-93384E.indb 1 6/10/2019 10:12:45 AM

Package Contents

Installation

Product Features

• B110-SP-HDMI In-Line Surge Protector

• Grounding Wire, 12 in.

• Mounting Screws (x2)

• Screw Anchors (x2)

• Grounding Wire Screw

• Quick Start Guide

• Protects an HDMI input and output

against Electrostatic Discharge (ESD),

lightning surges and cable discharge

events

• Meets IEC regulations:

o IEC 61000-4-2 (ESD) +/- 15kV(air),

+/- 8kV(contact)

o IEC 61000-4-4 (EFT) 40A (5/50ns)

o IEC 61000-4-5 (Lightning) 5A

(8/20µs)

• Lightning protection reaction speed:

< 1ns

• Solid-state silicon-avalanche technology

• Low TMDS loss

• Supports UHD resolutions up to 4K x 2K

@ 30 Hz

• HDMI 1.4 and HDCP-compliant

• Easy in-line installation with integrated

mounting ears

• Passive by design – no external power

required

Note: The following instructions assume that two HDMI devices are currently connected together.

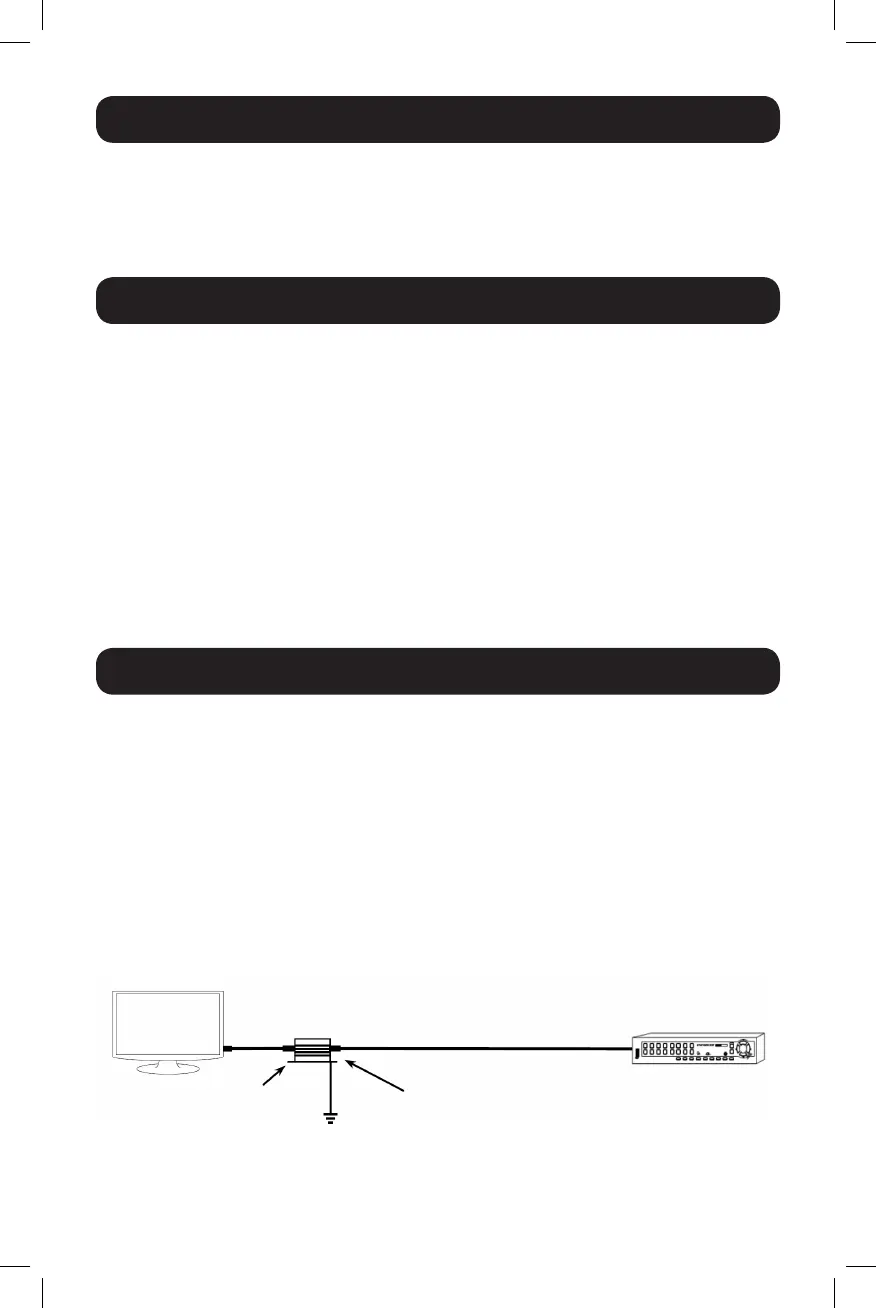

Single Device Protection:

1. Disconnect the installed HDMI cable from the device you wish to protect and attach

this cable to the “Cable End” of the In-Line HDMI Surge Protector.

2. With a user-supplied HDMI cable, connect the device to be protected to the

“Equipment End’ of the In-Line HDMI Surge Protector.

Note: For maximum protection, the HDMI cable between the “Equipment End” of the In-Line

HDMI Surge Protector and the HDMI equipment to be protected should not exceed 3 ft.

(0.9 m). Tripp Lite P568-003-Series High-Speed HDMI cables are recommended.

3. Connect the ground wire to either end of the In-Line HDMI Surge Protector and then

to earth ground.

In-Line HDMI

Surge Protector

HDMI Monitor

(Protected)

HDMI Player

(Not Protected)

Equipment

End

Cable

End

19-03-095-93384E.indb 2 6/10/2019 10:12:45 AM

Package Contents

Speciﬁcations

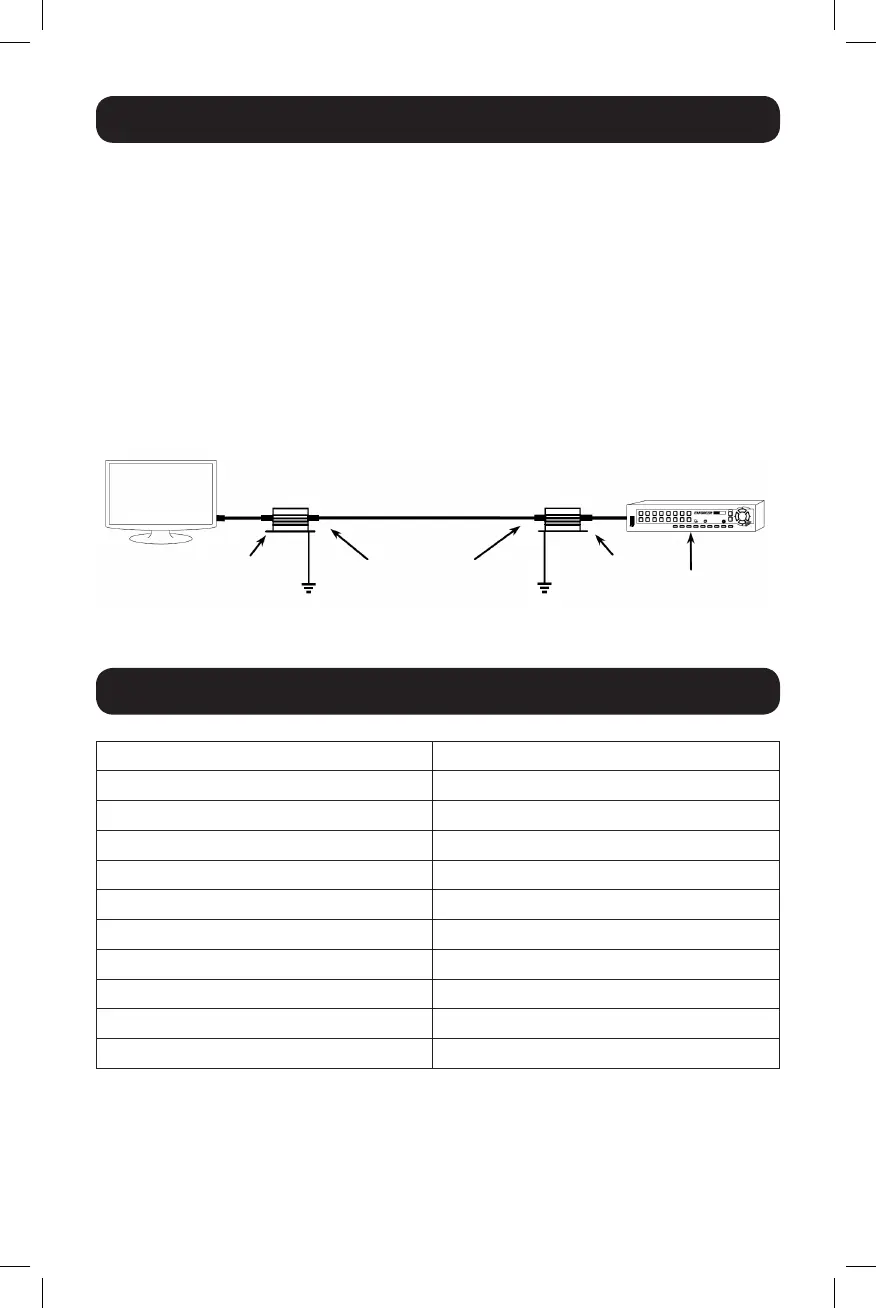

Multiple Device Protection:

1. Disconnect the installed HDMI cable from both devices you wish to protect.

2. Connect the In-Line HDMI Surge Protector to each end of the previously uninstalled

HDMI cable, ensuring both ends of the HDMI cable are connected to the “Cable End”

of the In-Line HDMI Surge Protector.

3. With user-supplied HDMI cables, connect the “Equipment End” of each In-Line HDMI

Surge Protector to the HDMI devices you wish to protect.

Note: For maximum protection, the HDMI cable between the “Equipment End” of the In-Line

HDMI Surge Protector and the HDMI equipment to be protected should not exceed 3 ft.

(0.9 m). Tripp Lite P568-003-Series High-Speed HDMI cables are recommended.

4. Connect the ground wire to either end of each In-Line HDMI Surge Protector and then

to earth ground.

In-Line HDMI

Surge Protector

In-Line HDMI

Surge Protector

HDMI Monitor

(Protected)

HDMI Player

(Protected)

Equipment

End

Equipment

End

Cable End

Input / Output Connectors HDMI Type-A (Female)

ESD Protection 15kV (ESD), 8kV (Contact)

EFT Protection 40A (5/50ns)

Lightning Protection

Lightning Protection Reaction Speed <1ns

Operating Temp 32°F to 131°F (0°C to 55°C)

Maximum Video Resolution 4K x 2K @ 30 Hz

HDMI 1.4

HDCP Pass through (up to 2.2)

Dimensions 1 x 1 x 2.3 in. (25.4 x 25.4 x 58.3 mm)

Weight 0.08 lb. (35g)

19-03-095-93384E.indb 3 6/10/2019 10:12:45 AM

(8/20µs)

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Ikke kategorisert
Modell:	B110-SP-HDMI
Vekt:	40 g
Bredde:	58.3 mm
Dybde:	25.4 mm
Høyde:	25.4 mm
LED-indikatorer:	Nei
Opprinnelsesland:	Taiwan
Pakkevekt:	60 g
Sertifisering:	CE, FCC, REACH
Materiale:	Aluminium
Trådløs:	Nei
Produktfarge:	Sort
Pakkedybde:	59.9 mm
Pakkehøyde:	48.3 mm
Pakkebredde:	83.8 mm
Pakketype:	Boks
Driftstemperatur (T-T):	0 - 55 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 85 °C
Lagringsrelativ fuktighet:	0 - 95
Bærekraftsertifikater:	RoHS
Harmonisert system (HS)-kode:	85364900
Relativ luftfuktighet under drift (H-H):	0 - 95
Antall AC outlets:	0 AC-utganger
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332217865
Masterkassens (ytterkassens) bruttovekt:	750 g
Masterkassens (ytterkassens) lengde:	179.1 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	255 mm
Masterkassens (ytterkassens) høyde:	70.1 mm
Nominell innputspenning:	120 - 230 V
Strømstøt energivurdering:	0 J
