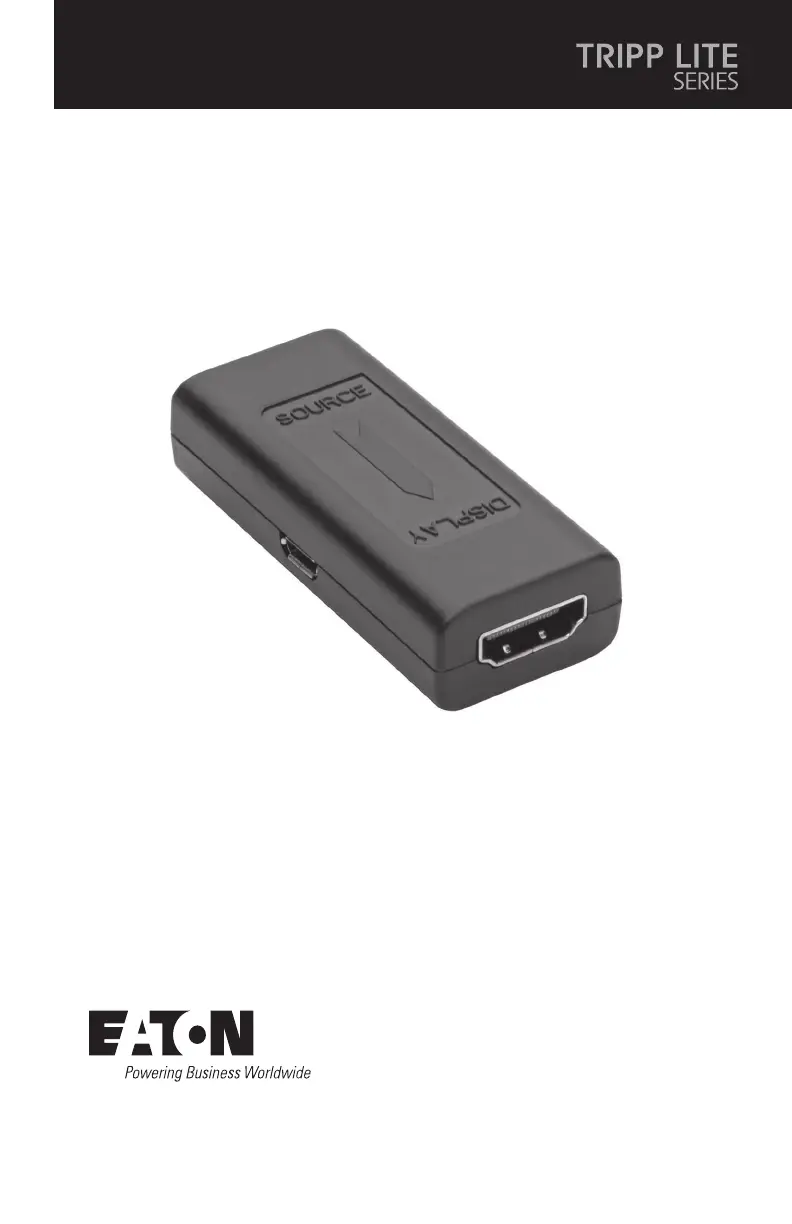

HDMI In-Line

Signal Booster/Extender

Purchased product

may differ from image.

Models:

B122-000-60

B122-000-4K6

Español 5

Français 9

Deutsch 13

Italiano 17

Package Contents

Product Features

Optional Accessories

• B122-000-60 Model: Extends a 1080p (1920 x 1200 @ 60 Hz) signal up to

125 ft. (38 m) from source to extension cable

B122-000-4K6 Model: Extends a 4K (3840 x 2160 @ 60 Hz) signal up to 50 ft.

(15 m) from source to extension cable

• No software or drivers required

• External power not required in most installations

• HDCP compliant and 3D ready

• Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio

• P568-Series HDMI Cables

• P568-100-HD 24 AWG High Definition, Standard Speed HDMI Cable, 100 ft.

(30.5 m)

• U280-002-W12 USB Wall Charger

• B122-000-60 or B122-000-4K6 HDMI Active Extender

• Owner’s Manual

Installation

Specifications

Notes:

1. Test to make sure the entire installation works properly before pulling cables through

ceilings/walls.

2. The B122-000-60 and B122-000-4K6 have been designed for use with P568-Series HDMI cables.

To ensure maximum distance and performance, it is recommended that you use P568-Series

HDMI cabling. For distances over 75 ft. (23 m), 24 AWG cable such as P568-100-HD is required.

3. Although most installations will not require power, a Micro USB port is provided in the event

power is needed. If an image does not appear after performing the following steps, connect a

Micro USB cable from the port on the unit to a USB computer, monitor or USB wall charger port,

such as U280-002-W12.

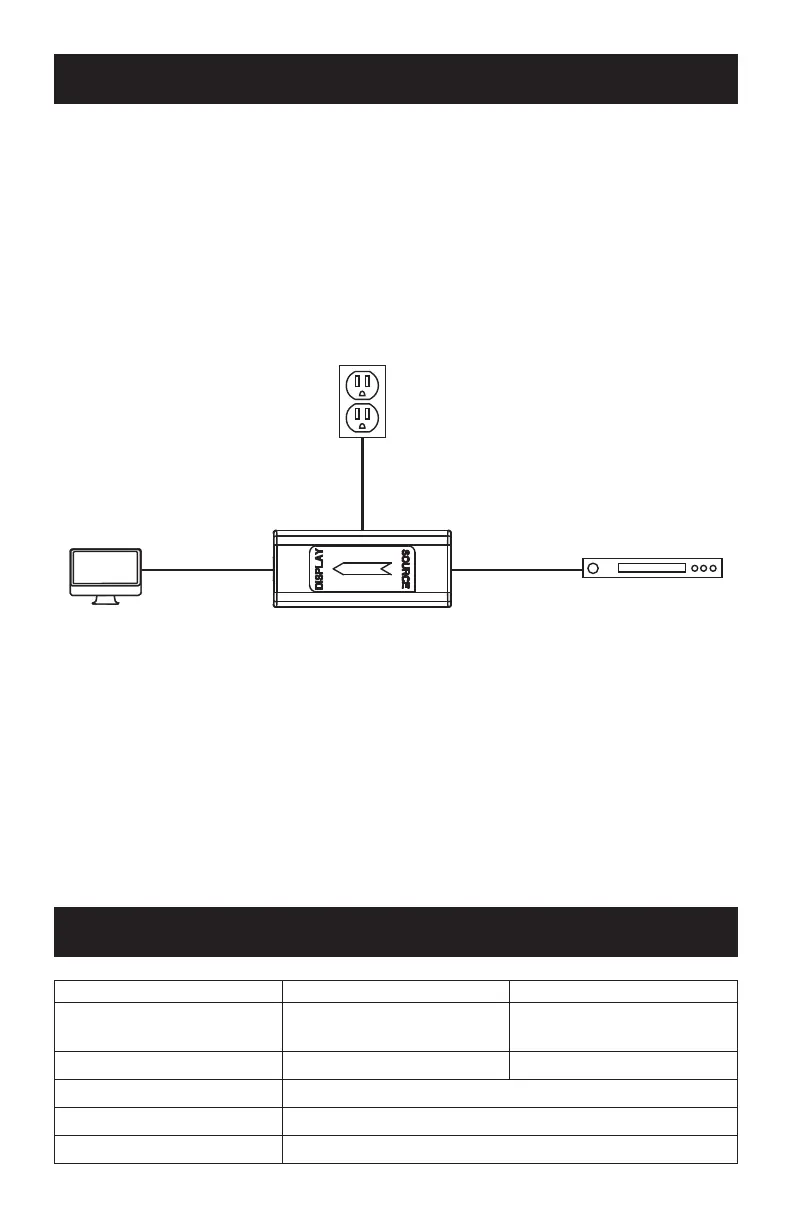

Connect the longer HDMI cable between the source and the SOURCE port on the

B122-000-60 or B122-000-4K6.

Note: When transmitting a 1080p (60 Hz) signal, the HDMI cable connecting the source to the

B122-000-60 must be no longer than 125 ft. (38 m).

Connect the shorter HDMI cable between the HDMI monitor and the DISPLAY

port on the B122-000-60 or B122-000-4K6.

Note: The HDMI cable used to connect the monitor to the B122-000-60 or B122-000-4K6 must

be no longer than 16 ft. (5 m).

MONITOR BLU-RAY

Model B122-000-60 B122-000-4K6

Max Resolution 1920 x 1200 @ 60 Hz

(up to 125 ft. / 38 m)

3840 x 2160 @ 60 Hz

(up to 50 ft. / 15 m)

Compliance HDCP 1.4, HDMI 1.4 HDCP 2.2, HDMI 2.0

Operating Temperature 32°F to 104°F / 0°C to 40°C

Storage Temperature 5°F to 122°F / -15°C to 50°C

Relative Humidity 0 to 85%, non-condensing

1122

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Ikke kategorisert
Modell:	B122-000-4K6
Vekt:	10 g
Bredde:	26 mm
Dybde:	60 mm
Høyde:	15 mm
LED-indikatorer:	Ja
Bruksanvisning:	Ja
USB-kontakttype:	Micro-USB B
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	3840 x 2160 piksler
Opprinnelsesland:	Taiwan
Pakkevekt:	50 g
Sertifisering:	REACH, CE, FCC
HDCP:	Ja
Maksimal oppdateringshastighet:	60 Hz
3D:	Ja
Materiale:	Plast
HDMI-versjon:	2.0
HDMI inn:	1
HDCP-versjon:	2.2
Antall HDMI-utganger:	1
Produktfarge:	Grå
Antall USB-porter:	1
Pakkedybde:	121.9 mm
Pakkehøyde:	33 mm
Pakkebredde:	156 mm
Pakketype:	Boks
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-15 - 50 °C
Lagringsrelativ fuktighet:	0 - 85
Bærekraftsertifikater:	RoHS
Modell/Type:	AV-forsterker
USB-strøm:	Ja
Relativ luftfuktighet under drift (H-H):	0 - 85
Plugg inn og spill:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332239461
Masterkassens (ytterkassens) bruttovekt:	710 g
Masterkassens (ytterkassens) lengde:	163 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	343 mm
Masterkassens (ytterkassens) høyde:	136 mm
