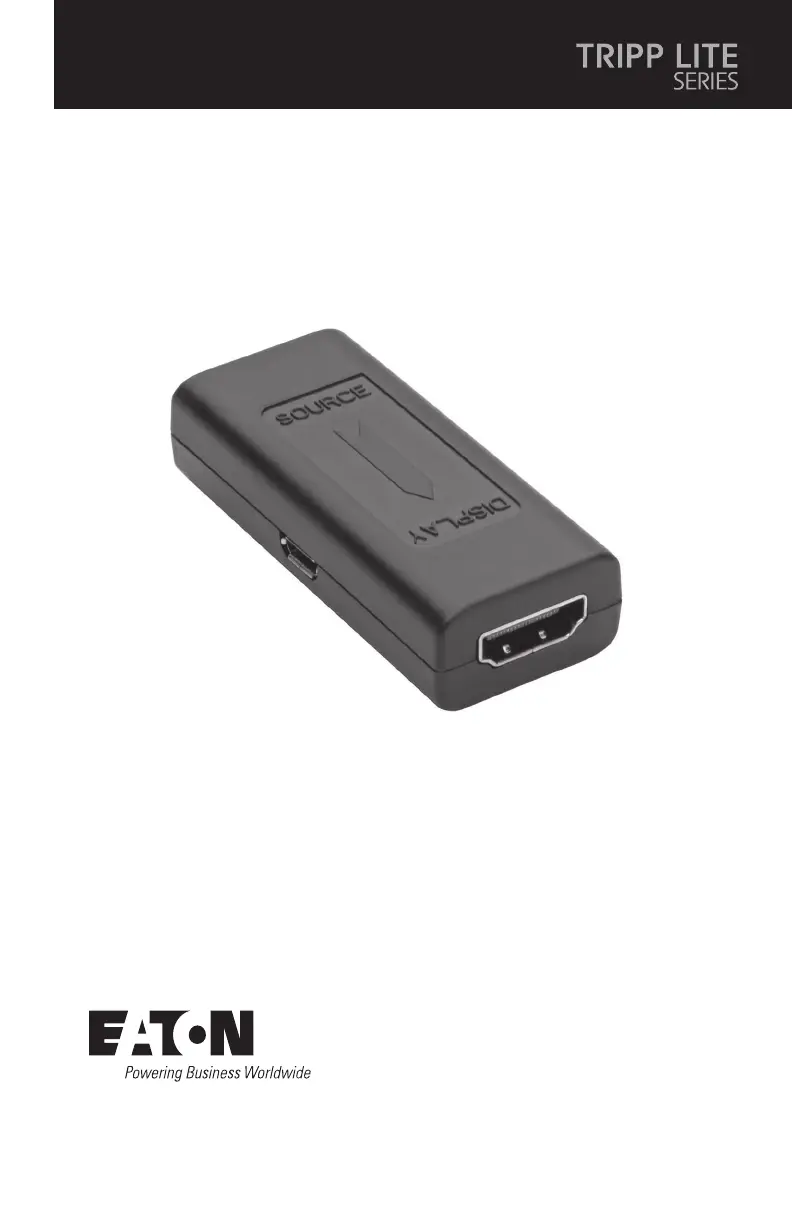

HDMI In-Line

Signal Booster/Extender

Purchased product

may differ from image.

Models:

B122-000-60

B122-000-4K6

Español 5

Français 9

Deutsch 13

Italiano 17

Package Contents

Product Features

Optional Accessories

• B122-000-60 Model: Extends a 1080p (1920 x 1200 @ 60 Hz) signal up to

125 ft. (38 m) from source to extension cable

B122-000-4K6 Model: Extends a 4K (3840 x 2160 @ 60 Hz) signal up to 50 ft.

(15 m) from source to extension cable

• No software or drivers required

• External power not required in most installations

• HDCP compliant and 3D ready

• Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio

• P568-Series HDMI Cables

• P568-100-HD 24 AWG High Definition, Standard Speed HDMI Cable, 100 ft.

(30.5 m)

• U280-002-W12 USB Wall Charger

• B122-000-60 or B122-000-4K6 HDMI Active Extender

• Owner’s Manual

Installation

Specifications

Notes:

1. Test to make sure the entire installation works properly before pulling cables through

ceilings/walls.

2. The B122-000-60 and B122-000-4K6 have been designed for use with P568-Series HDMI cables.

To ensure maximum distance and performance, it is recommended that you use P568-Series

HDMI cabling. For distances over 75 ft. (23 m), 24 AWG cable such as P568-100-HD is required.

3. Although most installations will not require power, a Micro USB port is provided in the event

power is needed. If an image does not appear after performing the following steps, connect a

Micro USB cable from the port on the unit to a USB computer, monitor or USB wall charger port,

such as U280-002-W12.

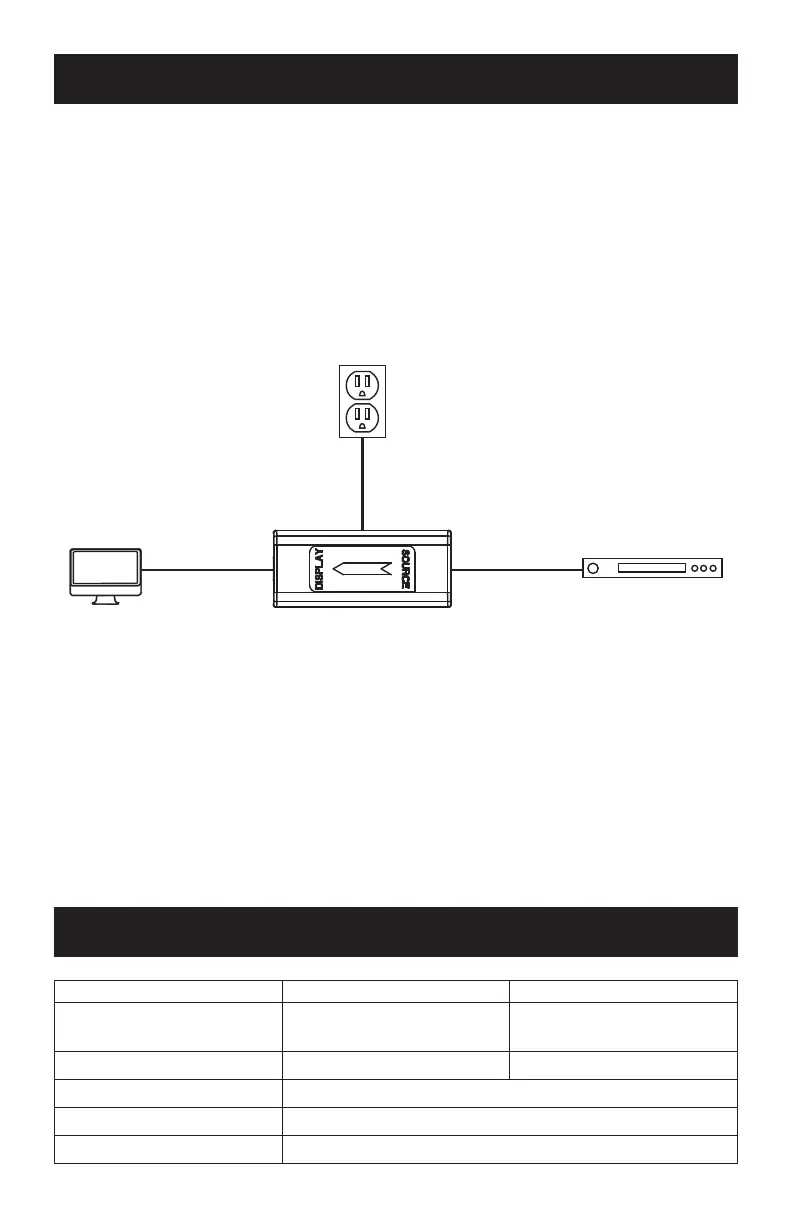

Connect the longer HDMI cable between the source and the SOURCE port on the

B122-000-60 or B122-000-4K6.

Note: When transmitting a 1080p (60 Hz) signal, the HDMI cable connecting the source to the

B122-000-60 must be no longer than 125 ft. (38 m).

Connect the shorter HDMI cable between the HDMI monitor and the DISPLAY

port on the B122-000-60 or B122-000-4K6.

Note: The HDMI cable used to connect the monitor to the B122-000-60 or B122-000-4K6 must

be no longer than 16 ft. (5 m).

MONITOR BLU-RAY

Model B122-000-60 B122-000-4K6

Max Resolution 1920 x 1200 @ 60 Hz

(up to 125 ft. / 38 m)

3840 x 2160 @ 60 Hz

(up to 50 ft. / 15 m)

Compliance HDCP 1.4, HDMI 1.4 HDCP 2.2, HDMI 2.0

Operating Temperature 32°F to 104°F / 0°C to 40°C

Storage Temperature 5°F to 122°F / -15°C to 50°C

Relative Humidity 0 to 85%, non-condensing

1122

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	AV ekstender
Modell:	B122-000-60
Maksimal oppløsning:	1920 x 1200 piksler
Opprinnelsesland:	Taiwan
Pakkevekt:	140 g
Sertifisering:	TAA
HDMI inn:	1
Antall HDMI-utganger:	1
Produktfarge:	Sort
Pakkedybde:	152.4 mm
Pakkehøyde:	33 mm
Pakkebredde:	116.8 mm
Støttede grafikkoppløsninger:	1920 x 1200 (WUXGA)
Støttede videofunksjoner:	1080p
Modell/Type:	AV-forsterker
DC-inngangskontakt:	Ja
Lydsystem:	Flerkanal
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332160291
Masterkassens (ytterkassens) bruttovekt:	640 g
Masterkassens (ytterkassens) lengde:	337.8 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	165.1 mm
Masterkassens (ytterkassens) høyde:	132.1 mm
Maksimal overføring avstand:	45.72 m
Kabeltyper som støttes:	Cat5, Cat5e
