Side 1/8

Owner’s Manual

HDMI + IR over Dual

Cat5/6 Extender Kit

Model: B125-101-60-IRU

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an ISOBAR6ULTRA

surge protector—a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

15-10-014-9334AF-EN.indd 1 11/5/2015 12:39:48 PM

Product Features

Package Includes

Optional Accessories

• Transmitter and Receiver Units

• IR-TX Cable and IR-RX Cable

• USB Micro-B Cable – 3 ft.

• Owner’s Manual

• N202-Series Cat6 24 AWG Solid Wire Patch Cables

• P568-Series High Speed HDMI Cables

• UR05C-Series USB Micro-B Charge-Only Cables

• U280-002-W12 2-Port USB Wall Charger

• UAC-1B 1-Port USB Wall Charger

• Extend a 1920 x 1080 (1080p @ 60Hz) signal up to 100 ft. using

Cat5/Cat6 cabling

• IR control allows you to use your HDMI source’s remote control in the

same location as your extended monitor

• Supports up to 7.1 channel surround sound, DTS-HD and Dolby

TrueHD audio

• Supports EDID passthrough; HDCP and 3D compatible

• Micro USB port supplies power to either the transmitter or receiver

units; no external power supplies required

• Plug and play; no software or drivers required

15-10-014-9334AF-EN.indd 2 11/5/2015 12:39:48 PM

Installation

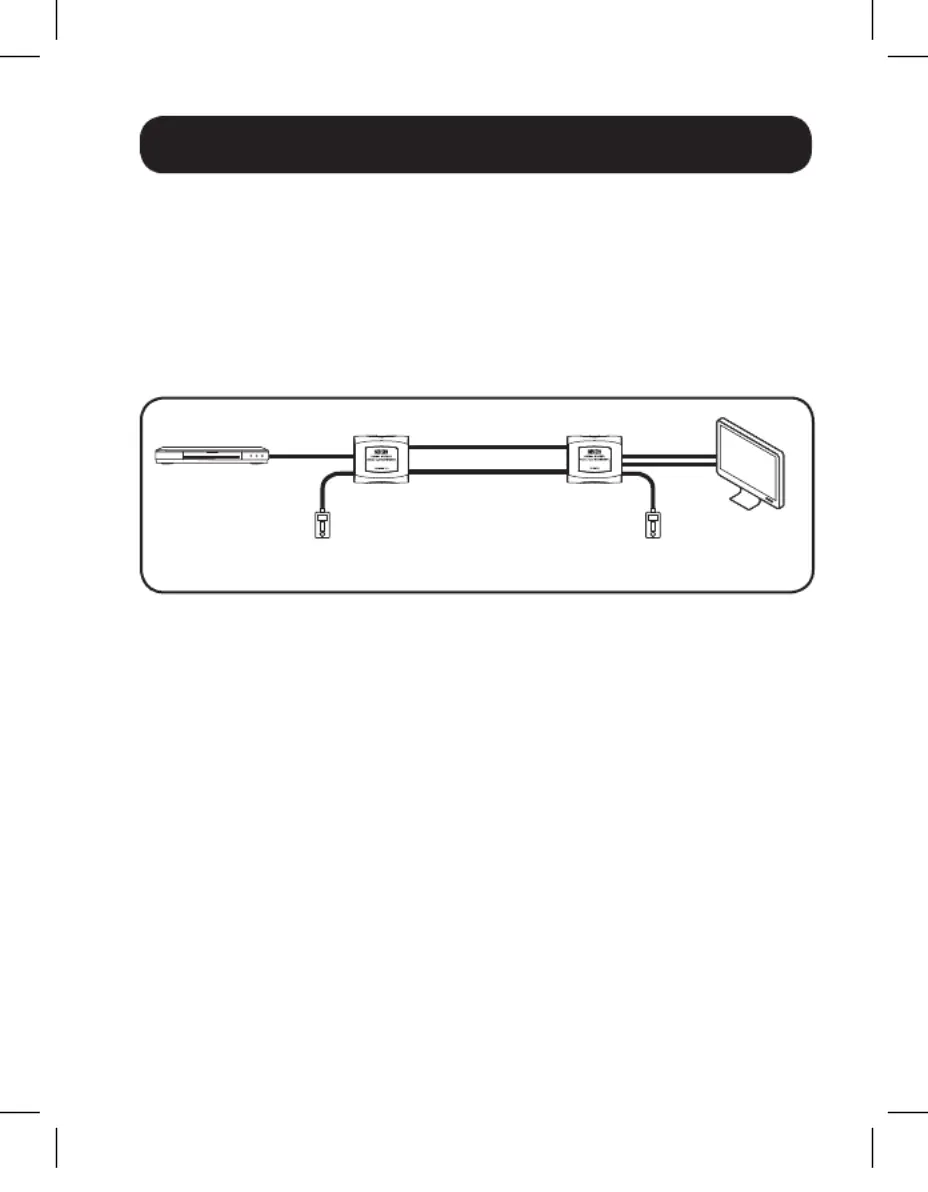

Refer to the installation diagram below as you perform these steps.

Notes:

1. Test to make sure the entire installation works properly before pulling cables

through ceilings/walls.

2. To achieve maximum distance and performance, 24 AWG solid wire Cat5e/6

cable must be used. The use of stranded wire Cat5e/6 cable or cable with a

gauge size higher than 24 AWG will result in shorter extension distance.

All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid wire cabling.

CH1

CH2

TRANSMITTER RECEIVER

Blu-ray™ PL AYER

1080p (60 Hz)

DISPL AY

1080p (60 Hz)

Up to 100 ft. Cat5e/6

1. Make sure all equipment being connected is powered off.

2. Connect the HDMI source to the HDMI input on the transmitter unit.

3. Connect the IR-TX cable to the IR port on the transmitter unit.

Note: Locate the IR-TX unit in an area with a clear line of sight to the source

(e.g. Blu-ray player).

4. Connect the CH1 RJ45 port on the transmitter to the CH1 RJ45 port

on the receiver using Cat5e/6 cable.

Note: See the installation diagram for maximum extension distance at 1080p

(60Hz) video resolutions.

5. Connect the CH2 RJ45 port on the transmitter to the CH2 RJ45 port

on the receiver using Cat5e/6 cable.

Note: See the installation diagram for maximum extension distance at 1080p

(60Hz) video resolutions.

6. Connect the HDMI output on the receiver to the HDMI monitor.

* Power can be provided to either the transmitter or receiver unit. Choose which side you

prefer to receive power.

15-10-014-9334AF-EN.indd 3 11/5/2015 12:39:49 PM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	AV ekstender
Modell:	B125-101-60-IRU
LED-indikatorer:	Ja
Bruksanvisning:	Ja
USB-kontakttype:	Micro-USB B
Maksimal oppløsning:	1920 x 1080 piksler
Opprinnelsesland:	Taiwan
Pakkevekt:	280 g
HDMI inn:	1
Antall HDMI-utganger:	1
Produktfarge:	Sort
Pakkedybde:	43.9 mm
Pakkehøyde:	199.9 mm
Pakkebredde:	142 mm
Støttede grafikkoppløsninger:	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080)
Kabler inkludert:	IR
Støttede videofunksjoner:	480i, 480p, 720p, 1080i, 1080p
Bærekraftsertifikater:	RoHS
Modell/Type:	AV-sender og -mottaker
RJ-45-inngangsporter:	2
Lyd-utgang kanaler:	7.1 kanaler
Plugg inn og spill:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332190465
Masterkassens (ytterkassens) bruttovekt:	3050 g
Masterkassens (ytterkassens) lengde:	152.9 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	213.1 mm
Masterkassens (ytterkassens) høyde:	455.9 mm
Kabeltyper som støttes:	Cat5e, Cat6
RJ-45-utgangsporter:	2
3,5 mm inn:	Ja
3.5 mm ut:	Ja
HDCP & EDID bypass:	Ja
