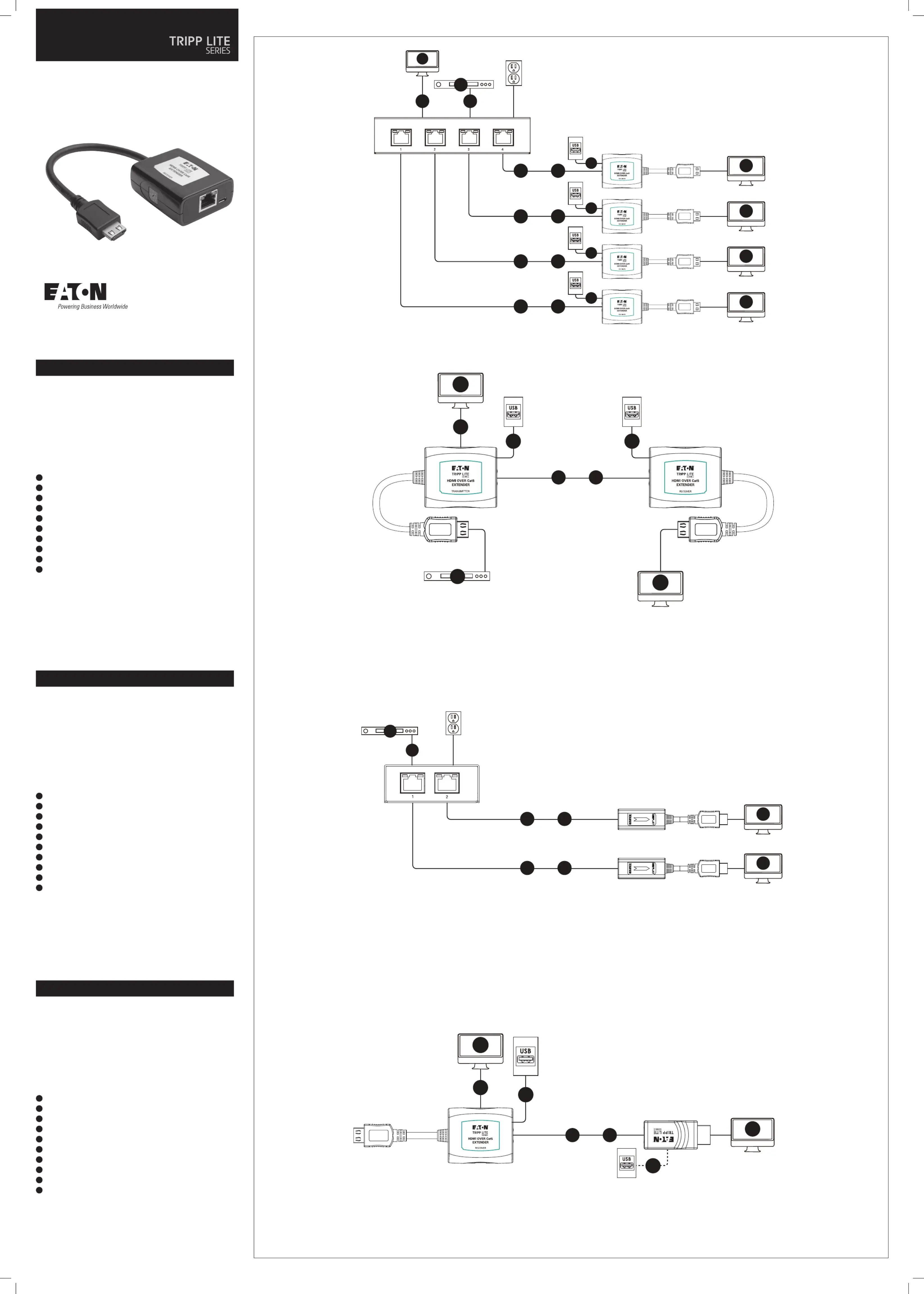

HDMI over Cat5/6 Extenders

Extensores HDMI sobre

Cat5 y Cat6

Rallonges de HDMI à Cat5/6

HDMI über Cat5/6 Extender

Estensori HDMI su Cat5/6

Installation Instructions

Instrucciones de Instalación / Instructions d’installation

Installationsanleitung / Istruzioni per l’installazione

Purchased product may differ from image.

El producto comprado puede diferir de la imagen.

Le produit acheté peut différer de l’image.

Das gekaufte Produkt kann vom Bild abweichen.

Il prodotto acquistato potrebbe differire dall’immagine.

B126-1A0-U

B126-1A1-U

B126-1P0

B126-1P1M-U-POC

Key

Clave

English

Español

Cable Connections

Up to 125 ft. (38.1 m) Cat5e/6 solid cable at 1080P/60 Hz

Up to 175 ft. (53 m) Cat5e/6 solid cable at 1080i/60 Hz

Up to 50 ft. (15 m) Cat5e/6 solid cable at 1080P/60 Hz

Up to 70 ft. (21 m) Cat5e/6 solid cable at 1080i/60 Hz

Up to 15 ft. (4.5 m) HDMI cable

Micro USB Cable

Connected Components

HDR Player

IR Control Pad

IR Sensor

Level 1

Level 2

Level 3

Level 4

Monitor

Local Monitor (Optional)

RS-232 Scanner (Optional)

Refer to your cable’s Owner’s Manual for complete

installation and operation instructions.

Conexiones de cables

Cable sólido Cat5e/Cat6 a 1080P/60 Hz de hasta 125 pies

(38,1 m)

Cable sólido Cat5e/Cat6 a 1080i/60 Hz de hasta 175 pies (53 m)

Cable sólido Cat5e/Cat6 a 1080P/60 Hz de hasta 50 pies (15 m)

Cable sólido Cat5e/Cat6 a 1080i/60 Hz de hasta 70 pies (21 m)

Cable HDMI de hasta 15 pies (4,5 m)

Cable micro USB

Componentes conectados

Reproductor HDR

Pad de control IR

Sensor IR

Nivel 1

Nivel 2

Nivel 3

Nivel 4

Monitor

Monitor local (opcional)

Escáner RS-232 (opcional)

Consulte el Manual del Usuario de su cable para ver las

instrucciones completas de instalación y funcionamiento.

Acronyme

Français

Connexions des câbles

Jusqu’à 125 pieds (38,1 m) Cat5e/6 câble solide à 1080P/60 Hz

Jusqu’à 175 pieds (53 m) Cat5e/6 câble solide à 1080i/60 Hz

Jusqu’à 50 pieds (15 m) Cat5e/6 câble solide à 1080P/60 Hz

Jusqu’à 70 pieds (21 m) Cat5e/6 câble solide à 1080i/60 Hz

Jusqu’à 15 pieds (4,5 m) Câble HDMI

Câble micro USB

Composants connectés

Lecteur HDR

Contrôle IR Coussinet

Senseur IR

Niveau 1

Niveau 2

Niveau 3

Niveau 4

Moniteur

Moniteur local (en option)

RS-232 Scanner (en option)

Reportez-vous au manuel d’utilisation de votre câble pour

obtenir des instructions complètes d’installation et

d’utilisation.

B126-004

B126-1A0-U

or/o/ou/

oder/o

or/o/ou/

oder/o

or/o/ou/

oder/o

or/o/ou/

oder/o

6 6

or/o/ou/

oder/o

B126-1P0

B126-002

or/o/ou/

oder/o

or/o/ou/

oder/o

B126-1P0

or/o/ou/

oder/o

23-09-015 v2.indd 1

23-09-015 v2.indd 123-09-015 v2.indd 1 10/20/2023 10:38:19 AM

10/20/2023 10:38:19 AM

10/20/2023 10:38:19 AM10/20/2023 10:38:19 AM

Schlüssel

Legenda

Deutsch

Italiano

Kabelanschlüsse

Bis zu 125 ft. (38,1 m) Cat5e/6 festes Kabel bei 1080P/60 Hz

Bis zu 175 ft. (53 m) Cat5e/6 festes Kabel bei 1080i/60 Hz

Bis zu 50 ft. (15 m) Cat5e/6 festes Kabel bei 1080P/60 Hz

Bis zu 70 ft. (21 m) Cat5e/6 festes Kabel bei 1080i/60 Hz

Bis zu 15 ft. (4,5 m) HDMI-Kabel

Micro-USB-Kabel

Verbundene Komponenten

HDR-Player

IR-Steuerung Pad

IR-Sensor

Level 1

Level 2

Level 3

Level 4

Monitor

Lokaler Monitor (optional)

RS-232 Scanner (optional)

Vollständige Installations- und Betriebsanweisungen

finden Sie in der Bedienungsanleitung Ihres Kabels.

Collegamenti dei cavi

Fino a 38,1 m (125 piedi) di cavo solido Cat5e/6 a 1080 P/60 Hz

Fino a 53 m (175 piedi) di cavo solido Cat5e/6 a 1080i/60 Hz

Fino a 15 m (50 piedi) di cavo solido Cat5e/6 a 1080P/60 Hz

Fino a 21 m (70 piedi) di cavo solido Cat5e/6 a 1080i/60 Hz

Cavo HDMI fino a 4,5 m (15 piedi)

Cavo Micro USB

Componenti collegati

Lettore HDR

Pad di controllo IR

Sensore IR

Livello 1

Livello 2

Livello 3

Livello 4

Monitor

Monitor locale (opzionale)

Scanner RS-232 (opzionale)

Faccia riferimento al Manuale d’uso del suo cavo per le

istruzioni complete sull’installazione e il funzionamento.

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

Publication No. 23-09-015 / 93-48AA_RevA

October 2023

Eaton has a policy of continuous improvement.

Specifications are subject to change without notice.

Photos and illustrations may differ slightly from actual products.

Eaton is a registered trademark.

All trademarks are property of their respective owners.

9348AA

23-09-015 v2.indd 2

23-09-015 v2.indd 223-09-015 v2.indd 2 10/20/2023 10:38:19 AM

10/20/2023 10:38:19 AM

10/20/2023 10:38:19 AM10/20/2023 10:38:19 AM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	AV ekstender
Modell:	B126-1A1-U
LED-indikatorer:	Ja
Bruksanvisning:	Ja
USB-kontakttype:	Micro-USB B
Maksimal oppløsning:	1600 x 1200 piksler
Opprinnelsesland:	Taiwan
Pakkevekt:	230 g
HDCP:	Ja
HDMI inn:	1
Produktfarge:	Sort
Antall USB-porter:	2
Pakkedybde:	142.2 mm
Pakkehøyde:	43.2 mm
Pakkebredde:	198.1 mm
Støttede grafikkoppløsninger:	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA)
Kabler inkludert:	USB
Støttede videofunksjoner:	480i, 480p, 720p, 1080i, 1080p
Bærekraftsertifikater:	RoHS
Modell/Type:	AV-sender og -mottaker
RJ-45-inngangsporter:	2
Plugg inn og spill:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332190267
Masterkassens (ytterkassens) bruttovekt:	2490 g
Masterkassens (ytterkassens) lengde:	213.4 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	454.7 mm
Masterkassens (ytterkassens) høyde:	154.9 mm
Maksimal overføring avstand:	38.1 m
Kabeltyper som støttes:	Cat5e, Cat6
