Owner’s Manual

DVI Over Cat5 Dual Display

Extender / Splitter

Model: B140-002-DD

1111 W. 35th Street, Chicago, IL. 60629 • www.tripplite.com/support

Package Contents 2

Product Features 2

Mounting 3

Standard Installation 4

Remote Repeater Installation 6

Troubleshooting 8

Warranty & Warranty Registration 11

WARRANTY

REGISTRATION

chance to win a FREE Tripp Lite

product www.tripplite.com/warranty

13-01-085-933287_revA.indd 1 1/30/2013 3:44:15 PM

Package Contents

Product Features

• B140-002-DD Extender / Splitter Transmitter Unit

• External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)

• Mounting Hardware

• Owner’s Manual

• Transmits a DVI-D Single-Link signal from a set of Dual DVI inputs to two

sets of Dual Displays

• A B140-Series remote receiver is needed at each monitor

• For longer distances: Use a B140-1A0 or B140-1A0-WP active receiver to

extend a 1920 x 1080 @ 60Hz signal up to 150 ft. from the transmitter

(or a 1024 x 768 @ 60Hz signal up to 200 ft. from the transmitter)

• For shorter distances: Use a B140-1P0 or B140-1P0-WP passive receiver

to extend a 1920 x 1080 @ 60Hz signal up to 50 ft. from the transmitter

(or a 1024 x 768 @ 60Hz signal up to 100 ft. from the transmitter)

• Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite’s N202-Series,

to achieve maximum distance and resolution

• Further expand the range and number of monitors by adding B140-110

remote repeater units

• Add up to three repeaters on each of the B140-002-DD channels, for a

total of 4 displays per channel (An active receiver should be the last unit in

a channel)

• A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. for each repeater

added into a channel (or up to 175 ft. for a 1024 x 768 @ 60Hz signal)

• DVI 1.0 compliant

• HDCP compatible

• Mounting hardware included that allows the unit to be wall-mounted,

rackmounted, or pole mounted

• Plug and play; no software or drivers required

• Compatible with all operating systems

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule

purchases

13-01-085-933287_revA.indd 2 1/30/2013 3:44:15 PM

Product Features

Optional Accessories:

• B140-1A0 DVI Over Cat5 Extender – Active Remote Receiver Unit

• B140-1A0-WP DVI Over Cat5 Extender – Active Remote Receiver Wallplate

• B140-1P0 DVI Over Cat5 Extender – Passive Remote Receiver Unit

• B140-1P0-WP DVI Over Cat5 Extender – Passive Remote Receiver Wallplate

• B140-110 DVI Over Cat5 Extender – Remote Repeater Unit

• N202-Series Cat6 24AWG, Solid Wire Patch Cables

• P561-Series DVI-D Single-Link Cables

• P566-Series DVI to HDMI Adapter Cables*

* When converting DVI to HDMI, only a video signal will be transmitted. DVI does not support audio.

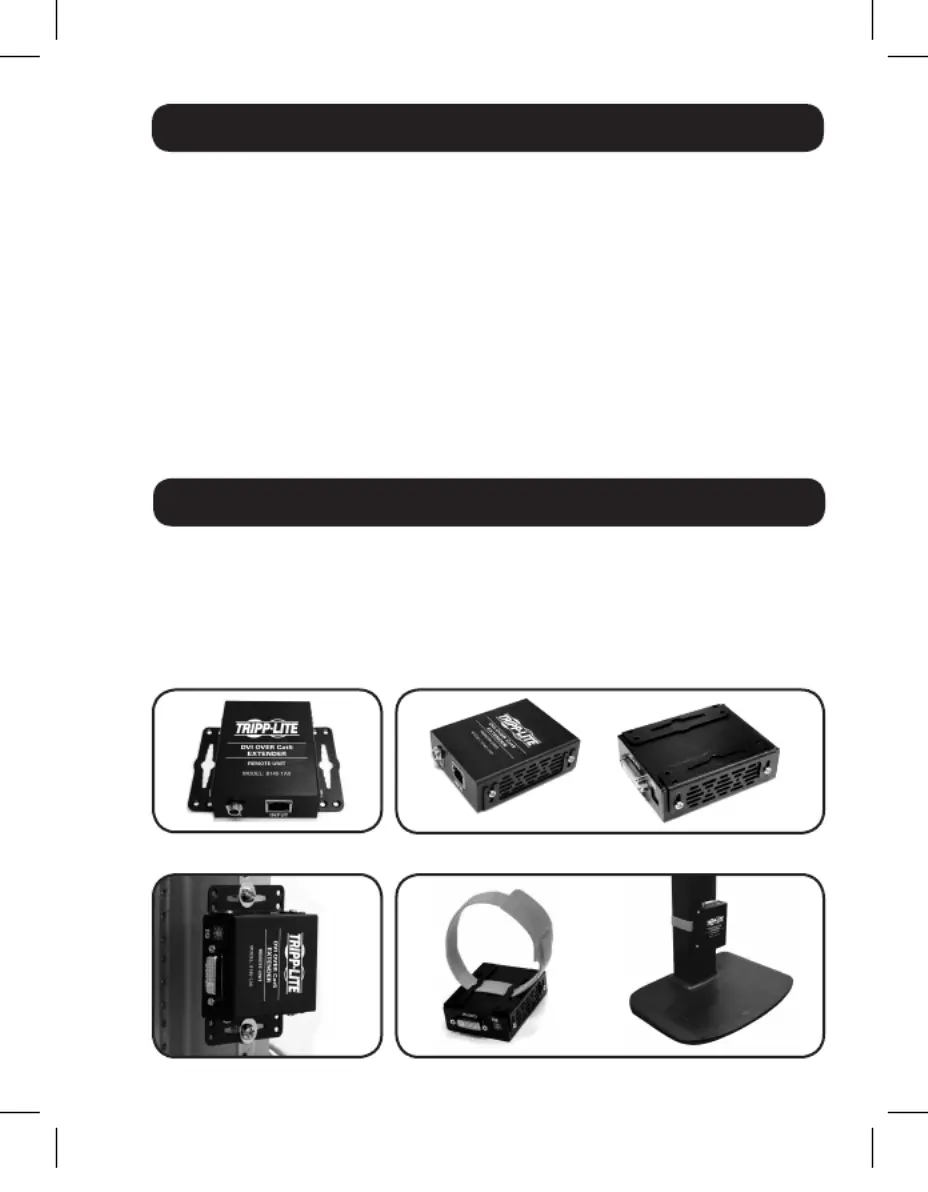

Mounting

The B140-002-DD comes with mounting hardware that allows it to be

mounted in a variety of ways. The following images show the different ways the

included mounting brackets can be attached for different mounting methods.

Note: The images below show a B140-1A0, but the mounting hardware installation is the same

for the B140-002-DD.

Wallmount 1 Wallmount 2

19” Rackmount Pole Mount

13-01-085-933287_revA.indd 3 1/30/2013 3:44:17 PM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	AV ekstender
Modell:	B140-002-DD
Maksimal oppløsning:	1920 x 1080 piksler
Opprinnelsesland:	Taiwan
Pakkevekt:	700 g
Sertifisering:	TAA, RoHS
Full HD:	Ja
HDCP:	Ja
Utgangsstrøm:	5 V
AC-inngangsspenning:	100-240 V
AC-inngangsfrekvens:	50 - 60 Hz
Antall videoporter:	2
Produktfarge:	Sort
Pakkedybde:	164.1 mm
Pakkehøyde:	55.1 mm
Pakkebredde:	214.1 mm
Støttede grafikkoppløsninger:	1024 x 768 (XGA), 1920 x 1080 (HD 1080)
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	4
Harmonisert system (HS)-kode:	8525.50.3035
DC-inngangskontakt:	Ja
Plugg inn og spill:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332177510
Masterkassens (ytterkassens) bruttovekt:	7270 g
Masterkassens (ytterkassens) lengde:	227.1 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	573 mm
Masterkassens (ytterkassens) høyde:	175 mm
Kabeltyper som støttes:	Cat6
Maksimal opereringsrekkevidde:	60.96 m
Video tilkoblingstype:	DVI
