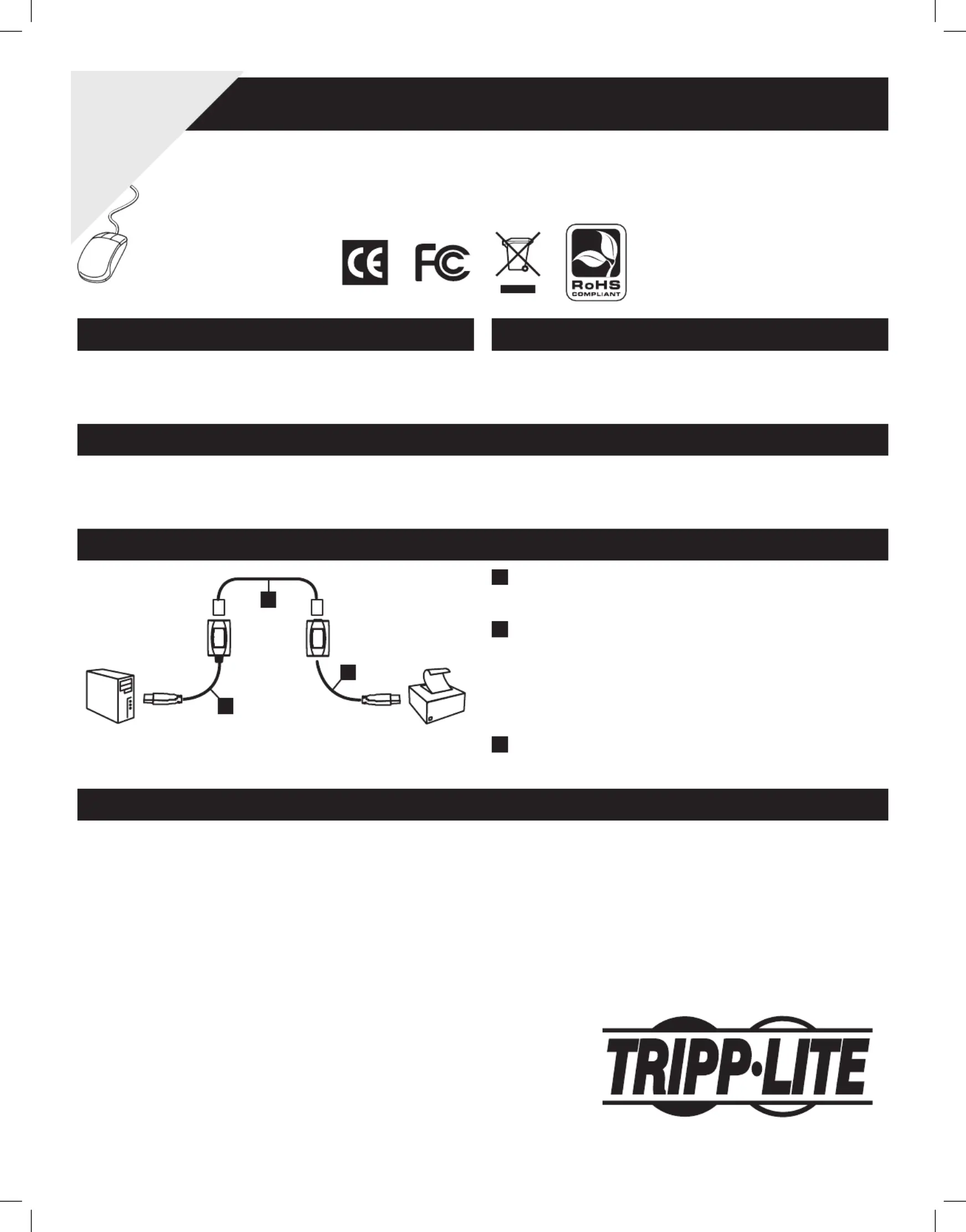

Owner’s Manual

Cat 5e/6 Cable

Local Unit Remote Unit

USB Cable

USB Device

Host Computer/

USB Hub

201011069 • 933015-EN

Warranty

Registration:

chance to win a FREE Tripp Lite

product—www.tripplite.com/warranty

USB Over Cat5 Extender Kit

Models: B202-150, B202-150-WP

Product Features Package Includes

Optional Accessories

Installation

Warranty & Warranty Registration

• Extends a USB 1.1 signal up to 150 ft. (45 m.) from the source

• No software or drivers required

• No external power required

• Local Unit

• Remote Unit

• Wallplate Screws

• Owner’s Manual

• N001-Series Cat5e Snagless Patch Cables

• N002-Series Cat5e Patch Cables

• N201-Series Cat6 Snagless Patch Cables

• N202-Series Cat6 24 AWG Solid Wire Snagless Patch Cables

• U021-Series USB A/B Device Cables

• U022-Series USB A/B Gold Device Cables

Connect the USB A connector on the B202-150 local unit to the

host computer; or, connect the B202-150-WP local unit to the host

computer using a user supplied USB device cable.

Connect the RJ45 ports on the local and remote units using user

supplied Cat5e/6 cabling. The Green LED on the local unit will

illuminate to indicate it is connected to and receiving power from

a host computer. The Orange LED on the local unit will illuminate

to indicate it is connected to the remote unit via Cat5e/6 cable. The

Orange and Green LEDs on the remote unit will illuminate to indicate

it is connected to and receiving power from the local unit.

Connect the remote unit to the USB device using a user supplied USB

device cable.

1-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. TRIPP LITE’s obligation under this warranty

is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from

TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must

be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment which has been damaged by accident,

negligence or misapplication or has been altered or modied in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT

OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specically, TRIPP LITE is not liable for any costs, such as lost prots or revenue, loss

of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

WARRANTY REGISTRATION

Visit www.tripplite.com/warranty today to register the warranty for your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WARNING!

Use of this equipment in life support applications where failure of this equipment can reasonably be expected

to cause the failure of the life support equipment or to signicantly affect its safety or effectiveness is not

recommended. Do not use this equipment in the presence of a ammable anesthetic mixture with air, oxygen or

nitrous oxide.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when

customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)

• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite follows a policy of continuous improvement. Product specications are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

Note: Diagram shows the B202-150. Connections will be the same for the B202-150-WP,

except separate USB A/B device cables will be needed.

201011069 • 933015-EN.indd 1 11/16/2010 11:20:19 AM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	USB Hub
Modell:	B202-150
Opprinnelsesland:	Taiwan
Pakkevekt:	100 g
Produktfarge:	Sort
Pakkedybde:	33 mm
Pakkehøyde:	154.9 mm
Pakkebredde:	121.9 mm
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Bærekraftsertifikater:	RoHS
Harmonisert system (HS)-kode:	84733020
Modell/Type:	Konsollsender og -mottaker
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332157451
Masterkassens (ytterkassens) bruttovekt:	4760 g
Masterkassens (ytterkassens) lengde:	276.9 mm
Produkter per masterkasse (ytterkasse):	40 stykker
Masterkassens (ytterkassens) bredde:	345.4 mm
Masterkassens (ytterkassens) høyde:	368.3 mm
Maksimal overføring avstand:	45.72 m
Kabeltyper som støttes:	Cat5, Cat6
