Owner’s Manual

Español 5

Français 9

Deutsch 13

Italiano 17

Models:

B203-101-PNP

B203-104-PNP

B203-101-PNPINT

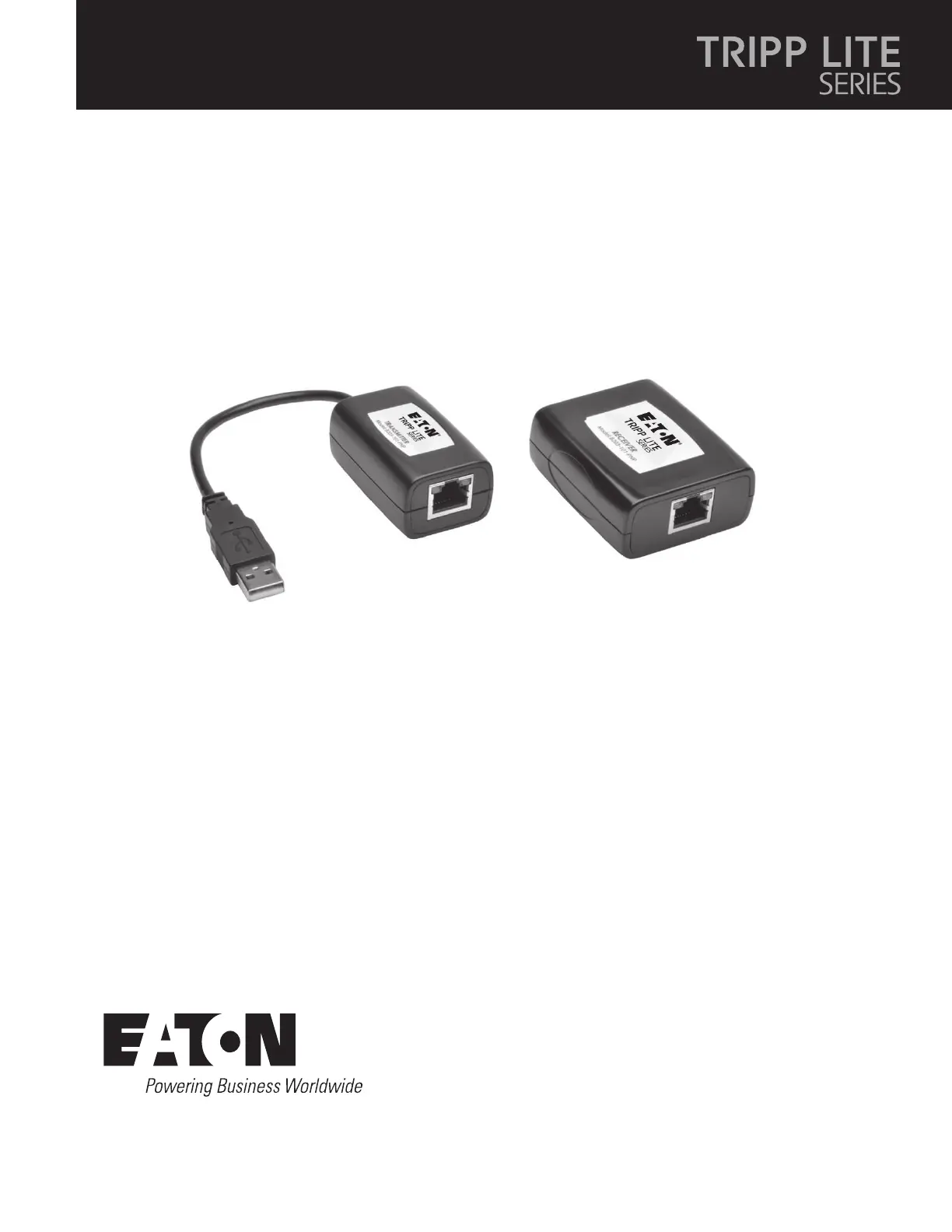

USB over Cat5/6 Extender Kit

Purchased product

may differ from image.

Product Features

Package Includes

Optional Accessories

• B203-101-PNP and B203-101-PNPINT extend a USB signal to a

USB peripheral up to 164 ft. (50 m) away

• B203-104-PNP extends a USB signal to 4 USB peripherals

up to 164 ft. (50 m) away

• Supports USB 2.0 data transfer rates up to 480 Mbps

• Backward compatible with USB 1.1

• Plug-and-play operation with no software required

• Compatible with all major operating systems

B203-101-PNP and B203-104-PNP

• Transmitter

• Receiver

• External Power Supply with NEMA 1-15P Plug and 4.5 ft. Cord (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V 2A)

• Owner’s Manual

B203-101-PNPINT

• Transmitter

• Receiver

• External Power Supply with NEMA 1-15P Plug and 4.5 ft. Cord (Input: 100–240V, 50/60 Hz, 0.35A; Output: 5V 2A)

• International Plug Adapters (4x)

• Owner’s Manual

• N202-Series Cat6 Snagless Ethernet Cables

• U022-Series USB 2.0 Cables

• UR022-Series Reversible USB 2.0 Cables

• U030-Series USB 2.0 5-Pin Mini-B Cables

• UR030-Series Reversible USB 2.0 5-Pin Mini-B Cables

• U050-Series USB 2.0 Micro-B Cables

• UR050-Series Reversible USB 2.0 Micro-B Cables

Installation

Note: Test to make sure the entire installation works properly before pulling cables through ceilings or walls.

1. Connect the built-in USB cable on the transmitter to an available USB port on your computer.

2. Connect the RJ45 ports on the transmitter and receiver with Cat5e/6 cable.

Note: The distance between the transmitter and receiver must be no longer than 164 ft. (50 m).

3. Connect the external power supply to the receiver and plug it into a Surge Protector, Uninterruptible Power Supply (UPS) or

Power Distribution Unit (PDU).

4. Connect a USB device to each available port on the receiver.

Specications

Specication B203-101-PNP B203-104-PNP B203-101-PNPINT

Supported USB Version USB 2.0nnnnnnnnn

Number of Ports 1 4 1

Maximum Extension Distance 164 ft. (50 m)nnnnnnnn

External Power Supply Input: 100-240V, 50/60 Hz, 0.5A;

Output: 5V 2A

Input: 100–240V, 50/60 Hz, 0.35A;

Output: 5V 2A;

4 International Plug Adapters

(North America, U.K., Europe, Australia)

Operating Temperature 32°F to 122°F (0° to 50°C)nnnnnnnnn

Storage Temperature -4°F to 158°F (-20° to 70°C)nnnnnnnnn

Warranty

1-Year Limited Warranty

We warrant our products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. Our obligation under this war-

ranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back

for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modied in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF

THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specically, we are not liable for any costs, such as lost prots or revenue, loss of equipment, loss of

use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-

vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the

user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modications to this equipment not expressly approved by Eaton could void the user’s authority to operate this equipment.

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment

from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)

• Send the new equipment back for recycling when this ultimately becomes waste

Eaton has a policy of continuous improvement. Specications are subject to change without notice.
