7-Port 4K 60 Hz

Multi-Format

Presentation Switch

Model: B310-701-4K

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

Owner’s Manual

Español 17 • Français 33 • Русский 49 • Deutsch 65

20-11-195-933CBD-Book.indb 120-11-195-933CBD-Book.indb 1 7/21/2021 3:10:23 PM7/21/2021 3:10:23 PM

Package Contents

• B310-701-4K Multi-Format Presentation Switch

• IR Remote Control

• IR Receiver Head Cable

• International Power Supply (Input: 100-240V) with North America,

Europe, U.K. and Australia Plug Adapters

• Mounting Hardware

• Seamlessly switch between multiple video sources to an HDMI-compliant

display using the front-panel pushbuttons or the IR remote control.

• Supports HDMI resolutions up to 4096 x 2160 @ 60 Hz 4:4:4;

DisplayPort resolutions up to 3840 x 2160 @ 60 Hz; VGA resolutions up

to 1280 x 768 @ 60 Hz; YPbPr resolutions up to 1920 x 1080 @ 60 Hz;

AV resolutions up to 1280 x 720 @ 60 Hz.

• Both digital, Toslink and coaxial, and analog, R/L, audio outputs work

simultaneously.

• Front-panel USB port supports the connection of U-disk for audio (MP3),

video (MP4, WMA), picture (JPG, BMP) / text (English Text).

• Sends analog video signals to the HD display using the scaler function.

• Memory function stores the last output source and displays it once the

unit is powered on again.

• HDCP 2.2 compliant.

Optional Accessories

Product Features

• P569-XXX-CERT Series High-Speed HDMI Cables

• P580-Series DisplayPort Cables

• P502-Series VGA Coaxial Cables

• A008-Series Component Video Gold Cables

• P312-Series 3.5mm Audio Cables

• A102-Series Toslink Cables

20-11-195-933CBD-Book.indb 220-11-195-933CBD-Book.indb 2 7/21/2021 3:10:24 PM7/21/2021 3:10:24 PM

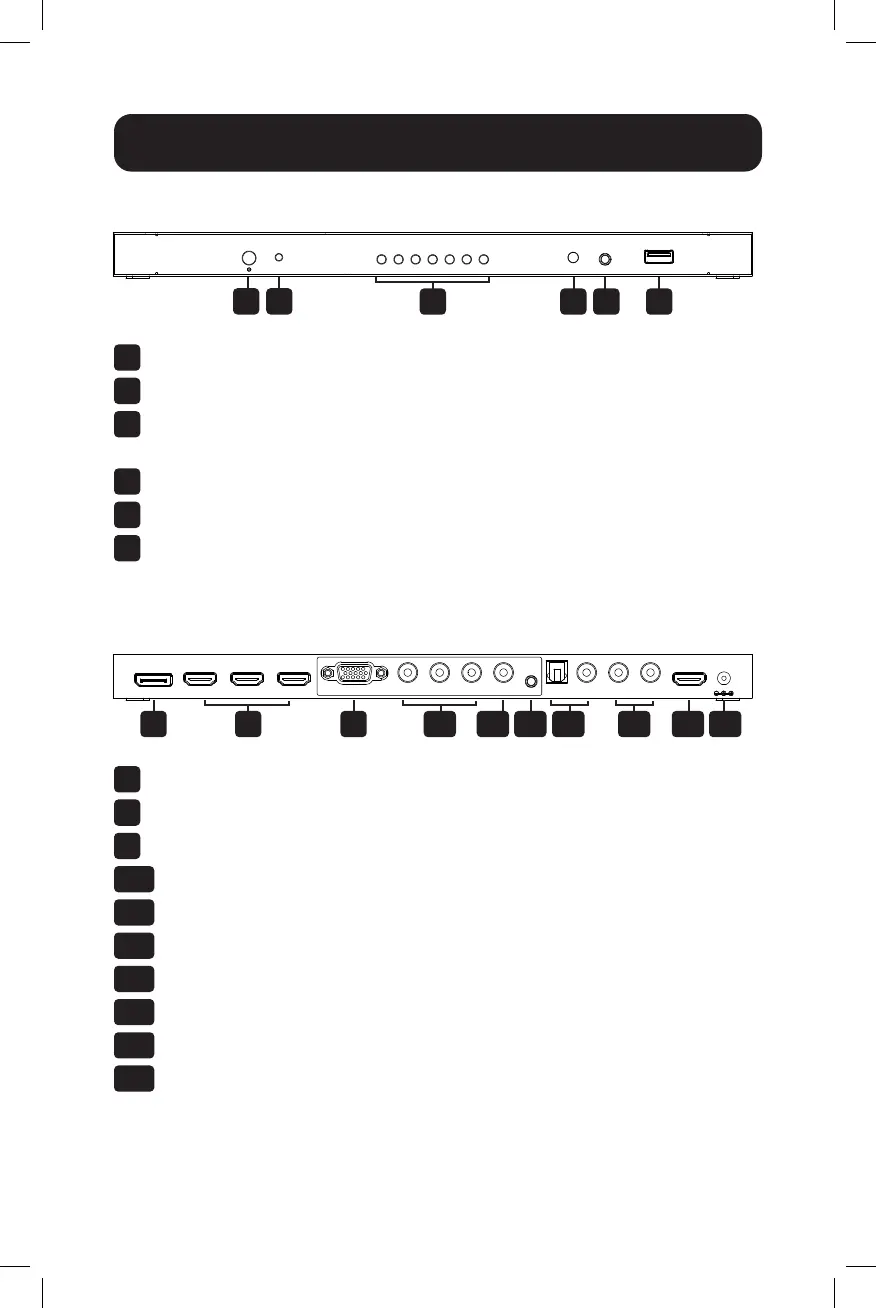

Panel Description

Front Panel:

Power Button: Turns the unit on/off

Power LED: Illuminates red to indicate the unit is powered on

Manual Pushbuttons: Refer to the Operation section for pushbutton

functions

IR Receiver: Receives information from the IR remote control

IR Port: Connector for the IR Receiver Head Cable (included)

USB-A Port: Connector for a USB peripheral device

Rear Panel:

DisplayPort In: Connect a DisplayPort source

HDMI In: Connect up to three HDMI sources

VGA In: Connect a VGA source

YPbPr In: Connect a component source

AV In: Connect a AV source

Audio In: Connect the audio input from the analog video input source

Toslink/Coaxial: Connect either port to a digital audio output device

R/L: Connect to an analog audio output device

HDMI Out: Connect an HDMI-compliant display

DC In: Connect the included external power supply

Power Source Up Down Left Right OK Menu IR IR EXT USB In

DC 5V, 2A

HDMI OutLRCoaxialToslinkAudio InVGA InHDMI In 3HDMI In 2HDMI In 1 AV InY Pr

PbDisplayPort In

Power Source Up Down Left Right OK Menu IR IR EXT USB In

DC 5V, 2A

HDMI OutLRCoaxialToslinkAudio InVGA InHDMI In 3HDMI In 2HDMI In 1 AV InY Pr

PbDisplayPort In

8 10 11 12 13 14 15 167 9

3 4 5 6

20-11-195-933CBD-Book.indb 320-11-195-933CBD-Book.indb 3 7/21/2021 3:10:24 PM7/21/2021 3:10:24 PM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Ikke kategorisert
Modell:	B310-701-4K
Vekt:	510 g
LED-indikatorer:	Kraft indikator
AC-adapter inngangsspenning:	100 - 240 V
Maksimal oppløsning:	4096 x 2160 piksler
Opprinnelsesland:	Vietnam
Pakkevekt:	700 g
Antall HDMI-porter:	4
HDCP:	Ja
Materiale:	Strykejern
Antall DisplayPorts:	1
Antall per pakke:	1 stykker
Fargedybde:	36 bit
HDMI inn:	3
HDCP-versjon:	1.4/2.2
Antall HDMI-utganger:	1
Kabellengde:	1.5 m
Produktfarge:	Sort
HD-type:	4K Ultra HD
Pakkedybde:	65 mm
Pakkehøyde:	353.1 mm
Monteringssett:	Ja
Pakkebredde:	205 mm
AC-adapter utgangsspenning:	5 V
AD-adapter utgangsstrøm:	2 A
Støttede grafikkoppløsninger:	1280 x 720 (HD 720),1280 x 768 (WXGA),1920 x 1080 (HD 1080),3840 x 2160,4096 x 2160
Støttede videofunksjoner:	720p, 1080p, 2160p
Antall VGA (D-Sub)-porter:	1
Komponentvideo (YPbPr/YCbCr) inn:	1
Driftstemperatur (T-T):	0 - 45 °C
Oppbevaringstemperaturomåde (Celsius):	-10 - 80 °C
Lagringsrelativ fuktighet:	5 - 90
Bærekraftsertifikater:	RoHS
Fjernkontroll medfølger:	Ja
Hurtigstartsguide:	Ja
Harmonisert system (HS)-kode:	85176990
DC-inngangskontakt:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 85
Rack-montering:	Ja
Inngangsporter for VGA (D-Sub):	1
Komposittvideo inn/sammensatt video inn:	1
Lydutgang (venstre/høyre):	1
AC-adapter bunt:	Ja
Digital koaksialutgang for lyd:	1
Bærekraftsamsvar:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332256307
Masterkassens (ytterkassens) bruttovekt:	8200 g
Masterkassens (ytterkassens) lengde:	355.1 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	350 mm
Masterkassens (ytterkassens) høyde:	430 mm
Video tilkoblingstype:	HDMI/VGA/DisplayPort
AC-adapter inngangsstrøm:	0.4 A
USB port type:	USB Type-A
AC-adapter frekvens:	50/60 Hz
Extended display identification data (EDID):	Ja
