Table of Contents

1. Important Safety Instructions 2

2. Overview 2

3. Feature Identiﬁcation 3

4. Enclosure Installation 4

4.1 Preparation 4

4.2 Unpacking 4

4.3 Ground Connection 4

5. Wall-Mounting the Enclosure 5

5.1 Mounting the 16-Port Models 5

5.2 Mounting the 32-Port and 5

48-Port Models

6. Enclosure Conﬁguration 6

6.1 Door Locks 6

6.2 Cable Access and Management 6

7. 16-Port USB Charger/Hub 7

7.1 USB Charger/Hub Features 7

7.2 Connecting Devices to the 7

USB Charger/Hub

7.3 Connecting a Computer to the 7

USB Charger/Hub

8. Adjusting Storage Shelf Dividers 8

8.1 Adjusting the 16-Port Models’ 8

Shelf Dividers

8.2 Adjusting the 32-Port and 8

48-Port Models’ Shelf Dividers

9. Speciﬁcations 8

10. Optional Casters and Handle 9

11. Storage and Service 9

12. Warranty and Product Registration 9

Español 10

Français 19

Tablet Charge and Sync Station

16-Port Models: CS16USB, CS16USBW

32-Port Models: CS32USB, CS32USBW

48-Port Models: CS48USB, CS48USBW

Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $50 value!

www.tripplite.com/warranty

1. Important Safety Instructions

2. Overview

SAVE THESE INSTRUCTIONS

This Manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual.

Failure to comply may invalidate the warranty and cause property damage or personal injury.

USB Charger/Hub Unit:

• To remove the USB Charger/Hub from the supply mains, the appliance inlet serves as a disconnect device.

• If any of the following situations arise, schedule an appointment to have your equipment inspected by a service technician:

• The equipment has been exposed to moisture

• The equipment has been dropped and damaged

• The equipment shows obvious signs of breakage

• The equipment is not functioning properly or is not functioning according to the instructions described in this Owner’s Manual

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support

equipment or to significantly affect its safety or effectiveness is not recommended.

• Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

Enclosure Unit:

• Keep the enclosure in a controlled indoor environment away from moisture, temperature extremes, flammable liquids and gasses, conductive

contaminants, dust and direct sunlight.

• Leave adequate space at the front and rear of the enclosure for proper ventilation. Do not block, cover or insert objects into the external ventilation

openings of the enclosure.

• The enclosure is extremely heavy. Use caution when handling the enclosure. Do not attempt to unpack, move or install it unassisted. Use a

mechanical device such as a forklift or pallet jack to move the enclosure in the shipping container.

• Do not place any object on the enclosure, especially containers of liquid, and do not attempt to stack the enclosures.

• Inspect the shipping container and the enclosure for shipping damage. Do not use the enclosure if it is damaged.

• Leave the enclosure in the shipping container until it has been moved as close to the final installation location as possible.

• For wall-mounted installations, first make sure that the wall surface can safely support the combined load of the enclosure, equipment and all

attached hardware and components.

• For floor installations, make sure the unit is placed in a structurally sound area capable of bearing the weight of the enclosure, all equipment that

will be installed, and any other enclosures and/or equipment that will be installed nearby.

• Enclosure must be installed by a qualified technician.

• Use suitable mounting means when installing to cinder block, concrete, drywall or wood studs.

• Use caution when cutting packing materials. The enclosure could be scratched, causing damage not covered by the warranty.

• Save all packing materials for later use. Repacking and shipping the enclosure without the original packing materials may cause product damage

that will void the warranty.

If installing optional CSHANDLEKIT caster and handle kit—see section 10 for caster installation:

• Do not push the enclosure from the side panels to move it. Pushing from the side panels will cause a tipping hazard.

• When rolling the enclosure on its casters, always push it from behind; never pull it toward you.

• A rolling enclosure can cause personal injury and property damage if not properly supervised. If rolling the enclosure down a ramp is required, use

extreme caution. Do not attempt to use ramps that have a slope grade greater than 12%.

Your tablet charging station is an all-in-one solution for storing, syncing and high-speed USB charging for up to 16, 32 or 48 tablets, including iPad

and Android™ models. Housed in a standard 19-inch rack enclosure, your tablet charging station can be conveniently mounted to walls, as well as

configured for desktop or floor placement (with optional rolling casters, sold separately). To prevent theft and device tampering, your tablet charging

station enclosure comes equipped with locking steel doors and side panels.

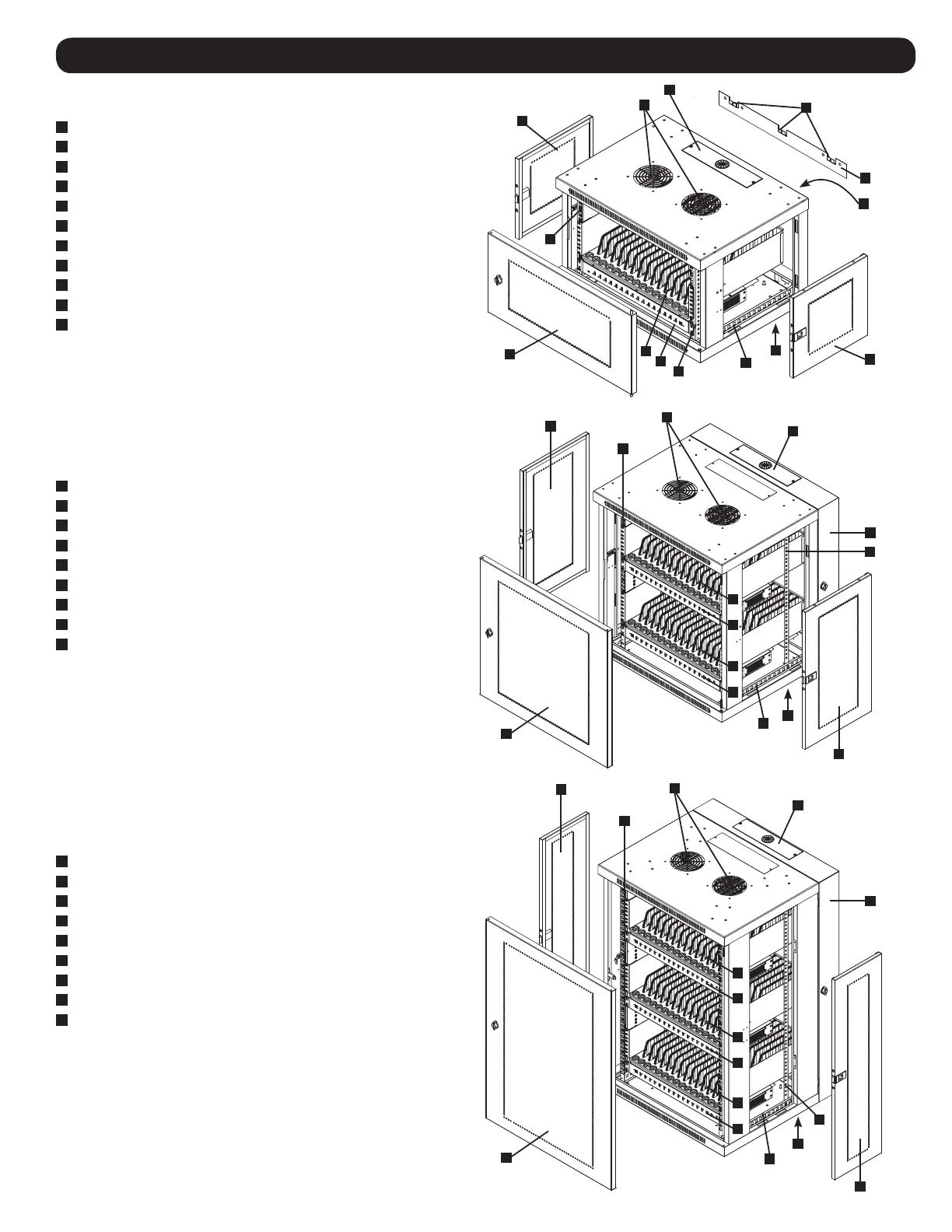

3. Feature Identification

CS16USB(W)

Locking Front Door

Horizontal Rails

Vertical Mounting Rails

Secure Top and Bottom Cable Access Plates

Vents

Locking/Removable Side Panels

Mounting Notches (found on the enclosure’s back panel)

Mounting Plate (separate piece)

Mounting Hooks (found on the Mounting Plate)

1U Rack-Mountable 16-Port USB Charger/Hub

Adjustable 16-tablet Storage Shelf

CS32USB(W)

Locking Rear Door

Locking/Reversible Front Door

Horizontal Rails

Vertical Mounting Rails

Secure Top and Bottom Cable Access Plates

Vents

Locking/Removable Side Panels

1U Rack-Mountable 16-Port USB Charger/Hub

Adjustable 16-tablet Storage Shelf

CS48USB(W)

Locking Rear Door

Locking/Reversible Front Door

Horizontal Rails

Vertical Mounting Rails

Secure Top and Bottom Cable Access Plates

Vents

Locking/Removable Side Panels

1U Rack-Mountable 16-Port USB Charger/Hub

Adjustable 16-tablet Storage Shelf
