Side 1/20

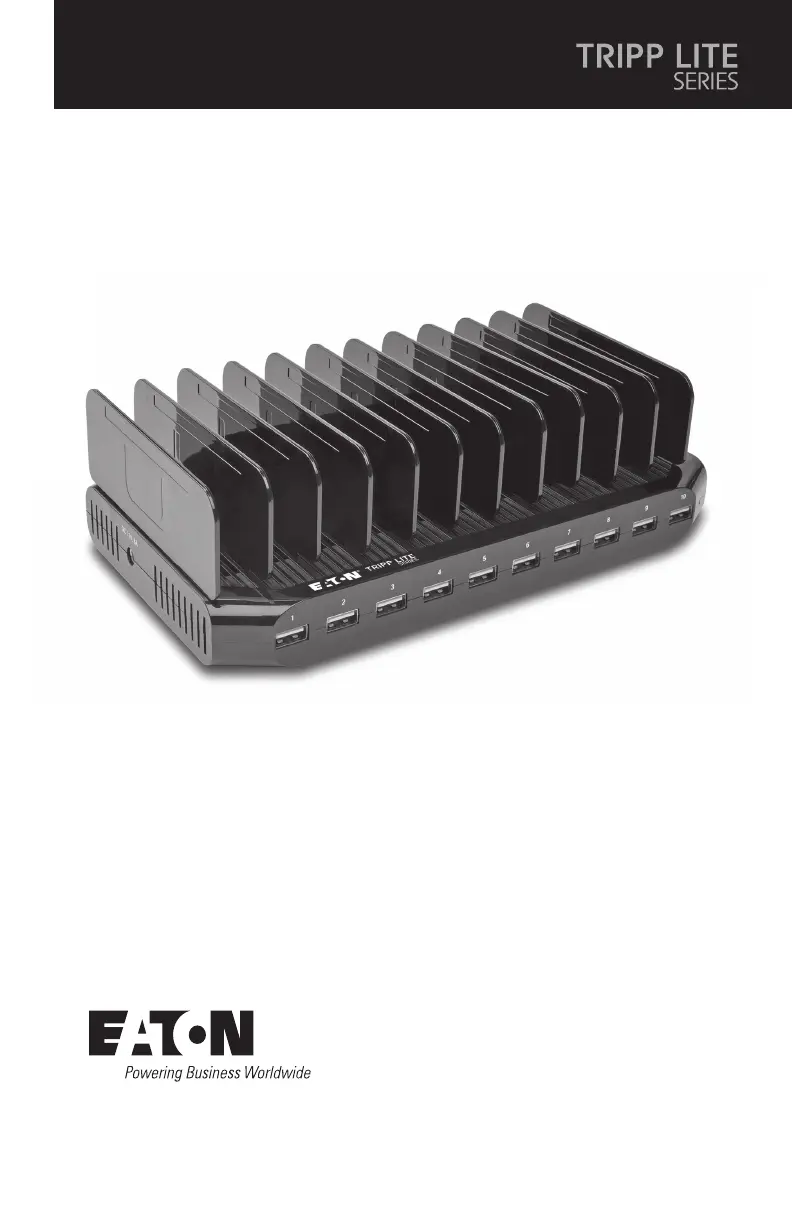

Owner’s Manual

Español 5

Français 9

Deutsch 13

Italiano 17

Purchased product

may differ from image.

Model:

U280-010-ST-CEE

10-Port USB Charging Station with

Adjustable Storage

• U280-010-ST-CEE

• External Power Supply (Input: 100V-240V, 50/60 Hz; 2.0A Max Output: 12V 8A)

• C5 to CEE 7/7 Schuko Power Cord, 0.9 m

• (14) Removable Storage Brackets

• Owner’s Manual

• M100-Series USB to Lightning™ Cables

• M110-Series USB to Apple

30-Pin Cables

• P013-Series C5 to 5-15P Power Cords

• P058-006 C5 to SCHUKO Power Cord

• P060-006 C5 to BS-1363 UK Power Cord

• UR030-Series USB 2.0 5-Pin Mini-B Cables

• UR050-XXX-24G-Series* 0.2 mm

(24 AWG) USB 2.0 Micro-B Cable

• UR05C-Series 20 AWG USB Micro-B Charge-Only Cables

• U326-Series USB 3.0 Micro-B Cables

*XXX represents cable length, with cable models in 0.3 m (001), 0.9 m (003) and 1.8 m (006) lengths.

Package Contents

Optional Accessories

Front Panel

Power LED – Illuminates blue to indicate the unit is connected to a power source using the

external power supply and receiving power.

USB Charging Ports – A single port provides a maximum of 5V 2.4A of power.

• Charges and organizes up to 10 tablets, smartphones and other portable electronic devices

• Operates anywhere AC power is available—no computer required

• BC1.2-compliant, generating up to 5V 2.4A per port for charging battery-intensive devices

• Removable brackets adjust to accommodate number and size of devices being charged

• Protects against overheating, overcurrent and overcharging

Product Features

1122

To charge your USB devices, simply connect the included external power supply between the

U280-010-ST-CEE and a power source, then plug your devices into the available ports. A single

port provides a maximum of 5V 2.4A of power.

Note: In the event that more power is being pulled than the U280-010-ST-CEE can provide, the unit’s over-current

protection will cause the USB ports to cycle on and o, preventing any of the connected devices from being charged.

If this occurs, reduce the load by removing devices until the total load comes within the supported range.

Customize the unit’s storage space according to the number and size of devices being charged.

To install, simply insert a storage bracket into the desired slots.

Removable Storage Brackets

Specications

USB Charging

POWER

SOURCE

DEVICES

Item Description

Ports (x10) USB-A Female

External Power Supply Input: 100-240V, 50/60 Hz; 2.0A Max Output: 12V 8A

USB Output Capable of providing up to 5V 2.4A to a single port.

Operating Temperature 5° to 35°C

Storage Temperature -20° to 50°C

Relative Humidity 20% to 80%

Dimensions [H x W x D] 26 x 238 x 118 mm

Weight 0.3 kg

Regulatory Approvals CE, FCC, RoHS, REACH, WEEE

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	lader for mobile enheter
Modell:	U280-010-ST-CEE
Vekt:	300 g
Bredde:	238 mm
Dybde:	118 mm
Høyde:	25 mm
Strømkildetype:	USB
Opprinnelsesland:	China
Pakkevekt:	1220 g
Antall USB 2.0-porter:	10
Sertifisering:	CC, CE
Lydutgang:	Nei
HDMI:	Nei
Merkekompatibilitet:	Alle merker
Adapter inkludert:	Ja
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Kabellengde:	0.9 m
Produktfarge:	Sort
Pakkedybde:	269.2 mm
Pakkehøyde:	76.2 mm
Pakkebredde:	154.9 mm
Bærekraftsertifikater:	RoHS
Harmonisert system (HS)-kode:	84719000
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332205695
Masterkassens (ytterkassens) bruttovekt:	13560 g
Masterkassens (ytterkassens) lengde:	416.6 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	327.7 mm
Masterkassens (ytterkassens) høyde:	292.1 mm
Dokkingtilkoblingstype:	USB
