Side 1/6

V 1/ 9 Revised by . Li 0 25/201

HC350S HC350S1, Series Power Module Application Guidelines

Series AGSM5396

SAVE THESE INSTRUCTIONS – This manual contains IMPORTANT SAFETY

INSTRUCTIONS for that should be followed during installation and maintenance of the

UPS and batteries.

The HC350S series of hospital cart power modules are designed to and HC350S1

provide AC voltage output power from either utility provided AC input voltage or from

inverting 12VDC power from a sealed lead acid battery. To ensure proper operation the

following guidelines should be observed:

1. The power module can support AC loads up to a maximum of 400VA or 300W.

2. The power module charger is intended to be used with a 12V sealed lead acid

absorbed glass mat (AGM) battery with a 33AH to 66AH rating. Batteries rated

at less than 33AH are not recommended since the charger current of 12A would

reduce the battery cycle life of smaller batteries.

3. Adequate provision for airflow needs to be provided at both the inlet and outlet

vents of the power module. There should be at least 0.5 inches of clear space

on the fan end and on the vented end of the power module. A baffle or air

deflector is recommended at the fan end so that the air intake is raised at least 6

inches above floor level to prevent accumulation inside the power module.dust

4. The power module may be mounted in any orientation. Four 8 32 threaded-

inserts are provided on the surface with the AC input cord to facilitate mounting.

5. voltage The AC input and output connections are made with user supplied cables

to the IEC input and output connectors on the power module. Use only with

approved plug/cord sets according to the equipment electrical ratings. No

external fusing is needed since safe operation is assured by internal non -

replaceable 10A fuses. However, if a customer wishes to prevent the internal

fuses from blowing in the event of an extreme overload, then an external fuse or

circuit breaker rated at 6A to 0A 1 (120VAC models) or 3A to 5A (230V models)

should be provided on the AC voltage input.

6. The 12V battery input is made with a user supplied cable to the Anderson DC

connector on the power module. Proper polarity must be observed. The

recommended wire size is 8 in order to keep the voltage drop in the cable AWG

to less than 0.1V. The length of cable between the battery and the power

module should be less than 30 inches. A user supplied 40A to 50A automotive

style fuse is required in the positive lead of the battery (within 18 inches of the

battery positive terminal).

7. Additional bonding is needed to connect the battery negative terminal to the case

of the power module. The wire (or metal frame of the cart) should be short (less

than 18 inches) and preferably of the same gauge as the other battery wires

V 1/ 9 Revised by . Li 0 25/201

(although a minimum gauge of 16 AWG has been acceptable). This bonding

connection is necessary to prevent internal damage to the power module in the

event of any accidental reversed polarity connections or accidental connections

between the battery positive wiring and the case of the power module.

8. A Remote User Interface (RUI) module must be connected to the power module

using two CAT 5 cables. The COMM1 jacks should be connected together and-

the COMM2 jacks should be connected together. If the cables are not connected

or if they are interchanged, the power module will not operate. The RUI may be

either a Tripp Lite RUI or a customer designed RUI that meets Tripp Lite

specifications.

9. The power module includes a low voltage cutoff (LVC) function that will remove

any load on the battery when the battery is depleted. The LVC level is about

10.5V to assure optimum battery cycle life. If any other DC loads are present in

the system, they need to include their own LVC function in order to prevent

damage to the battery due to over discharge.

10. The power module will not turn on unless connected to a battery that has a

voltage greater than 9.6V. If the battery voltage is less than 9.6V, it is assumed

to be defective and the charger is inhibited in order to prevent possible

outgassing of the battery.

11. The power module reports % B Cattery apacity through its USB port. For

HC350S, this data is most accurate when a 55Ah sealed lead acid absorbed

glass mat (AGM) battery is used. For HC350S1, this data is most accurate when

two 33AH sealed lead acid absorbed glass mat (AGM) batteries are used.

Batteries of other capacities may be used, but the accuracy of the % Battery

Capacity report will be reduced.

12. After connecting a battery to the power module, the power module should be

allowed to charge the battery to full capacity in order to initialize the % Battery

Capacity report and the % Battery Capacity LED’s on the RUI) This will take at( .

least 4 hours, even with fresh battery. The % Battery C apacity report and LEDs

will not be accurate until after the initial charge has been completed. After

initialization, the power module will properly indicate the % Battery Capacity as

the battery is repeatedly discharged and recharged. However, each time the

battery is replaced, the initialization will need to be repeated.

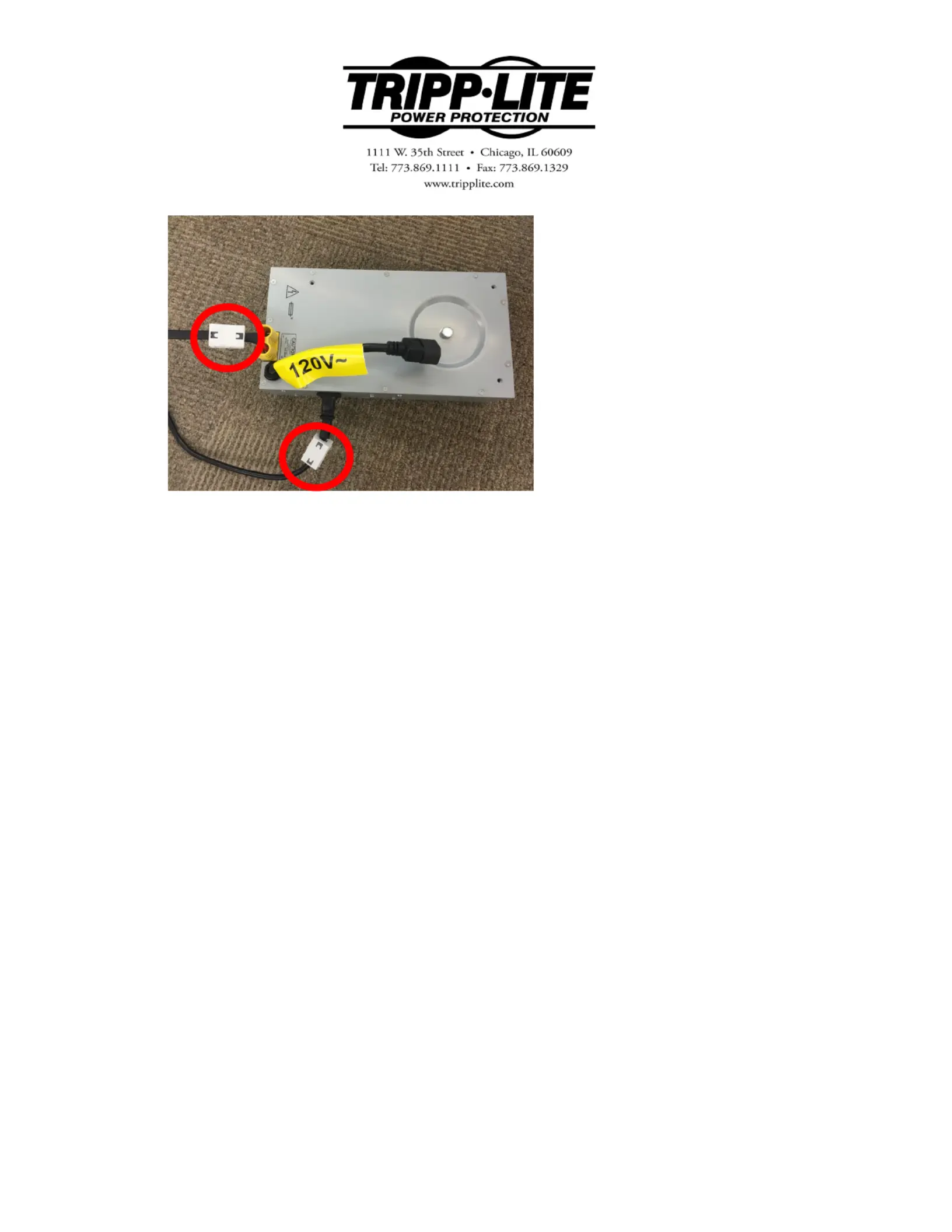

13. For IEC -60601 1 4

edition compliance, external clamps as circled (shipped

loose with the power module) need to be installed to the DC input and the AC

output as shown:

V 1/ 9 Revised by . Li 0 25/201

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	batteri
Modell:	DMBB110V
Produkttype:	Battery system
Vekt:	25850 g
Bredde:	187 mm
Dybde:	169 mm
Høyde:	326 mm
Batterikapasitet:	32 Ah
Opprinnelsesland:	China
Pakkevekt:	27670 g
Sertifisering:	UL1778:2014 R8.15, UL60601-1:2003 R6.03, ANSI/AAMI ES60601-1: 2005+A2:2010, CAN/CSA-C22.2 No.601.1-M90, CAN/CSA-C22.2 No. 60601-1:08, EN55011:2009+A1:2010, EN60601-1-2:2015, FCC PART 15 CLASS A, ICES-00
Materiale:	Stål
Inngangsspenning:	120 V
Utgangseffekt:	300 W
Kompatible produkter:	Tripp Lite DMCS3270XP, Tripp Lite DMCS60100XX
Utgangsstrøm:	120 V
Kompatibilitet:	Tripp Lite DMCS3270XP, DMCS60100XX
Batteriteknologi:	Lithium Iron Phosphate (LiFePO4)
Bølgeform:	Ren sinus
Batteriladetid:	2.8 timer
Strømadapter modell:	HC350SNR
Produktfarge:	Sort
Pakkedybde:	596.9 mm
Pakkehøyde:	577.8 mm
Pakkebredde:	527 mm
Kabler inkludert:	AC
Batterispenning:	12.8 V
Bærekraftsertifikater:	RoHS
Formfaktor:	Tower
Kroppsmateriale:	Stål
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332263909
Masterkassens (ytterkassens) bruttovekt:	27670 g
Masterkassens (ytterkassens) lengde:	596.9 mm
Produkter per masterkasse (ytterkasse):	1 stykker
Masterkassens (ytterkassens) bredde:	527 mm
Masterkassens (ytterkassens) høyde:	577.8 mm
Antall:	1
Batteritid:	90 min
Strømkabelens lengde:	1.82 m
Strømadapter medfølger:	Ja
Strips medfølger:	Ja
Batteriets syklustid:	1500
