Installation Guide

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Español 7 • Français 13 • Русский 19

NEMA-4 Plastic Wi-Fi Access

Point Enclosure

Model: EN1511N4LATCH

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

www.tripplite.com/warranty

Components List

Installation

IMPORTANT:

Ensure you have received all parts according to the component checklist prior to installing. If any parts are

missing or faulty, visit www.tripplite.com/support for service.

x2 x2

x4 x4 x1

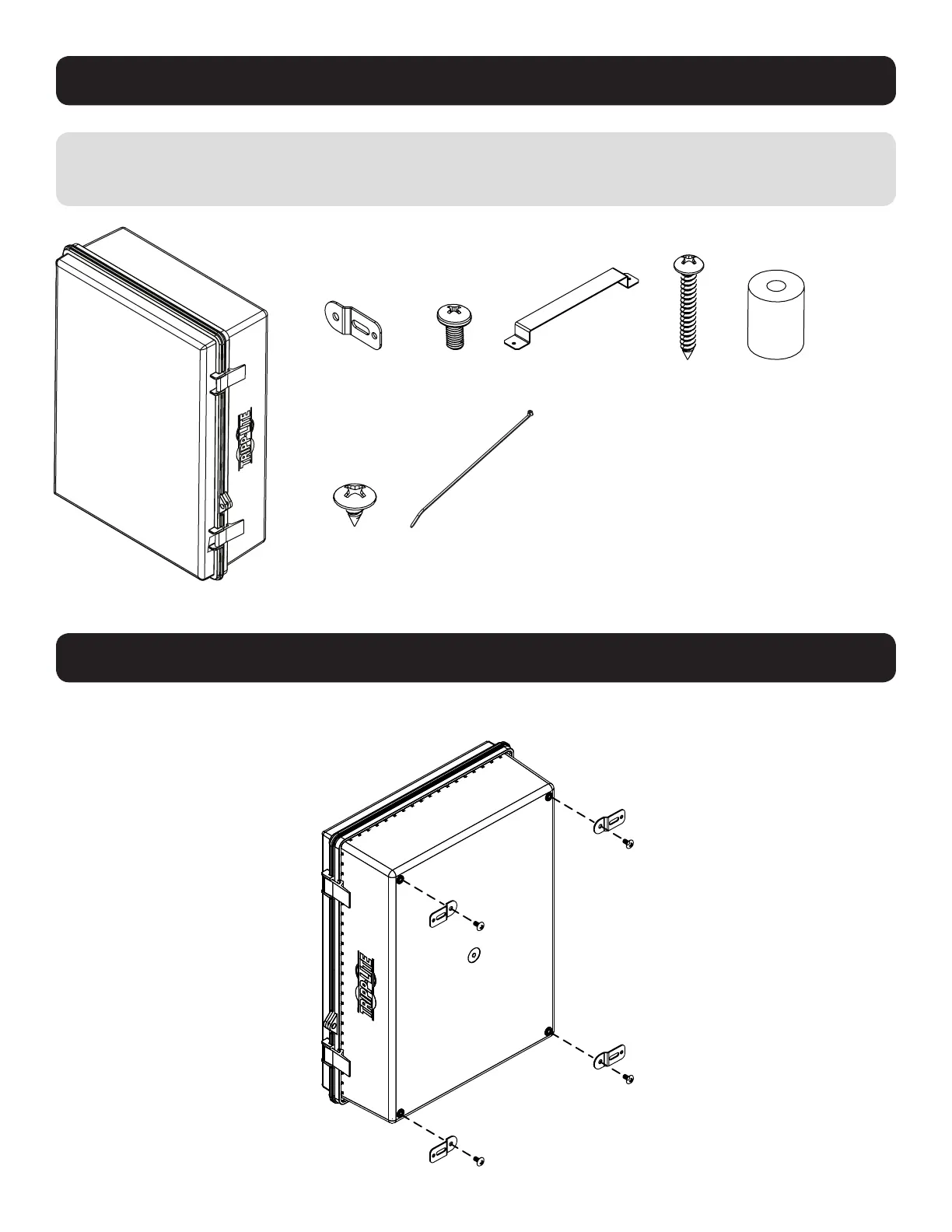

1. Attach Mounting Feet to the Rear of the Enclosure

Installation

• Installers are responsible for providing wall-mounting hardware. Use a minimum of two #10 x 2” or larger screws

(not included) to secure the enclosure in place.

• Make sure mounting screws are anchored into the center of the studs. Use of a stud ﬁnder is highly recommended.

• If there is no stud at the mounting location, it is recommended you use four anchors to secure the enclosure in place.

Due to the weight of the enclosure, plastic expansion wall anchors are not recommended for drywall installations.

Suitable anchors include: threaded drywall anchors, threaded drywall toggles, sleeve-type hollow wall anchors

(a.k.a. molly bolts) or toggle bolts.

• If placing the enclosure over a telecommunications receptacle, remove the wall plate, then fasten the enclosure to the

wall. Once secured, fasten the wall plate over the receptacle.

• If no telecommunications receptacle is available, a surface mount box (or biscuit jack) and equipment cord can be

mounted inside the unit.

• Use an adhesive-backed surface mount box.

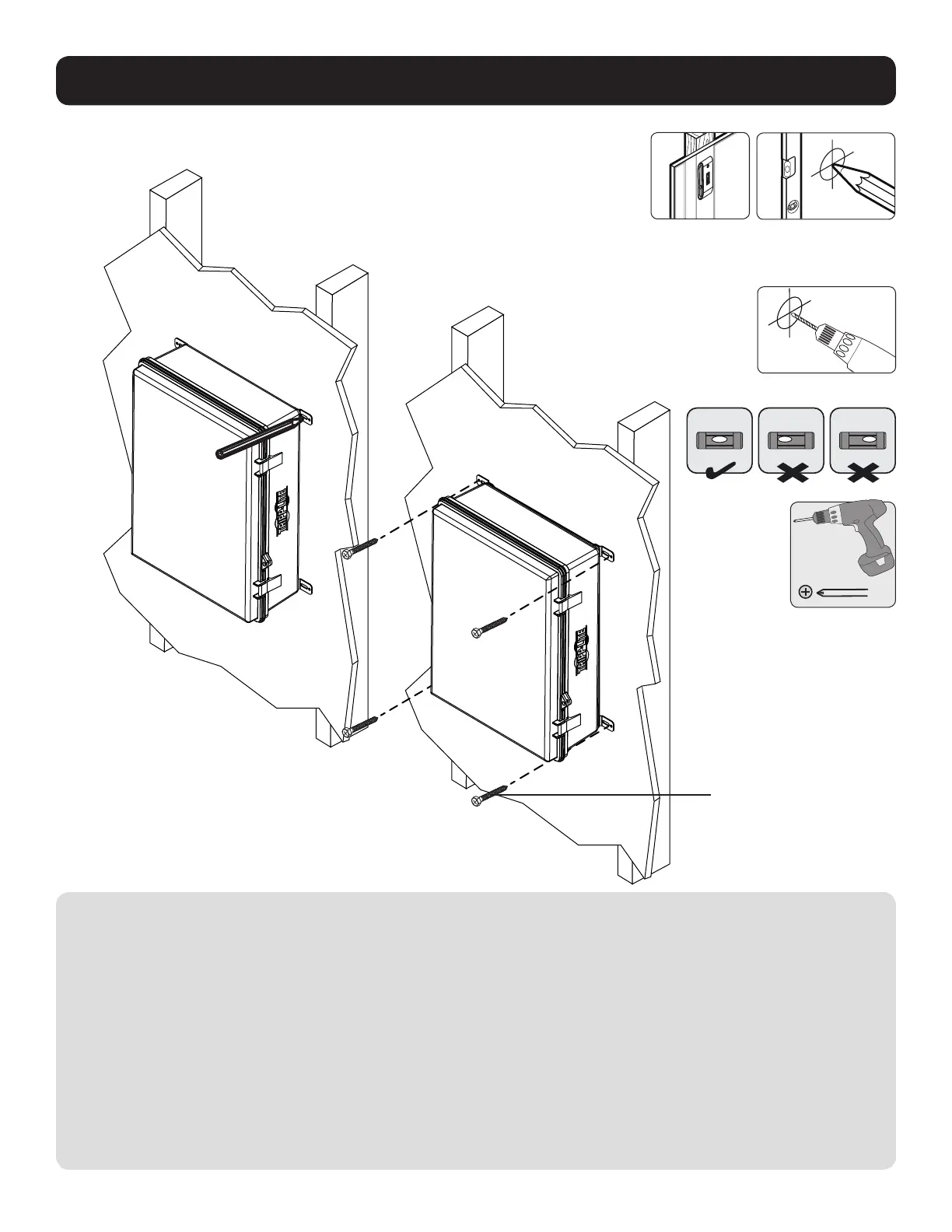

2. Mount Enclosure to Wall

Mark the exact

location of the

mounting holes

Attach the

enclosure onto

the wall

Drill pilot holes

Find a wood stud

location for mounting

the enclosure

(Mounting Hardware

Not Included)

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Ikke kategorisert
Modell:	EN1511N4LATCH
Vekt:	1800 g
Bredde:	282 mm
Dybde:	101.6 mm
Høyde:	123.4 mm
Opprinnelsesland:	China
Pakkevekt:	2330 g
Materiale:	Polykarbonat (PC)
Pakkedybde:	424.9 mm
Pakkehøyde:	156 mm
Pakkebredde:	325.1 mm
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332217841
Masterkassens (ytterkassens) bruttovekt:	15540 g
Masterkassens (ytterkassens) lengde:	870 mm
Produkter per masterkasse (ytterkasse):	8 stykker
Masterkassens (ytterkassens) bredde:	670 mm
Masterkassens (ytterkassens) høyde:	335 mm
Installasjonsalternativer:	Ceiling-mounted, Wall-mounted
NEMA-rangering:	4
