Installation Guide

Wireless Access Point

Right-Angle Wall Bracket

Model: ENBRKT

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Español 5 • Français 9 • 13Русский

17-12-051-9337E0.indb 1 3/9/2018 9:19:49 AM

Components List

Installation

IMPORTANT:

Ensure that you have received all parts according to the component checklist prior to installing. If any parts are missing or

faulty, visit www.tripplite.com/support for service.

(x1) (x1) (x1)(x4) (x2)

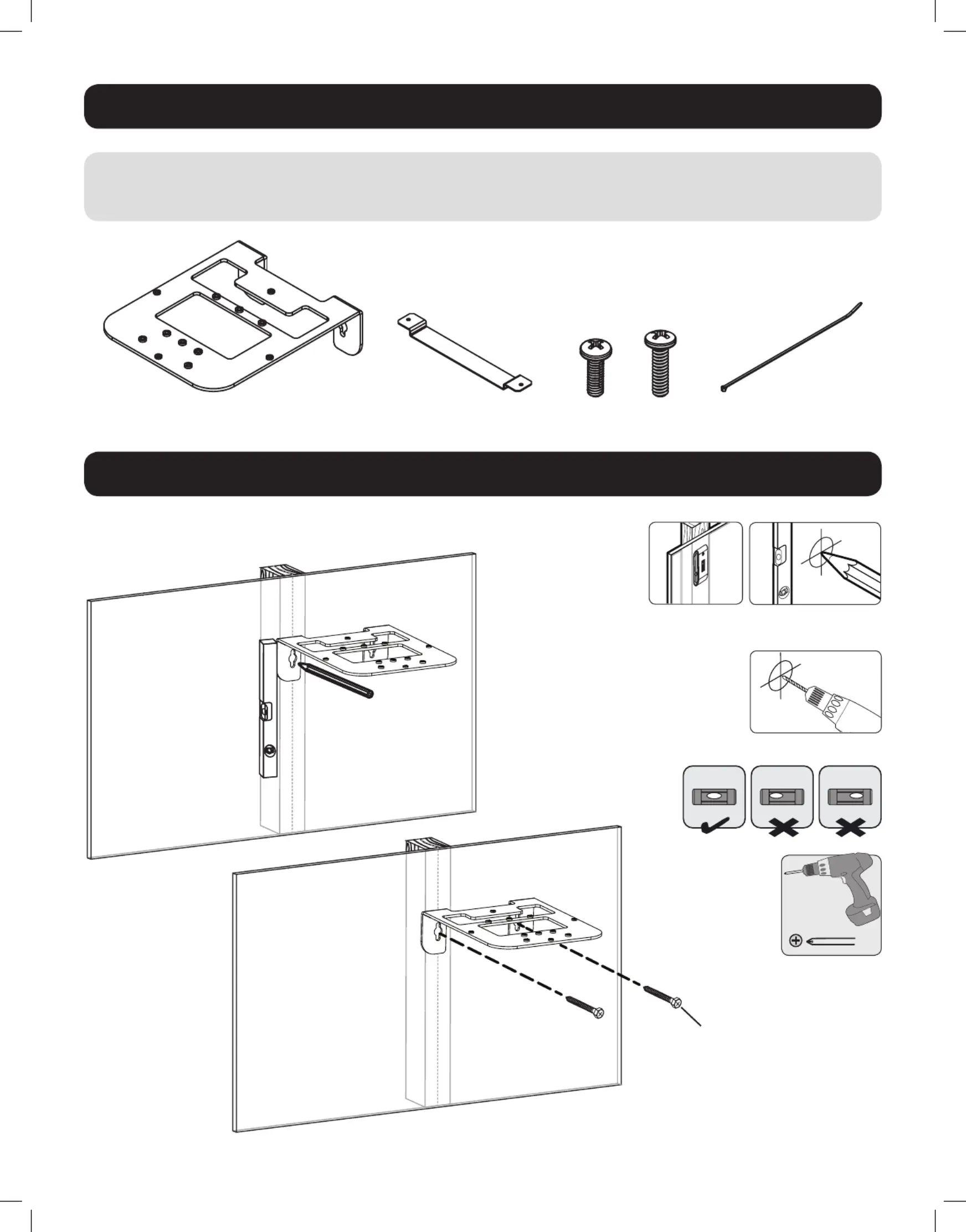

1. Mount Bracket to Wall

Mark the exact location of the

mounting holes

Attach the

bracket onto

the wall

Drill pilot holes

Find a wood stud

location for mounting

the wall mount

(Mounting Hardware

Not Included)

17-12-051-9337E0.indb 2 3/9/2018 9:19:51 AM

Installation

IMPORTANT!

Attach all data and power cables to

the access point prior to attaching to

the mount.

• Installers are responsible for providing wall-mounting hardware. Use a minimum of two 1/4-20 or larger screws (not included) to secure

the mount in place.

• Make sure that mounting screws are anchored into the center of the studs. Use of a stud finder is highly recommended.

• If there is no stud at the mounting location, it is recommended that you use anchors to secure the mount in place. Due to the weight

of the mount, plastic expansion wall anchors are not recommended for drywall installations. Suitable anchors include: threaded drywall

anchors, threaded drywall toggles, sleeve-type hollow wall anchors (a.k.a. molly bolts) or toggle bolts.

2. Run Data and Power Cable (If Required) Through the Mount’s Rear Cutout

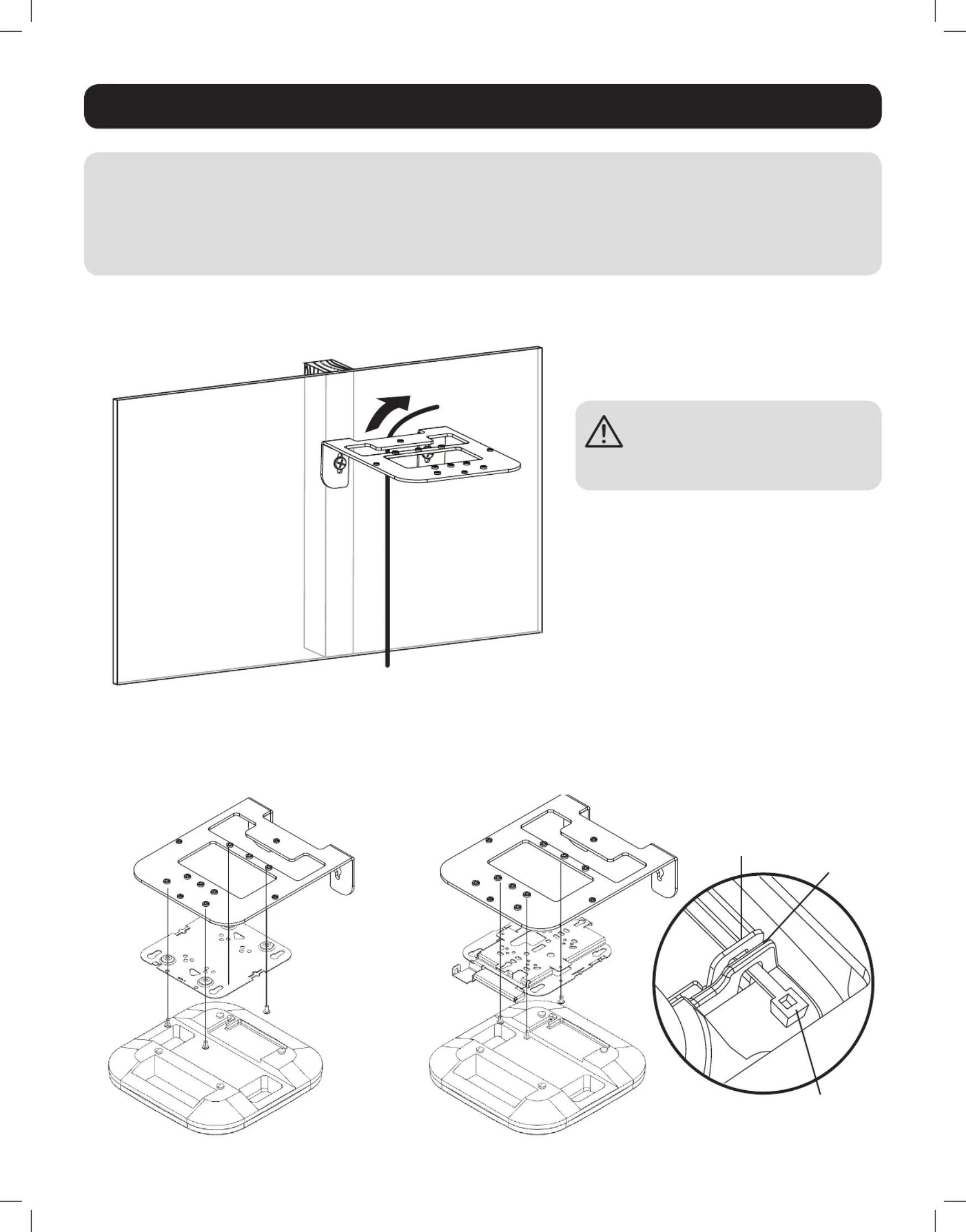

3. Using the Provided Screws, Attach the Access Point to the Mount

3a. Cisco Low-Profile Bracket

(AIR-AP-BRACKET-1)* Installation

3b. Cisco Universal Bracket

(AIR-AP-BRACKET-2)* Installation

AIR-AP-BRACKET-2

Security Tab

Access Point

Security Tab

Zip Tie

(Included)

* Cisco brackets not included.
