Owner’s Manual

Quiet Mobile Power

Congratulations! You've purchased the most advanced, feature-rich Inverter/Charger designed for recreational applications. Tripp Lite

PowerVerter Inverter/Chargers are the quiet alternative to generators—with no fumes, fuel or noise to deal with! You get AC electricity

anywhere and anytime you need it: away from shore power, rolling down the highway, dry camping in majestic back country or overnighting

at a non-electric site. Your Tripp Lite Inverter/Charger provides your appliances, equipment and electronics with utility- or generator-supplied

AC electricity (filtered through premium ISOBAR

surge protection) whenever available. In addition, it automatically powers your craft's 12V

system and recharges your connected battery bank—doing what traditional converter/chargers do. Whenever power blackouts, brownouts or

high voltages occur, your Inverter/Charger automatically switches over to inverting battery output to power connected AC equipment.

Better for Your Equipment Premium Protection Levels

• Built-In ISOBAR

Surge Protection

• Automatic Overload Protection

Ideal Output for All Loads

• Frequency-Controlled Output

• Automatic Load Switching

• Balanced Load Sharing

Better for Your Batteries Faster Battery Recharge

• High-Amp, 3-Stage Battery Charger (adjustable)

Critical Battery Protection

• Battery Charge Conserver (Load Sense)

• Battery Temperature Sensing

• High-Efficiency DC-to-AC Inversion

Better for You Quiet, Simple, Maintenance-Free Operation

• Multi-Function Lights & Switches

• Automatic Generator Starting

• Moisture-Resistant Construction*

Safety 2

Feature Identification 3

Operation 4-5

Configuration 5-7

Battery Selection 8

Mounting 9

Battery Connection 10

AC Input/Output Connection 11

Service/Maintenance 11

Troubleshooting 12

Warranty/Warranty Registration 12

Français 13

PowerVerter

DC-to-AC

Inverter/Charger

Input Output

Invert: 12 VDC 120V, 60 Hz. AC

Charge: 120V, 60 Hz. AC 12 VDC

1111 W. 35th Street, Chicago, IL 60609 USA

Customer Support: (773) 869-1234

www.tripplite.com

* Inverter/Chargers are moisture-resistant, not waterproof.

is a registered trademark of Tripp Lite.

Contents

WARRANTY

REGISTRATION

a chance to win a FREE Tripp Lite

product! www.tripplite.com/warranty

Important Safety Instructions

SAVE THESE INSTRUCTIONS!

This manual contains important instructions and warnings that should be followed during the installation, operation and storage of all Tripp Lite

Inverter/Chargers.

Location Warnings

• Although your Inverter/Charger is moisture resistant, it is NOT waterproof. Flooding the unit with water will cause it to short circuit

and could cause personal injury due to electric shock. Never immerse the unit, and avoid any area where standing water might

accumulate. Mounting should be in the driest location available.

• Leave a minimum of 2" clearance at front and back of the Inverter/Charger for proper ventilation. To avoid automatic Inverter/Charger

shutdown due to overtemperature, any compartment that contains the Inverter/Charger must be properly ventilated with adequate

outside air flow. The heavier the load of connected equipment, the more heat will be generated by the unit.

• Do not mount unit with its front or rear panel facing down (at any angle). Mounting in this manner will seriously inhibit the

unit's internal cooling, eventually causing product damage not covered under warranty.

• Do not install the Inverter/Charger directly near magnetic storage media, as this may result in data corruption.

• Do not install near flammable materials, fuel or chemicals.

Battery Connection Warnings

• Multiple battery systems must be comprised of batteries of identical voltage, age, amp-hour capacity and type.

• Because explosive hydrogen gas can accumulate near batteries if they are not kept well ventilated, your batteries should not be

installed (whether for a mobile or stationary application) in a “dead air” compartment. Ideally, any compartment would have some

ventilation to outside air.

• Sparks may result during final battery connection. Always observe proper polarity as batteries are connected.

• Do not allow objects to contact the two DC input terminals. Do not short or bridge these terminals together. Serious personal injury

or property damage could result.

Equipment Connection Warnings

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the

failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this

equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

• You may experience uneven performance results if you connect a surge suppressor, line conditioner or UPS system to the output of

the Inverter/Charger.

• Tripp Lite recommends wiring the AC output to a GFCI protector (ground fault circuit interrupter).

• The main grounding lug should be connected to the vehicle chassis with an 8 AWG wire (minimum).

Operation Warnings

• Your Inverter/Charger does not require routine maintenance. Do not open the device for any reason. There are no user serviceable parts inside.

• Potentially lethal voltages exist within the Inverter/Charger as long as the battery supply and/or AC input are connected. During any

service work, the battery supply and AC input connection (if any) should therefore be disconnected.

• Do not connect or disconnect batteries while the Inverter/Charger is operating in either inverting or charging mode. Operating Mode

Switch should be in the DC OFF position. Dangerous arcing may result.

Caution: These models have a failsafe AC pass-through feature where the AC output will be live (if AC input is

available) even though the operating mode switch is set to DC OFF.

Caution: If your Inverter/Charger is mounted in a location that lacks proper ventilation, the surface of the metal

enclosure could become hot. Allow to cool before touching. If the Inverter/Charger must be installed in a location

that lacks proper ventilation, mount the unit in such a way that the top of the metal enclosure will not be subjected

to accidental contact during operation.

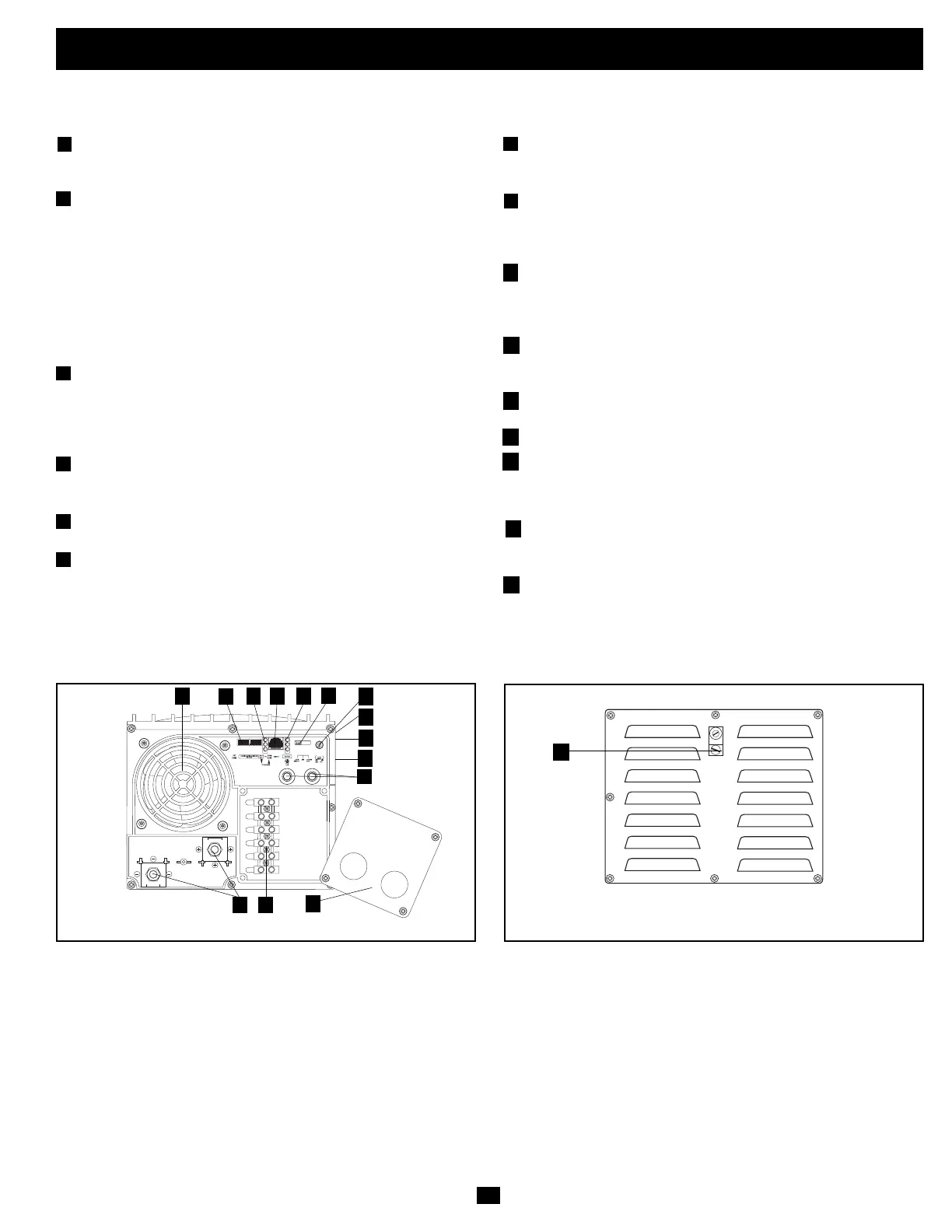

Feature Identification

Identify the premium features on your specific model and quickly locate instructions on how to maximize their use.

Configuration DIP Switches: optimize Inverter/Charger

operation depending on your application. See Configuration

section for setting instructions.

Operating Mode Switch: controls Inverter/Charger operation.

The “AUTO/REMOTE” setting ensures your equipment

receives constant, uninterrupted AC power. It also enables the

Inverter/Charger to be remotely monitored and controlled with

an optional remote module (Tripp Lite model APSRM4, sold

separately). The “CHARGE ONLY” setting allows your batteries

to return to full charge faster by turning the inverter off which

halts battery discharging. The "DC OFF" setting de-energizes

the unit and connects AC OUT to AC IN. See Operation section

for setting instructions.

“LINE”, “INVERT”, “LOAD” LEDs: show whether the

Inverter/Charger is operating from AC line power or DC battery

power. It also warns you if the connected equipment load is too

high. See Operation section for instructions on reading the

indicator lights.

"BATT VOLTAGE" LEDs: these three lights will turn ON in

several sequences to show approximate battery level. See

Operation section for instructions on reading the indicator lights.

DC Power Terminals: connect to your battery terminals. See

Battery Connection section for instructions.

Hardwire AC Input/Output Terminals: securely connect the

Inverter/Charger to vehicle or facility electrical system input and

recommended GFCI protected output. See AC Input/Output

Connection section for instructions.

Resettable Circuit Breakers: protect your Inverter/Charger

against damage due to output overload or charger failure. See

Operation section for resetting instructions.

Remote Control Module Connector: allows remote monitoring

and control with an optional module (Tripp Lite model

APSRM4, sold separately). See remote module owner’s manual

for connection instructions.

Battery Charge Conserver (Load Sense) Dial: conserves

battery power by setting the low-load level at which the

Inverter/Charger’s inverter automatically shuts off. See

Configuration section for setting instructions.

Main Ground Lug: properly grounds the Inverter/Charger to

vehicle grounding system or to earth ground. See Configuration

section for instructions.

Multi-Speed Cooling Fan: quiet, efficient fan prolongs equipment

service life.

Hardwire AC Input/Output Cover Plate

Battery Temperature Sensing Connector: prolongs battery life

by adjusting charge based on battery temperature. Use with

cable (included on select models). See Configuration section for

details.

Automatic Generator Start Connector: automatically cycles

generator based on battery voltage. Use with user-supplied

cable. See Configuration section for details.

Ignition Switch Control Jack: use to connect the Inverter to

your vehicle's ignition switch (with user supplied cable) in order

to automatically control the Inverter with the vehicle's ignition

switch. See Operation section.

HOT IN

NEUTRAL IN

GROUND IN

GROUND OUT

HOT OUT

“FOR USE WITH COPPER WIRE ONLY”

NEUTRAL OUT

24 3

Front View

Rear View

Side Mounted,

Not Shown

Side Mounted,

Not Shown

Note: features and location may vary by model.

Side Mounted,

Not Shown
