Quick Start Guide

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Toolless Cat6/Cat6a

Keystone Jack

Models: N238-001-GY-TF (Cat6)

N238-001-GY-TFA, BHDBT-001-KJ-GY (Cat6a)

Español 3 • Français 5 • Русский 7

20-11-065_9338DC.indd 1

20-11-065_9338DC.indd 120-11-065_9338DC.indd 1 6/22/2021 3:16:45 PM

6/22/2021 3:16:45 PM

6/22/2021 3:16:45 PM6/22/2021 3:16:45 PM

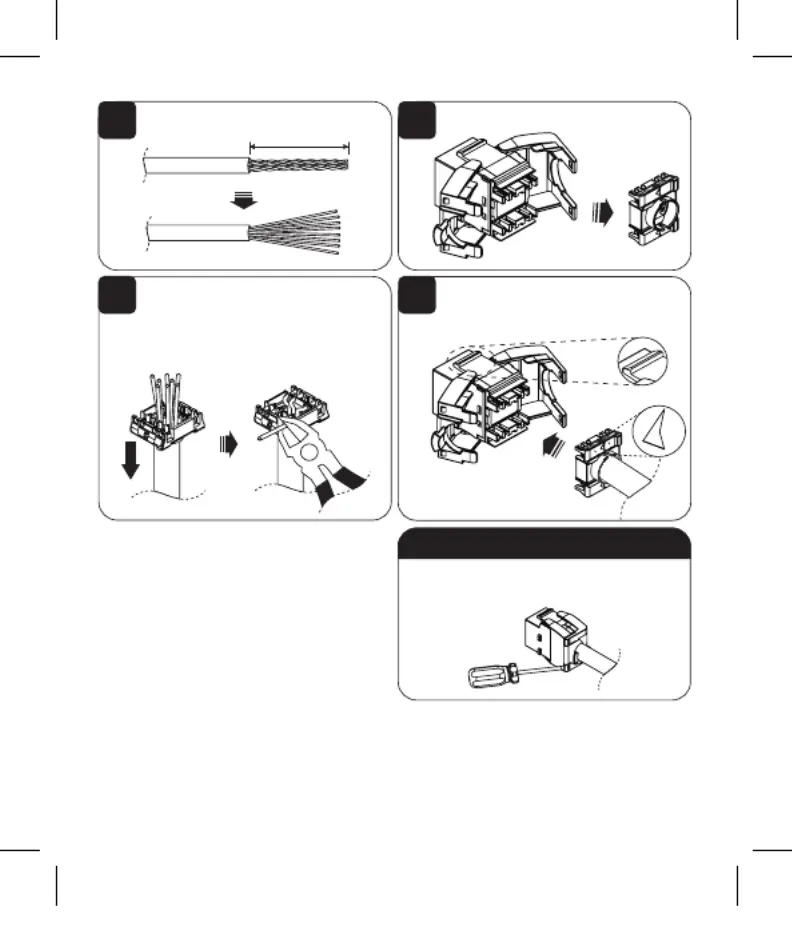

Remove approximately 30 mm of cable

sheath.

Pass the cable end through the wire cap.

Set each color-coded wire to its matching

color position on the cap. Use wire cutters

to remove any excess wire.

Use a ﬂathead screwdriver to

unlock the keystone jack.

30 mm

Wire Cap

Latch Tab UP

To Disconnect:

Release the keystone jack wire cap.

Ensure the wire cap is correctly aligned

with the connector’s latch tab. Press the

wire cap into the jack and lock it in place.

Note: To maximize performance with Power over

Ethernet (PoE) applications, these keystone jacks

are speciﬁcally designed to prevent spark gap

erosion that degrades the plug and jack contacts

over time and can impact data and/or power

transmission capabilities.
